Product Overview

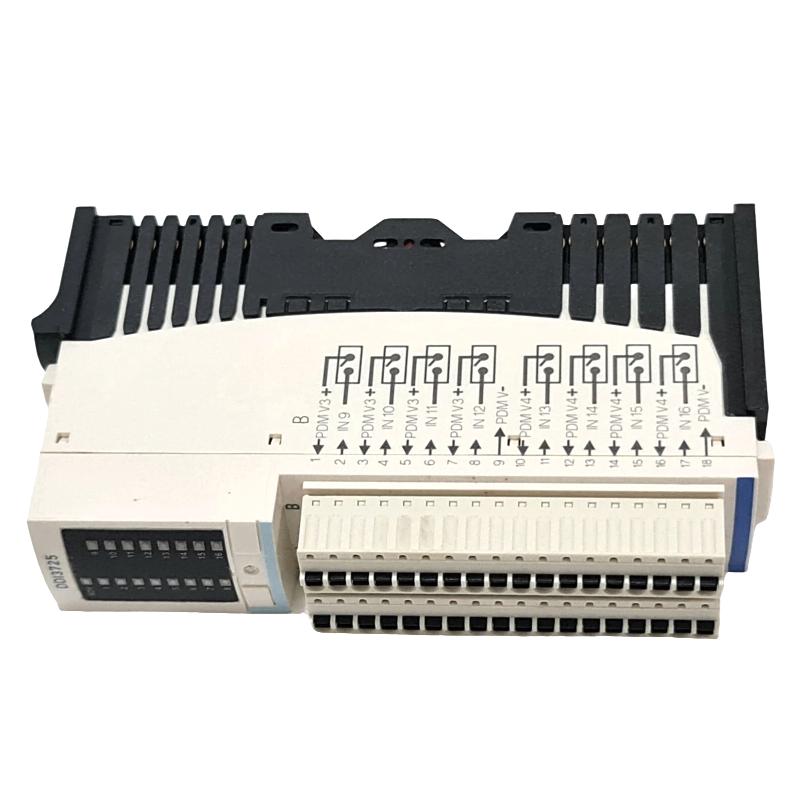

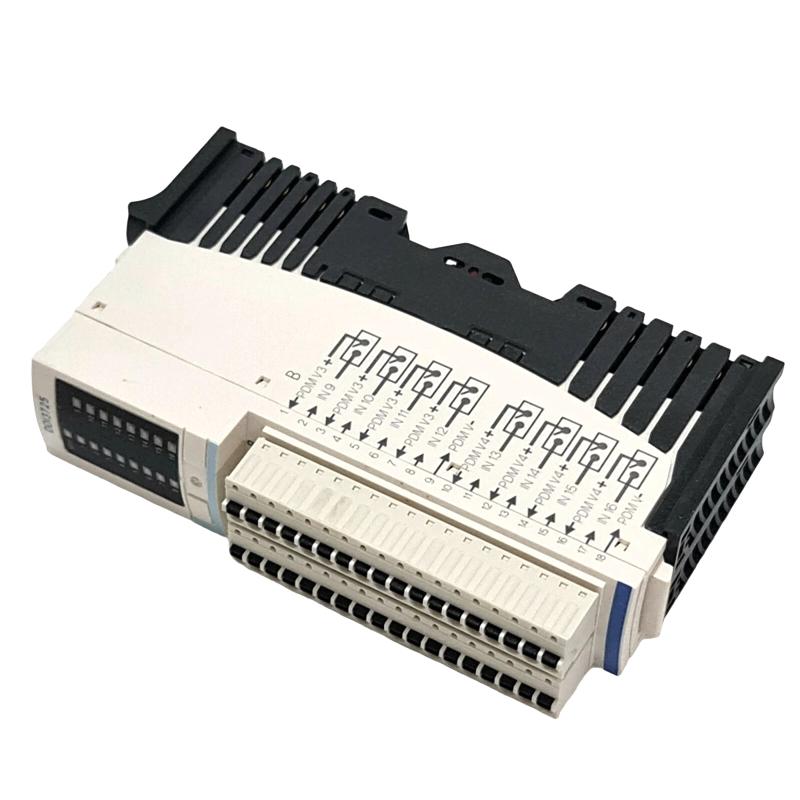

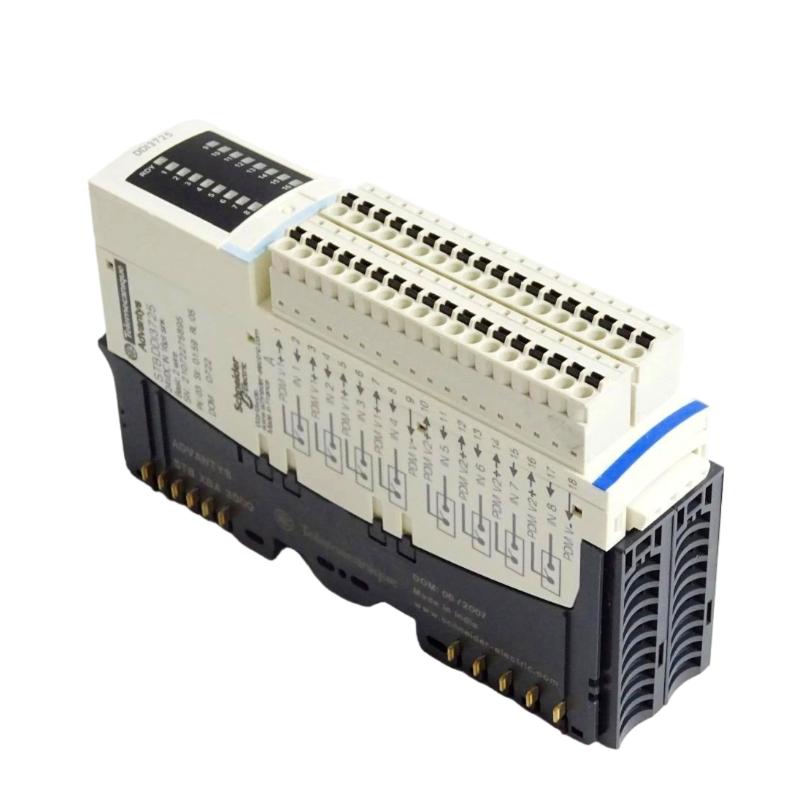

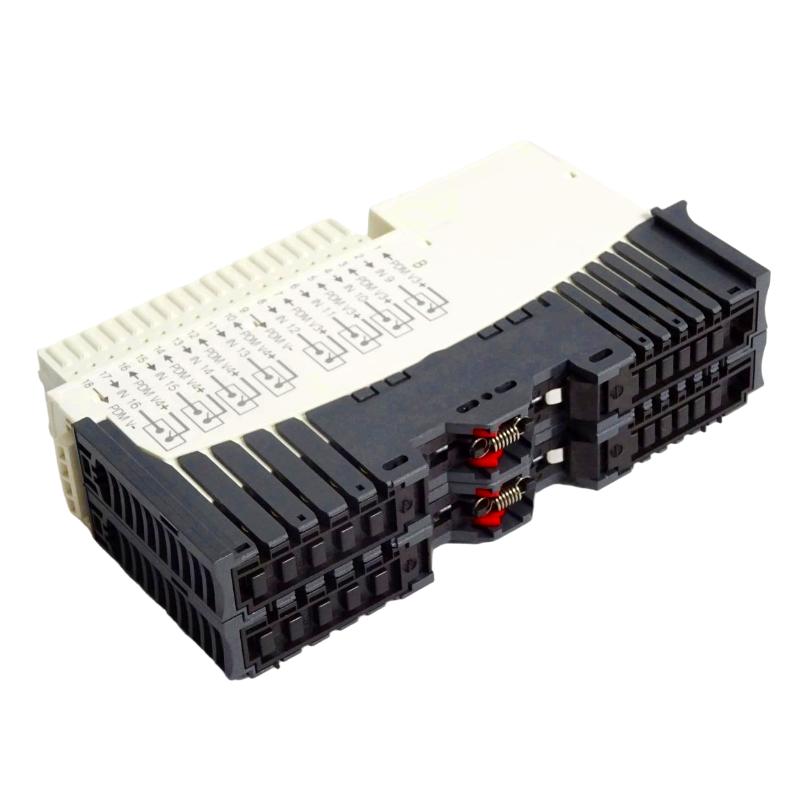

The Schneider STBDDI3725 is a Basic Digital Input Module for the Modicon STB distributed I/O platform. It handles discrete field signals and transfers their ON/OFF status to the island bus, where the network interface module makes the data available to the PLC or PAC controller.
This module fits applications where conventional digital feedback is required from field devices such as push buttons, selector switches, proximity sensors, limit switches, auxiliary contacts, and machine interlocks. Within an STB island, the STBDDI3725 can be grouped with other digital and analog I/O modules according to the machine’s signal requirements.
For replacement work, the module designation should be checked against the existing STB configuration, particularly the I/O type, channel arrangement, wiring accessories, and controller-side configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | STBDDI3725 |
| Product Family | Modicon STB |
| Product Type | Basic Digital Input Module |
| Input Type | Digital |
| Number of Inputs | 8 |
| Signal Type | Discrete ON/OFF |
| Rated Supply Voltage | 24 V DC |
| Module Type | Basic Digital Input |
| Protection Degree | IP20 |
| Dimensions | 65.1 × 18.4 × 125 mm |
| Weight | 0.086 kg |
Product Features
- 8-channel digital input configuration for discrete field signals.
- Intended for 24 V DC industrial control applications.
- Integrates directly into a Modicon STB distributed I/O island.
- Suitable for monitoring switches, sensors, interlocks, and auxiliary contacts.
- Supports compact signal grouping within distributed machine-control panels.
- Can be combined with other STB digital and analog I/O modules.
- Uses the STB island architecture to transfer input states to the controller.
Working Principle
The STBDDI3725 receives discrete electrical states from connected field devices and converts those states into input data for the STB island bus.
A typical signal path is:
Field Device → STBDDI3725 → STB Island Bus → Network Interface Module → PLC / PAC
When a connected field device changes state, the corresponding input channel detects the electrical condition. The module places the channel status on the island bus, allowing the network interface module to exchange the input data with the control system.
In a machine sequence, these inputs can represent conditions such as guard-door status, cylinder position, motor auxiliary feedback, operator commands, or sensor detection. The controller then uses the received states for logic execution, sequencing, alarm handling, and interlock processing.
Role in a Modicon STB Distributed I/O Control Architecture
The STBDDI3725 normally sits at the field I/O level of the control architecture rather than directly performing control logic.
| System Element | Function |
|---|---|
| Field Sensors / Switches | Generate discrete input signals |
| STBDDI3725 | Collects and processes digital input states |
| STB Island Bus | Transfers I/O data between modules |
| Network Interface Module | Exchanges island data with the PLC or PAC |
| PLC / PAC | Executes application logic and sequence control |
| HMI / SCADA | Displays operating states, alarms, and diagnostics |
This arrangement allows field signals to be collected close to the machine while the main controller communicates with the distributed I/O island through the selected network interface.
Industrial Applications
| Application | Typical Input Signals |
|---|---|
| Machine Automation | Push buttons, limit switches, machine-position feedback |
| Material Handling | Photoelectric sensors, proximity switches, conveyor interlocks |
| Packaging Equipment | Product detection, actuator feedback, safety-related status contacts |
| Process Equipment | Valve position contacts, pump auxiliary signals, local switches |
| Motor Control Panels | Contactor auxiliary contacts, running status, fault contacts |
| Assembly Systems | Fixture sensors, cylinder position switches, operator inputs |
Installation and Maintenance
- Confirm that the STBDDI3725 matches the required digital input configuration before installation.
- Verify the field signal voltage and wiring arrangement before connecting the module.
- Install the module correctly on the Modicon STB island base.
- Ensure the island bus connectors are fully seated before powering the system.
- Use appropriate terminal accessories for the field wiring configuration.
- Keep input wiring separated from high-current power conductors where practical.
- Check terminal tightness during commissioning and scheduled maintenance.
- Verify each input channel by operating the corresponding field device.
- Check the PLC or PAC diagnostic interface to confirm that input states are being received correctly.
- If one channel remains permanently ON or OFF, inspect the field device, wiring, terminal connection, and input channel in that order.
- Before replacing the module, record the existing I/O configuration and field wiring arrangement.
- After replacement, verify all input points and machine interlocks before returning the equipment to normal operation.
Related Components
| Component | Function |
|---|---|
| Modicon STB Network Interface Module | Provides the communication link between the STB island and the controller network |
| STB Power Distribution Module | Distributes field and logic power within the island architecture |
| STB Terminal Base | Provides the physical and electrical connection for the I/O module |
| STBXBA2000 | STB island bus support and mounting component |
| STBDDI3420 | Standard digital input module for other discrete input configurations |
| STBDDI3610 | Standard digital input module with a higher channel count |
| STBDDO3600 | Digital output module for discrete actuator control |
| STBAVI1255 | Basic analog input module for voltage signals |
| STBACO1225 | Basic analog output module for current signals |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| STBDDI3420 | Standard Digital Input Module | Useful where a different digital input configuration is required |
| STBDDI3610 | Standard Digital Input Module | Suitable for applications requiring a higher number of digital inputs |
| STBDDO3600 | Digital Output Module | Complements digital inputs when field actuators must also be controlled |
| STBAVI1255 | Basic Analog Input Module | Adds voltage-based analog signal acquisition |
| STBACO1225 | Basic Analog Output Module | Adds current-based analog control signals |
| STBCPS2111 | Auxiliary Power Supply | Supports power distribution within an STB island architecture |
Key Advantages
- 8 discrete input channels in one STB module.
- Suitable for standard 24 V DC field signals.
- Fits the Modicon STB distributed I/O architecture.
- Supports centralized monitoring of distributed machine signals.
- Easy to combine with other STB I/O modules.
- Practical for machine feedback and interlock signal collection.
Technical FAQs
What type of field signals can the STBDDI3725 monitor?
The STBDDI3725 is intended for discrete ON/OFF signals. Typical sources include switches, proximity sensors, limit switches, auxiliary contacts, and other compatible 24 V DC field devices.
How does the STBDDI3725 communicate with the PLC?
The module does not normally connect directly to the PLC. It places its input data on the Modicon STB island bus, and the network interface module handles communication between the island and the PLC or PAC.
What should be checked if one STBDDI3725 input does not change state?
Start with the field device and its wiring, then check the terminal connection and input status in the controller diagnostics. If the field signal is present but the corresponding channel remains unchanged, the input module or its connection should be investigated.
Can the STBDDI3725 be combined with analog I/O modules?
Yes. The Modicon STB architecture allows digital and analog I/O modules to be arranged within the same distributed I/O island, provided that the selected island components and power distribution arrangement support the intended configuration.
