Product Overview

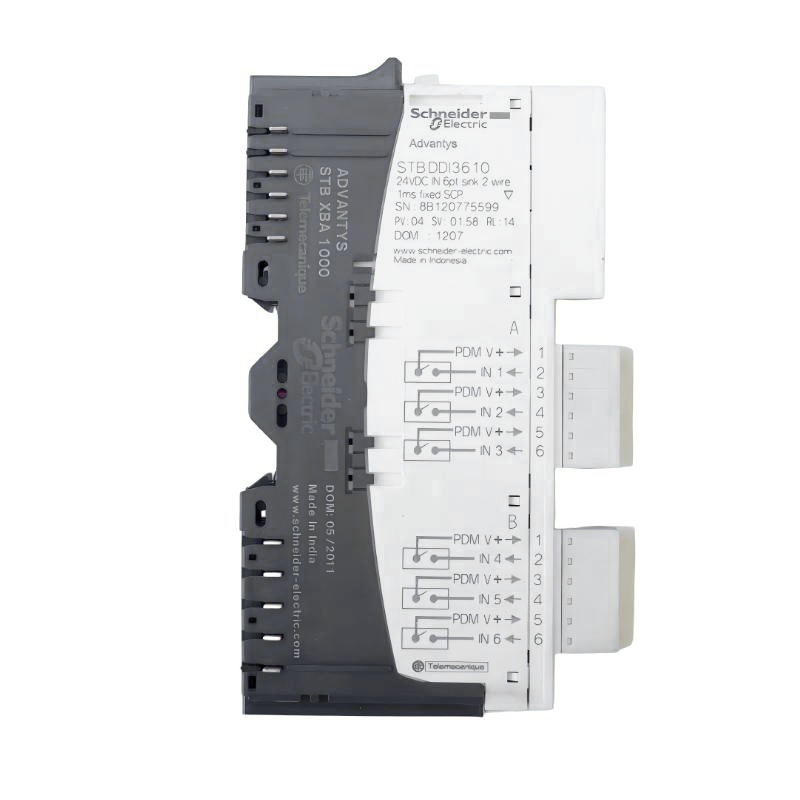

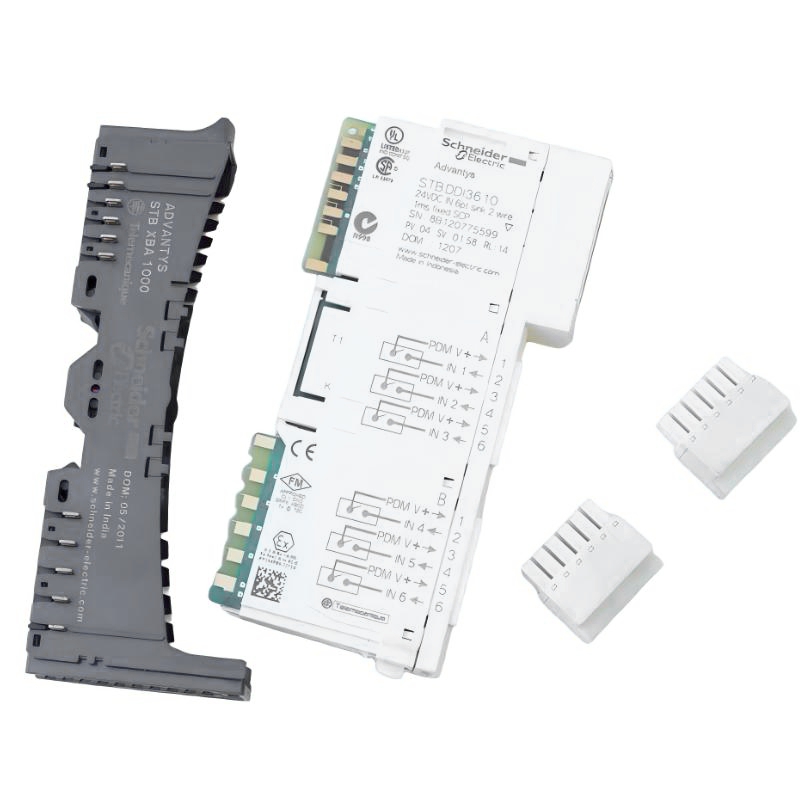

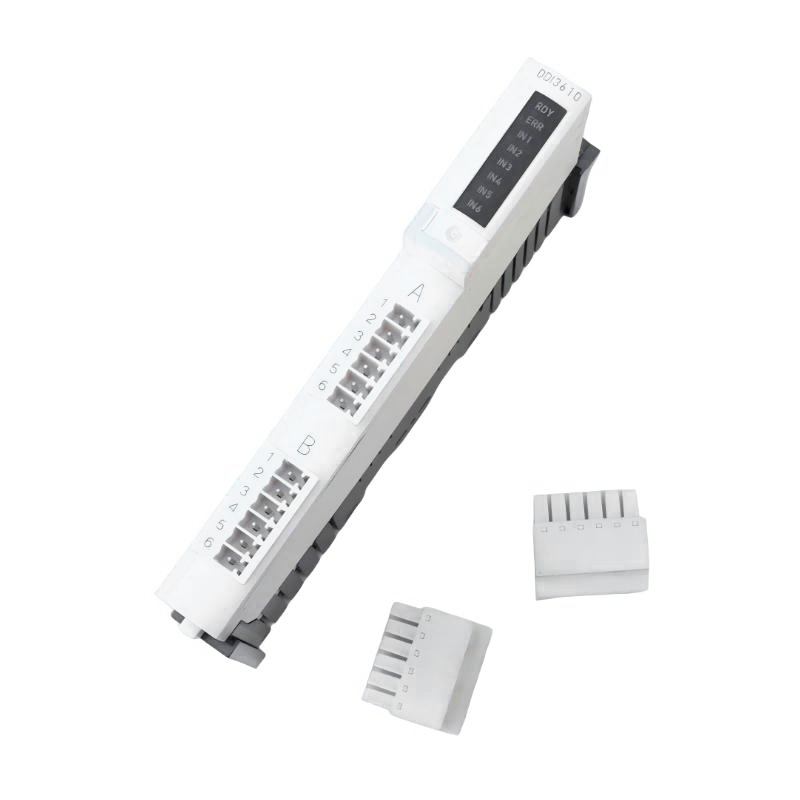

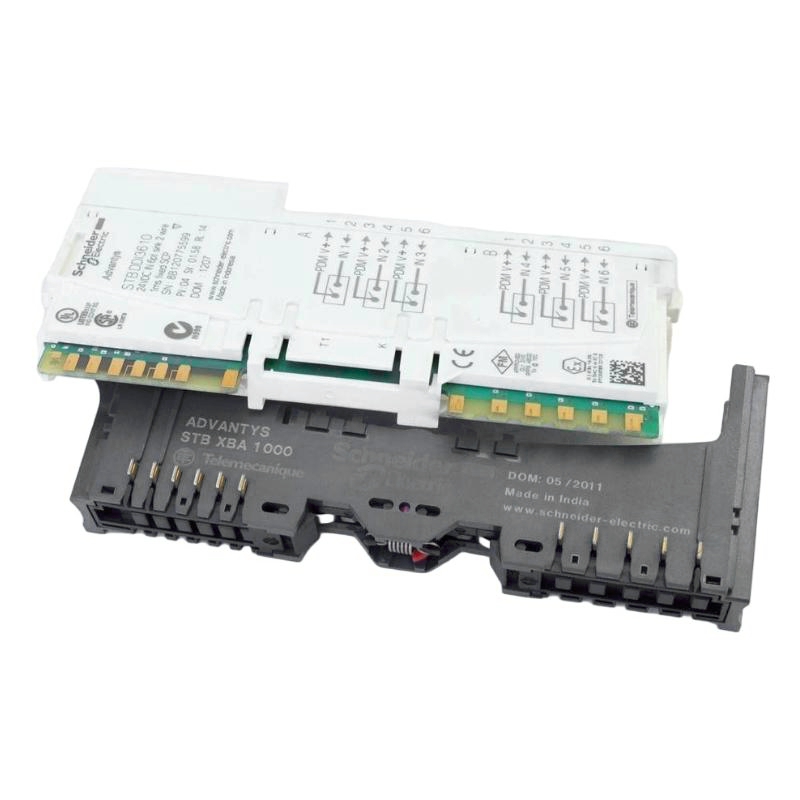

The Schneider STBDDI3610 is a Modicon STB Standard Digital Input Module used to collect discrete signals from field devices and transfer their states to a PLC or PAC through a Modicon STB distributed I/O island. It is suited to machine and process applications where equipment status, position, operator commands, or interlock conditions need to be monitored.
The module provides sixteen digital input channels, allowing multiple discrete devices to be connected within one STB I/O station. Typical inputs include proximity sensors, limit switches, pushbuttons, selector switches, auxiliary contacts, and equipment status signals.
In a distributed control cabinet, the STBDDI3610 receives the field signals locally and passes the resulting input states through the STB island bus. The controller can then use these states for sequence control, permissives, alarms, interlocks, and equipment monitoring.
The module can be combined with other Modicon STB digital and analog I/O modules. This makes it suitable for installations where several types of field signals need to be handled within the same distributed I/O architecture.
For replacement applications, verify the existing STB island configuration, field-device signal requirements, terminal arrangement, channel mapping, and controller configuration before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | STBDDI3610 |
| Product Family | Modicon STB |
| Product Type | Standard Digital Input Module |
| Input Type | Digital |
| Number of Inputs | 16 |
| Signal Type | Discrete ON/OFF |
| Module Type | Standard Digital Input |
| Rated Supply Voltage | 24 V DC |
| Protection Degree | IP20 |
| Dimensions | 65.1 × 18.4 × 125 mm |
| Weight | 0.112 kg |
Product Features
- Modicon STB Standard Digital Input Module
- Model STBDDI3610
- Sixteen digital input channels
- Suitable for discrete field signals
- Supports distributed input signal acquisition
- Suitable for PLC and PAC-based control systems
- Integrates into the Modicon STB distributed I/O platform
- Can monitor sensors, switches, contacts, and equipment status
- Suitable for machine sequencing and interlocking
- Can be combined with analog and digital STB modules
- Useful for distributed machine and process control
- Supports local collection of multiple field input signals
Working Principle
The STBDDI3610 provides the digital signal path between field devices and the control system.
Field Devices → STBDDI3610 → STB Island Bus → Network Interface → PLC / PAC
Each connected field device produces a discrete electrical state. The corresponding input channel detects that state and makes the information available to the STB island.
The PLC or PAC receives the input data and applies it to the control program. A proximity sensor, for example, may indicate that a workpiece has reached a defined position. The controller can use this input to advance the machine sequence, enable another operation, or generate an alarm if the expected condition is not reached.
The same principle applies to limit switches, selector switches, motor auxiliary contacts, safety-related status feedback where appropriate, and other compatible discrete signals.
During troubleshooting, the signal path can be checked in stages: field device, wiring, STBDDI3610 input state, STB communication, and PLC input status. This makes it easier to determine whether an abnormal indication originates from the field device or the control system.
Role in a Modicon STB Distributed I/O Control Architecture
The STBDDI3610 serves as a high-density discrete input interface within a Modicon STB distributed I/O island.
Field Devices → STBDDI3610 → STB Island Bus → NIM → Industrial Network → PLC / PAC
| System Element | Function |
|---|---|
| STBDDI3610 | Acquires sixteen discrete input signals |
| STBXBA2000 | Provides the mounting base for the STB module |
| STBXTS1100 | Provides screw-type field connection |
| STBXTS2100 | Provides spring-clamp field connection |
| STBPDT3100 / STBPDT3105 | Supports power distribution within the STB island |
| Network Interface Module | Exchanges I/O data between the STB island and controller |
| PLC / PAC | Processes input states and executes control logic |
| Proximity Sensor | Provides position or object detection |
| Limit Switch | Provides travel or position feedback |
| Pushbutton / Selector | Provides operator input |
| Auxiliary Contact | Provides equipment operating status |
The exact architecture depends on the STB network interface, power distribution arrangement, connected field devices, and controller configuration.
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Monitoring sensors and machine sequence conditions |
| Manufacturing Lines | Collecting multiple equipment status signals |
| Material Handling | Detecting products, conveyor positions, and machine states |
| Assembly Equipment | Monitoring component presence and process steps |
| Machine Tools | Monitoring limit switches and machine positions |
| Process Control | Acquiring discrete process and equipment states |
| Water Treatment | Monitoring pump, valve, and equipment status |
| Pump Systems | Collecting running, fault, and auxiliary contact signals |
| HVAC Systems | Monitoring equipment status and discrete control conditions |
| Utility Systems | Collecting distributed equipment feedback |
Installation and Maintenance
- Confirm that the replacement module is the correct STBDDI3610 model before installation.
- Verify that each connected field device produces a compatible digital signal.
- Check the field-device supply voltage and wiring before connecting the input channels.
- Confirm the STB mounting base and terminal connector arrangement.
- Verify the 24 V DC power distribution associated with the STB island.
- Check every input conductor for loose terminals, damaged insulation, incorrect polarity, or incorrect channel assignment.
- Confirm that the sixteen physical input channels correspond to the intended PLC or PAC I/O addresses.
- During commissioning, activate each field device individually and verify the corresponding input state in the controller.
- If an input remains inactive, measure the field signal at the associated terminal before replacing the module.
- If the correct field signal reaches the module but the PLC does not display the expected state, check the STB island communication and I/O configuration.
- If multiple channels fail simultaneously, inspect the module power supply, STB island configuration, and network communication before replacing individual field devices.
- Maintain an updated channel assignment list showing the field device connected to each input to simplify future troubleshooting.
Related Components
| Component | Function |
|---|---|
| STBXBA2000 | Mounting base for STB I/O modules |
| STBXTS1100 | Screw-type terminal connector |
| STBXTS2100 | Spring-clamp terminal connector |
| STBPDT3100 | STB power distribution module |
| STBPDT3105 | STB power distribution module |
| Standard NIM | Network interface for the STB island |
| 24 V DC Power Supply | Supplies the required STB power |
| STB Analog Input Modules | Acquire continuous field measurements |
| STB Analog Output Modules | Generate analog control signals |
| STB Digital Output Modules | Control discrete field devices |
| PLC / PAC | Processes digital input states |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider STBDDI3420 | Standard Digital Input Module | Distributed digital input acquisition |
| Schneider STBDDO3600 | Standard Digital Output Module | Distributed digital output control |
| Schneider STBACI1400 | Standard Analog Input Module | Analog current signal acquisition |
| Schneider STBAVI1255 | Basic Analog Input Module | Analog voltage signal acquisition |
| Schneider STBACO0220 | Standard Analog Output Module | Analog current output |
| Schneider STBACO1225 | Basic Analog Output Module | Basic analog output applications |
| Schneider STBXBA2000 | Mounting Base | Mounting STB I/O modules |
| Schneider Modicon STB | Distributed I/O Platform | Modular machine and process I/O |
Key Advantages
- Sixteen digital input channels in one module.
- Suitable for discrete field signal acquisition.
- Supports high-density digital input applications.
- Integrates into the Modicon STB distributed I/O architecture.
- Useful for machine sequencing and interlocking.
- Suitable for sensor and equipment status monitoring.
- Reduces the need for separate distributed input modules when multiple discrete signals are required.
- Suitable for PLC and PAC-based automation systems.
Technical FAQs
What is the difference between the STBDDI3610 and STBDDI3420?
Both are Modicon STB Standard Digital Input Modules, but they are intended for different channel configurations. The STBDDI3610 provides sixteen digital input channels, while the STBDDI3420 provides four. The appropriate model depends on the required number of field input points and the existing STB configuration.
What field devices are commonly connected to the STBDDI3610?
Common applications include proximity sensors, limit switches, pushbuttons, selector switches, auxiliary contacts, and equipment status outputs. The connected device must provide a signal compatible with the module’s input requirements.
How can an individual STBDDI3610 input be tested?
Activate the corresponding field device and check whether the input state changes in the STB system and PLC. If it does not, measure the electrical signal at the input terminal and then inspect the field wiring, channel assignment, and controller configuration.
What should be checked when several STBDDI3610 inputs stop responding?
When several channels fail together, check the common parts of the signal path first, including the module power supply, STB island communication, configuration, and controller-side I/O mapping. If only one channel is affected, the field device and individual wiring are more appropriate places to begin troubleshooting.
