Product Overview

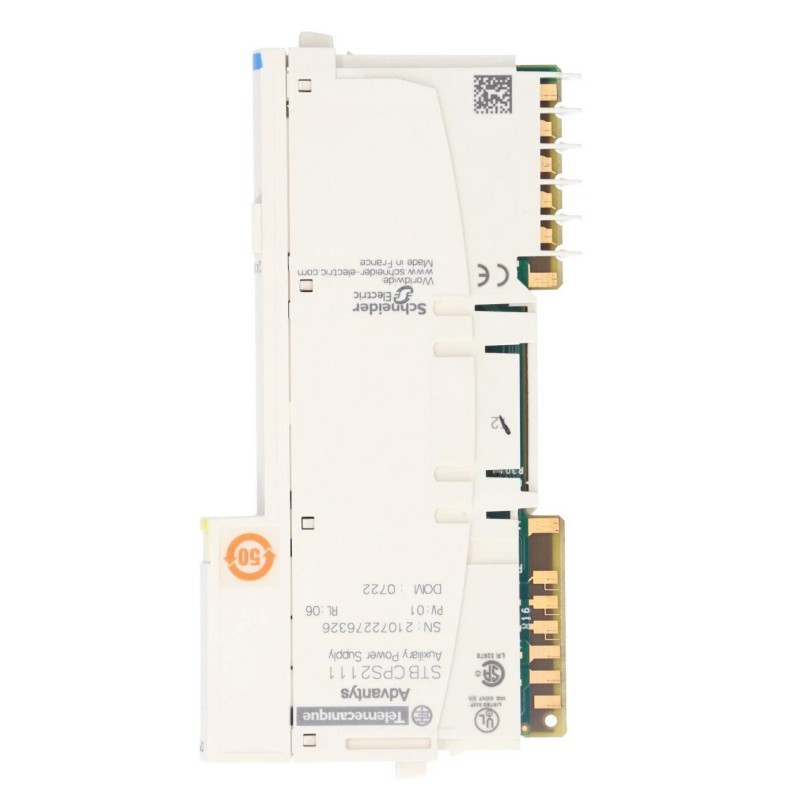

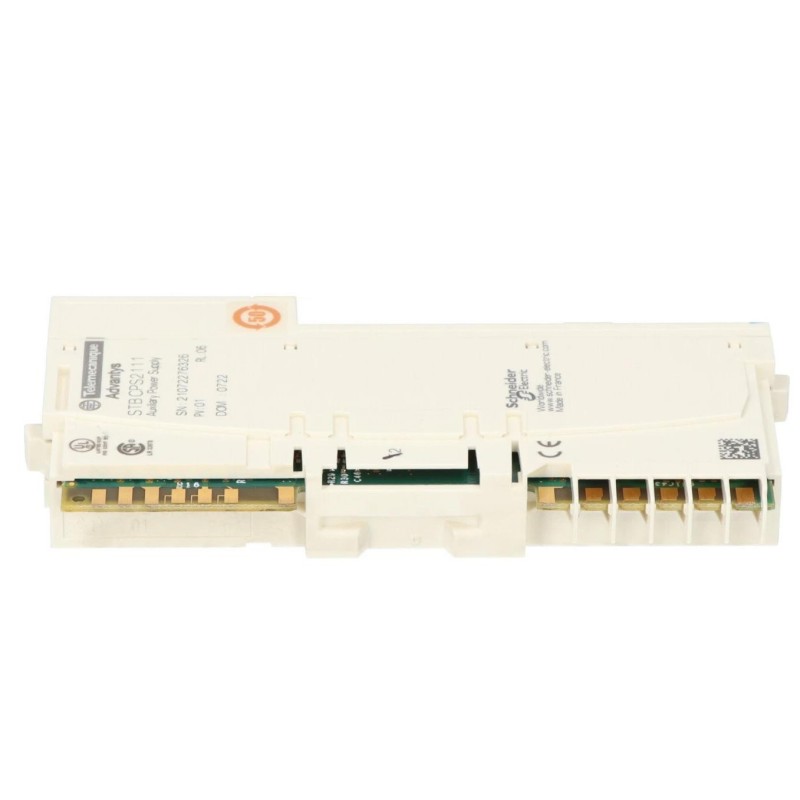

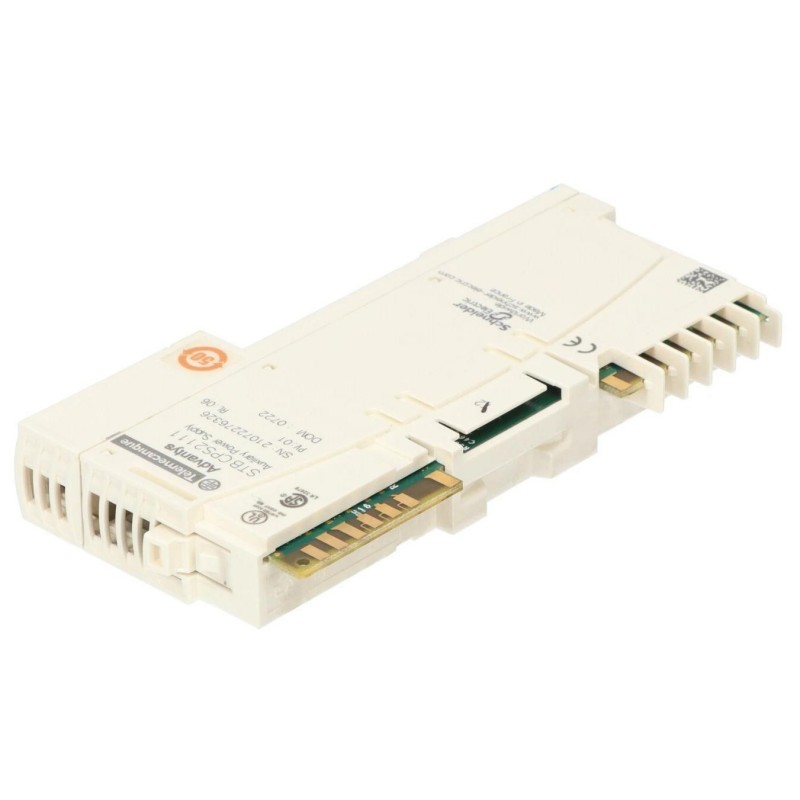

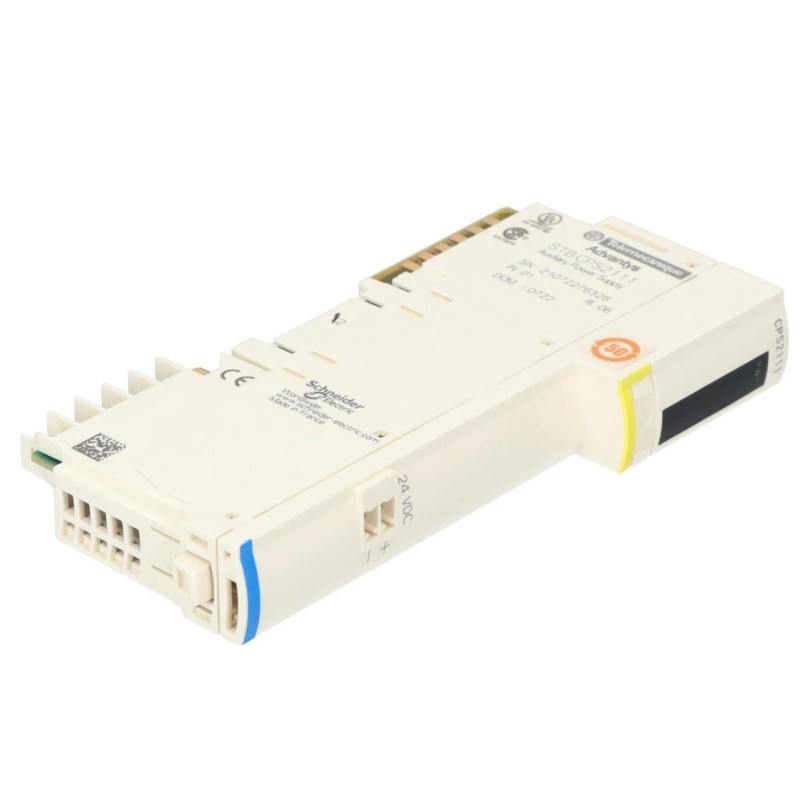

The Schneider STBCPS2111 is a Modicon STB Auxiliary Power Supply used to support power distribution within a Modicon STB distributed I/O island. It is intended for STB architectures where the available power from the main island supply needs to be supplemented for additional I/O modules or island sections.
In a distributed control cabinet, the auxiliary power supply works alongside the STB power distribution architecture rather than performing an I/O signal-processing function. Its role is to help maintain the required power arrangement as the island is expanded with additional modules.
This is particularly useful in larger STB installations containing a combination of digital I/O, analog I/O, network interface, and other modules. Dividing the power requirements across the appropriate STB power sections can simplify island design and help avoid excessive loading on a single power source.
The STBCPS2111 is therefore a system-level component rather than a conventional input or output module. When replacing or expanding an STB island, its position within the power architecture should be considered together with the installed I/O modules, power distribution modules, field loads, and 24 V DC supply arrangement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | STBCPS2111 |
| Product Family | Modicon STB |
| Product Type | Auxiliary Power Supply |
| Module Type | Auxiliary Power Supply |
| Application | Modicon STB distributed I/O island power distribution |
| Power Supply Type | Auxiliary Power Supply |
| Dimensions | 90 × 70 × 60 mm |
| Weight | 0.4 kg |
Product Features
- Modicon STB Auxiliary Power Supply
- Model STBCPS2111
- Supports auxiliary power requirements within an STB island
- Intended for distributed I/O system architectures
- Helps support larger STB configurations
- Works with the Modicon STB power distribution concept
- Suitable for systems containing mixed digital and analog I/O
- Helps separate power requirements between STB island sections
- Integrates with PLC and PAC-based distributed control systems
- Suitable for machine and process automation installations
- Useful for STB system expansion and replacement applications
- Functions as a power-system component rather than an I/O signal module
Working Principle
The STBCPS2111 supports the power architecture of a Modicon STB island.
24 V DC Supply → STB Power Architecture → STBCPS2111 → STB Island Section → I/O Modules
As an STB island grows, the power requirements of the installed modules and associated field devices must be considered as part of the system design. The auxiliary power supply is used where additional power support is required within the island architecture.
Unlike an analog or digital I/O module, the STBCPS2111 does not acquire process signals or generate control commands. Instead, it contributes to the electrical infrastructure that allows the STB I/O system to operate correctly.
During commissioning, the auxiliary power arrangement should be checked together with the main power supply, power distribution modules, I/O configuration, and field wiring. If an STB section shows unexpected communication or module behavior, verifying the relevant power path is an important troubleshooting step.
A properly arranged power architecture also makes system expansion easier because the power requirements of additional I/O modules can be evaluated without treating the entire island as a single undivided load.
Role in a Modicon STB Distributed I/O Control Architecture
The STBCPS2111 supports the electrical power architecture of the STB distributed I/O island.
24 V DC Power Supply → STB Power Distribution → STBCPS2111 → STB I/O Section → Field Devices
| System Element | Function |
|---|---|
| STBCPS2111 | Provides auxiliary power support within the STB architecture |
| STBPDT3100 | Supports STB power distribution |
| STBPDT3105 | Provides an alternative STB power distribution arrangement |
| STBXBA2000 | Provides the mounting base for compatible STB modules |
| Network Interface Module | Connects the STB island with the controller network |
| Analog I/O Modules | Handle continuous field signals |
| Digital I/O Modules | Handle discrete field signals |
| 24 V DC Power Supply | Provides the primary electrical supply for the STB system |
| PLC / PAC | Executes control logic and exchanges I/O data |
| Field Devices | Connect to the distributed STB I/O system |
The actual power architecture depends on the number and type of installed modules, field-device requirements, and the selected STB power distribution arrangement.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Control | Supporting power requirements in distributed STB I/O stations |
| Water Treatment | Power support for distributed control cabinets |
| Manufacturing Lines | Supporting expanded STB I/O configurations |
| Packaging Machinery | Maintaining the power architecture of machine I/O islands |
| HVAC Systems | Supporting distributed I/O sections |
| Pump Systems | Supporting local STB control stations |
| Chemical Processing | Supporting modular distributed I/O installations |
| Utility Systems | Power distribution support for remote I/O sections |
| Process Skids | Supporting mixed analog and digital I/O configurations |
| Machine Automation | Supporting STB island expansion and system integration |
Installation and Maintenance
- Confirm that the replacement unit is the correct STBCPS2111 model before installation.
- Review the existing STB island power architecture before disconnecting the auxiliary supply.
- Switch off the applicable power source and follow the site’s electrical safety procedures before working on the system.
- Check the associated 24 V DC supply and verify that its voltage is within the requirements of the STB installation.
- Confirm the relationship between the STBCPS2111 and the installed power distribution modules.
- Inspect power terminals and connectors for loose connections, damaged conductors, or signs of overheating.
- Verify that the auxiliary power section is correctly connected to the intended STB island section.
- Check the installed I/O modules and field loads when investigating excessive power demand.
- After energizing the system, verify that the affected STB modules start correctly and that no power-related diagnostic conditions are present.
- If an STB section fails to start, check the complete power path before replacing individual I/O modules.
- When expanding an STB island, recalculate the power requirements of the complete configuration and confirm that the power architecture can support the additional load.
- Keep the STB power distribution arrangement documented so future replacement and troubleshooting work can be performed without uncertainty about the supply path.
Related Components
| Component | Function |
|---|---|
| STBPDT3100 | STB power distribution module |
| STBPDT3105 | STB power distribution module |
| STBXBA2000 | Mounting base for STB I/O modules |
| STBXTS1100 | Screw-type terminal connector |
| STBXTS2100 | Spring-clamp terminal connector |
| STB Network Interface Module | Provides communication between the STB island and controller |
| 24 V DC Power Supply | Supplies power to the STB system |
| STB Analog Input Modules | Acquire analog field signals |
| STB Analog Output Modules | Generate analog field commands |
| STB Digital I/O Modules | Handle discrete field signals |
| PLC / PAC | Executes the control application |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider STBCPS2111 | Auxiliary Power Supply | Supporting STB island power requirements |
| Schneider STBPDT3100 | Power Distribution Module | STB island power distribution |
| Schneider STBPDT3105 | Power Distribution Module | Alternative STB power distribution |
| Schneider STBXBA2000 | Mounting Base | Mounting STB I/O modules |
| Schneider STBACI1400 | Standard Analog Input Module | Analog current signal acquisition |
| Schneider STBACO0220 | Standard Analog Output Module | Analog current signal output |
| Schneider STBACO1225 | Basic Analog Output Module | Analog current output applications |
| Schneider STBAVI1255 | Basic Analog Input Module | Analog voltage signal acquisition |
| Schneider Modicon STB | Distributed I/O Platform | Modular machine and process I/O |
Key Advantages
- Supports auxiliary power requirements in Modicon STB installations.
- Suitable for distributed I/O island architectures.
- Helps accommodate larger STB configurations.
- Supports modular power distribution.
- Can be used with mixed analog and digital I/O systems.
- Useful for STB island expansion projects.
- Suitable for machine and process automation systems.
- Simplifies power planning for distributed I/O sections.
Technical FAQs
When is an auxiliary power supply needed in a Modicon STB island?
An auxiliary power supply is considered when the power requirements of the STB island cannot be handled by the existing power arrangement or when the system architecture requires additional power support for a particular section. The actual requirement depends on the installed modules and system configuration.
Is the STBCPS2111 an I/O module?
No. The STBCPS2111 is an Auxiliary Power Supply rather than a digital or analog I/O module. It supports the electrical infrastructure of the STB island instead of processing field input or output signals.
What should be checked if an STB section does not start after installation?
First check the 24 V DC supply, power distribution path, terminal connections, and the relationship between the auxiliary power supply and the affected STB section. If the power path is correct, the next steps should include checking the individual module configuration and network diagnostics.
Can the STBCPS2111 be used when expanding an existing STB island?
It can be considered as part of the power architecture when an existing STB island is expanded. Before adding modules, the complete power requirement should be reviewed, including the existing power distribution, added I/O modules, and connected field loads.
