- Schneider
- STBACI0320K
- Standard Analog Input Kit
- France
- 70 × 18.4 × 128.3 mm
- 0.1 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

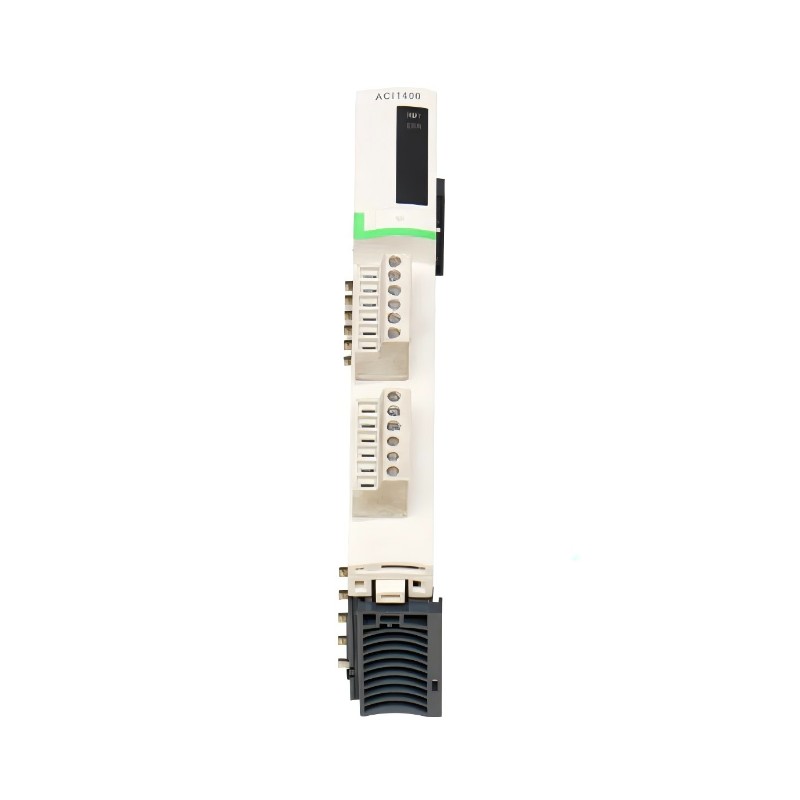

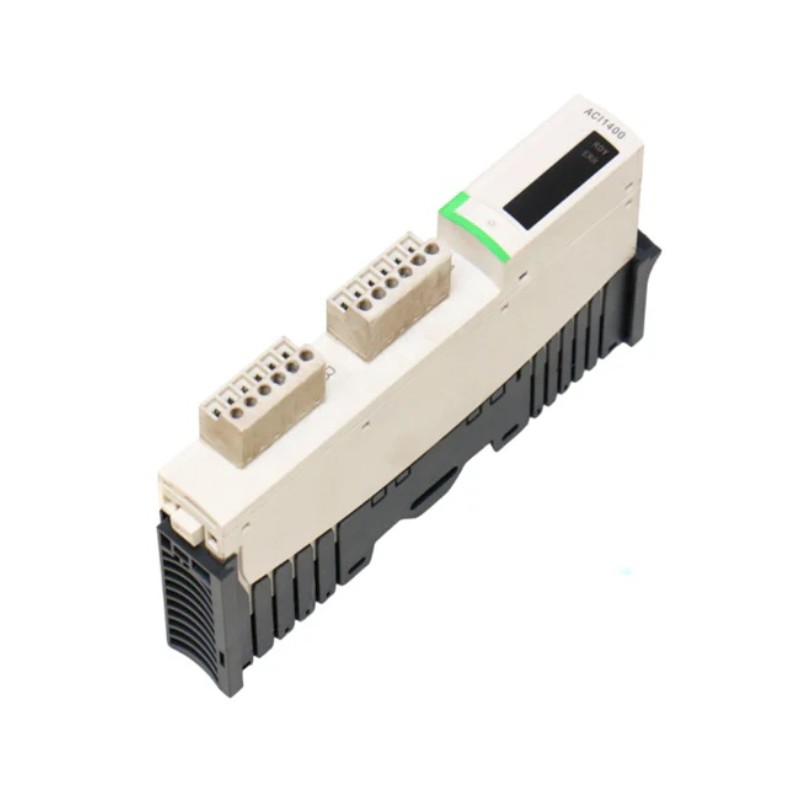

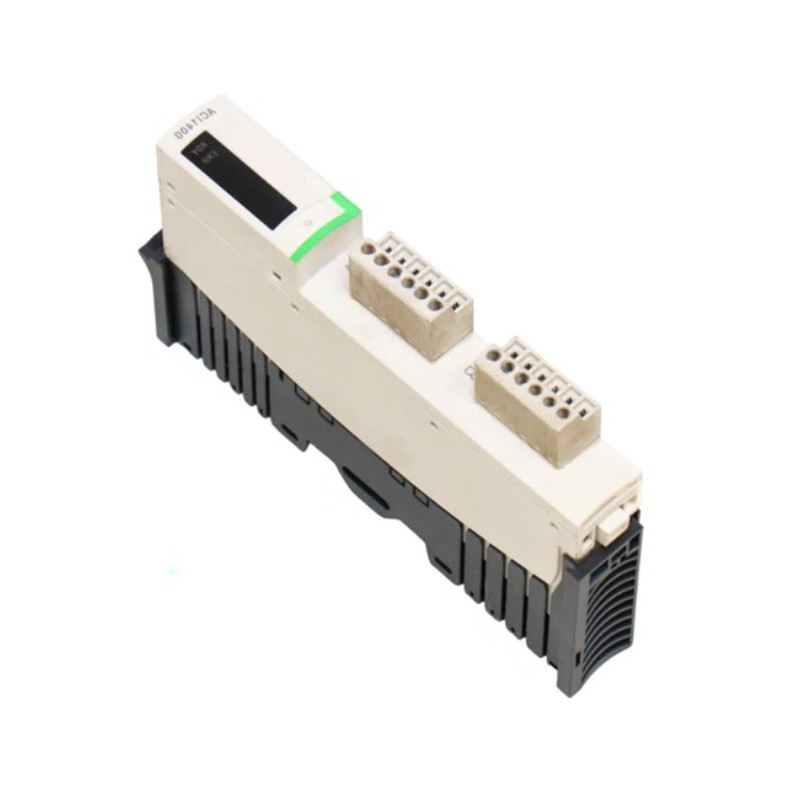

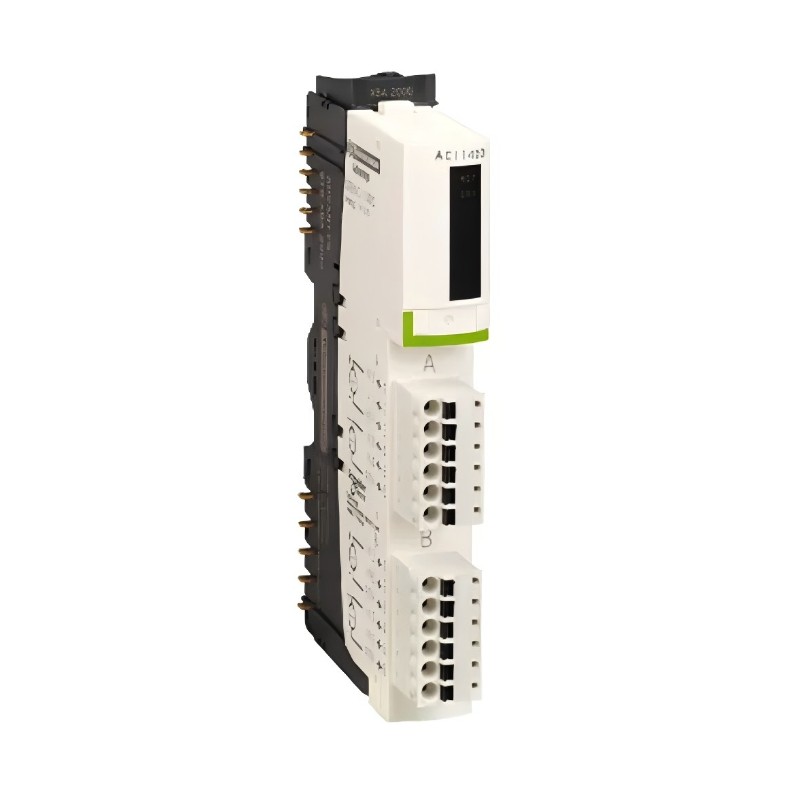

The Schneider STBACI0320K Modicon STB Standard Analog Input Kit is a packaged analog input solution for the Modicon STB distributed I/O platform. It is intended for applications that need to bring analog signals from field instruments into an STB I/O island and make the resulting process data available to the control system.
The kit is suitable for distributed automation installations where analog instruments are located close to the equipment being monitored while the main PLC or controller is positioned elsewhere. This arrangement reduces the need to route every field signal back to a centralized control cabinet and keeps field-level signal acquisition organized within the STB architecture.
Typical applications include temperature, pressure, level, flow, and other continuously varying process measurements supported by the configured instrumentation. The analog input function converts the connected field signal into data that can be exchanged through the STB network interface and processed by the controller.
For commissioning and maintenance, the kit can be treated as part of the complete analog measurement path. Field instrument condition, wiring, module configuration, terminal connections, STB network communication, and controller scaling should all be checked when an acquired process value does not match the expected field condition.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | STBACI0320K |
| Product Family | Modicon STB |
| Product Type | Standard Analog Input Kit |
| Primary Function | Analog field signal acquisition |
| System Role | Distributed analog input interface |
| Application | Machine and process automation |
| Dimensions | 70 × 18.4 × 128.3 mm |
| Weight | 0.1 kg |
Product Features
- Modicon STB Standard Analog Input Kit
- Provides an organized analog input solution within an STB distributed I/O architecture
- Suitable for acquisition of continuous process-variable signals
- Supports distributed field instrumentation connections
- Integrates with compatible STB I/O island infrastructure
- Suitable for machine and process automation applications
- Useful where analog signal acquisition is required at the distributed I/O level
- Supports installation, commissioning, and replacement of compatible STB analog input arrangements
Working Principle
The STBACI0320K receives an analog signal from a connected field instrument and makes the measured information available to the Modicon STB control architecture. The input signal represents a continuously varying process condition such as temperature, pressure, level, or flow.
Field Instrument → STBACI0320K → STB I/O Island → Network Interface → PLC / Controller
The analog input function acquires the electrical signal and converts it into a digital process value for communication through the STB system. The controller can then use that value for monitoring, regulation, sequencing, alarming, or other application functions.
The kit itself does not determine the required process response. Control decisions remain within the PLC or supervisory application, while the analog input arrangement handles the field measurement interface.
When diagnosing an incorrect value, the signal should be followed from the field instrument through the wiring and input channel to the STB network and controller application. This helps distinguish a field-instrument problem from an I/O configuration or scaling issue.
Role in a Modicon STB Distributed I/O Control Architecture
The STBACI0320K occupies the analog acquisition layer within a Modicon STB distributed I/O island. It provides the connection point between field instrumentation and the networked control system.
Analog Sensor / Transmitter → STBACI0320K → STB I/O Island → Network Interface → PLC / Controller → HMI / SCADA
| System Element | Function |
|---|---|
| Analog Sensor / Transmitter | Generates the process measurement signal |
| STBACI0320K | Acquires the analog field signal |
| STB I/O Island | Provides distributed I/O infrastructure |
| Network Interface | Exchanges I/O data with the control network |
| PLC / Controller | Processes the measurement and executes control logic |
| HMI / SCADA | Displays process values and operating information |
| Alarm / Control Function | Uses configured process values for system response |
This arrangement allows analog measurements to be collected near distributed equipment while the main controller remains responsible for process decisions and control logic.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Distributed acquisition of analog process values |
| Temperature Monitoring | Interface to compatible temperature instruments |
| Pressure Monitoring | Acquisition of pressure transmitter signals |
| Level Measurement | Monitoring tank and vessel instrumentation |
| Flow Monitoring | Collection of flow-related process signals |
| Packaging Machinery | Monitoring analog machine variables |
| Manufacturing Equipment | Distributed process measurement |
| Water and Utility Systems | Acquisition of remote analog instrumentation |
| Machine Automation | Monitoring continuously varying machine data |
Installation and Maintenance
- Verify that the STBACI0320K is compatible with the intended Modicon STB island configuration.
- Confirm the connected analog instrument and its required signal arrangement before installation.
- Isolate the relevant field circuit before handling the kit or associated wiring.
- Check the STB island power and network infrastructure before commissioning.
- Verify the module position and channel assignment against the approved I/O documentation.
- Inspect the field wiring and terminal connections for damage, looseness, or incorrect termination.
- Confirm that the connected transmitter or sensor produces the expected signal under known process conditions.
- Install and secure the kit components according to the STB system arrangement.
- Verify the analog input configuration and confirm that the controller receives the expected channel data.
- Compare the controller value with the field instrument or an approved reference during commissioning.
- If the measurement is incorrect or unstable, check the instrument, wiring, input configuration, grounding, and network communication separately.
- After replacement or maintenance, verify the complete measurement chain and confirm correct process-value display and controller operation.
Compatible System Components
| Component | Function |
|---|---|
| Modicon STB Network Interface | Connects the I/O island to the control network |
| Modicon STB Power Distribution | Supplies power to the distributed I/O island |
| STB Terminal Base | Provides mounting and field-wiring interface |
| Analog Sensors / Transmitters | Generate continuous process measurement signals |
| STB Digital I/O Modules | Provides discrete field signal interfaces |
| STB Analog Output Modules | Provides analog control outputs |
| PLC / Controller | Processes acquired values and executes control logic |
| HMI / SCADA | Displays process measurements and diagnostics |
| Field Wiring | Transfers analog signals between instruments and I/O |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider STBACI0320K | Standard Analog Input Kit | Distributed analog signal acquisition |
| Schneider STBACI0320 | Standard Analog Input Module | Analog field signal acquisition |
| Schneider Modicon STB | Distributed I/O Platform | Machine and process automation |
| Schneider STB Analog Input Modules | Analog Input Module Family | Process-variable acquisition |
| Schneider STB Analog Output Modules | Analog Output Module Family | Analog actuator control |
| Schneider STB Digital Input Modules | Digital Input Module Family | Discrete field-status acquisition |
| Schneider STB Digital Output Modules | Digital Output Module Family | Discrete actuator control |
| Schneider STB Network Interface Modules | Network Interface Module | Distributed I/O communication |
Key Advantages
- Provides a packaged analog input solution for Modicon STB installations.
- Supports distributed acquisition of continuously varying process signals.
- Allows field instruments to be connected close to the equipment being monitored.
- Integrates analog measurements into the STB distributed I/O architecture.
- Useful for machine, process, utility, and manufacturing applications.
- Simplifies replacement and commissioning of compatible analog input arrangements.
Technical FAQs
What is the difference between STBACI0320K and STBACI0320?
The STBACI0320K is identified as a Standard Analog Input Kit, while the STBACI0320 is the corresponding Standard Analog Input Module. The exact contents of a kit should be confirmed against the applicable system configuration before ordering or replacement.
How should an analog input kit be selected for a distributed STB system?
Selection should consider the required analog signal arrangement, field instrument, STB island configuration, controller communication, and application scaling. The kit should be matched to the complete I/O architecture rather than selected solely by its physical form.
What should be checked when the STBACI0320K reports an incorrect process value?
Compare the field instrument output with the value received by the STB system. Then check field wiring, channel assignment, input configuration, grounding, network communication, and controller scaling to determine where the discrepancy occurs.
What should be documented before replacing an STBACI0320K?
Record the kit position, connected field instrument, channel assignment, terminal wiring, STB configuration, and controller data mapping. After replacement, verify the same signal path and confirm that the controller and HMI receive the expected process value.
