- Schneider
- LXM32AD72N4
- Motion Servo Drive
- France
- 270 × 108 × 237 mm
- 4.8 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 22
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

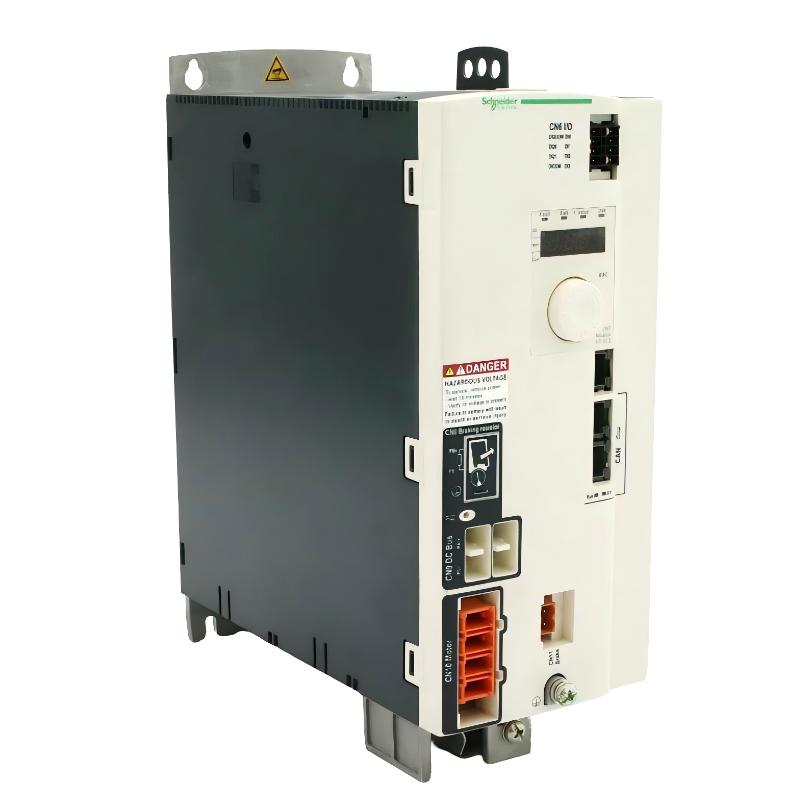

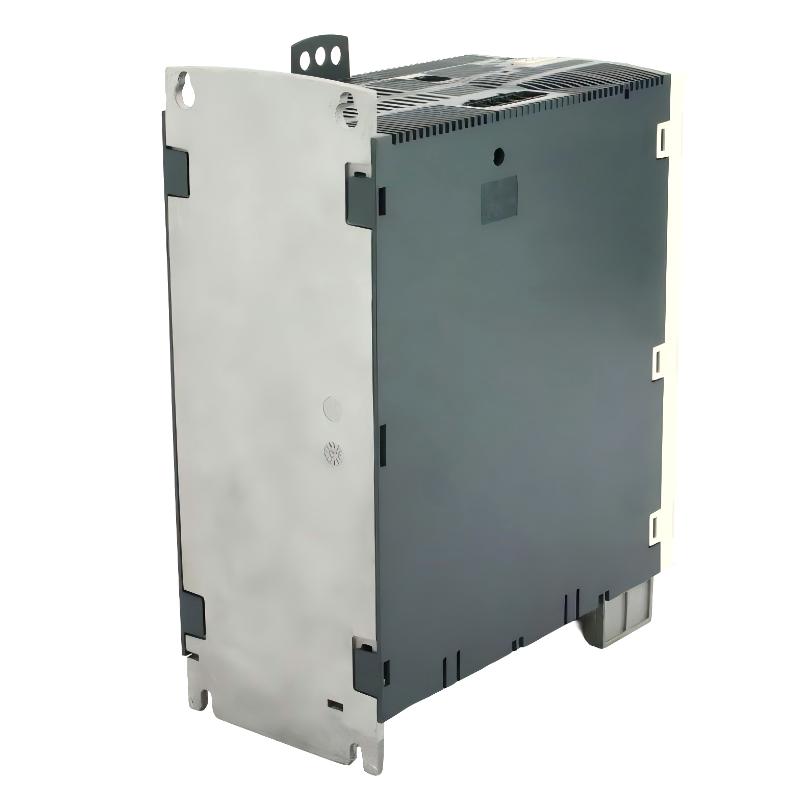

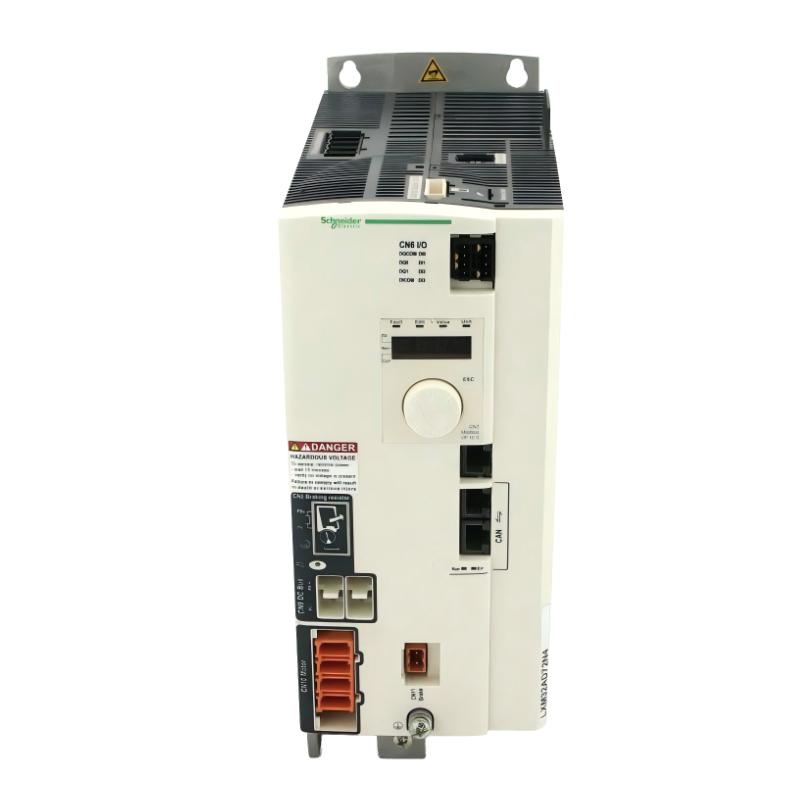

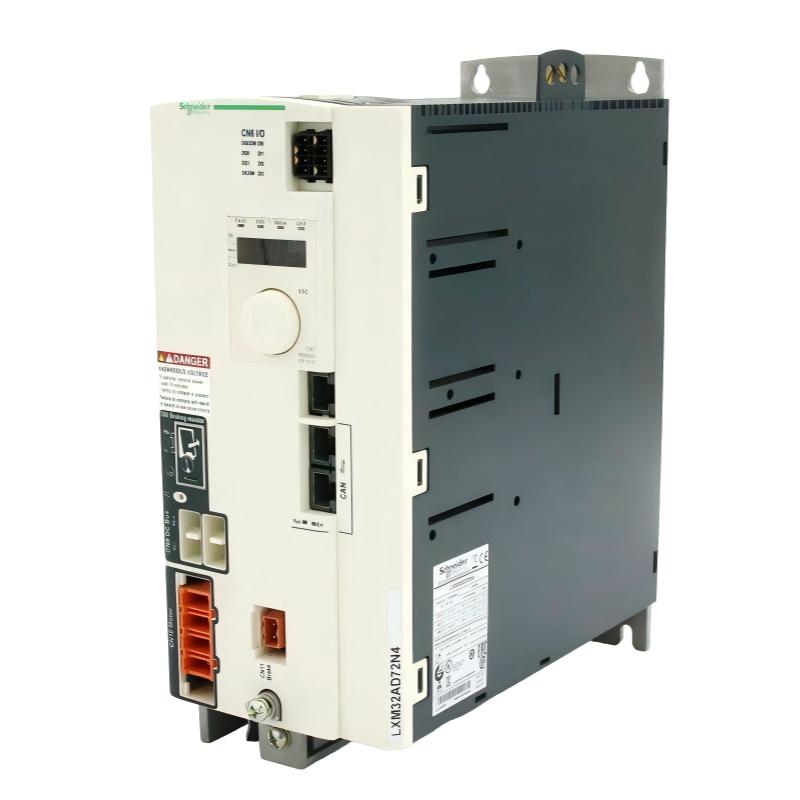

The Schneider LXM32AD72N4 Lexium 32 Motion Servo Drive is a servo drive used to regulate compatible servo motors in automated machine-axis applications. It sits between the machine controller and motor, converting motion commands into controlled electrical output for the driven axis.
The drive is suited to machinery requiring controlled acceleration, speed regulation, positioning, and coordinated axis movement. Typical installations include packaging equipment, assembly machines, material-handling systems, and automated production lines where repeatable servo movement is required.
During operation, the drive works with motor feedback to determine the actual operating condition of the connected motor. This closed-loop arrangement allows the drive to adjust motor operation in response to commanded motion and feedback information.
For commissioning, the drive should be considered as one part of the complete servo axis. Motor selection, feedback wiring, controller configuration, mechanical load, and motion parameters all affect the final axis behavior.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | LXM32AD72N4 |
| Product Family | Lexium 32 |
| Product Type | Motion Servo Drive |
| Primary Function | Servo motor motion and drive control |
| System Role | Motion control and motor drive |
| Application | Machine automation and servo motion |
| Dimensions | 270 × 108 × 237 mm |
| Weight | 4.8 kg |
Product Features
- Lexium 32 motion servo drive for automated machine axes.
- Regulates compatible servo motor operation according to controller commands.
- Supports closed-loop servo operation with motor feedback.
- Suitable for controlled position, speed, and torque-related motion.
- Provides the electrical drive stage between the motion controller and servo motor.
- Suitable for machines requiring repeatable and coordinated axis movement.
- Can be integrated into Schneider Electric machine automation architectures.
- Applicable to packaging, assembly, handling, and production machinery.
Working Principle
The LXM32AD72N4 receives motion commands from the machine controller and generates the electrical output required to operate the connected servo motor. The motor’s feedback information is returned to the drive, allowing the drive to compare actual motor behavior with the commanded operating condition.
The drive continuously regulates the motor according to the configured motion-control parameters. When the commanded position or speed changes, the drive adjusts motor output to follow the new operating requirement while using feedback to maintain the control loop.
Motion Controller → LXM32AD72N4 Servo Drive → Servo Motor → Mechanical Axis
Servo Motor Feedback → LXM32AD72N4 → Closed-Loop Motion Control
The resulting motion is transferred through the machine’s mechanical transmission to the driven mechanism. Problems such as incorrect feedback wiring, unsuitable motor parameters, mechanical resistance, or inappropriate tuning can therefore affect axis performance without necessarily indicating a hardware failure in the servo drive.
Role in a Lexium 32 Motion Control Architecture
The LXM32AD72N4 forms the motor-drive layer of a Lexium 32 servo axis. The controller determines the required machine movement, while the servo drive manages the electrical motor control needed to produce that movement.
PLC / Motion Controller → LXM32AD72N4 → Servo Motor → Mechanical Transmission → Machine Axis
| System Element | Function |
|---|---|
| PLC / Motion Controller | Generates machine sequencing and motion commands |
| LXM32AD72N4 | Controls the electrical operation of the servo motor |
| Motor Feedback | Returns actual position and motion information |
| Servo Motor | Converts electrical energy into controlled rotary motion |
| Mechanical Transmission | Transfers motor movement to the machine mechanism |
| Machine Axis | Performs the required positioning or movement |
| HMI / Engineering Tool | Provides configuration, diagnostics, and operator access |
The drive therefore handles the motor-side control loop while higher-level machine coordination remains with the controller.
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Controlled movement of feeding and positioning axes |
| Assembly Equipment | Repeatable servo positioning during production |
| Material Handling | Coordinated movement of automated machine axes |
| Pick-and-Place Machines | Rapid positioning of handling mechanisms |
| Conveyor Systems | Controlled speed and synchronized movement |
| Machine Tools | Servo-controlled positioning of machine axes |
| Printing Equipment | Synchronization of rotary and linear movements |
| Automated Production Lines | Multi-axis machine movement and sequencing |
Installation and Maintenance
- Verify that the LXM32AD72N4 matches the intended Lexium 32 servo-system configuration.
- Isolate applicable power sources and follow the machine safety procedure before installation or service.
- Check the motor, feedback device, controller, and drive connections against the approved electrical documentation.
- Inspect power terminals, control connections, and feedback interfaces for damage or loose connections.
- Install the drive in an appropriate control cabinet with suitable environmental and ventilation conditions.
- Connect the servo motor and feedback circuits according to the applicable system arrangement.
- Verify grounding and power connections before energizing the drive.
- Confirm motor and feedback parameters before initiating axis movement.
- Perform initial movement tests under controlled conditions and at reduced operating speed.
- Monitor drive status, diagnostic information, feedback behavior, and motor response during commissioning.
- Investigate recurring faults together with the controller, feedback circuit, motor, mechanical load, and motion configuration.
- After replacement, repeat the required configuration, initialization or homing, motion tests, and machine functional checks before returning the equipment to production.
Compatible System Components
| Component | Function |
|---|---|
| Schneider Lexium 32 | Servo drive platform |
| Motion Controller / PLC | Generates machine and axis motion commands |
| Schneider Servo Motor | Converts drive output into mechanical movement |
| Motor Feedback Device | Provides actual position and motion feedback |
| Modicon I/O System | Handles machine sensors and discrete control signals |
| HMI | Provides operator control and machine-status display |
| Engineering Software | Configures and diagnoses the motion-control application |
| Mechanical Transmission | Transfers motor torque to the machine axis |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider Lexium 32 | Motion Servo Drive | Machine-axis motion control |
| Schneider Lexium 32A | Servo Drive Family | General machine servo applications |
| Schneider Lexium 32M | Servo Drive Family | Compact machine motion systems |
| Schneider Lexium Servo Motors | Servo Motor Family | Servo-axis operation |
| Schneider Modicon M340 | PLC / Motion Controller | Machine control and motion coordination |
| Schneider Modicon M258 | Machine Controller | Machine and motion applications |
| Schneider Modicon LMC058 | Motion Controller | Coordinated machine motion |
| Schneider Lexium Accessories | Motion Accessories | Servo motor and drive-system integration |
Key Advantages
- Provides closed-loop electrical control for compatible servo motors.
- Supports controlled machine-axis movement within the Lexium 32 platform.
- Separates high-level machine commands from motor-side control.
- Suitable for applications requiring repeatable positioning and coordinated movement.
- Integrates with Schneider Electric machine-control and motion-system components.
- Applicable to packaging, assembly, handling, and automated production equipment.
Technical FAQs
How should the LXM32AD72N4 be matched to a servo motor?
The drive should be selected against the complete servo-axis requirements, including motor characteristics, feedback arrangement, controller configuration, and machine load. The drive model alone is not sufficient to establish compatibility.
What can cause poor positioning even when the servo drive has no active fault?
Incorrect feedback configuration, unsuitable motion parameters, mechanical backlash, excessive load, or controller commands can all affect positioning. The complete axis should be checked rather than treating the absence of a drive fault as proof that the motion system is correctly configured.
What is important when commissioning a replacement LXM32AD72N4?
Verify the motor and feedback connections, restore the required drive configuration, and confirm communication with the motion controller. Initial movement should be tested under controlled conditions before normal production speed and load are restored.
Why does the servo drive need feedback from the motor?
Feedback allows the drive to determine the motor’s actual operating state and compare it with the commanded motion. This information is used within the closed-loop control process to regulate the motor response and improve positioning and speed control.
