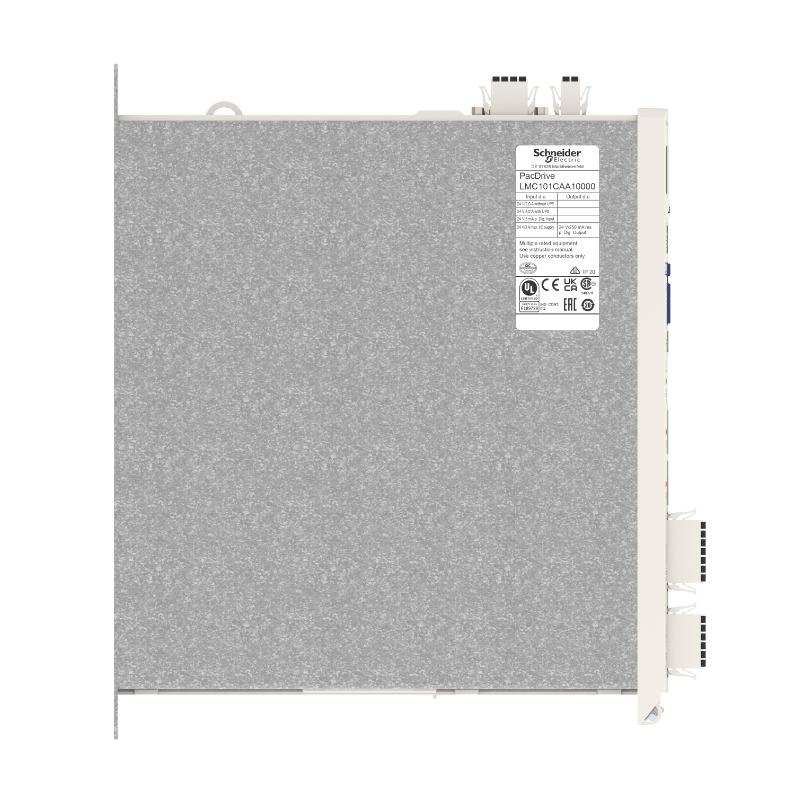

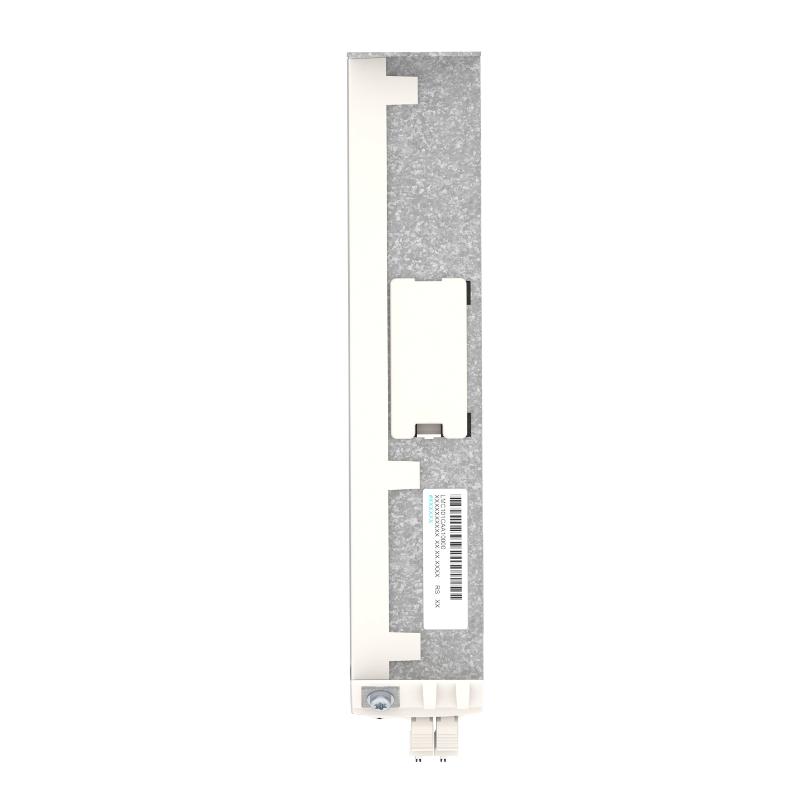

Product Overview

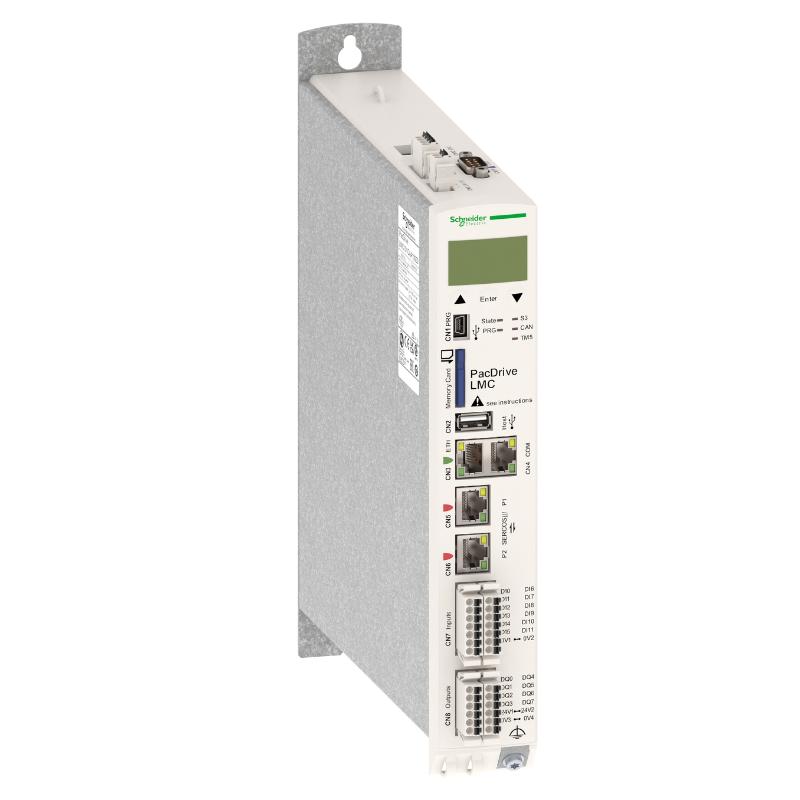

The Schneider LMC101CAA10000 PacDrive 3 Motion Controller is a central motion-control unit for automated machinery requiring coordinated axis movement, machine sequencing, and communication with distributed automation devices. It belongs to the PacDrive 3 platform and handles the application-level coordination between machine logic and connected motion hardware.
In packaging, filling, labeling, conveying, and automated assembly equipment, the controller can coordinate several machine functions so that servo axes operate according to a defined production sequence. Motion commands, machine states, synchronization requirements, and process conditions are handled within the controller application.
The LMC101CAA10000 works with compatible servo drives, motors, I/O equipment, feedback devices, operator interfaces, and machine networks. The controller generates the required motion and machine commands, while the servo drives perform the motor-side electrical regulation.
During commissioning, the controller should be evaluated as part of the complete motion system. Application configuration, axis assignment, communication, feedback, drive status, I/O conditions, and machine interlocks can all affect machine behavior.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | LMC101CAA10000 |
| Product Family | PacDrive |
| Product Series | PacDrive 3 |
| Product Type | Motion Controller |
| Primary Function | Machine and multi-axis motion control |
| System Role | Central motion and machine control |
| Typical Application | Packaging, machine automation, and motion systems |
| Dimensions | 270 × 44 × 222 mm |
| Weight | 2.2 kg |
Product Features
- PacDrive 3 motion controller for automated machine applications
- Coordinates machine sequences and servo-axis movements
- Supports centralized machine and motion-control functions
- Interfaces with compatible servo drives, motors, I/O, and feedback systems
- Suitable for synchronized motion across multiple machine axes
- Supports integration with machine communication networks
- Works with compatible HMI and engineering systems
- Suitable for packaging, material handling, filling, and assembly machinery
Working Principle
The LMC101CAA10000 processes the machine application and determines the required sequence of motion and machine operations. It exchanges commands and status information with the connected motion-control components.
Engineering System / HMI → LMC101CAA10000 PacDrive 3 Controller → Motion Network → Servo Drives → Servo Motors → Machine Mechanisms
The controller coordinates individual axes according to the programmed machine sequence. Positioning commands, speed requirements, synchronization relationships, and machine-state conditions can be evaluated as part of the application.
Feedback and operating-status information return through the control architecture. The controller can use this information together with I/O signals and machine conditions to determine subsequent actions.
Machine Sequence + Motion Commands + Feedback / Status → Controller Processing → Coordinated Axis Control
The controller handles the higher-level coordination, while the connected servo drives regulate the electrical output delivered to individual motors.
Role in a PacDrive 3 Motion Control Architecture
The LMC101CAA10000 forms the central coordination layer of a PacDrive 3 machine. It links application logic with the motion network and distributed machine hardware.
HMI / Engineering → PacDrive 3 Controller → Motion Communication → Servo Drives → Servo Motors → Mechanical Axes → Machine Process
| System Element | Function |
|---|---|
| HMI / Engineering System | Provides operation, configuration, and diagnostic functions |
| LMC101CAA10000 | Executes machine logic and coordinates motion |
| Motion Communication | Transfers commands and status information between devices |
| Servo Drives | Regulates electrical power supplied to servo motors |
| Servo Motors | Produces controlled mechanical movement |
| Feedback Devices | Supplies actual position or motion information |
| Machine I/O | Exchanges machine status and process signals |
| Mechanical Axes | Transfers controlled movement to machine mechanisms |
The separation between central motion coordination and motor-side regulation allows the controller to manage the overall machine sequence while each drive handles its individual motor axis.
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Coordinated operation of conveyors, feeders, and cutters |
| Filling Machines | Synchronization of product handling and filling movements |
| Labeling Equipment | Coordination of product transport and labeling axes |
| Material Handling | Servo-controlled positioning and transfer |
| Automated Assembly | Sequencing of servo-driven assembly mechanisms |
| Pick-and-Place Systems | Repetitive multi-axis positioning |
| Printing Machinery | Synchronization of machine rollers and processing axes |
| Production Equipment | Coordinated control of multiple machine functions |
Installation and Maintenance
- Confirm that the LMC101CAA10000 is suitable for the intended PacDrive 3 machine architecture.
- Verify the controller mounting arrangement and cabinet installation requirements.
- Check the incoming power, grounding, and protective-device arrangement before energizing the controller.
- Verify communication connections between the controller, servo drives, I/O devices, and other network components.
- Confirm that the installed application corresponds to the intended machine configuration.
- Check axis assignments, drive identification, and communication parameters before enabling motion.
- Verify motor feedback signals and position information for each configured axis.
- Check machine I/O, enable conditions, travel limits, and interlocks before automatic operation.
- Back up the existing application and controller configuration before replacement where applicable.
- Perform commissioning with individual axes and machine functions under controlled conditions.
- Investigate controller faults together with drive, network, feedback, I/O, and mechanical diagnostics.
- After replacement, verify homing, positioning, synchronization, machine sequencing, and applicable safety functions before returning the equipment to production.
Compatible System Components
| Component | Function |
|---|---|
| Schneider PacDrive 3 Drives | Receives motion commands and controls servo motor power |
| Schneider Servo Motors | Converts electrical drive output into mechanical movement |
| PacDrive 3 I/O Equipment | Exchanges machine and process signals |
| Motor Feedback Devices | Provides position and motion information |
| HMI / Operator Interface | Provides machine operation and status visualization |
| Engineering System | Supports programming, configuration, and commissioning |
| Industrial Network | Connects the controller with distributed automation devices |
| Machine Safety Equipment | Provides applicable safety-related monitoring and control |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider PacDrive 3 | Motion Control System | Multi-axis machine automation |
| Schneider LMC101 | Motion Controller | PacDrive 3 machine and motion control |
| Schneider LMC201 | Motion Controller | PacDrive 3 coordinated machine control |
| Schneider LMC300 | Motion Controller | Higher-performance machine motion control |
| Schneider PacDrive 3 Servo Drives | Servo Drive | Individual axis motor control |
| Schneider PacDrive 3 Motors | Servo Motor | Machine-axis movement |
| Schneider PacDrive 3 I/O | I/O System | Machine signal acquisition and control |
Key Advantages
- Centralizes machine sequencing and coordinated motion functions.
- Connects application logic with distributed PacDrive 3 motion hardware.
- Supports synchronized operation of multiple servo-driven machine axes.
- Separates high-level machine coordination from individual motor regulation.
- Integrates motion, I/O, feedback, and machine-status information within one control architecture.
- Suitable for automated production machinery requiring coordinated motion and repeatable sequences.
Technical FAQs
What is the role of the LMC101CAA10000 in a PacDrive 3 machine?
It serves as the central motion-control layer, executing the machine application and coordinating commands for connected motion and automation components. The servo drives remain responsible for motor-side electrical control.
What should be checked when the controller is running but an axis does not respond?
Check the axis assignment, motion command, drive communication, enable conditions, feedback status, machine interlocks, and applicable limit conditions. The fault may be located anywhere between the controller application and the mechanical axis.
How does the LMC101CAA10000 interact with machine I/O?
Machine I/O supplies status, sensor, and process information to the control application and can also carry commands or interlock conditions. The controller evaluates these signals together with motion conditions when executing the machine sequence.
What should be verified after replacing the LMC101CAA10000?
The controller application, axis configuration, communication settings, I/O mapping, feedback configuration, and machine parameters should be checked. Individual axes should then be tested for homing, direction, positioning, and synchronization before automatic operation resumes.
