Product Introduction

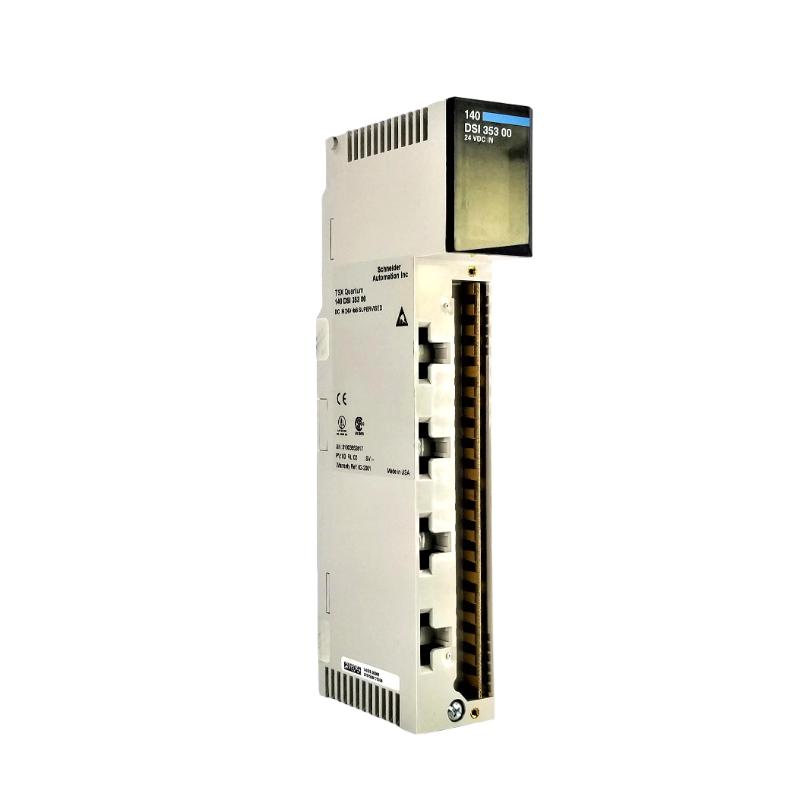

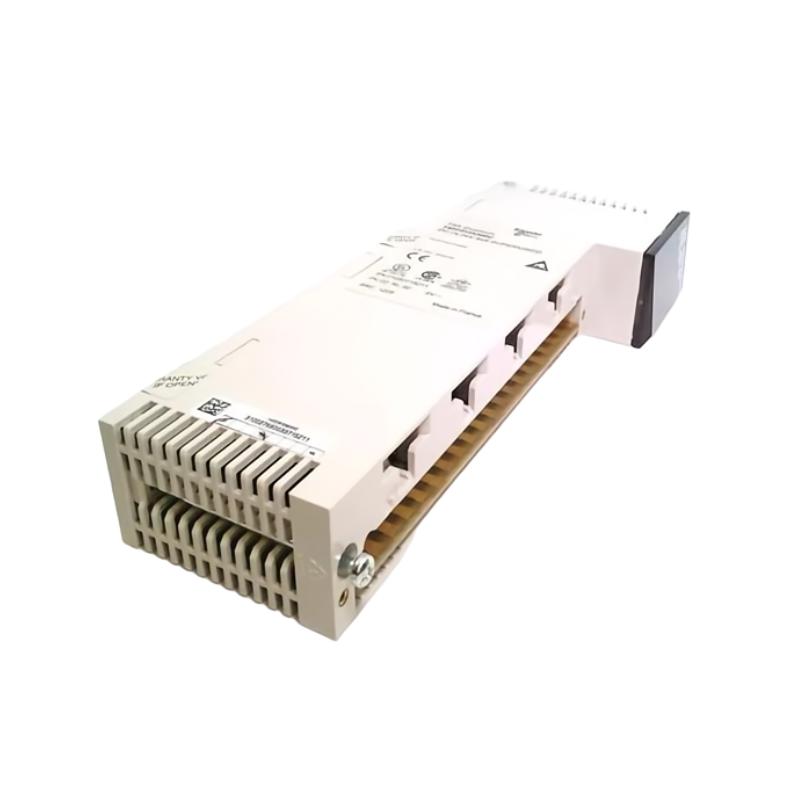

The Schneider Electric 140DSI35300C is a high-performance digital output module designed for use in programmable logic controllers (PLCs). It is a part of the Schneider Electric Modicon family, renowned for providing robust and flexible control solutions. This module is primarily used to interface digital signals between the control system and field devices, offering precise control and monitoring capabilities.
Product Applications
The 140DSI35300C is used in a wide range of automation applications where digital output control is required. Some common applications include:
-
Industrial Automation: Used in manufacturing systems, conveyors, assembly lines, and robotics for signal output.
-
Process Control: Applied in chemical, water treatment, and oil & gas plants to control and monitor processes.
-
Building Automation: Integrated into systems for managing HVAC, lighting, and access controls.
-
Energy Management: Used to control energy distribution and to automate power systems.
Product Advantages
-
High Reliability: The 140DSI35300C offers high durability and robust performance under challenging industrial conditions.
-
Easy Integration: Designed to work seamlessly with other Schneider Electric Modicon PLCs and systems.
-
Scalability: Supports a range of configurations, allowing easy upgrades or changes to meet future demands.
-
Compact Design: Its compact size allows for efficient use of space, making it ideal for both large and small automation setups.
-
Fast Response Time: Provides rapid response times to control signals, ensuring precision in real-time applications.
Brand and Series
Product Specifications
The table below provides the key specifications for the Schneider Electric 140DSI35300C digital output module:
| Parameter |
Value |
| Model |
140DSI35300C |
| Type |
Digital Output Module |
| Voltage Range |
24 V DC (Nominal) |
| Current Rating |
0.5 A per Channel |
| Number of Channels |
16 Channels |
| Input Type |
Digital, Transistor |
| Mounting Type |
DIN Rail |
| Operating Temperature |
-25°C to +70°C |
| Dimensions (L x W x H) |
90 x 72 x 110 mm |
| Weight |
0.3 kg |
| Power Consumption |
2 W |
| Connection Type |
Screw terminal blocks |
| Response Time |
< 1 ms |
Related Product Recommendations (Same Series or Similar Models)
Here are five additional models from the same Modicon series or closely related models that provide similar functionality and features:
| Model |
Description |
Channels |
Voltage Range |
Response Time |
| 140DOE77100 |
Digital Output Module, 16 Channels |
16 |
24 V DC |
< 1 ms |
| 140DDI35300 |
Digital Input Module, 16 Channels |
16 |
24 V DC |
< 1 ms |
| 140DSI84000 |
Digital Output Module, 8 Channels |
8 |
24 V DC |
< 1 ms |
| 140DOE58100 |
Digital Output Module with relay output |
8 |
24 V DC |
< 2 ms |
| 140EIP30200 |
Ethernet I/O Module |
N/A |
24 V DC |
< 1 ms |
Popular Models from Schneider Electric (Other than 140DSI35300C)
Here are five additional popular models from Schneider Electric in the PLC and I/O system range:
| Model |
Description |
Channels |
Voltage Range |
Response Time |
| Modicon M340 |
Modular PLC with Ethernet support |
N/A |
24 V DC |
< 1 ms |
| 140CPS11400 |
Power Supply for Modicon PLCs |
N/A |
24 V DC |
N/A |
| TM3A16R |
Analog I/O Module, 16 Channels |
16 |
24 V DC |
< 1 ms |
| 140CRA93100 |
Relay Output Module, 8 Channels |
8 |
24 V DC |
< 1 ms |
| Modicon M580 |
High-end modular PLC for process control |
N/A |
24 V DC |
< 1 ms |
