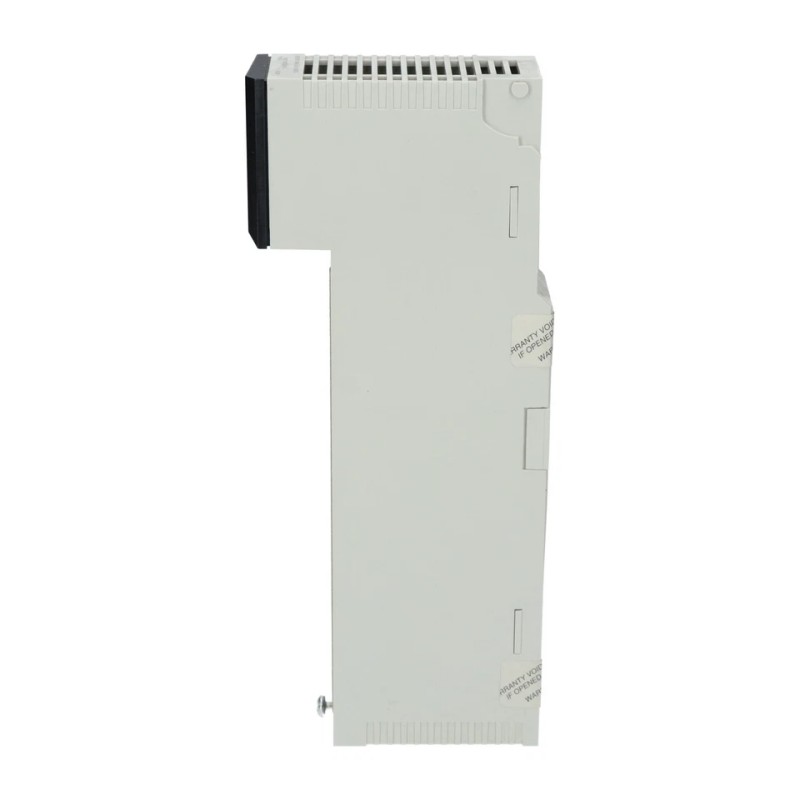

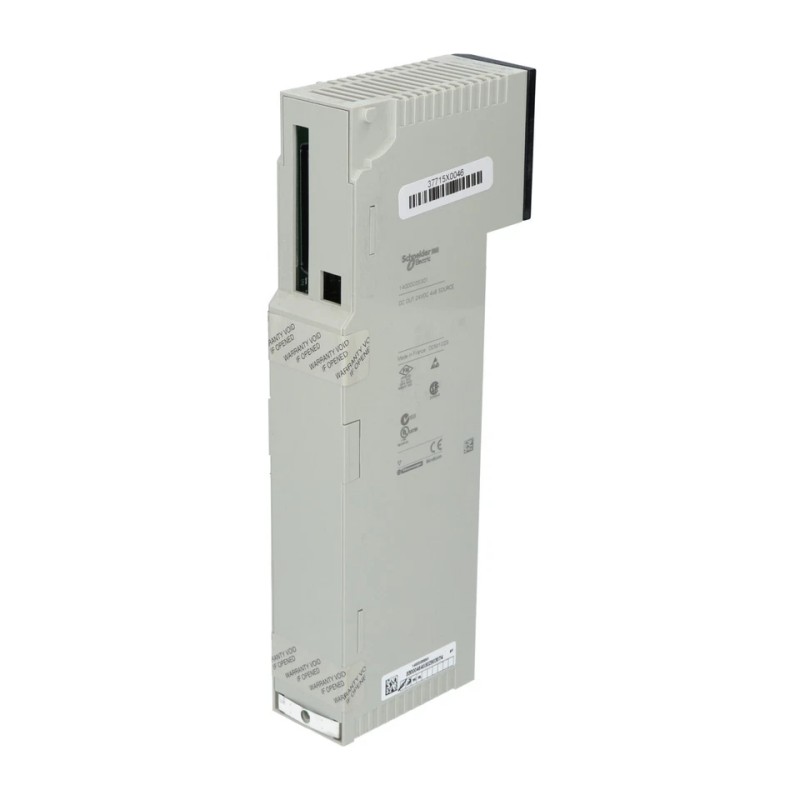

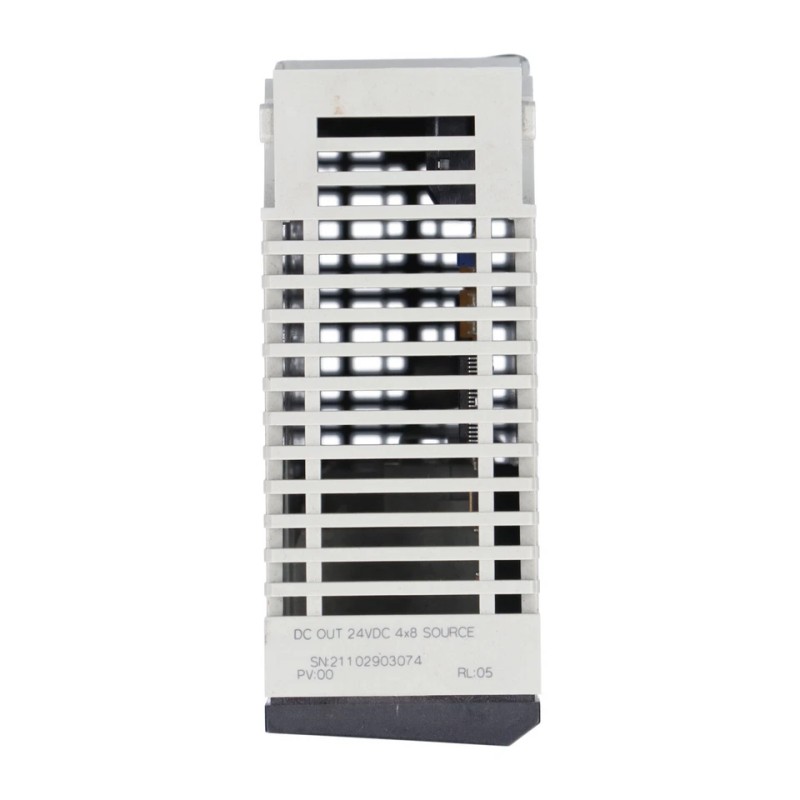

Schneider Electric 140DDO35301 Product Overview
Product Introduction
The Schneider Electric 140DDO35301 is a highly efficient digital discrete output module designed for use in industrial automation and control systems. As part of the Modicon Quantum Series, it provides superior control and monitoring of digital output signals. The module supports 32 digital outputs, allowing it to control a wide range of devices, such as actuators, relays, valves, and other digital-controlled components in complex systems. Engineered for demanding industrial applications, the 140DDO35301 offers high-speed digital output handling, making it suitable for real-time industrial control applications.
The module is built to operate in harsh industrial environments, offering excellent durability and reliability. It is particularly suited for large-scale systems requiring high levels of output control, offering precise and fast switching capabilities with minimal delay. As part of the Modicon Quantum Series, it is designed to be integrated easily with other modular components to expand and scale automation systems as needed.
Product Applications
The 140DDO35301 module is versatile and can be used in a wide variety of industrial applications. Some of the most common uses include:
-
Industrial Automation: Controls automated machinery in sectors like automotive manufacturing, packaging, and materials handling.
-
Energy Systems: Employed to control electrical switches, circuit breakers, and other devices in energy distribution systems, ensuring efficient energy management.
-
Process Control: Used in industries such as chemical processing, food production, and pharmaceuticals, where precise control of output devices is necessary.
-
Building Automation: Utilized to manage and automate systems like lighting, HVAC, and security in large buildings and commercial complexes.
Product Advantages
-
High-Speed Digital Control: The module is designed for real-time control with minimal latency, ensuring rapid response times in automated processes.
-
Robust and Durable: The 140DDO35301 is built to withstand challenging industrial environments, including extreme temperatures and electrical interference.
-
Flexible and Scalable: As part of the Modicon Quantum Series, the module can be easily integrated into larger control systems and expanded with additional modules as needed.
-
Ease of Installation: Designed for quick and easy integration into rack-mounted setups, it allows for simple configuration using Schneider Electric’s software tools.
-
Comprehensive Protection: The module includes overvoltage and overcurrent protection, ensuring it remains safe and operational even in the most demanding conditions.
Brand and Series
-
Brand: Schneider Electric
-
Series: Modicon Quantum Series
The Modicon Quantum Series is a range of highly flexible and reliable PLCs that provide high-performance solutions for industrial control applications. The 140DDO35301 is a vital component within this series, offering essential digital output capabilities for real-time control in a wide range of industrial settings.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 140DDO35301 |
| Type | Digital Discrete Output Module |
| Output Type | 32 Digital Outputs |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | Rack-mounted |
| Dimensions | 12.5 cm x 6.6 cm x 9.7 cm |
| Weight | 0.50 kg |
| Power Supply | 24 V DC |
| Connection Type | Screw Terminals |
| Indicators | LED Indicators for Status |
| Protection | Overvoltage, Overcurrent Protection |
| Max Output Voltage | 30 V DC |
| Max Output Current | 0.5 A per Channel |
Recommended Models from the Same Series
| Model | Description | Key Specifications |
|---|---|---|
| 140CRA93100 | CPU module for Modicon Quantum series | 1 Processor, 10Mb/s Ethernet, 24V DC |
| 140XBP01000 | Expansion I/O module | 16 I/O, 24V DC |
| 140DDO15310 | Digital Discrete Output Module | 16 Outputs, 24V DC |
| 140CPU11303 | High-performance CPU module | 3.5 MB Memory, 2 Serial Ports |
| 140CPS11400 | Power Supply Module for Quantum PLCs | 24V DC, 1.5 A |
Recommended Popular Models from Schneider Electric
| Model | Description | Key Specifications |
|---|---|---|
| A9E02470 | Circuit Breaker for Industrial Applications | 63A, 4P, 25 kA, 415V |
| TeSys D | Motor Starter for Industrial Motors | 7.5 kW, 400V, 3-Phase, Contactor |
| Magelis GTU | Human-Machine Interface for Industrial Control | 12-inch, Touch Screen, Ethernet |
| Acti 9 iC60 | Miniature Circuit Breaker | 1P, 6A, B Curve, 230V |
| Harmony XPS | Safety Relay for Emergency Stop Functions | 24V DC, 1-Channel, 10A |
FAQs (Frequently Asked Questions)
Q1: What is the 140DDO35301 module used for?
A1: The 140DDO35301 is a digital discrete output module designed for controlling devices like relays, actuators, and switches in industrial automation systems.
Q2: How many digital outputs does the 140DDO35301 have?
A2: The module provides 32 digital outputs.
Q3: What is the operating temperature range of the 140DDO35301?
A3: The module operates within a temperature range of -20°C to +60°C.
Q4: What is the maximum output current per channel of the 140DDO35301?
A4: The maximum output current per channel is 0.5 A.
Q5: Can the 140DDO35301 be used in outdoor environments?
A5: While the module is designed for industrial environments, it can be used outdoors with proper protection, as it is built to withstand temperature fluctuations and electrical interference.
Q6: What power supply does the 140DDO35301 require?
A6: The module requires a 24 V DC power supply.
Q7: How is the 140DDO35301 installed?
A7: The module is designed for rack-mounted installation, ensuring simple and quick integration into existing systems.
Q8: Does the 140DDO35301 include any protection features?
A8: Yes, the module includes overvoltage and overcurrent protection, ensuring the safety and reliability of the system.
Q9: What type of connections does the 140DDO35301 use?
A9: The module uses screw terminals for all connections.
Q10: How is the 140DDO35301 configured?
A10: The 140DDO35301 is configured using Schneider Electric’s Modicon PLC programming software, making the setup process straightforward and efficient.
