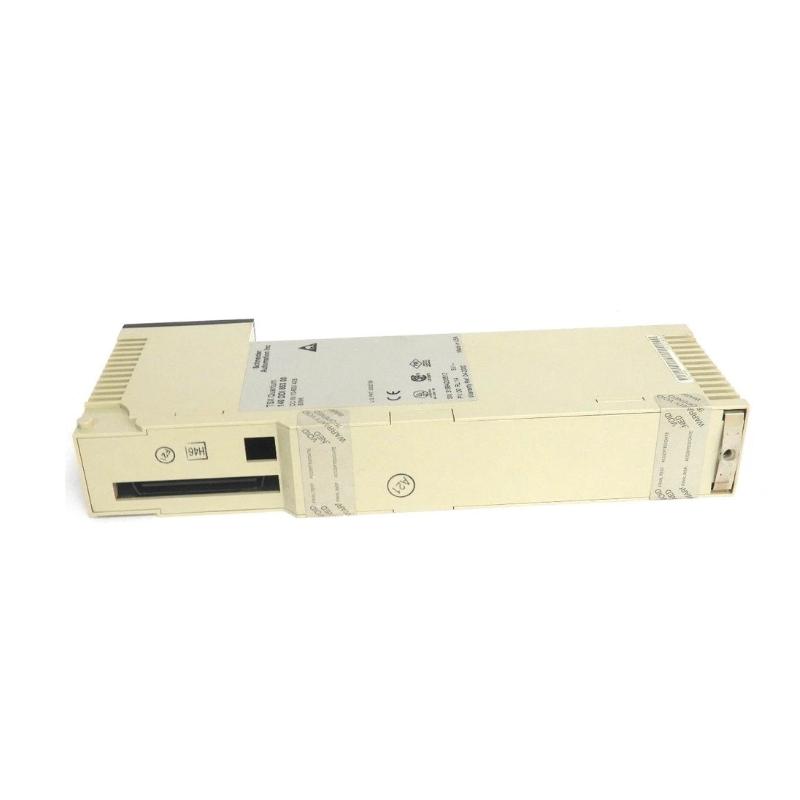

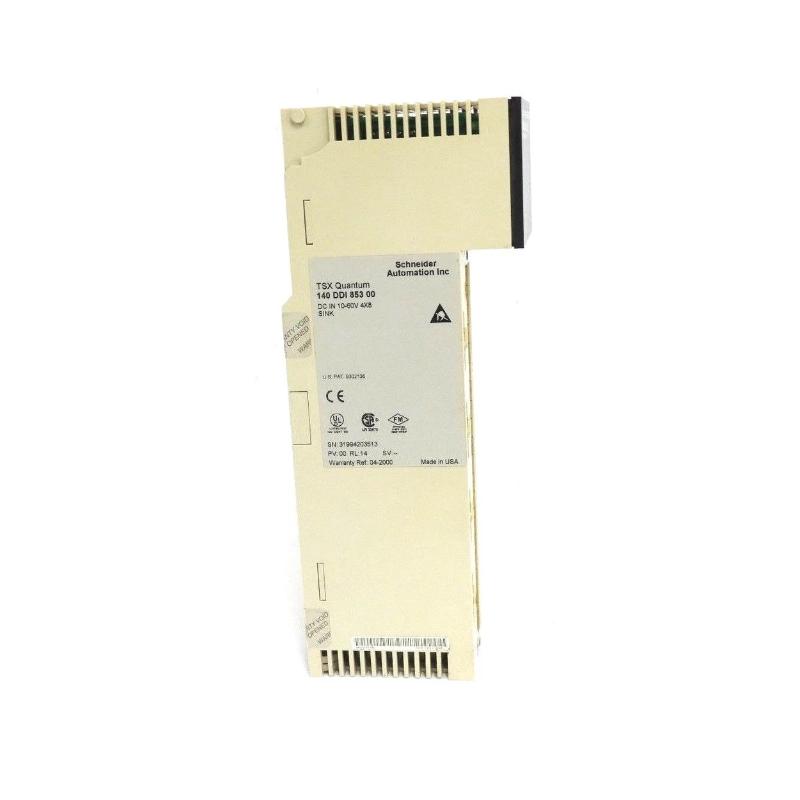

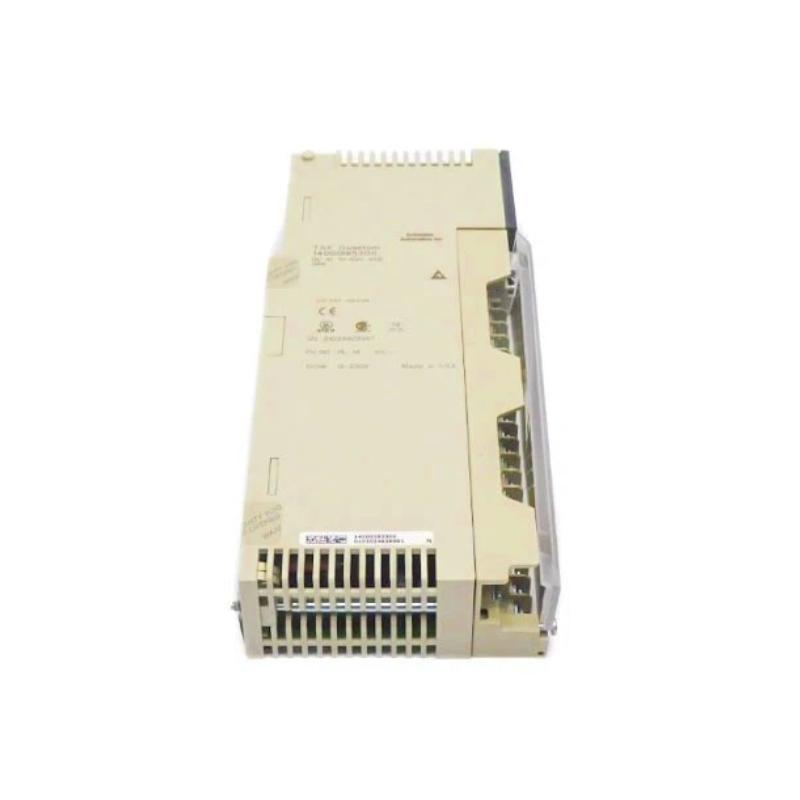

Schneider Electric 140DDI85300 Product Overview
The Schneider Electric 140DDI85300 is a digital input module designed to be used within the Modicon Premium PLC series. It provides a reliable, efficient, and compact solution for applications that require high-density digital input processing. With 32 inputs that can handle 24V DC signals, this module is suitable for controlling and monitoring various industrial devices such as sensors, switches, and relays.
This module is optimized for industrial automation systems where quick, responsive, and accurate digital signal processing is required. It also supports Modbus communication, making it easy to integrate with other components in a Modicon Premium PLC system. The module’s DIN rail mounting system allows for convenient and space-saving installation in control panels, while its wide operating temperature range of -25°C to +70°C ensures reliable performance under extreme conditions.
Product Parameters
| Parameter | Details |
|---|---|
| Model | 140DDI85300 |
| Type | Digital Input Module |
| I/O Type | Digital Input |
| Number of Inputs | 32 Inputs |
| Voltage Range | 24V DC |
| Current Consumption | 200mA |
| Signal Type | 24V DC |
| Operating Temperature | -25°C to +70°C |
| Dimensions | 45 mm x 160 mm x 90 mm |
| Weight | 0.4 kg |
| Mounting Type | DIN Rail |
Product Description
The 140DDI85300 module is part of the Modicon Premium PLC family and is built for managing 24V DC digital input signals from a variety of external devices, such as sensors, switches, and relays. The module features 32 input channels, allowing it to efficiently process multiple signals simultaneously in industrial applications.
Its compact design makes it easy to integrate into control systems using DIN rail mounting. The 140DDI85300 supports Modbus communication, enabling it to seamlessly interface with other devices in the Modicon Premium PLC network. The module is designed to operate in harsh environments, with an extended temperature range of -25°C to +70°C, ensuring its functionality even under extreme temperature conditions.
Overall, the 140DDI85300 is a versatile and reliable solution for monitoring and controlling a wide variety of industrial applications, making it an essential component for automation systems that require efficient and high-density input processing.
Product Applications
The 140DDI85300 is ideal for a wide range of industrial automation applications, including:
-
Manufacturing Automation: The module is used for monitoring devices such as sensors, switches, and relays in manufacturing systems. It enables real-time data processing for controlling manufacturing processes.
-
Process Control: In industries like oil and gas, chemical production, and pharmaceuticals, it monitors inputs from sensors and actuators, providing precise control over critical systems such as pressure gauges, valves, and flow meters.
-
Building Automation: The module is used in HVAC systems, lighting control, and security systems to process input from sensors like motion detectors, temperature sensors, and alarm systems.
-
Energy Monitoring and Management: In energy management systems, the 140DDI85300 helps monitor energy meters, circuit breakers, and transformers, ensuring energy efficiency and safety in electrical distribution systems.
-
Water Treatment and Management: It plays a key role in water and wastewater treatment plants where it monitors equipment such as pumps, valves, and flow meters, ensuring smooth operations and optimal plant performance.
Product Advantages
-
High Input Density: With 32 inputs, the 140DDI85300 module is perfect for systems that need to monitor and control a large number of devices simultaneously. This makes it ideal for applications that require a high level of signal processing.
-
Compact Design: The module’s DIN rail mountable design ensures easy installation even in tight spaces, making it a space-efficient solution for control panels.
-
Wide Operating Temperature Range: The 140DDI85300 can operate in environments with temperatures ranging from -25°C to +70°C, ensuring consistent performance in challenging industrial environments.
-
Modbus Communication Support: The 140DDI85300 integrates seamlessly with Modicon Premium PLC systems through Modbus communication, allowing for easy integration into larger automation networks.
-
Reliable and Durable: Built for industrial environments, the 140DDI85300 offers high reliability and durability, ensuring long service life even under demanding operational conditions.
Brand Information
-
Brand: Schneider Electric
-
Series: Modicon Premium
-
Product Type: Digital Input Module
-
PLC Compatibility: Modicon Premium PLC
Recommended Models in the Same Series or Related Models
| Model | Type | Number of Inputs | Voltage Range | Current Consumption | Operating Temperature | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| 140DDI85310 | Digital Input Module | 32 | 24V DC | 150mA | -25°C to +70°C | 45 mm x 160 mm x 90 mm | 0.4 kg |
| 140DDI85320 | Digital Input Module | 32 | 24V DC | 200mA | -25°C to +70°C | 45 mm x 160 mm x 90 mm | 0.4 kg |
| 140CRA93100 | Communication Adapter | N/A | 24V DC | 250mA | -25°C to +70°C | 45 mm x 85 mm x 100 mm | 0.3 kg |
| 140DRA94010 | Analog Output Module | 16 | 24V DC | 120mA | -25°C to +70°C | 30 mm x 150 mm x 90 mm | 0.3 kg |
| 140MGA93110 | Motion Control Adapter | N/A | 24V DC | 200mA | -25°C to +70°C | 50 mm x 120 mm x 90 mm | 0.4 kg |
Top 5 Popular Schneider Electric Models
| Model | Type | Number of Inputs | Voltage Range | Current Consumption | Operating Temperature | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| 140CPU67160 | CPU Module | N/A | 24V DC | 350mA | -25°C to +70°C | 200 mm x 160 mm x 150 mm | 0.6 kg |
| 170ENT11010 | Ethernet Interface | N/A | 24V DC | 150mA | -25°C to +70°C | 100 mm x 160 mm x 110 mm | 0.4 kg |
| 120A1E25 | Power Supply | N/A | 24V DC | 500mA | -25°C to +70°C | 50 mm x 100 mm x 150 mm | 0.3 kg |
| 140CRP93100 | Modbus Communication | N/A | 24V DC | 250mA | -25°C to +70°C | 45 mm x 85 mm x 100 mm | 0.2 kg |
| 160ATP62100 | Analog Input Module | 8 | 24V DC | 90mA | -25°C to +70°C | 30 mm x 150 mm x 100 mm | 0.3 kg |
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 140DDI85300 module?
A1: The 140DDI85300 is a digital input module designed to monitor and control 24V DC input signals from sensors, switches, and relays in industrial automation systems.
Q2: How many inputs does the 140DDI85300 module support?
A2: The 140DDI85300 supports 32 digital inputs, making it suitable for high-density applications.
Q3: What voltage does the 140DDI85300 accept for its input signals?
A3: The module is designed to accept 24V DC input signals.
Q4: Can the 140DDI85300 be used with PLCs other than Modicon Premium?
A4: No, the 140DDI85300 is designed specifically for use with Modicon Premium PLC systems.
Q5: What is the operating temperature range of the 140DDI85300?
A5: The 140DDI85300 can operate in temperatures ranging from -25°C to +70°C, making it suitable for a wide range of industrial environments.
Q6: How is the 140DDI85300 installed?
A6: The module uses DIN rail mounting, which allows it to be easily installed in control panels or electrical enclosures.
Q7: Does the 140DDI85300 support communication with other devices?
A7: Yes, the module supports Modbus communication, enabling integration with other Modicon Premium PLC devices.
Q8: What is the power consumption of the 140DDI85300?
A8: The module consumes approximately 200mA during normal operation.
Q9: What are the dimensions of the 140DDI85300 module?
A9: The module has dimensions of 45 mm x 160 mm x 90 mm.
Q10: How much does the 140DDI85300 weigh?
A10: The module weighs approximately 0.4 kg.
