- Schneider Electric
- 140DDI36400C

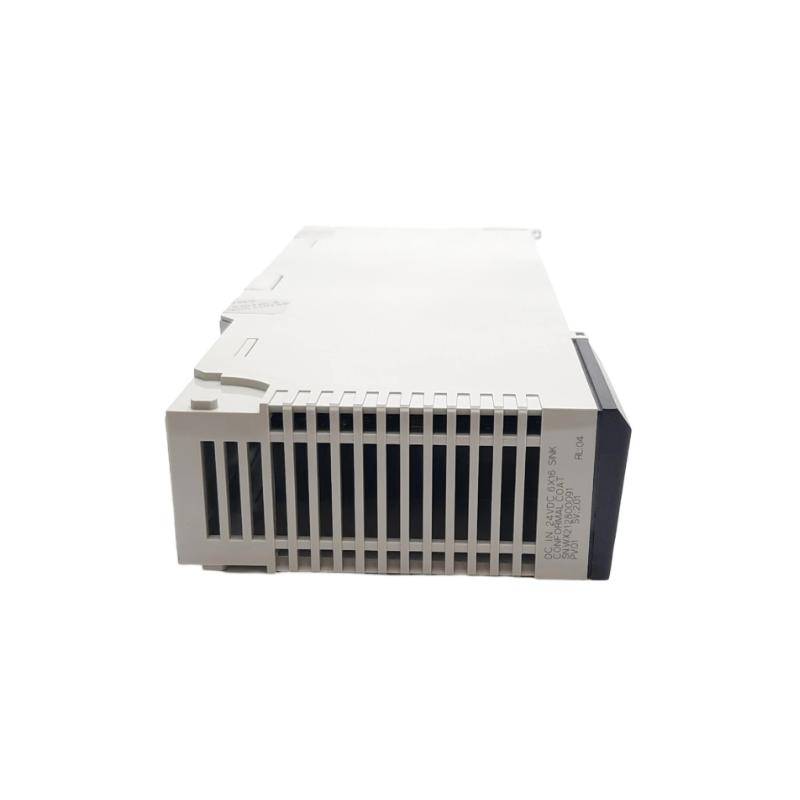

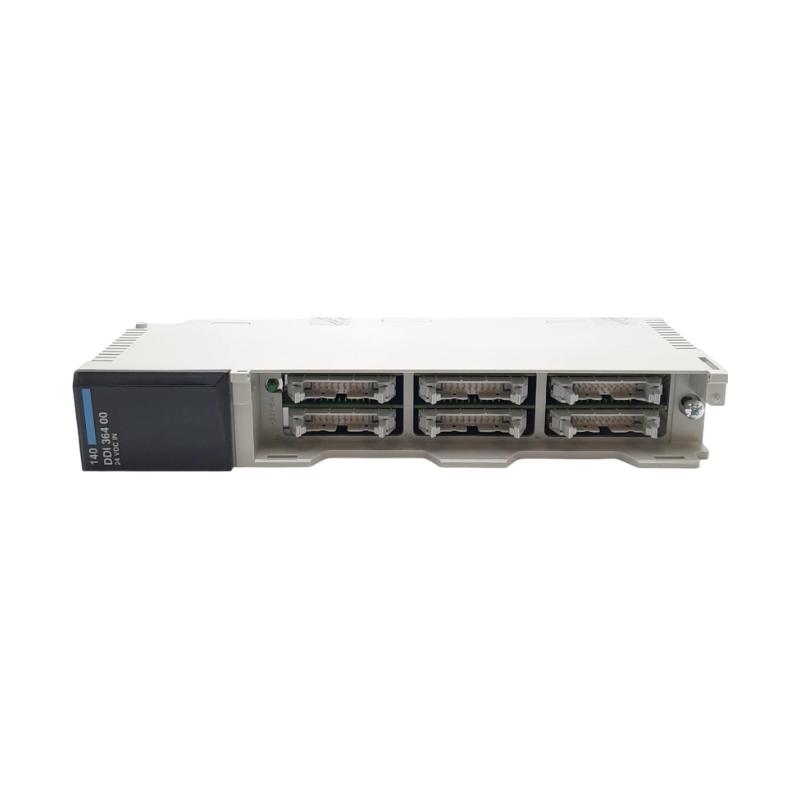

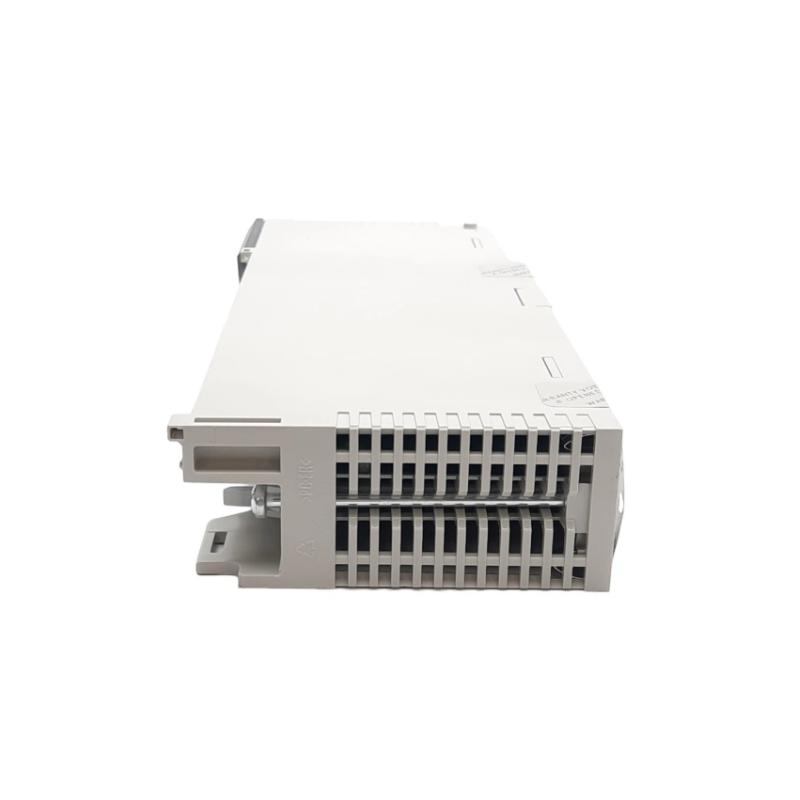

- Modicon Quantum Low Voltage Discrete Input Module
- France
- 25 mm x 160 mm x 90 mm
- 0.3kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 34
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Schneider Electric 140DDI36400C Product Overview
The Schneider Electric 140DDI36400C is an advanced digital input module designed for integration within Modicon Quantum PLCs. This module provides reliable and high-performance digital input handling in industrial automation systems, making it an ideal solution for real-time monitoring and control of external devices. It is engineered to handle up to 16 digital input channels, allowing for efficient collection of digital signals from sensors, switches, and other control devices in a wide range of industrial applications. Below is an in-depth look at its features, specifications, and advantages.
Product Parameters
| Parameter | Details |
|---|---|
| Model | 140DDI36400C |
| Type | Digital Input Module |
| I/O Type | Digital Input |
| Number of Inputs | 16 Inputs |
| Voltage Range | 24V DC |
| Current Consumption | 120mA |
| Signal Type | 24V DC |
| Operating Temperature | -25°C to +70°C |
| Dimensions | 25 mm x 160 mm x 90 mm |
| Weight | 0.3 kg |
| Mounting Type | DIN Rail |
Product Description
The 140DDI36400C is a digital input module within the Modicon Quantum series designed to provide a reliable connection for 24V DC digital inputs in industrial automation applications. This module features 16 inputs, enabling it to connect to a wide variety of devices such as sensors, switches, and relays, facilitating real-time data acquisition. The module is engineered to work seamlessly within Modicon Quantum PLC systems, offering high integration capabilities with other components within the system.
It has a compact design and is easily mounted on a DIN rail, a standard method used for installing automation and control devices. Its ability to operate within a broad temperature range, from -25°C to +70°C, makes it suitable for harsh industrial environments, including outdoor and extreme temperature applications. The 140DDI36400C uses Modbus communication for integration, making it an ideal choice for scalable and flexible automation systems.
Product Applications
The 140DDI36400C module is widely used in various industries where accurate and reliable digital signal processing is needed. Some of its key applications include:
-
Industrial Automation: Ideal for manufacturing lines, the module collects data from various machines, sensors, and control devices, allowing efficient process control.
-
Process Control Systems: Commonly used in industries such as oil & gas, pharmaceuticals, and chemicals, where monitoring of digital signals is crucial for controlling equipment and processes.
-
Energy Monitoring: It plays a significant role in industrial energy management systems, receiving inputs from energy meters, circuit breakers, and other equipment that track energy consumption.
-
Building Management Systems (BMS): Widely used in HVAC, lighting, and security systems to monitor input signals from alarms, switches, and motion sensors.
-
Water Treatment: In water and wastewater treatment plants, the module is used to monitor pumps, valves, and flow sensors, ensuring smooth and efficient plant operations.
Product Advantages
-
High Performance and Reliability: The 140DDI36400C offers stable and reliable performance, ensuring that industrial systems operate smoothly without interruptions.
-
Compact and Space-Efficient Design: With its compact dimensions, the module is ideal for installation in systems with limited space. Its DIN rail mounting allows for easy integration into existing setups.
-
Wide Temperature Tolerance: With an operating range from -25°C to +70°C, the module is suitable for use in both indoor and outdoor environments, including factories with extreme temperature fluctuations.
-
Easy Integration: It supports Modbus communication, which makes it simple to integrate with other Modicon Quantum PLC systems and related components.
-
Versatility: Capable of handling 16 digital inputs, this module is well-suited for complex applications that require multiple input signals to be processed simultaneously.
Brand Information
-
Brand: Schneider Electric
-
Series: Modicon Quantum
-
Product Type: Digital Input Module
-
PLC Compatibility: Modicon Quantum PLC
Recommended Models in the Same Series or Related Models
| Model | Type | Number of Inputs | Voltage Range | Current Consumption | Operating Temperature | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| 140DDI36410 | Digital Input Module | 16 | 24V DC | 100mA | -25°C to +70°C | 25 mm x 160 mm x 90 mm | 0.3 kg |
| 140CRA93100 | Communication Adapter | N/A | 24V DC | 200mA | -25°C to +70°C | 45 mm x 85 mm x 110 mm | 0.2 kg |
| 140DRA94020 | Analog Output Module | 16 | 24V DC | 150mA | -25°C to +70°C | 30 mm x 150 mm x 90 mm | 0.35 kg |
| 140NOE77100 | Ethernet Communication | N/A | 24V DC | 180mA | -25°C to +70°C | 50 mm x 130 mm x 90 mm | 0.4 kg |
| 140CPS21400 | Power Supply Module | N/A | 24V DC | 500mA | -25°C to +70°C | 100 mm x 150 mm x 90 mm | 0.5 kg |
Top 5 Popular Schneider Electric Models
| Model | Type | Number of Inputs | Voltage Range | Current Consumption | Operating Temperature | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| 140CPU67160 | CPU Module | N/A | 24V DC | 350mA | -25°C to +70°C | 200 mm x 160 mm x 150 mm | 0.6 kg |
| 170ENT11010 | Ethernet Interface | N/A | 24V DC | 150mA | -25°C to +70°C | 100 mm x 160 mm x 110 mm | 0.4 kg |
| 120A1E25 | Power Supply | N/A | 24V DC | 500mA | -25°C to +70°C | 50 mm x 100 mm x 150 mm | 0.3 kg |
| 140CRP93100 | Modbus Communication | N/A | 24V DC | 250mA | -25°C to +70°C | 45 mm x 85 mm x 100 mm | 0.2 kg |
| 160ATP62100 | Analog Input Module | 8 | 24V DC | 90mA | -25°C to +70°C | 30 mm x 150 mm x 100 mm | 0.3 kg |
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of the 140DDI36400C module?
A1: The 140DDI36400C is a digital input module designed for use with Modicon Quantum PLCs. It is used to collect 24V DC digital signals from external devices, such as sensors, switches, and relays, for monitoring and control in industrial automation systems.
Q2: Can the 140DDI36400C be used with other types of PLCs?
A2: No, the 140DDI36400C is designed specifically for use with Modicon Quantum PLCs. It may not be compatible with other PLC series without additional interfaces.
Q3: How many digital inputs does the 140DDI36400C module support?
A3: The module supports 16 digital inputs, enabling it to interface with multiple external devices simultaneously.
Q4: What is the operating temperature range of the 140DDI36400C module?
A4: The 140DDI36400C operates within a temperature range of -25°C to +70°C, which allows it to be used in both indoor and outdoor environments.
Q5: What type of communication does the 140DDI36400C use?
A5: The 140DDI36400C uses Modbus communication for easy integration with Modicon Quantum PLC systems and other automation components.
Q6: Is the 140DDI36400C suitable for outdoor use?
A6: Yes, the module can be used in outdoor environments as long as it is protected from extreme weather and the temperature remains within the -25°C to +70°C operating range.
Q7: How is the 140DDI36400C mounted in a control panel?
A7: The module is designed for DIN rail mounting, which is a standard and easy method for installing automation components in control panels.
Q8: What is the power consumption of the 140DDI36400C?
A8: The 140DDI36400C consumes 120mA of current during operation.
Q9: How does the module handle signal input?
A9: The module accepts 24V DC digital input signals, which it processes and sends to the connected Modicon Quantum PLC for further processing and control.
Q10: What is the weight of the 140DDI36400C module?
A10: The 140DDI36400C weighs approximately 0.3 kg, making it compact and easy to integrate into various control systems.
