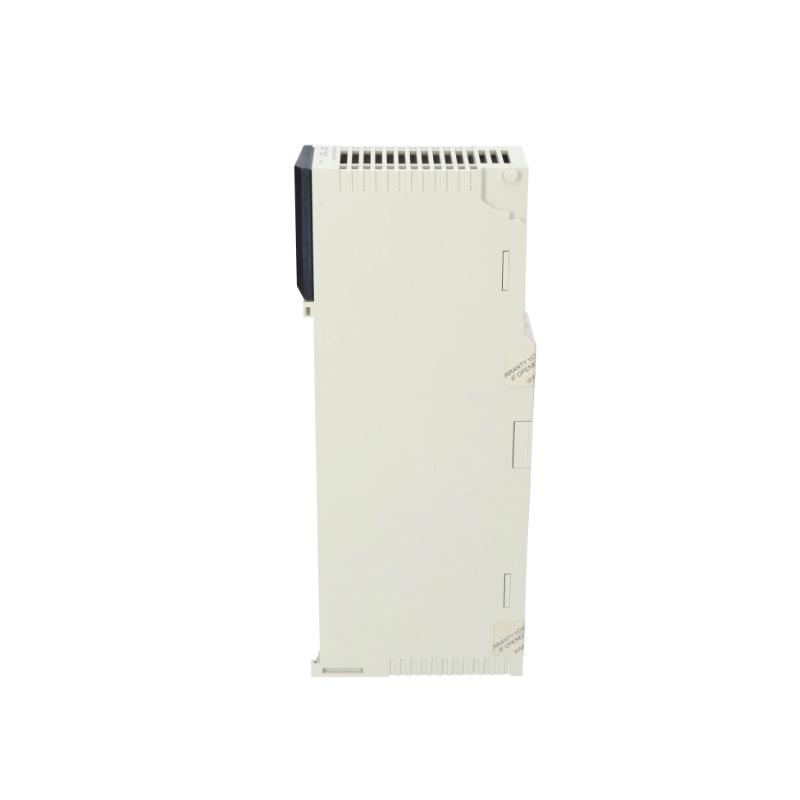

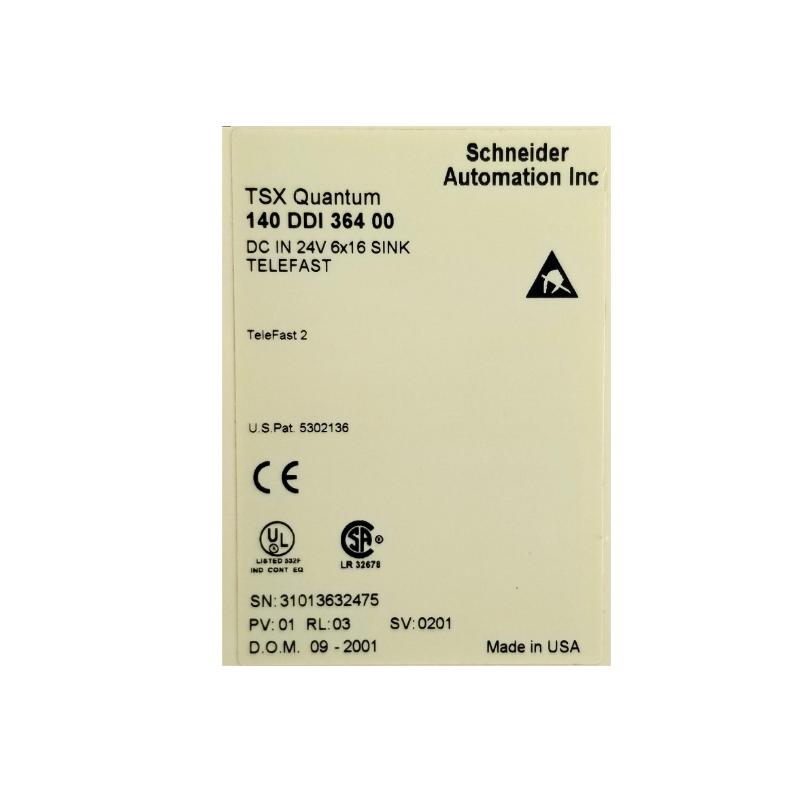

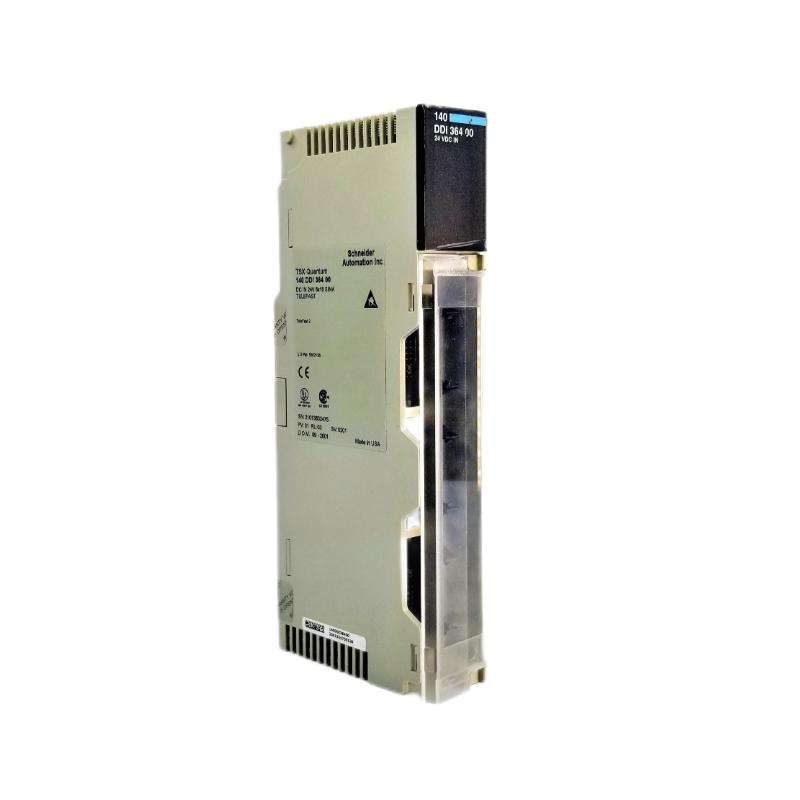

Schneider Electric 140DDI36400 Product Overview
The Schneider Electric 140DDI36400 is a digital input module designed for use in Modicon Quantum PLCs. It offers high reliability and performance in industrial automation systems by efficiently handling digital input signals. The module is ideal for environments where real-time monitoring and control of various external devices, such as sensors and switches, is essential. Below, you will find a detailed breakdown of its features, applications, advantages, and specifications.
Product Parameters
| Parameter | Details |
|---|---|
| Model | 140DDI36400 |
| Type | Digital Input Module |
| I/O Type | Digital Input |
| Number of Inputs | 16 Inputs |
| Voltage Range | 24V DC |
| Current Consumption | 120mA |
| Signal Type | 24V DC |
| Operating Temperature | -25°C to +70°C |
| Dimensions | 25 mm x 160 mm x 90 mm |
| Weight | 0.3 kg |
| Mounting Type | DIN Rail |
Product Description
The 140DDI36400 is a highly reliable digital input module designed to interface with Modicon Quantum PLC systems. The module is engineered to handle up to 16 digital inputs, providing a flexible solution for industries requiring efficient and accurate data acquisition. It operates on a 24V DC signal, making it suitable for a wide variety of industrial automation tasks.
The module is housed in a compact form factor, with dimensions of 25 mm x 160 mm x 90 mm, allowing it to fit easily into DIN rail-mounted setups, which is common for industrial control systems. The 140DDI36400 is rated for use in extreme temperatures, operating efficiently between -25°C to +70°C, ensuring its suitability for challenging environments like manufacturing floors, outdoor automation systems, and more.
The 140DDI36400 supports Modbus communication, allowing it to easily interface with other Schneider Electric products and be integrated into existing control systems. This integration is critical for industrial setups where seamless communication and real-time monitoring are required.
Product Applications
The 140DDI36400 is designed for a broad range of applications in industrial automation, including but not limited to:
-
Manufacturing and Production Lines: The module can interface with sensors, switches, and control devices on assembly lines, collecting digital input signals for real-time monitoring and control.
-
Process Automation: It is used in process industries, such as chemical processing, to monitor the status of various equipment and systems, ensuring smooth operations.
-
Energy Management Systems: The module is critical in applications where energy usage needs to be monitored and controlled through digital signals, such as energy meters and circuit breakers.
-
Building Automation: In HVAC, lighting, and security systems, the 140DDI36400 handles the monitoring and management of various control signals from sensors and alarms.
-
Water Treatment and Wastewater Management: Used to collect signals from digital sensors monitoring pumps, valves, and other critical infrastructure in water treatment plants.
Product Advantages
-
High Reliability: The 140DDI36400 offers high performance and dependable functionality, which is essential in demanding industrial environments.
-
Compact Design: Its small footprint allows it to be mounted on a DIN rail, saving valuable space in control cabinets while maintaining high functionality.
-
Wide Temperature Range: With an operating temperature range from -25°C to +70°C, this module is built to handle harsh environmental conditions, including extreme heat and cold.
-
Easy Integration: Utilizing Modbus for communication, the module can easily integrate into existing Modicon Quantum PLC systems and other Schneider Electric automation products.
-
Versatile Input Handling: The module supports up to 16 digital inputs, making it ideal for systems that need to monitor multiple devices or signals simultaneously.
Brand Information
-
Brand: Schneider Electric
-
Series: Modicon Quantum
-
Product Type: Digital Input Module
-
PLC Compatibility: Modicon Quantum PLC
Recommended Models in the Same Series or Related Models
| Model | Type | Number of Inputs | Voltage Range | Current Consumption | Operating Temperature | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| 140DDI36410 | Digital Input Module | 16 | 24V DC | 100mA | -25°C to +70°C | 25 mm x 160 mm x 90 mm | 0.3 kg |
| 140NOE77120 | Ethernet Communication | N/A | 24V DC | 200mA | -25°C to +70°C | 50 mm x 130 mm x 90 mm | 0.4 kg |
| 140DRA94020 | Analog Output Module | 16 | 24V DC | 150mA | -25°C to +70°C | 30 mm x 150 mm x 90 mm | 0.35 kg |
| 140CPS21400 | Power Supply Module | N/A | 24V DC | 500mA | -25°C to +70°C | 100 mm x 150 mm x 90 mm | 0.5 kg |
| 140MGA93120 | Motion Control Adapter | N/A | 24V DC | 150mA | -25°C to +70°C | 45 mm x 120 mm x 90 mm | 0.3 kg |
Top 5 Popular Schneider Electric Models
| Model | Type | Number of Inputs | Voltage Range | Current Consumption | Operating Temperature | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| 140CPU67160 | CPU Module | N/A | 24V DC | 350mA | -25°C to +70°C | 200 mm x 160 mm x 150 mm | 0.6 kg |
| 170ENT11010 | Ethernet Interface | N/A | 24V DC | 150mA | -25°C to +70°C | 100 mm x 160 mm x 110 mm | 0.4 kg |
| 120A1E25 | Power Supply | N/A | 24V DC | 500mA | -25°C to +70°C | 50 mm x 100 mm x 150 mm | 0.3 kg |
| 140CRP93100 | Modbus Communication | N/A | 24V DC | 250mA | -25°C to +70°C | 45 mm x 85 mm x 100 mm | 0.2 kg |
| 160ATP62100 | Analog Input Module | 8 | 24V DC | 90mA | -25°C to +70°C | 30 mm x 150 mm x 100 mm | 0.3 kg |
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 140DDI36400 module?
A1: The 140DDI36400 is a digital input module designed for use with Modicon Quantum PLCs. It handles up to 16 digital inputs from external sensors or devices, enabling PLCs to receive data and control systems accordingly.
Q2: Is the 140DDI36400 compatible with other PLC systems besides Modicon Quantum?
A2: No, the 140DDI36400 is specifically designed for the Modicon Quantum series. For compatibility with other PLC systems, a different model would be required.
Q3: How many digital inputs can be connected to the 140DDI36400?
A3: The 140DDI36400 can handle 16 digital inputs.
Q4: What is the operating temperature range for the 140DDI36400?
A4: The 140DDI36400 operates within a temperature range of -25°C to +70°C, making it suitable for a wide variety of industrial environments.
Q5: Can the module handle inputs from voltages other than 24V DC?
A5: No, the 140DDI36400 is designed for 24V DC digital input signals only. For other voltages, a different module would be necessary.
Q6: What is the power consumption of the 140DDI36400?
A6: The module consumes 120mA of current during operation.
Q7: How is the 140DDI36400 installed?
A7: The module is mounted on a DIN rail, which is a standard method of installation for industrial automation components.
Q8: Can the 140DDI36400 be used in outdoor settings?
A8: Yes, as long as the temperature stays within the operational range of -25°C to +70°C, the module can be used in outdoor environments. However, it should be protected from harsh weather conditions.
Q9: How does the 140DDI36400 communicate with other devices?
A9: The module uses Modbus communication to integrate with other components within a Modicon Quantum PLC system.
Q10: What is the weight of the 140DDI36400 module?
A10: The 140DDI36400 weighs approximately 0.3 kg.
