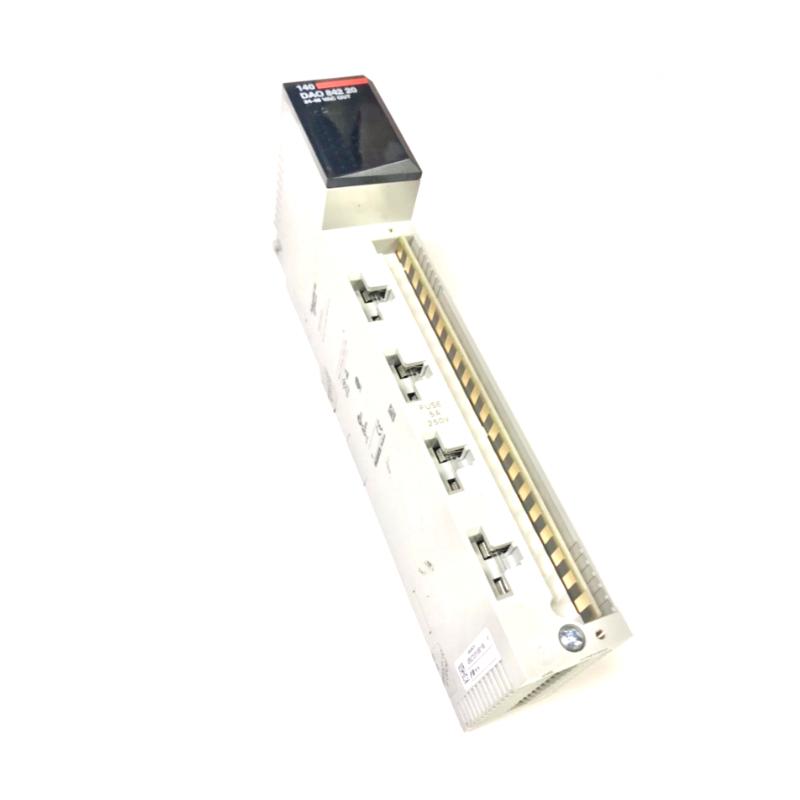

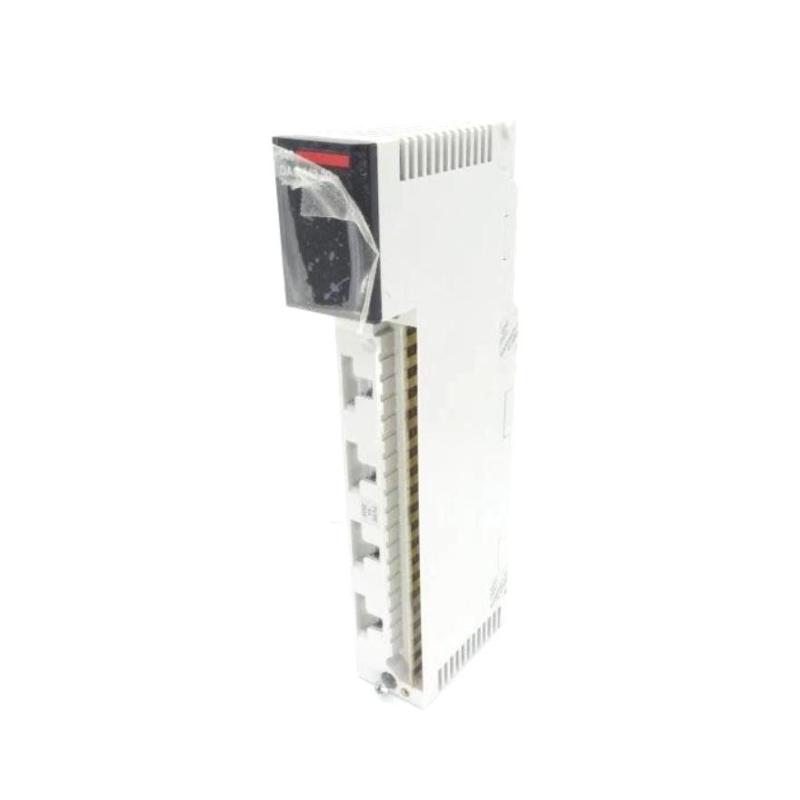

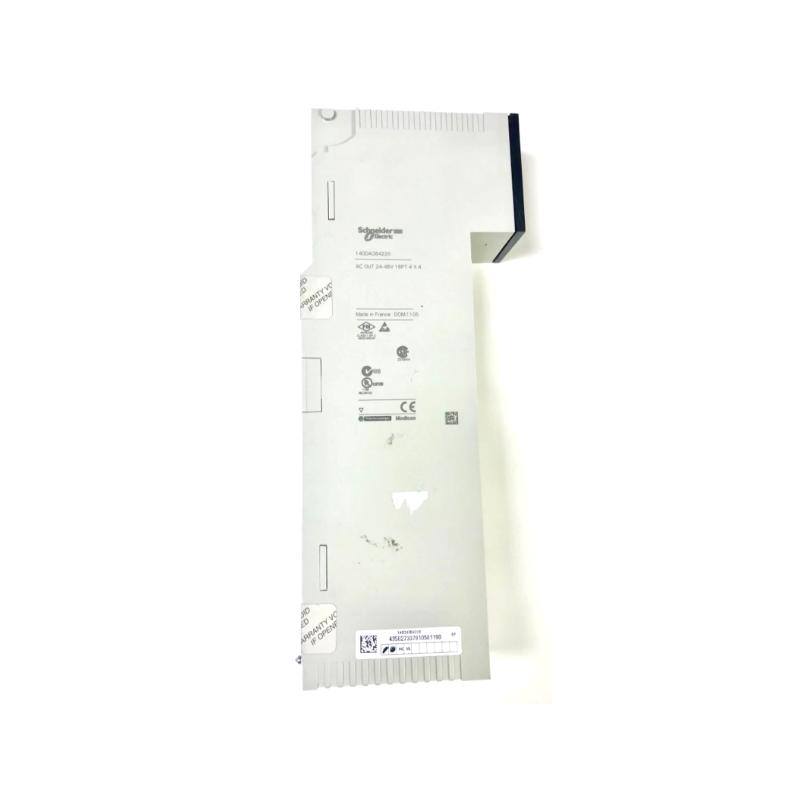

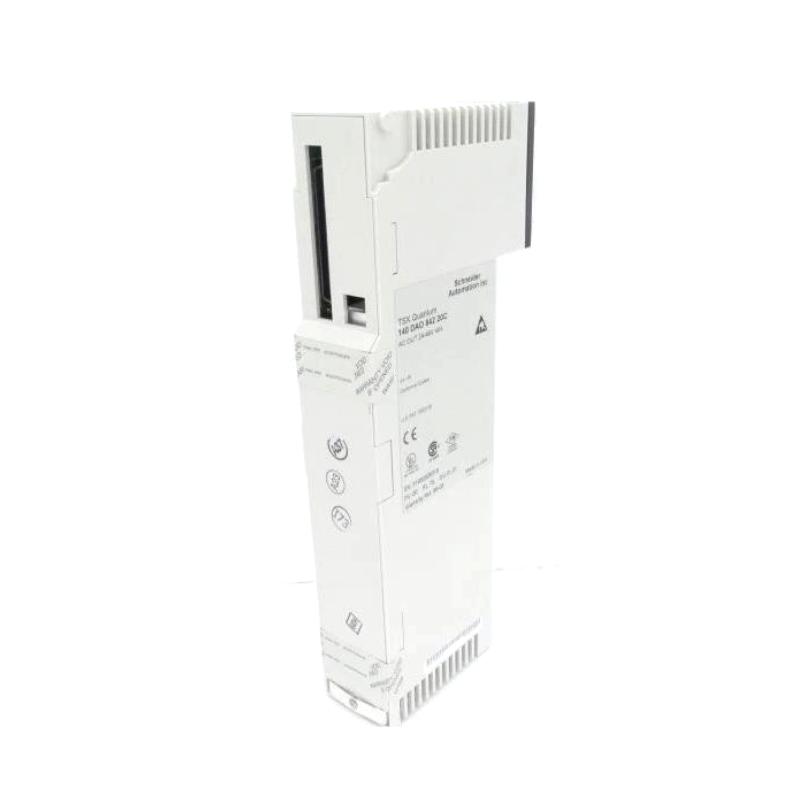

Schneider Electric 140DAO84220C – Product Overview
Product Introduction:
The Schneider Electric 140DAO84220C is a high-performance digital output module designed for use in programmable logic controller (PLC) systems. As part of the Modicon series, it offers 16 channels of digital output, making it a versatile component for controlling a wide range of industrial devices. The module is ideal for applications that require efficient and reliable control of machines, relays, motors, and other types of actuators. It operates on a 24V DC output, providing precision in controlling high-speed operations.
The 140DAO84220C module features excellent switching performance, and its compact design ensures ease of installation even in space-constrained environments. It is capable of handling demanding industrial tasks, maintaining reliability even in challenging operational conditions such as high temperatures, vibration, and electrical noise. The module is also built to easily integrate into existing control systems, making it an optimal solution for automation projects.
Product Applications:
-
Industrial Automation: The 140DAO84220C is used to control industrial machinery such as motors, pumps, and conveyor belts in manufacturing plants and production lines.
-
Energy Management Systems: This module can be used to control electrical components such as circuit breakers, relays, and switches within a power distribution network.
-
Building Automation Systems: It is used for controlling HVAC systems, lighting, and security devices within commercial and industrial buildings.
-
Robotics and Motion Control: The module is suitable for controlling actuators and robotic arms in industries like automotive manufacturing and assembly.
-
Material Handling: This module is also used in automated material handling systems, such as AGVs (Automated Guided Vehicles), automated conveyors, and sorting systems.
Product Advantages:
-
High Reliability: The 140DAO84220C is engineered to deliver reliable performance over extended periods, making it ideal for continuous industrial operations.
-
Large Output Capacity: With 16 digital output channels, this module provides more flexibility and control for complex systems that require numerous outputs.
-
Compact Design: The module’s small size allows for easy installation, even in control panels with limited space.
-
Wide Temperature Range: With an operating temperature range of -20°C to +60°C, this module can perform reliably under harsh industrial conditions.
-
Built-in Protection Features: The module includes overcurrent and short-circuit protection to safeguard the system and connected devices from electrical faults.
-
Flexible Integration: The 140DAO84220C is compatible with other Schneider Electric PLC modules, making it easy to integrate into existing automation systems and expand them as needed.
Brand and Series Information:
-
Brand: Schneider Electric
-
Series: Modicon
-
Category: PLC Digital Output Module
Product Specifications
| Parameter | Description |
|---|---|
| Model | 140DAO84220C |
| Output Type | Digital Output (Transistor) |
| Number of Outputs | 16 |
| Output Voltage | 24V DC |
| Output Current | 0.5 A per channel |
| Dimensions (mm) | 90 mm x 120 mm x 85 mm |
| Weight (kg) | 0.6 kg |
| Temperature Range | -20°C to +60°C |
| Mounting Type | DIN Rail |
| Communication | Modbus, CANopen |
| Compliance | CE, UL, RoHS |
Recommended Models from the Same Series or Related Series
| Model | Description | Output Type | Number of Outputs | Output Current | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 140DAO84000C | 8-channel Digital Output Module | Digital Output | 8 | 0.5 A per channel | 90 x 120 x 85 | 0.5 |
| 140DAO84100C | 8-channel Digital Output Module with enhanced current | Digital Output | 8 | 1 A per channel | 90 x 120 x 85 | 0.55 |
| 140DAO84210C | 8-channel Digital Output Module (Similar to 140DAO84220C) | Digital Output | 8 | 0.5 A per channel | 90 x 120 x 85 | 0.5 |
| 140DAO84160C | 16-channel Digital Output Module | Digital Output | 16 | 0.5 A per channel | 120 x 140 x 110 | 0.8 |
| 140DAO84010C | 8-channel Digital Output Module with enhanced features | Digital Output | 8 | 0.5 A per channel | 90 x 120 x 85 | 0.5 |
Popular Models from Schneider Electric
| Model | Description | Output Type | Number of Outputs | Output Current | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| Modicon M340 | Modular PLC system with advanced communication | Digital/Analog | 12 | 0.5 A per channel | 100 x 150 x 120 | 1.2 |
| Modicon M580 | High-performance PLC system for demanding tasks | Digital/Analog | 16 | 1 A per channel | 120 x 160 x 140 | 2.5 |
| Modicon Quantum | High-speed modular PLC for large-scale systems | Digital/Analog | 32 | 0.8 A per channel | 160 x 200 x 150 | 3.0 |
| Modicon X80 | Scalable PLC system designed for flexibility | Digital/Analog | 8 | 0.5 A per channel | 90 x 120 x 90 | 0.9 |
| TeSys T | Advanced motor management and control relay | Digital Relay | 4 | 1 A per channel | 100 x 100 x 80 | 0.3 |
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 140DAO84220C module?
A1: The 140DAO84220C module is a digital output module used in PLC systems to provide digital signals to control external devices, such as motors, relays, and actuators.
Q2: How many outputs does the 140DAO84220C module offer?
A2: The 140DAO84220C provides 16 digital output channels, allowing for the control of multiple devices simultaneously.
Q3: What is the maximum output current per channel?
A3: Each output channel can handle a maximum current of 0.5 A.
Q4: What is the operating voltage for this module?
A4: The module operates at 24V DC, which is standard for digital output modules in industrial automation.
Q5: Can the 140DAO84220C be used in harsh industrial environments?
A5: Yes, it has an operating temperature range of -20°C to +60°C, making it suitable for use in a variety of industrial settings with temperature fluctuations.
Q6: How is the 140DAO84220C module mounted?
A6: The module is designed to be mounted on a DIN rail, a standard mounting method for industrial automation systems.
Q7: What communication protocols does this module support?
A7: The module supports Modbus and CANopen communication protocols, which are widely used in industrial automation systems.
Q8: What is the weight of the 140DAO84220C module?
A8: The module weighs 0.6 kg, making it a lightweight and easy-to-install component.
Q9: How does this module protect the system?
A9: The 140DAO84220C includes built-in overcurrent and short-circuit protection to safeguard the module and connected devices from electrical faults.
Q10: Is the 140DAO84220C compatible with other Schneider Electric PLC modules?
A10: Yes, the 140DAO84220C is fully compatible with other Schneider Electric Modicon series PLC modules, allowing for easy integration into larger systems.
