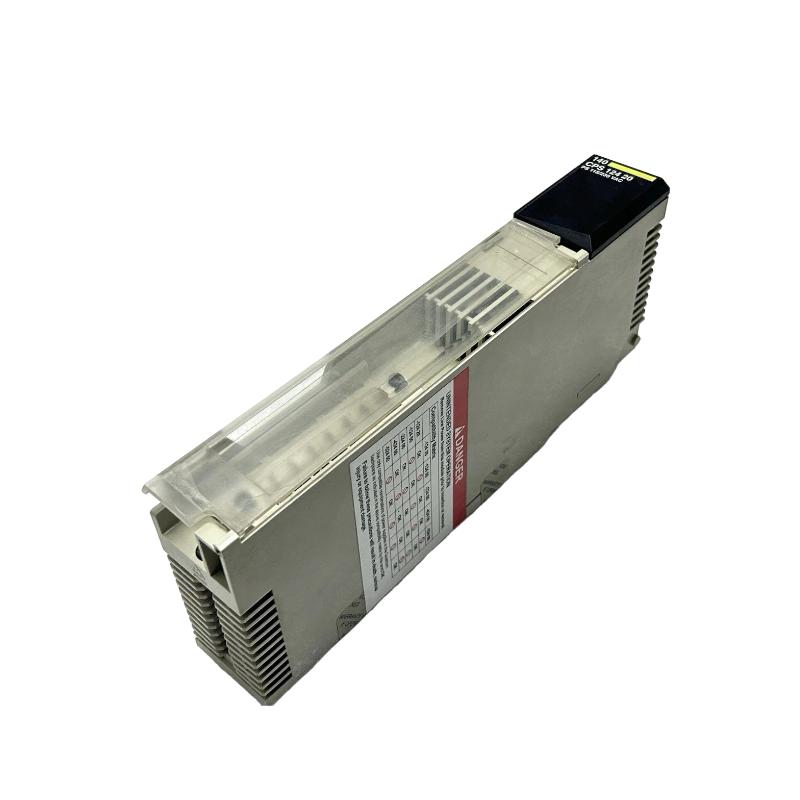

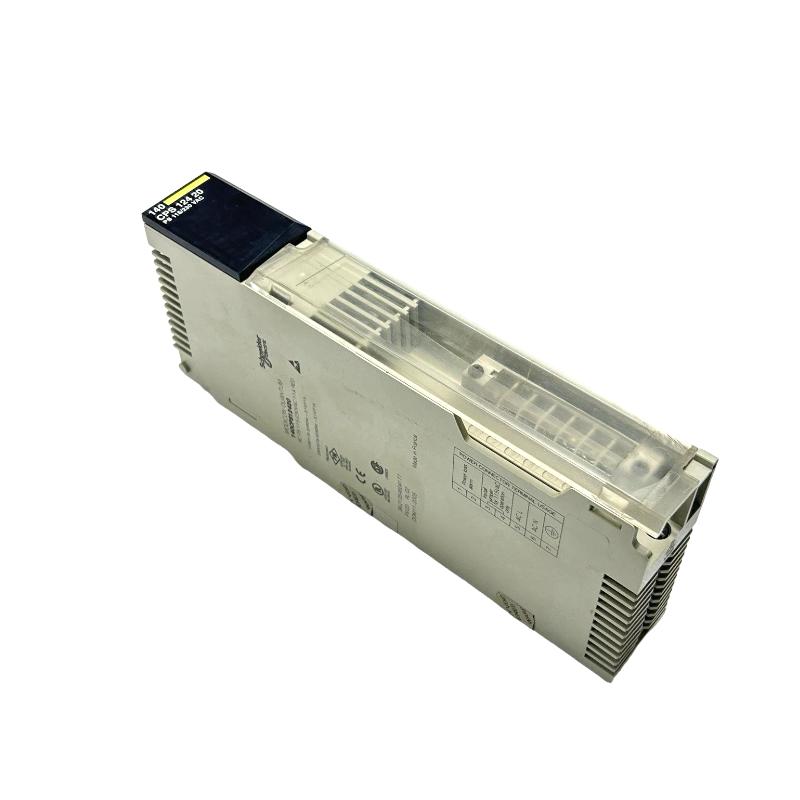

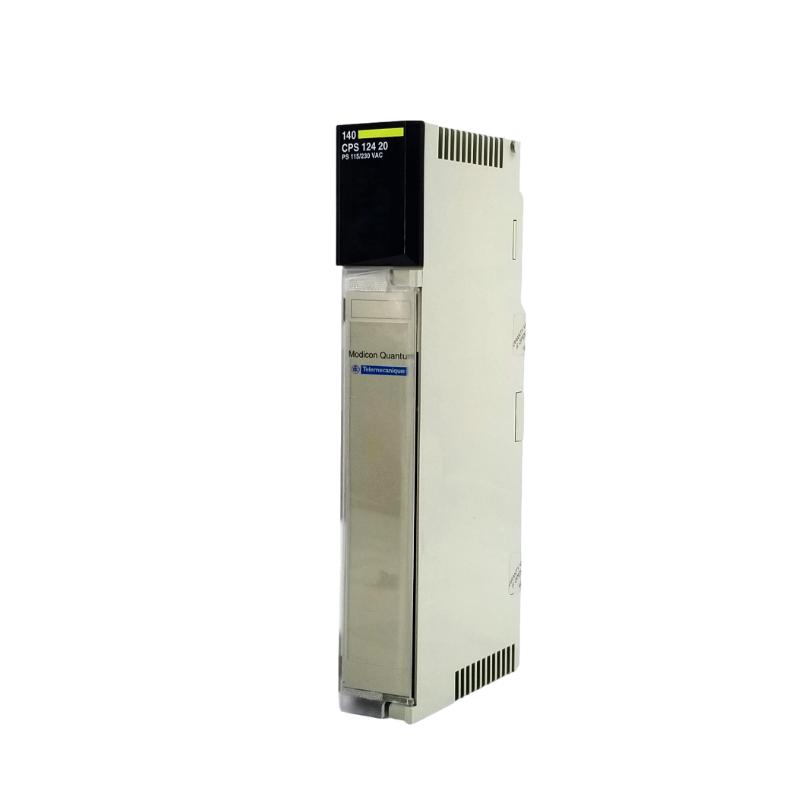

- Power Supply Module Modicon Quantum
- France
- 180 mm x 145 mm x 90 mm
- 0.95kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 38
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Schneider Electric 140CPS12420C: Product Overview, Applications, Features, and Specifications
Product Overview
The Schneider Electric 140CPS12420C is an advanced analog I/O module designed to integrate seamlessly with Modicon PLCs for precise signal conversion in industrial automation systems. It is part of the Modicon series, specifically engineered to manage both analog inputs and outputs for industrial environments that require accurate and real-time data processing.
This module is equipped with 8 analog input channels and 4 analog output channels, capable of processing signals from a variety of sensors used in applications like temperature, pressure, flow, and level measurements. It provides flexibility with support for both differential and single-ended input configurations. Additionally, the 140CPS12420C supports both 0-10 V and 4-20 mA output signals, making it suitable for various industrial control tasks.
Designed to operate with 24 V DC input voltage, the module consumes a low amount of power (7 W), ensuring energy efficiency even during long-term operation. Its DIN rail mounting system makes it easy to install in existing control panels, while its wide operating temperature range of -20°C to 60°C allows it to function in a variety of challenging environments.
Brand: Schneider Electric
Series: Modicon
Type: Analog Input/Output Module
Category: Industrial Automation
Product Description
The 140CPS12420C is an analog I/O module that serves as a bridge between analog sensors and the Modicon PLCs used in industrial control systems. With 8 analog input channels and 4 analog output channels, the module is well-suited for applications requiring the precise measurement and control of parameters like temperature, pressure, humidity, and flow.
The module supports 0-10 V and 4-20 mA output signals, commonly used in industrial settings to control actuators, valves, and other devices. This allows for easy integration with standard industrial equipment. The 140CPS12420C also provides flexibility in handling both differential and single-ended input signals, giving it the ability to interface with a wide variety of analog sensors.
This module’s low power consumption and compact design make it an ideal choice for energy-efficient automation systems. It offers reliable performance even in harsh conditions, with its operating temperature range extending from -20°C to 60°C, allowing it to operate effectively in both hot and cold environments. The DIN rail mounting system simplifies installation, saving time and effort in setting up control panels.
Applications
-
Manufacturing Automation: The 140CPS12420C is used in industrial environments to monitor and control key parameters like temperature, pressure, and flow in manufacturing processes, ensuring product quality and operational efficiency.
-
Energy Management: This module plays a critical role in energy management systems, allowing the real-time monitoring of electrical parameters like voltage, current, and power consumption. It helps optimize energy usage and reduce operational costs.
-
Water Treatment: The 140CPS12420C is deployed in water treatment facilities to monitor flow rates, chemical dosing, and pH levels to ensure safe and effective water treatment processes.
-
HVAC Systems: In HVAC systems, the module helps to maintain optimal environmental conditions by controlling parameters such as temperature, humidity, and airflow.
-
Oil and Gas: The 140CPS12420C is used in oil and gas operations to monitor and control pressure, temperature, and flow, ensuring the safe and efficient operation of facilities.
Advantages
-
High Precision and Flexibility: The 140CPS12420C provides 8 analog input channels and 4 output channels, allowing for high flexibility in handling various types of analog signals with high precision.
-
Energy Efficiency: With a low power consumption of 7 W, the module helps reduce overall operational costs, making it an energy-efficient choice for continuous industrial use.
-
Wide Temperature Range: The module operates reliably within a wide temperature range of -20°C to 60°C, making it suitable for use in a variety of industrial environments with fluctuating temperatures.
-
Easy Integration: Its DIN rail mounting system allows for simple integration into existing control systems. It is also compatible with Modicon PLCs, ensuring seamless interaction between the module and other parts of the automation system.
-
Versatile Signal Handling: The 140CPS12420C is designed to handle both differential and single-ended analog inputs and supports 0-10 V and 4-20 mA output signals, making it adaptable to a wide range of industrial applications.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | 140CPS12420C |
| Series | Modicon |
| Type | Analog Input/Output Module |
| Input Voltage | 24 V DC |
| Power Consumption | 7 W |
| Input Current | 0.35 A |
| Analog Input Channels | 8 (Differential or Single-Ended) |
| Analog Output Channels | 4 (0-10 V or 4-20 mA) |
| Dimensions (LxWxH) | 180 mm x 145 mm x 90 mm |
| Weight | 0.95 kg |
| Temperature Range | -20°C to 60°C |
| Mounting Type | DIN Rail |
Related Products in the Modicon Series
| Model Number | Description | Key Parameters |
|---|---|---|
| 140CPS11100 | Analog I/O Module (4 inputs, 2 outputs) | Input Voltage: 24 V DC, Power Consumption: 5 W, Weight: 0.65 kg, Dimensions: 125 mm x 100 mm x 80 mm |
| 140CPS11400 | Analog I/O Module (4 inputs, 2 outputs) | Input Voltage: 24 V DC, Power Consumption: 6 W, Weight: 0.75 kg, Dimensions: 150 mm x 125 mm x 85 mm |
| 140CPS11200 | Analog Input Module (8 Inputs) | Input Voltage: 24 V DC, Power Consumption: 8 W, Weight: 0.8 kg, Dimensions: 145 mm x 115 mm x 95 mm |
| 140CPS11410 | Analog I/O Module (4 inputs, 2 outputs) | Input Voltage: 24 V DC, Power Consumption: 6 W, Weight: 0.75 kg, Dimensions: 150 mm x 125 mm x 85 mm |
| 140EIO84000 | Ethernet I/O Module | Input Voltage: 24 V DC, Power Consumption: 9 W, Weight: 1.2 kg, Dimensions: 160 mm x 150 mm x 110 mm |
Other Popular Models from Schneider Electric
| Model Number | Description | Key Parameters |
|---|---|---|
| Modicon M241 | Mid-Range PLC with Ethernet Connectivity | Input Voltage: 24 V DC, Power Consumption: 12 W, Weight: 0.7 kg, Dimensions: 160 mm x 130 mm x 100 mm |
| Modicon M580 | High-Performance PLC with Advanced Features | Input Voltage: 24 V DC, Power Consumption: 15 W, Weight: 1.3 kg, Dimensions: 170 mm x 150 mm x 120 mm |
| Modicon X80 | Modular PLC for Scalable Systems | Input Voltage: 24 V DC, Power Consumption: 8 W, Weight: 1.1 kg, Dimensions: 150 mm x 140 mm x 100 mm |
| Modicon P1 | Compact PLC for Small Applications | Input Voltage: 24 V DC, Power Consumption: 5 W, Weight: 0.6 kg, Dimensions: 130 mm x 120 mm x 85 mm |
| Modicon M221 | Compact PLC for Small to Medium Applications | Input Voltage: 24 V DC, Power Consumption: 7 W, Weight: 0.45 kg, Dimensions: 140 mm x 120 mm x 80 mm |
Frequently Asked Questions (FAQs)
Q1: What is the function of the 140CPS12420C module?
A1: The 140CPS12420C is an analog I/O module used to convert analog signals from sensors (such as temperature, pressure, flow) into digital signals for processing by Modicon PLCs.
Q2: How many analog input channels are available in the module?
A2: The 140CPS12420C provides 8 analog input channels, which can be configured for differential or single-ended inputs.
Q3: What types of output signals does the module support?
A3: The module supports 4 analog output channels, capable of providing 0-10 V or 4-20 mA signals.
Q4: What is the power consumption of the module?
A4: The 140CPS12420C consumes 7 W of power when operating at 24 V DC.
Q5: What is the weight of the module?
A5: The 140CPS12420C weighs 0.95 kg, making it easy to handle and install.
Q6: How is the module mounted?
A6: The 140CPS12420C uses DIN rail mounting, allowing it to be easily integrated into control panels.
Q7: What is the operating temperature range of the module?
A7: The module operates in a temperature range of -20°C to 60°C, suitable for various industrial environments.
Q8: Can the 140CPS12420C be used for remote monitoring?
A8: Yes, the module can be used for remote monitoring applications when connected to compatible Modicon PLCs.
Q9: How does the 140CPS12420C compare to other models in the series?
A9: The 140CPS12420C provides 8 input channels and 4 output channels, offering more signal processing capacity compared to models like the 140CPS11100.
Q10: Is the 140CPS12420C compatible with other Modicon PLCs?
A10: Yes, the module is fully compatible with other Modicon PLCs, ensuring seamless integration with existing systems.
