Product Overview

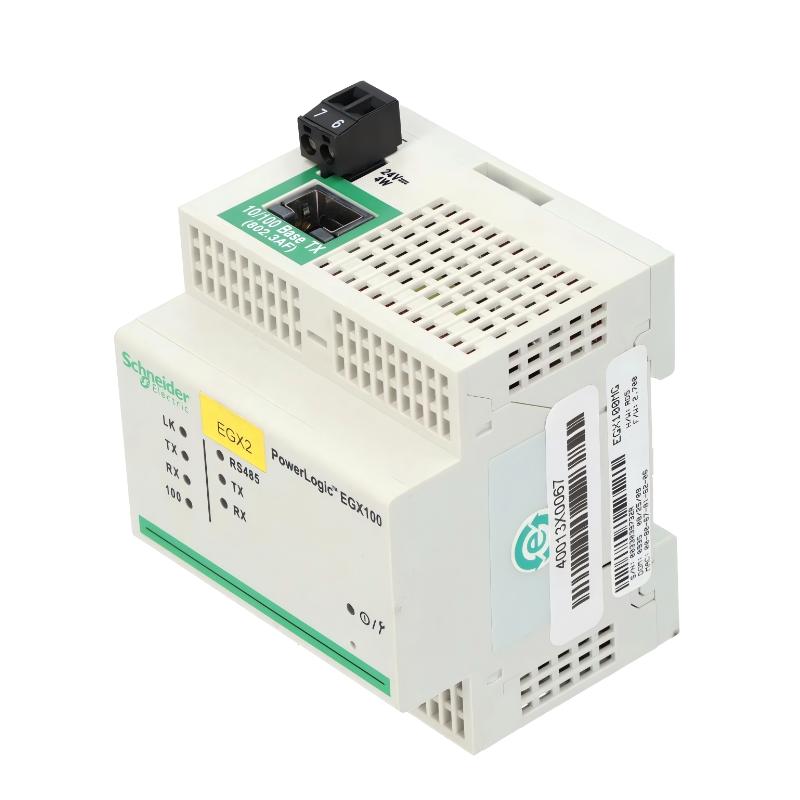

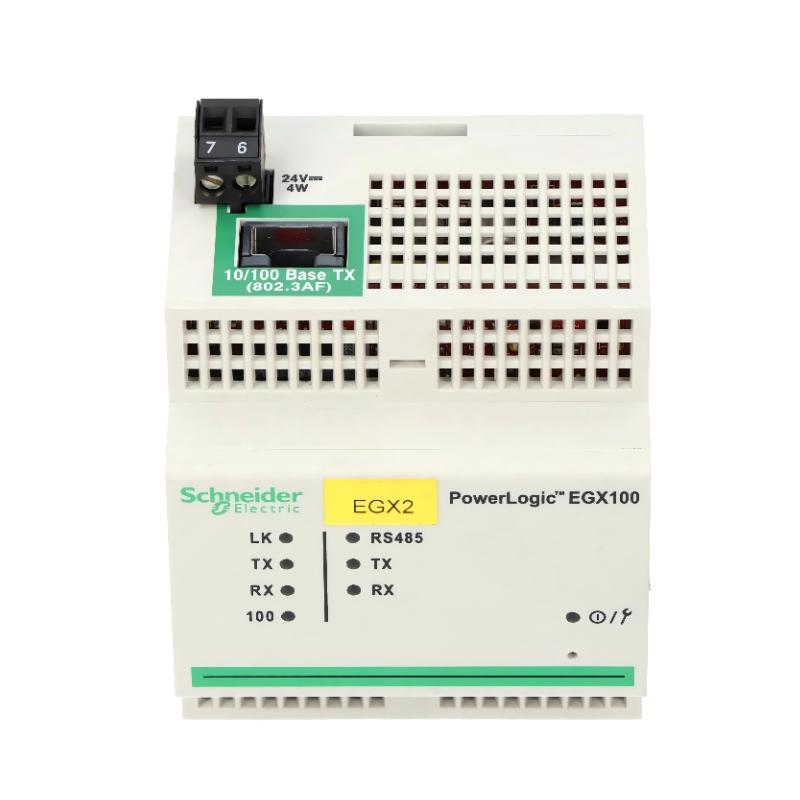

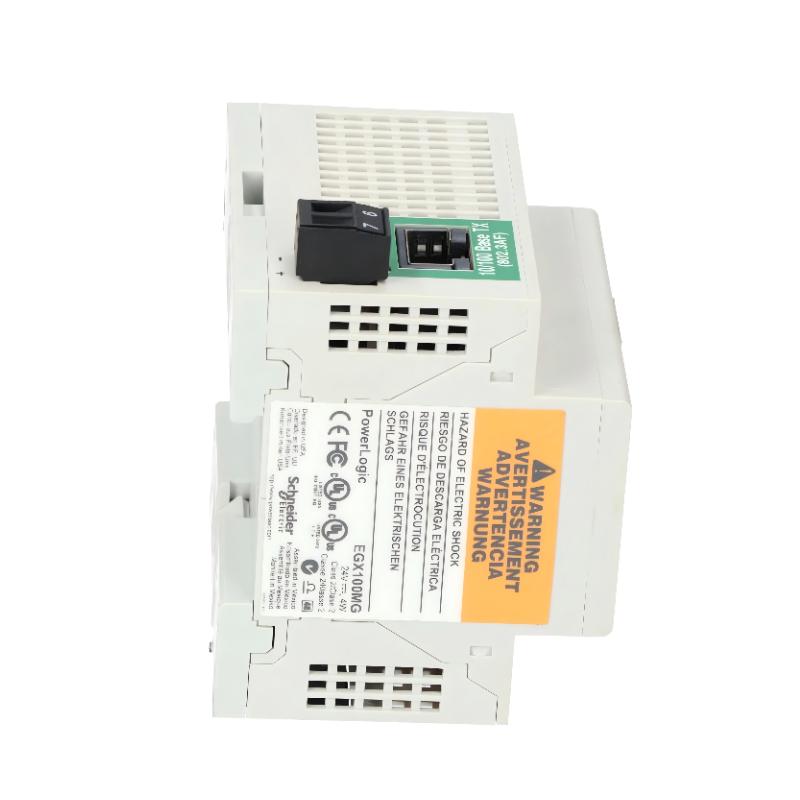

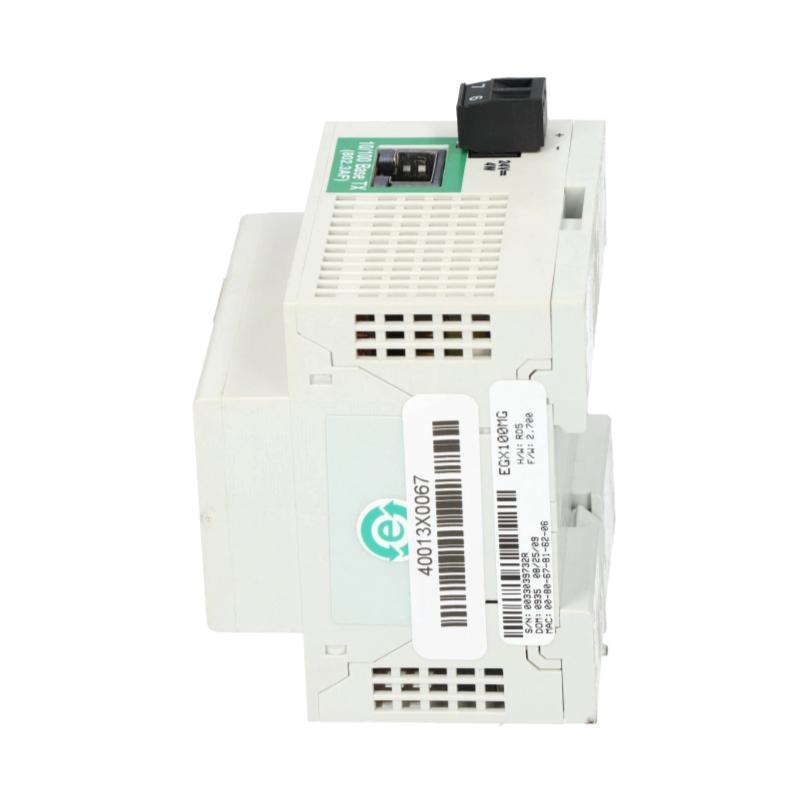

The Schneider EGX100MG is a PowerLogic EGX100 Ethernet Gateway used to connect power monitoring devices and other compatible serial communication equipment to an Ethernet network. It provides a communication path between field-level metering equipment and Ethernet-based supervisory systems.
The gateway is particularly useful in electrical distribution systems where multiple meters or monitoring devices communicate over a serial network while the plant or building management system operates over Ethernet. By bridging these communication layers, the EGX100MG allows existing metering infrastructure to be accessed from a networked monitoring environment.
A typical installation places the EGX100MG between a serial device network and an Ethernet infrastructure. Connected meters can exchange data through the gateway, while supervisory software or a monitoring workstation communicates with the gateway over the Ethernet network.
For commissioning and maintenance, the communication path should be checked from the Ethernet side through the gateway to the connected serial devices. Network configuration, serial communication parameters, device addressing, and wiring all affect successful data exchange.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | EGX100MG |
| Product Family | PowerLogic EGX100 |
| Product Type | Ethernet Gateway |
| Primary Function | Ethernet-to-serial communication gateway |
| System Role | Communication interface |
| Application | Power monitoring and electrical energy management |
| Dimensions | 91 × 72 × 68 mm |
| Weight | 0.17 kg |
Product Features
- PowerLogic EGX100 Ethernet gateway for electrical monitoring networks
- Bridges compatible serial devices to Ethernet-based systems
- Suitable for connecting power meters to supervisory networks
- Supports centralized access to connected electrical monitoring devices
- Useful for building, facility, and industrial power monitoring
- Provides a communication interface between field devices and Ethernet infrastructure
- Suitable for integration into PowerLogic monitoring architectures
- Compact gateway format for control-panel and electrical-distribution installations
Working Principle
The EGX100MG acts as a communication bridge rather than a measurement or control device. It receives data from compatible serial devices and makes that information available through the Ethernet communication network.
Power Meters / Serial Devices → EGX100MG → Ethernet Network → Monitoring Software / SCADA
When a supervisory system requests information from a connected meter, the request travels through the Ethernet network to the EGX100MG. The gateway handles the communication between the Ethernet side and the serial device network, allowing the appropriate field device to respond.
The reverse path is also used when device information is transmitted toward the monitoring system. Metering data such as electrical measurements and operating status can therefore be collected centrally without requiring each field device to have a direct Ethernet connection.
Role in a Power Monitoring Communication Architecture
The EGX100MG occupies the communication gateway layer between electrical metering equipment and the Ethernet network. It separates the field communication network from the higher-level monitoring infrastructure while allowing data to pass between them.
Power Meters → Serial Communication Network → EGX100MG → Ethernet Network → Power Monitoring System / SCADA
| System Element | Function |
|---|---|
| Power Meters | Measures electrical parameters and energy information |
| Serial Device Network | Carries communication between field monitoring devices |
| EGX100MG | Bridges serial device communication to Ethernet |
| Ethernet Network | Transfers monitoring data to networked systems |
| Monitoring Software | Collects and displays electrical information |
| SCADA / BMS | Provides centralized monitoring and energy management |
| Engineering / Maintenance PC | Provides configuration and diagnostic access |
The gateway does not replace the meters or supervisory software. Its function is to provide the communication path required for those systems to exchange information.
Industrial Applications
| Application | Typical Use |
|---|---|
| Electrical Distribution | Network access to connected power meters |
| Building Management | Centralized energy and electrical monitoring |
| Industrial Power Monitoring | Ethernet integration of serial meters |
| Energy Management Systems | Collection of electrical measurement data |
| Commercial Facilities | Meter communication over building networks |
| Manufacturing Plants | Centralized monitoring of electrical equipment |
| Utility Monitoring Panels | Communication between meters and supervisory PCs |
| Power Quality Monitoring | Network access to compatible monitoring devices |
Installation and Maintenance
- Verify the EGX100MG model and intended communication architecture before installation.
- Mount the gateway in an appropriate control or electrical panel location.
- Confirm the Ethernet connection and network addressing requirements.
- Connect the serial communication wiring according to the installed device network configuration.
- Verify the addresses of connected meters and other serial devices.
- Confirm serial communication parameters match the connected field equipment.
- Check Ethernet link status after applying power to the gateway.
- Verify that connected meters are visible to the monitoring system.
- Test data communication from the supervisory system to representative field devices.
- Check serial wiring, device addressing, and network configuration when individual meters cannot be accessed.
- Inspect communication connections periodically for loose terminals, cable damage, or network faults.
- After replacement, verify Ethernet communication, serial device access, and monitoring-system data updates before returning the gateway to normal service.
Compatible System Components
| Component | Function |
|---|---|
| Schneider PowerLogic Meters | Measures electrical parameters and energy data |
| Serial Communication Network | Connects field meters to the gateway |
| Ethernet Network Infrastructure | Provides network communication to supervisory systems |
| Power Monitoring Software | Collects and visualizes meter information |
| SCADA System | Provides centralized electrical monitoring |
| Building Management System | Supports facility-level energy monitoring |
| Ethernet Switch | Connects the gateway to the wider network |
| Engineering / Maintenance PC | Provides configuration and diagnostic access |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider PowerLogic EGX100 | Ethernet Gateway | Metering network communication |
| Schneider PowerLogic EGX Series | Communication Gateway Family | Power monitoring network integration |
| Schneider PowerLogic PM Series | Power Meter | Electrical measurement and monitoring |
| Schneider PowerLogic ION Series | Power and Energy Meter | Advanced electrical monitoring |
| Schneider PowerLogic Ethernet Gateways | Communication Gateway | Serial-to-Ethernet device integration |
| Schneider Power Monitoring System | Monitoring Platform | Centralized energy management |
Key Advantages
- Bridges compatible serial metering devices with Ethernet networks.
- Allows existing field meters to participate in networked monitoring systems.
- Centralizes communication between electrical devices and supervisory software.
- Suitable for industrial, commercial, and building energy monitoring.
- Simplifies Ethernet access to distributed power-monitoring equipment.
- Integrates naturally into PowerLogic communication architectures.
Technical FAQs
What is the EGX100MG used for in a PowerLogic system?
The EGX100MG is used as a communication gateway between compatible serial-connected devices and an Ethernet network. It allows supervisory systems to access data from connected power meters and monitoring equipment.
Can the EGX100MG measure electrical parameters itself?
No. The gateway handles communication rather than electrical measurement. Measurement values originate from connected meters or monitoring devices and are transferred through the gateway to the higher-level system.
What should be checked when one connected meter cannot be accessed?
Check the meter’s address, serial wiring, communication parameters, and device status first. If other meters remain accessible, the fault can often be isolated to the affected device or its local communication path rather than the Ethernet gateway.
What is important when replacing an EGX100MG?
The Ethernet network configuration, serial device settings, connected meter addresses, and monitoring-system communication should be verified after replacement. A complete communication test should confirm that the supervisory system can again access the required field devices.
