Product Overview

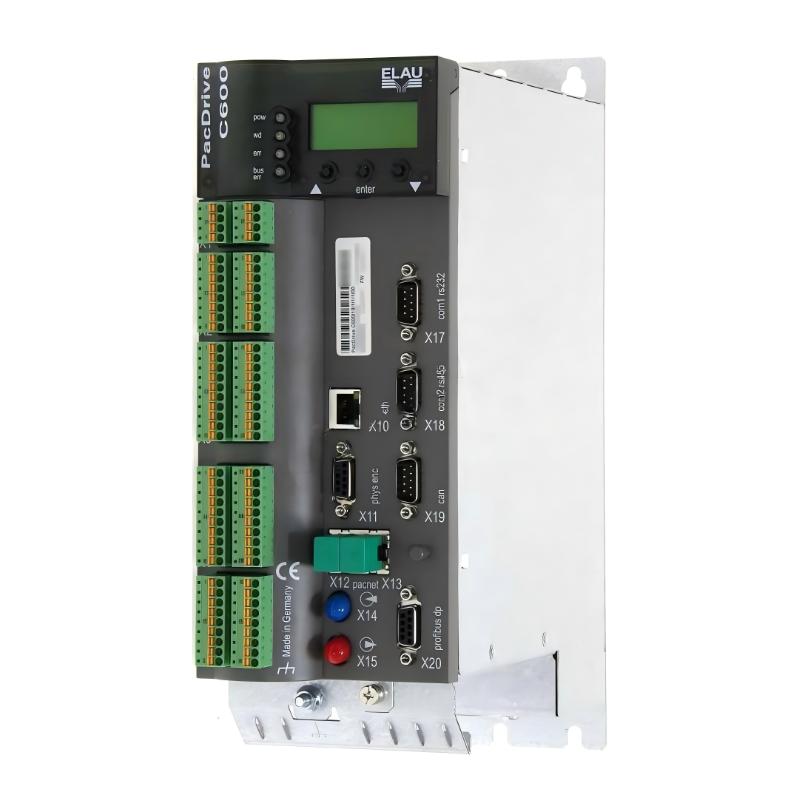

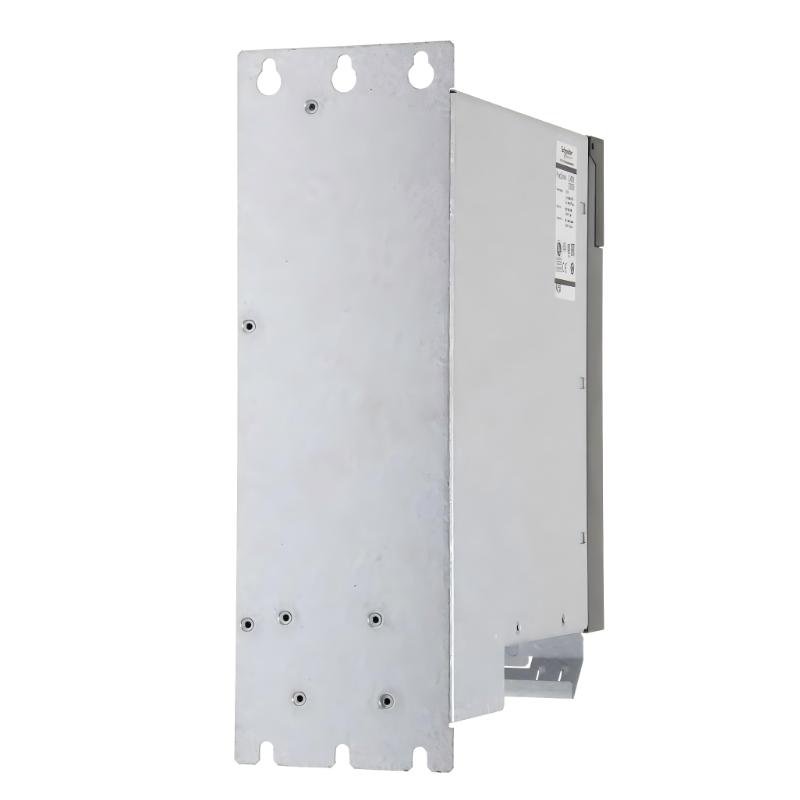

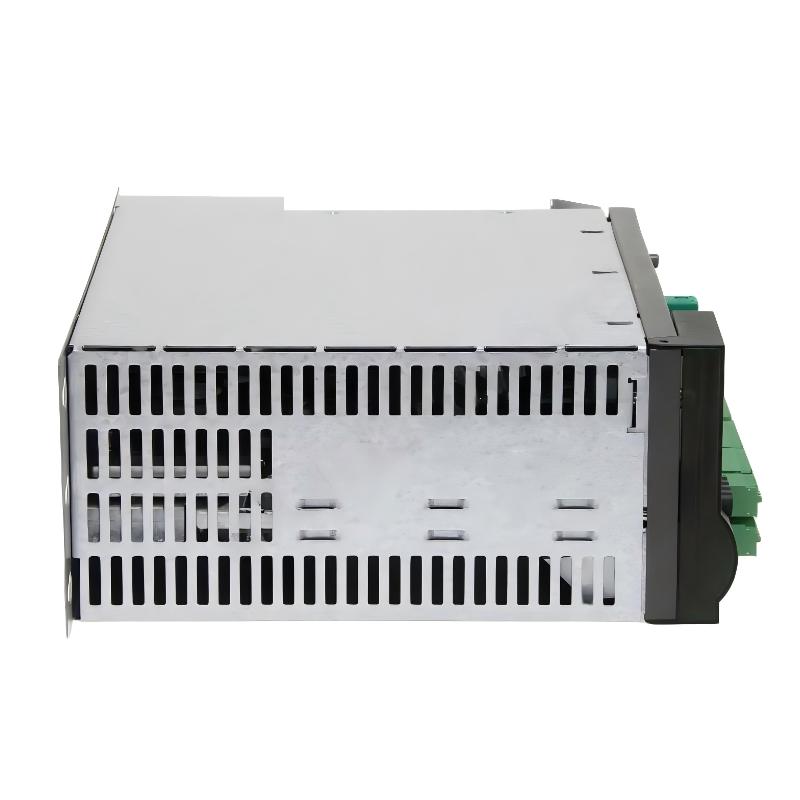

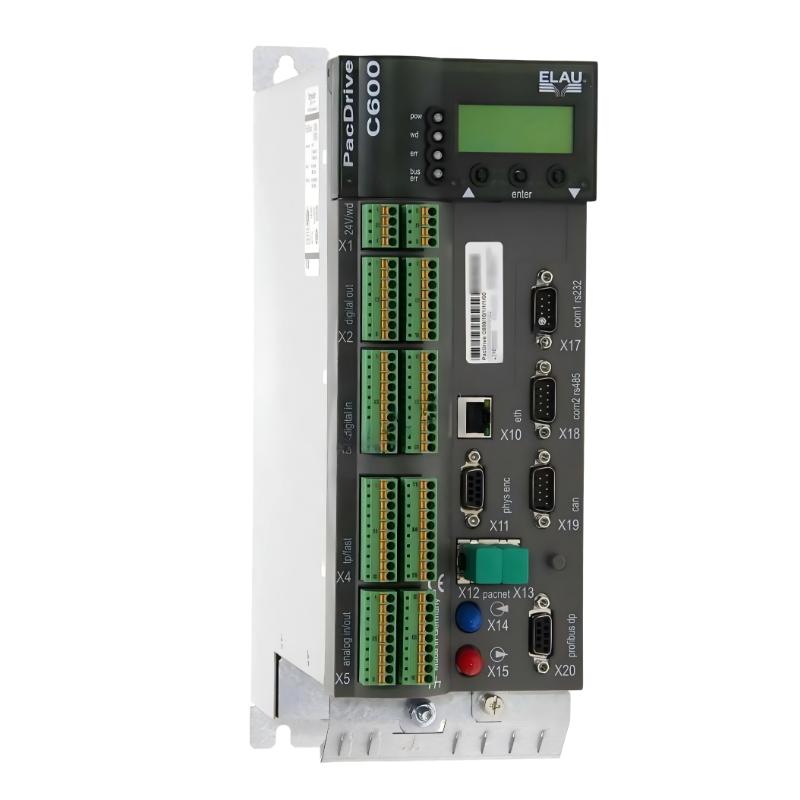

The Schneider C600/10/1/1/1/00 PacDrive M Controller is a motion controller used in machine automation systems where coordinated control of multiple servo axes, machine sequences, and distributed automation functions is required. It belongs to the PacDrive M platform and sits at the central control layer of a motion-oriented machine architecture.
In applications such as packaging machines, filling systems, labeling equipment, material handling machinery, and other synchronized production equipment, the controller coordinates motion commands with machine logic and connected automation devices. This allows individual axes and machine functions to operate according to a common control program.
The PacDrive M Controller can work with servo drives, motors, I/O systems, operator interfaces, and machine communication networks. Rather than directly switching field loads, it processes the application program and distributes control information to the relevant motion and automation components.
For commissioning and maintenance, the controller provides the central point for machine sequence execution and motion coordination. Fault diagnosis should therefore consider the controller application together with drive status, feedback devices, I/O signals, communication connections, and the mechanical machine sequence.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | C600/10/1/1/1/00 |
| Product Family | PacDrive |
| Product Series | PacDrive M |
| Product Type | Motion Controller |
| Primary Function | Machine and multi-axis motion control |
| System Role | Central motion and machine control |
| Typical Application | Packaging, material handling, and machine automation |
| Dimensions | 155 × 45 × 110 mm |
| Weight | 3.68 kg |
Product Features
- PacDrive M controller for coordinated machine automation.
- Supports centralized machine and motion-control functions.
- Suitable for applications involving multiple coordinated servo axes.
- Interfaces with compatible servo drives and automation components.
- Supports machine sequencing alongside motion-control tasks.
- Can operate as the central controller within a PacDrive machine architecture.
- Suitable for packaging and other high-speed automated machinery.
- Provides a common control point for motion, I/O, and machine functions.
- Supports integration with compatible operator and communication systems.
Working Principle
The C600/10/1/1/1/00 executes the machine application program and coordinates commands between the machine-control logic and connected motion components. Motion instructions are processed by the controller and transferred through the PacDrive architecture to the appropriate servo drives.
Engineering / HMI → C600/10/1/1/1/00 PacDrive M Controller → Servo Drives → Servo Motors → Machine Mechanisms
At the same time, the controller receives information from I/O devices, feedback systems, safety-related interfaces where applicable, and other connected automation equipment. These signals are evaluated as part of the programmed machine sequence.
The controller therefore operates as the decision-making layer rather than as the final power stage. Servo drives handle the electrical control of the motors, while the controller determines the required motion sequence, synchronization, and machine operating conditions.
Role in a PacDrive M Motion Control Architecture
The C600/10/1/1/1/00 occupies the central control position in a PacDrive M motion system. It coordinates machine logic and motion commands while exchanging information with drives, I/O devices, operator interfaces, and other automation equipment.
HMI / Engineering System → PacDrive M Controller → Motion Network → Servo Drives → Servo Motors → Machine
| System Element | Function |
|---|---|
| HMI / Engineering System | Provides operator interaction and engineering functions |
| C600/10/1/1/1/00 Controller | Executes machine logic and coordinates motion |
| I/O System | Exchanges machine status and field signals |
| Motion Communication | Transfers motion-related control information |
| Servo Drives | Controls electrical power delivered to servo motors |
| Servo Motors | Produces controlled mechanical motion |
| Machine Mechanisms | Performs the required production operation |
| Feedback Devices | Supplies position or motion information where applicable |
This architecture separates high-level machine coordination from motor power control, allowing the controller and servo drives to handle different parts of the overall motion system.
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Coordinated motion of conveyors, cutters, and handling axes |
| Filling Machines | Synchronization of filling and product-handling movements |
| Labeling Equipment | Precise coordination of product and labeling mechanisms |
| Material Handling | Multi-axis positioning and synchronized machine movement |
| Printing Machinery | Coordinated motion across machine processing sections |
| Assembly Machines | Sequence control and synchronized servo-axis operation |
| Pick-and-Place Systems | Coordinated positioning and repetitive motion control |
| High-Speed Production | Centralized control of synchronized machine functions |
Installation and Maintenance
- Confirm that the C600/10/1/1/1/00 matches the intended PacDrive M control architecture before installation.
- Verify the controller mounting arrangement and available cabinet space before fitting the unit.
- Check the incoming power and grounding arrangement against the approved machine electrical design.
- Verify communication connections between the controller, drives, I/O equipment, and other PacDrive components.
- Confirm that the installed controller application matches the intended machine configuration.
- Check all network and control connections for secure termination before commissioning.
- Verify that connected servo drives and motors are correctly identified by the control application.
- Check I/O assignments and machine feedback signals before enabling automatic operation.
- Back up or document the existing controller application and configuration before replacement where applicable.
- During commissioning, test machine sequences and individual motion functions under controlled conditions.
- Investigate controller faults together with communication, drive, feedback, and I/O diagnostics rather than isolating the controller alone.
- After replacement, verify the complete machine sequence, axis coordination, feedback behavior, and communication status before returning the equipment to production.
Compatible System Components
| Component | Function |
|---|---|
| Schneider PacDrive M Drives | Receives motion commands and controls servo motor power |
| Schneider Servo Motors | Converts electrical drive output into mechanical motion |
| PacDrive I/O Equipment | Exchanges machine and field signals |
| Machine Feedback Devices | Provides position and motion information |
| HMI / Operator Panel | Provides machine operation and status visualization |
| Engineering System | Supports application configuration and commissioning |
| Industrial Communication | Connects controller with distributed automation equipment |
| Machine Safety Equipment | Provides applicable safety-related monitoring and control |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider PacDrive M | Motion Control System | Multi-axis machine automation |
| Schneider PacDrive C600 | Motion Controller | Centralized machine and motion control |
| Schneider PacDrive M340 | Motion Controller | Machine automation and coordinated motion |
| Schneider PacDrive Servo Drives | Servo Drive | Motor control and axis motion |
| Schneider PacDrive Servo Motors | Servo Motor | Machine-axis movement |
| Schneider PacDrive I/O | I/O System | Machine signal acquisition and control |
| Schneider PacDrive HMI | Operator Interface | Machine visualization and operation |
Key Advantages
- Centralizes machine sequencing and coordinated motion control.
- Supports multi-axis automation architectures based on the PacDrive M platform.
- Separates motion coordination from servo-drive power control.
- Provides a common control layer for drives, I/O, feedback, and operator interfaces.
- Suitable for synchronized production machinery and high-speed automated equipment.
- Simplifies machine-level coordination where multiple motion functions must operate as one sequence.
Technical FAQs
How does the C600/10/1/1/1/00 differ from a servo drive?
The controller executes the machine application and determines the required motion sequence, while the servo drive handles the electrical control of the connected motor. Both components work together but perform different functions within the motion architecture.
What should be checked if a PacDrive axis does not move after a controller replacement?
The controller configuration, drive communication, axis assignment, enable conditions, feedback signals, and machine permissives should be checked in sequence. A controller replacement can expose configuration or communication mismatches even when the physical wiring remains unchanged.
Can the controller operate the machine without the associated servo drives?
The controller can execute machine logic and motion commands, but the servo drives remain responsible for controlling motor power. A complete motion system therefore requires compatible drive and motor hardware for the commanded axes.
What is important when transferring an existing PacDrive application to a replacement controller?
The application program, controller configuration, communication settings, axis assignments, I/O mapping, and machine-specific parameters should be verified. After transfer, individual axes and machine sequences should be tested before enabling full automatic production.
