Product Overview

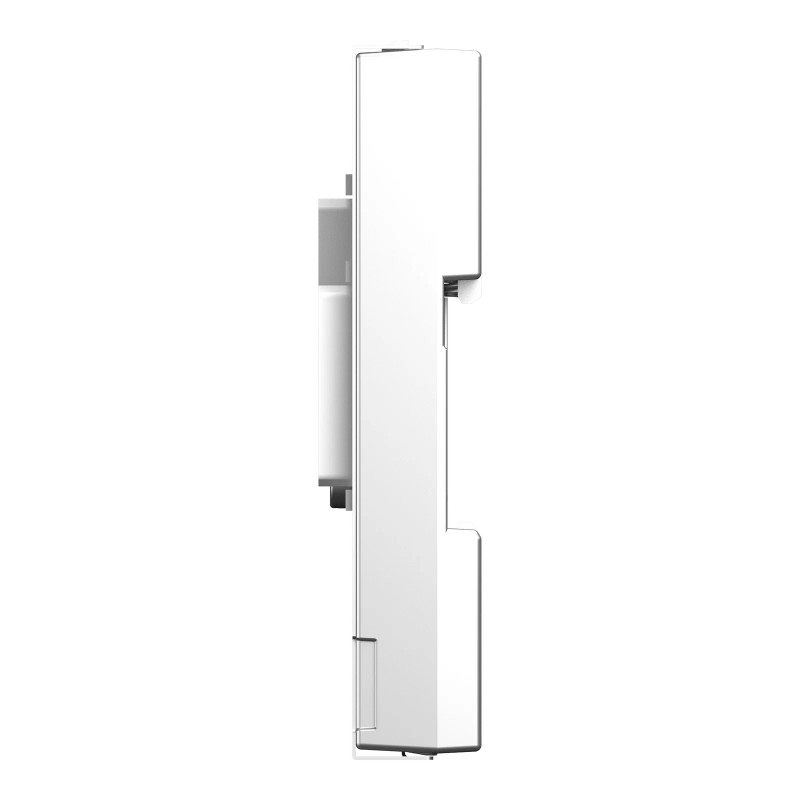

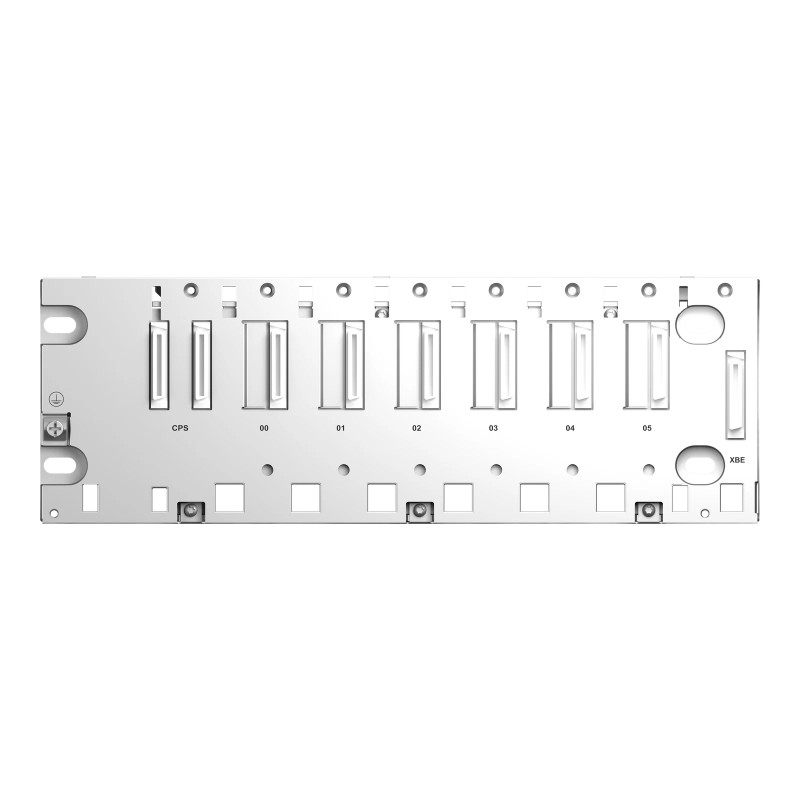

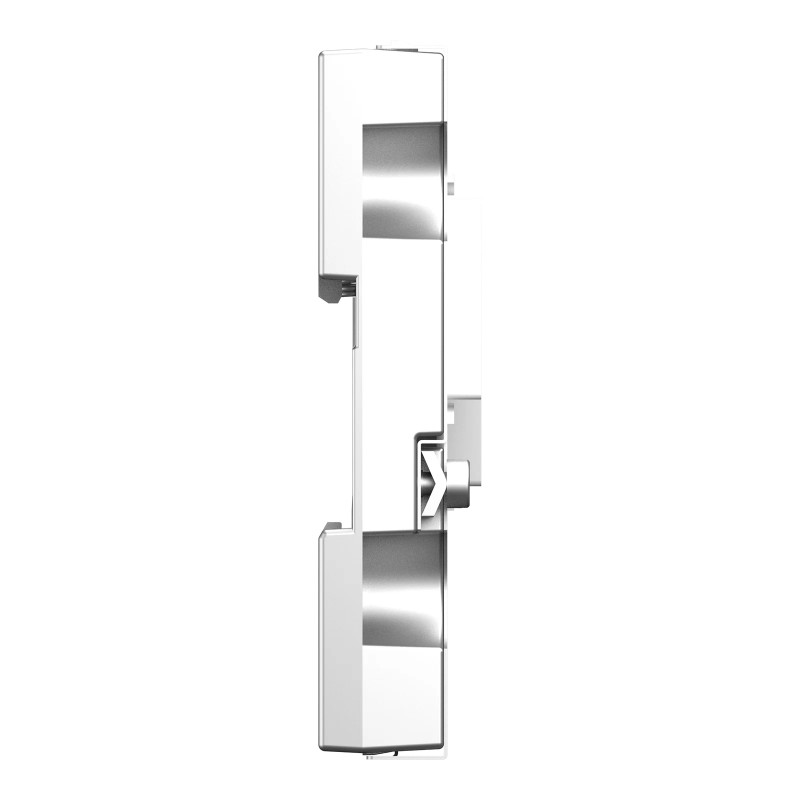

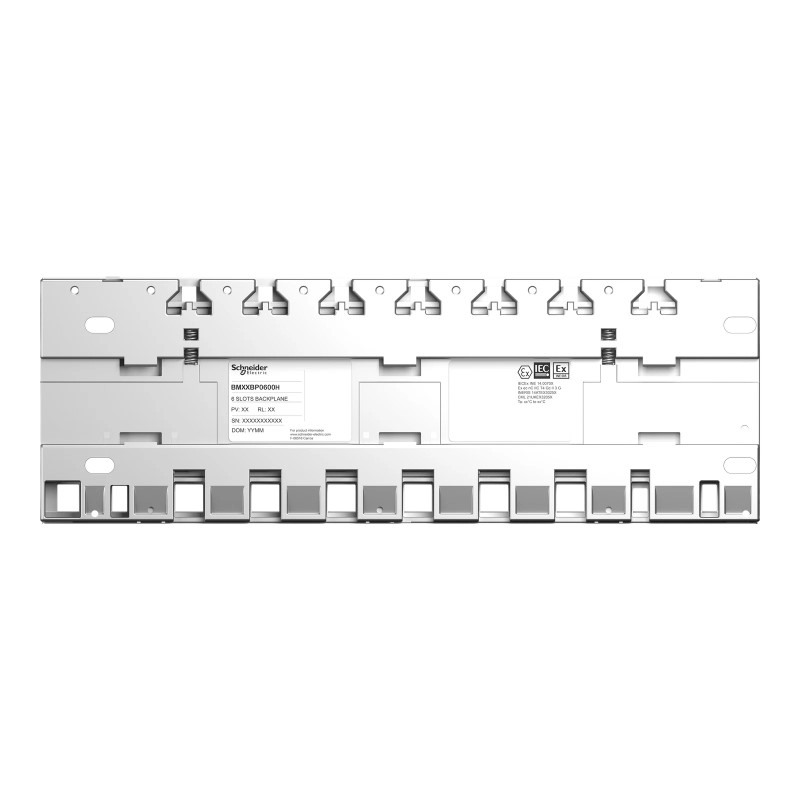

The Schneider BMXXBP0600H Modicon X80 Backplane Rack is a backplane component used to build a modular Modicon X80 I/O station. Rather than processing signals itself, the rack establishes the physical and electrical structure in which compatible X80 modules are installed and interconnected.

In a typical X80 installation, a single controller cabinet may contain a CPU, power supply, communication interfaces, digital I/O, analog I/O, and other application-specific modules. These components need a common mounting and backplane connection arrangement. The BMXXBP0600H forms that foundation.

A practical example would be a machine-control cabinet containing several X80 I/O modules. Field sensors connect to input modules, actuators connect to output modules, and the controller exchanges data with those modules through the X80 architecture. The backplane rack holds the modules in their designated positions and establishes the internal module connection.

The BMXXBP0600H is therefore not an I/O module or controller. Its role is structural and architectural: it supports the installation and interconnection of the modules that make up an X80 station.

For maintenance work, this distinction is useful. If several modules in the same rack exhibit abnormal behavior at the same time, engineers should consider the common rack and backplane connection rather than assuming that multiple independent I/O modules have failed simultaneously.

Technical Specifications

Product Features

The BMXXBP0600H forms the physical foundation of a modular X80 station.

• Schneider Electric Modicon X80 Backplane Rack
• Model BMXXBP0600H
• Used for X80 module installation
• Provides the backplane connection between compatible modules
• Supports modular PLC and I/O architectures
• Suitable for mixed I/O and communication configurations
• Allows multiple X80 modules to be arranged in one station
• Useful for control cabinet construction
• Suitable for system expansion and replacement work
• Relevant to modular industrial automation installations

The rack should be selected according to the required number and type of X80 modules and the overall station architecture.

Working Principle

The BMXXBP0600H does not perform control calculations or field signal conversion. Its function is to give compatible X80 modules a common physical and electrical platform.

A simplified arrangement is:

Power / Controller → X80 Backplane → I/O and Communication Modules → Field Equipment

Once the applicable modules are installed, the backplane provides the internal connection required by the X80 station architecture.

For example, an X80 station may contain:

CPU / Communication Module → Backplane Rack → Digital Input → Analog Input → Digital Output

The individual modules perform their own functions, while the backplane provides the common mounting and interconnection structure.

This means the BMXXBP0600H can affect multiple modules without itself being responsible for processing their signals. If a module is not seated correctly, if the backplane connection is damaged, or if the rack has a physical problem, several modules may show abnormal behavior.

During troubleshooting, engineers should therefore look for common symptoms across neighboring modules. A single failed input channel points toward the relevant I/O module or field circuit, while several modules becoming unavailable together may justify inspection of the shared backplane infrastructure.

Role in a Modicon X80 Control Architecture

The backplane rack is positioned at the center of the local X80 module assembly.

A simplified architecture is:

PLC / Network → X80 Backplane Rack → CPU / I/O / Communication Modules → Field Devices

The backplane is consequently a shared infrastructure component rather than a signal-processing device.

Backplane Rack in Modular System Design

A modular PLC station allows engineers to arrange different functional modules according to the needs of the application.

For example, a process-control cabinet may require:

• PLC processing
• Digital input acquisition
• Digital output control
• Analog measurement
• Analog control
• Network communication

The backplane provides the physical arrangement in which these modules are installed.

This modular structure also simplifies future expansion. If an application requires additional I/O or communication functions, the engineer can evaluate whether the existing rack has sufficient capacity and whether an additional rack or related hardware is required.

The backplane therefore has a direct relationship with the physical architecture of the control cabinet.

Industrial Applications

The actual use depends on the X80 modules installed on the rack and the overall control-system architecture.

Installation and Maintenance

Backplane maintenance is different from servicing an I/O module because the rack can affect several installed modules at once.

Recommended practices include:

• Confirm the complete BMXXBP0600H model.
• Verify the required X80 rack configuration.
• Check the number and type of modules installed.
• Inspect the rack for physical deformation or damage.
• Check module seating and alignment.
• Inspect backplane connections for contamination or damage.
• Verify that modules are correctly positioned.
• Check the station power supply.
• Review controller and module diagnostics.
• Look for faults affecting multiple modules.
• Document the existing module arrangement before replacement.
• Follow the approved electrical isolation procedure.
• Remove modules carefully before replacing the rack.
• Install the replacement backplane correctly.
• Reinstall modules in their documented positions.
• Verify mechanical seating.
• Restore power according to the approved procedure.
• Check module recognition and diagnostics.
• Confirm communication with the controller.
• Test representative I/O points.
• Verify the complete station under normal operating conditions.

If multiple adjacent modules become unavailable simultaneously, inspect the common backplane and station infrastructure before replacing several individual modules.

Compatible System Components

The BMXXBP0600H is normally used together with other components of a Modicon X80 station.

The exact module combination should be checked against the requirements of the X80 station.

Recommended Related Models

The recommended products below focus on Modicon X80 backplanes, I/O, power, and communication hardware that are commonly relevant when building or maintaining an X80 station.

Key Advantages

• Schneider Electric Modicon X80 Backplane Rack.
• Model BMXXBP0600H.
• Provides the mounting and backplane structure for X80 modules.
• Supports modular PLC and I/O station architectures.
• Allows different X80 functional modules to be assembled into one station.
• Suitable for control cabinet construction and system expansion.
• Useful for X80 rack replacement and maintenance projects.
• Supports organized modular automation hardware installation.

Technical FAQs

Does the BMXXBP0600H process input or output signals?

No. The BMXXBP0600H is a backplane rack rather than a signal-processing module. It provides the physical and electrical infrastructure used by compatible X80 modules installed in the station.

What symptoms can indicate a backplane-related problem?

A problem with shared backplane infrastructure can affect multiple modules at the same time. Examples may include several modules becoming unavailable, unexpected module diagnostics, or loss of communication with modules that otherwise appear physically intact.

Why is module positioning important when working with an X80 backplane?

Each X80 station has a defined hardware arrangement. Modules need to be installed in the appropriate positions and connected correctly to the backplane so that the controller can recognize and communicate with the station hardware as configured.

What should be checked before replacing the BMXXBP0600H?

Record the complete module arrangement, isolate the station according to the approved procedure, inspect the existing rack and module connections, and verify whether the fault actually affects the backplane. After installation, check module recognition, diagnostics, communication, and representative I/O operation.
