Product Overview

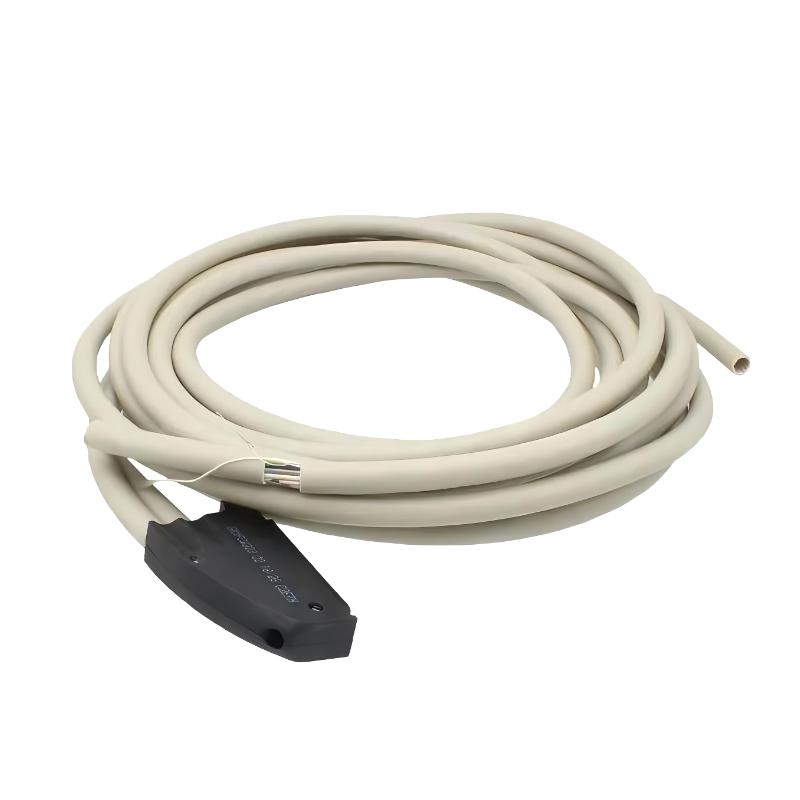

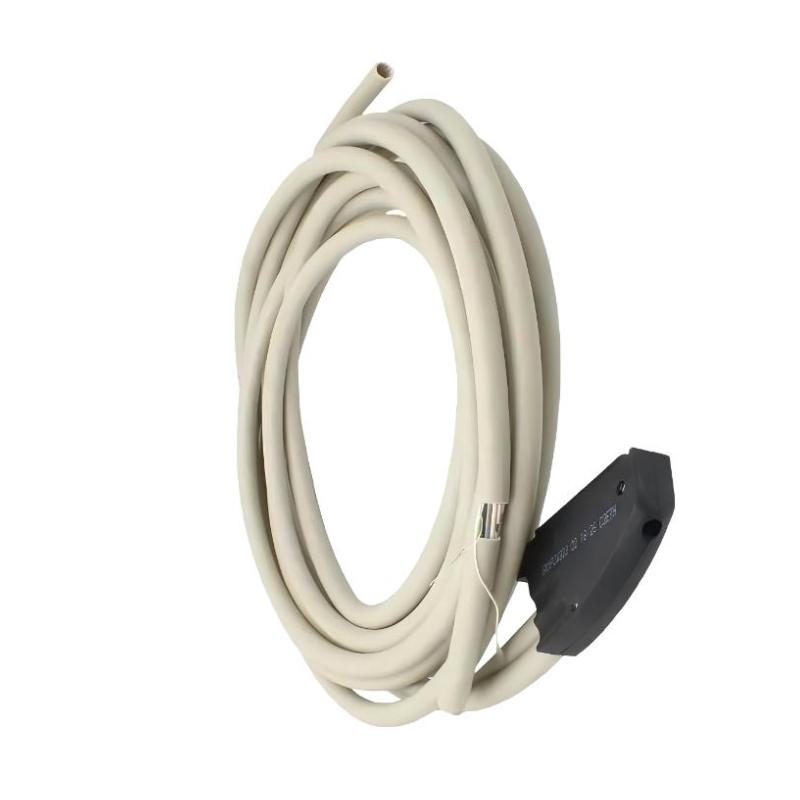

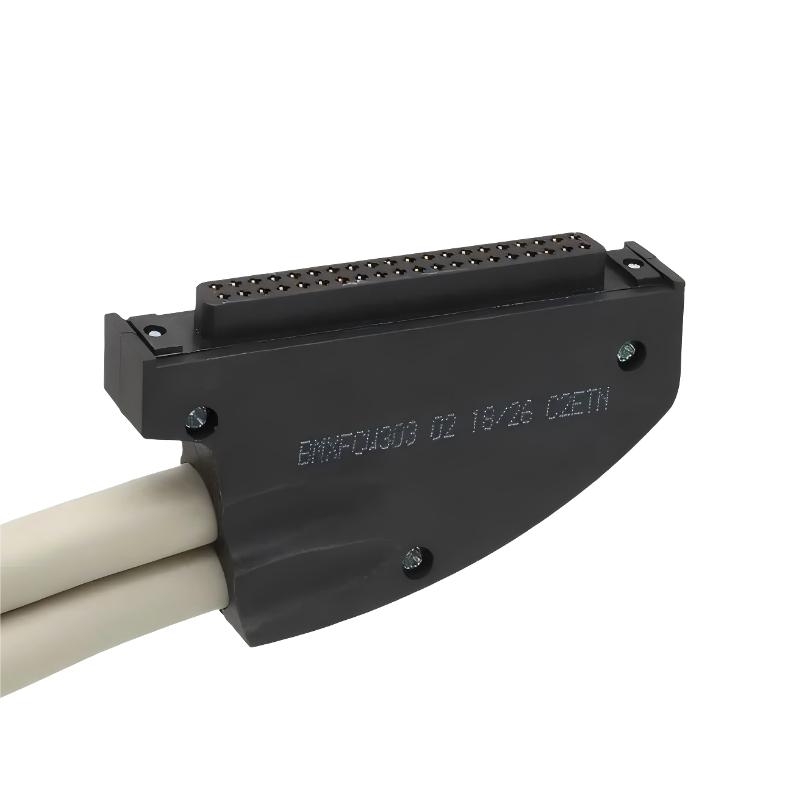

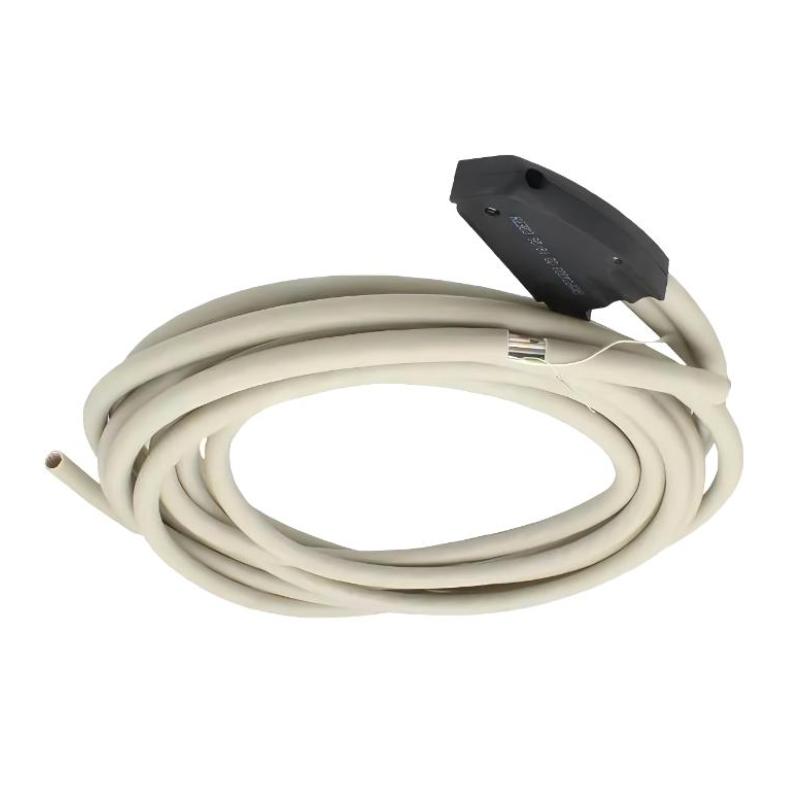

The Schneider BMXFCW303 is a Modicon M340 cord set used for electrical interconnection between compatible automation-system components. It forms part of the physical wiring infrastructure of an M340 installation, allowing the associated equipment to exchange the electrical signals required by the configured system.

The preassembled cable arrangement is useful in control cabinets where consistent connections between PLC and I/O equipment are required. Using a dedicated cord set can reduce manual cable preparation and help maintain an organized wiring layout during original installation, equipment replacement, and maintenance.

The BMXFCW303 is a passive interconnection component and does not execute PLC logic or perform signal processing independently. Its function depends on the equipment connected at each end and the electrical path assigned to the cable assembly.

For troubleshooting, the cord set should be considered whenever connected M340 equipment shows unexpected signal behavior. Connector seating, cable continuity, physical damage, and the correspondence between the installed connection and the electrical documentation are useful inspection points.

Technical Specifications

Product Features

• Modicon M340 cord set for compatible automation equipment
• Provides a preassembled electrical connection between system components
• Suitable for PLC and I/O cabinet installations
• Helps simplify standardized control-panel wiring
• Useful for original installation, replacement, and maintenance
• Supports organized physical interconnection within M340 automation systems
• Reduces the need for individually prepared cable assemblies

Working Principle

The BMXFCW303 operates as a passive cable assembly connecting compatible Modicon M340 components. Electrical signals assigned to the connection travel through the conductors between the equipment at each end.

The cord set itself does not determine the meaning or operation of those signals. The connected PLC, I/O, or interface equipment performs the active control and signal-handling functions.

M340 Equipment → BMXFCW303 Cord Set → Compatible M340 Equipment

If the connection is interrupted, the affected equipment may experience missing signals, communication problems, or abnormal I/O behavior. A systematic check of the cable, connectors, and connected equipment can help distinguish a wiring fault from an electronic-module or configuration problem.

Role in a Modicon M340 Control Architecture

The BMXFCW303 belongs to the physical interconnection layer of a Modicon M340 automation system. It links compatible system components so that the required electrical signals can pass between them.

Modicon M340 PLC / I/O → BMXFCW303 → Connected Automation Equipment → Field System

The cord set supports the wiring infrastructure while the connected automation equipment handles the actual control and I/O operations.

Industrial Applications

Installation and Maintenance

1. Confirm that the BMXFCW303 is the correct cord set for the intended Modicon M340 connection.
2. Identify both connection points before disconnecting an existing cable.
3. Isolate applicable electrical power before performing cable replacement or connection work.
4. Inspect the connectors for contamination, deformation, corrosion, or visible damage.
5. Check the cable jacket for cuts, abrasion, crushing, or other physical damage.
6. Verify the connector orientation before installation.
7. Ensure both connectors are fully seated and secured according to the equipment requirements.
8. Route the cable without excessive pulling, twisting, crushing, or sharp bending.
9. Keep the cable away from avoidable mechanical hazards and high-power wiring where appropriate.
10. Check cable continuity and connector integrity when troubleshooting an unexpected M340 system fault.
11. Compare the installed cable connection with the approved cabinet wiring documentation.
12. After replacement, restore power and verify the operation of the connected M340 equipment and associated control functions.

Compatible System Components

Recommended Related Models

Key Advantages

• Provides a prepared cable connection for compatible Modicon M340 equipment.
• Simplifies cabinet-level interconnection and replacement work.
• Supports consistent wiring arrangements across automation installations.
• Reduces manual cable preparation during equipment installation.
• Useful for maintenance and troubleshooting of M340 system connections.
• Integrates into the physical wiring layer of modular Schneider Electric control systems.

Technical FAQs

What is the difference between a cord set and an active M340 module?

A cord set is a passive interconnection component. It carries the electrical signals between compatible devices, while active M340 modules perform functions such as PLC processing, signal acquisition, output control, or communication.

What can cause an M340 connection to fail even when both connected modules are powered?

Power to both modules does not confirm that the interconnection is intact. Incorrect connector seating, damaged conductors, cable faults, or an incorrect connection point can interrupt the required signal path.

How can the BMXFCW303 be checked during troubleshooting?

Inspect the connectors and cable condition first, then verify the connection against the cabinet documentation. If required by the maintenance procedure, cable continuity can be checked before investigating the connected electronic modules.

What should be verified after installing a replacement BMXFCW303?

Confirm that the cable is connected to the correct equipment at both ends and that the connectors are fully seated. After restoring power, verify the affected M340 signals or functions and then test the related control sequence.
