Product Overview

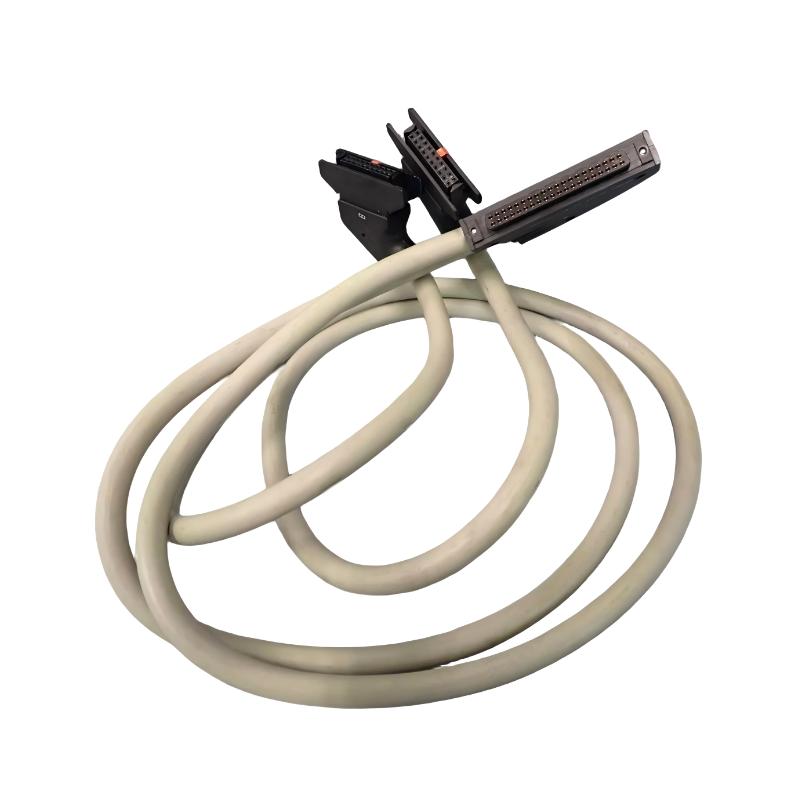

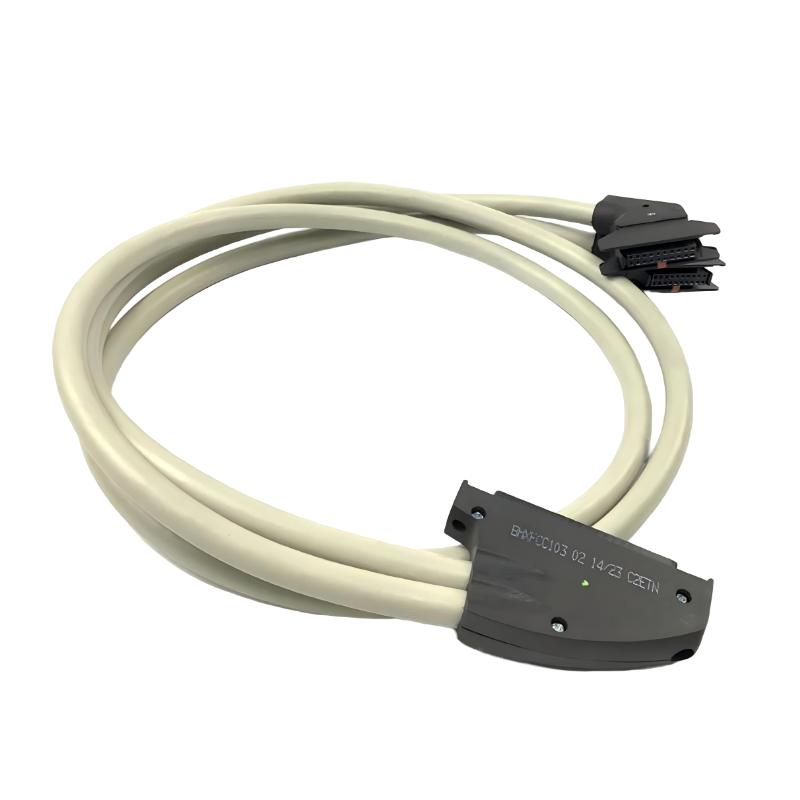

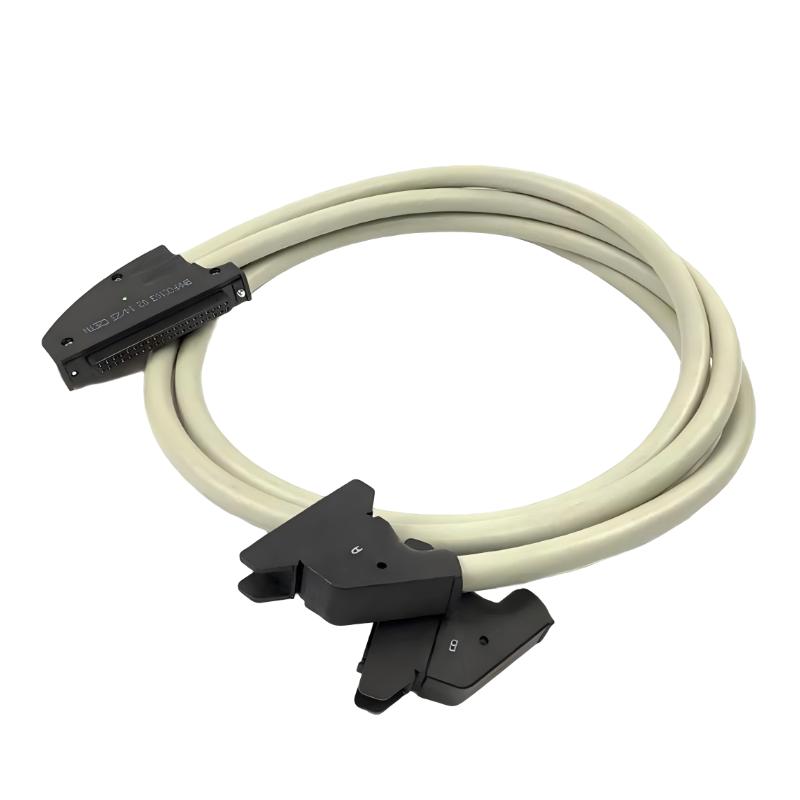

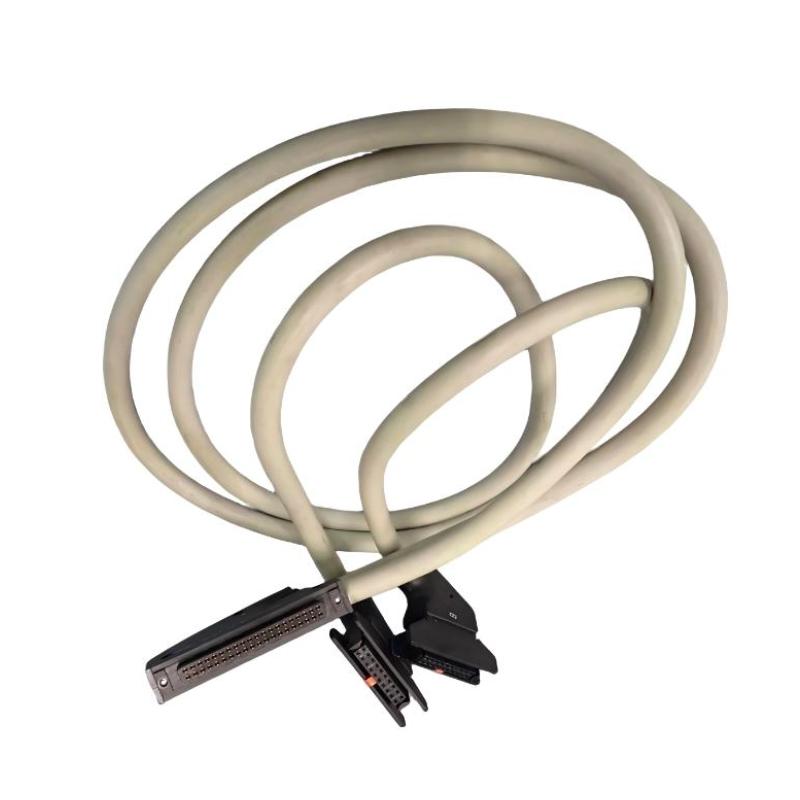

The Schneider BMXFCC103 is a Modicon M340 preformed cordset used for structured electrical interconnection within compatible PLC and I/O installations. It provides a ready-made cable assembly for connecting associated automation equipment without requiring individual conductors to be prepared and terminated during cabinet installation.

Preformed cordsets are particularly useful in control panels where repeatable wiring and consistent connection arrangements are important. The BMXFCC103 can help simplify the connection of compatible Modicon M340 components while reducing manual cable preparation during assembly, replacement, or service work.

The cordset functions as a passive connection component rather than an active control device. Signals carried through the assembly depend on the equipment connected at each end, while the cordset itself provides the physical electrical path between those devices.

For maintenance teams, the BMXFCC103 can be treated as part of the system wiring infrastructure. Connector seating, cable continuity, physical condition, and correct connection points should be checked when a connected M340 module does not communicate or operate as expected.

Technical Specifications

Product Features

• Preformed cordset for compatible Modicon M340 automation equipment
• Provides a ready-made electrical connection between associated system components
• Helps simplify control-panel wiring and installation
• Reduces the need for manual cable preparation and termination
• Suitable for PLC, I/O, and cabinet-level automation applications
• Useful for replacement of existing M340 cable assemblies
• Supports organized and repeatable wiring arrangements in industrial control panels

Working Principle

The BMXFCC103 operates as a passive electrical interconnection between compatible Modicon M340 components. It carries the electrical signals assigned to the connection without performing signal processing or control logic itself.

Once both ends are correctly connected, the associated M340 equipment can exchange the required electrical signals through the cordset. The actual purpose of those signals depends on the modules or interfaces connected at each end.

Modicon M340 Component → BMXFCC103 Preformed Cordset → Connected M340 Component

A cable problem can interrupt the operation of otherwise functional equipment. An open conductor, damaged connector, loose connection, or incorrect installation can result in missing signals, communication problems, or unexpected I/O behavior.

Role in a Modicon M340 Control Architecture

The BMXFCC103 belongs to the physical wiring layer of a Modicon M340 automation system. It connects compatible components within the control architecture while leaving signal processing and control decisions to the associated PLC and I/O equipment.

M340 PLC / I/O Equipment → BMXFCC103 → Compatible Interface / I/O Equipment → Field System

The cordset therefore supports the physical organization of the control system without replacing the active functions of the PLC or I/O modules.

Industrial Applications

Installation and Maintenance

1. Confirm that the BMXFCC103 is the correct cordset for the intended Modicon M340 connection.
2. Identify the equipment and connection points before removing an existing cordset.
3. Isolate applicable electrical power before performing cable replacement or connection work.
4. Inspect both connectors for contamination, deformation, or visible damage.
5. Check the cable jacket for cuts, crushing, abrasion, or other physical damage.
6. Verify connector orientation before connecting the cordset to the associated equipment.
7. Ensure both connectors are fully seated and secured according to the equipment requirements.
8. Route the cable without excessive pulling, twisting, crushing, or sharp bending.
9. Keep the cordset away from avoidable sources of mechanical damage and high-power wiring where appropriate.
10. Check cable continuity and connector integrity when diagnosing an unexpected M340 system fault.
11. Compare the installed connection with the approved cabinet wiring documentation.
12. After replacement, restore power and verify the operation of the connected M340 modules and associated control functions.

Compatible System Components

Recommended Related Models

Key Advantages

• Provides a ready-made electrical interconnection for compatible Modicon M340 equipment.
• Simplifies cabinet wiring compared with individually prepared conductors.
• Supports consistent and repeatable installation practices.
• Useful for equipment replacement and maintenance.
• Helps organize the physical connection between PLC and I/O components.
• Reduces cable-preparation work during control-panel assembly.

Technical FAQs

What is the purpose of a preformed cordset in an M340 installation?

A preformed cordset provides a prepared electrical connection between compatible automation components. It helps maintain a consistent wiring arrangement and reduces the amount of manual cable preparation required during installation.

What symptoms can indicate a problem with the BMXFCC103?

Possible symptoms include loss of signals between connected equipment, unexpected I/O behavior, intermittent operation, or failure of an associated interface to communicate. The cable, connectors, and connection points should be inspected before replacing the electronic modules.

How should the BMXFCC103 be routed inside a control cabinet?

The cable should be routed to avoid unnecessary mechanical stress, crushing, sharp bends, and abrasion. Where practical, it should also be kept away from high-power conductors and other sources of potential electrical interference.

What should be verified after replacing the cordset?

Confirm that both ends are connected to the correct equipment and that the connectors are fully seated. After restoring power, verify the associated M340 I/O or communication functions and run the relevant control sequence to confirm normal operation.
