Product Overview

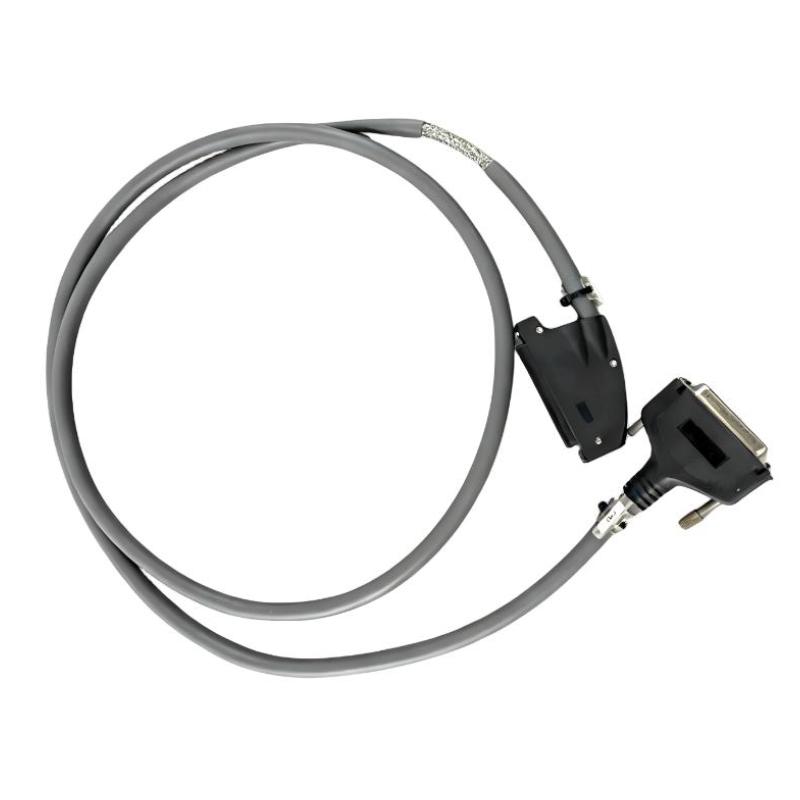

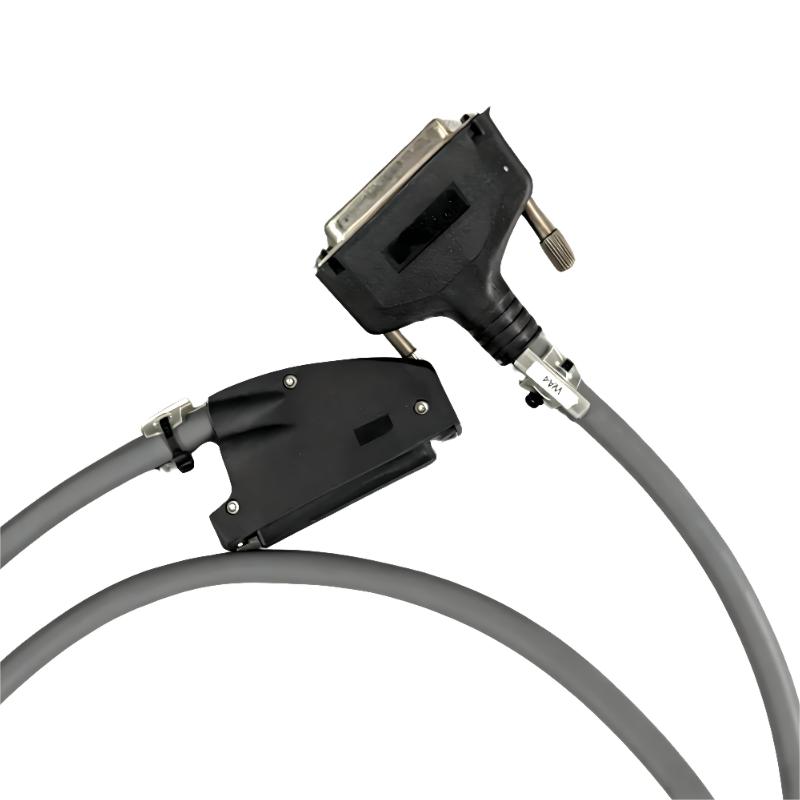

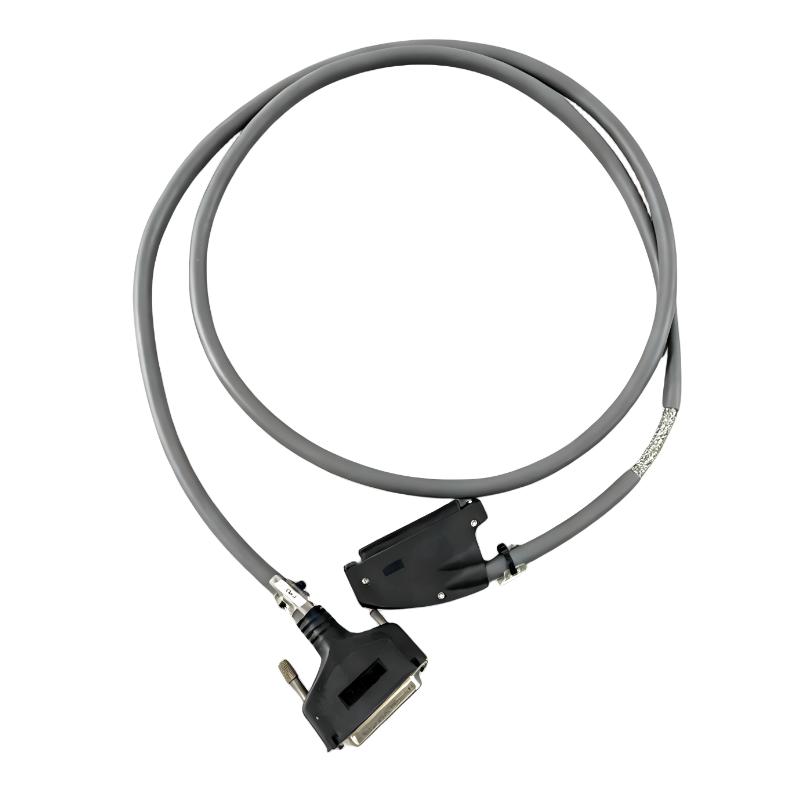

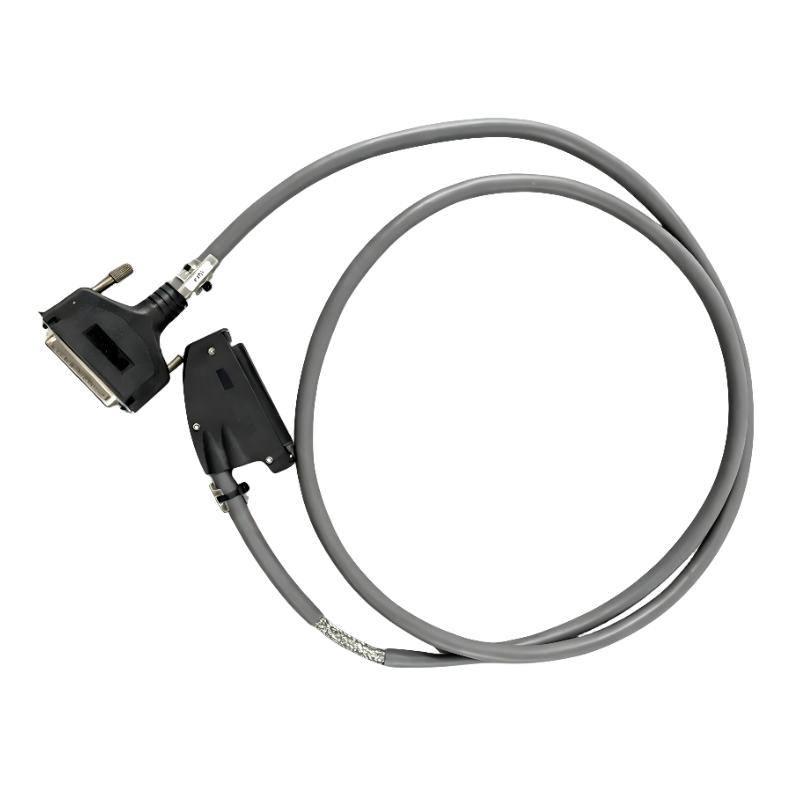

The Schneider BMXFCA152 is a Modicon X80 cord set used to establish the required electrical connection between compatible X80 system components. It is used in modular PLC installations where preconfigured cabling helps connect I/O, interface, or associated control equipment within the automation architecture.

As part of a Modicon X80 installation, the cord set can simplify cabinet wiring by providing a dedicated connection between compatible components without requiring the cable assembly to be fabricated separately during panel installation. This is particularly useful when standardized wiring arrangements are repeated across multiple control cabinets or machine configurations.

The BMXFCA152 can be applied in machine automation, process control, OEM equipment, and distributed I/O installations where the associated X80 modules require an appropriate connection cable. Correct connector identification and routing remain important because the cord set forms part of the communication or signal path between system components.

For maintenance teams, the cord set should be checked as an interconnection component rather than treated as an active electronic module. Connector condition, cable continuity, physical damage, and correct installation can directly affect the operation of the connected X80 equipment.

Technical Specifications

Product Features

• Modicon X80 cord set for compatible automation-system connections
• Provides a preconfigured cable connection between associated system components
• Suitable for modular PLC and I/O installations
• Helps simplify cabinet wiring and equipment interconnection
• Suitable for machine, process, and distributed automation applications
• Useful for replacement and maintenance of existing X80 cable assemblies
• Supports organized wiring within Schneider Electric control-system installations

Working Principle

The BMXFCA152 functions as a passive interconnection cable. It does not process control logic or condition signals; instead, it provides the physical electrical path between compatible Modicon X80 components.

Once the connectors are correctly installed, electrical signals can pass between the connected devices through the cable assembly. The actual function of those signals depends on the equipment at each end of the connection.

X80 System Component → BMXFCA152 Cord Set → Compatible X80 Component

A cable-related fault can affect the connected equipment even when the electronic modules themselves are operating normally. An open circuit, damaged conductor, loose connector, incorrect connection, or physical cable damage may result in loss of communication, missing I/O information, or abnormal system behavior.

Role in a Modicon X80 Control Architecture

The BMXFCA152 belongs to the physical interconnection layer of the Modicon X80 system. Its purpose is to connect compatible components so that the required electrical signals can travel between them.

PLC / I/O Equipment → BMXFCA152 → Connected X80 Equipment → Field / Control System

The cord set therefore supports the physical architecture without performing the active processing functions handled by the connected automation modules.

Industrial Applications

Installation and Maintenance

1. Confirm that the BMXFCA152 is the correct cord set for the intended Modicon X80 connection.
2. Identify the equipment and connector locations before disconnecting an existing cable.
3. Switch off applicable electrical power before performing cable replacement or connection work.
4. Inspect both connectors for contamination, deformation, or visible damage.
5. Check the cable jacket and exposed sections for cuts, crushing, excessive bending, or other physical damage.
6. Verify connector orientation before inserting the cable into the associated equipment.
7. Ensure that each connector is fully seated and secured according to the equipment requirements.
8. Route the cable to avoid unnecessary mechanical stress and sharp bends.
9. Keep the cable away from sources of physical damage and high-power wiring where appropriate.
10. Check cable continuity or connection integrity when troubleshooting an unexpected system fault.
11. Compare the installed cable routing and connection points with the approved control-panel documentation.
12. After replacement, restore power and verify the operation of the connected X80 modules and the associated control functions.

Compatible System Components

Recommended Related Models

Key Advantages

• Provides a dedicated interconnection for compatible Modicon X80 equipment.
• Simplifies standardized cabinet wiring and equipment replacement.
• Useful for modular PLC and I/O installations.
• Helps maintain an organized physical connection between X80 components.
• Suitable for machine, process, OEM, and distributed automation systems.
• Easy to include in cable continuity and connector-condition checks during troubleshooting.

Technical FAQs

What should be verified before installing the BMXFCA152?

The cable model and connector arrangement should be matched to the specific X80 equipment being connected. The existing wiring documentation should also be checked so that the replacement follows the original connection path.

Can a damaged cord set cause an X80 module to appear faulty?

Yes. An open conductor, damaged connector, loose connection, or other cable fault can interrupt the signal or electrical path between modules. Checking the cord set is therefore useful before replacing an otherwise functional electronic module.

How should the BMXFCA152 be handled during maintenance?

Avoid pulling the cable by its conductors or placing excessive mechanical stress on the connectors. The cable should be routed without sharp bends or crushing, and both connectors should be inspected whenever the cord set is disconnected.

What should be checked after replacing the cord set?

Confirm that both connectors are fully seated and that the cable follows the intended routing. After restoring power, verify the connected X80 equipment and check the associated communication, I/O, or control functions for normal operation.
