Product Overview

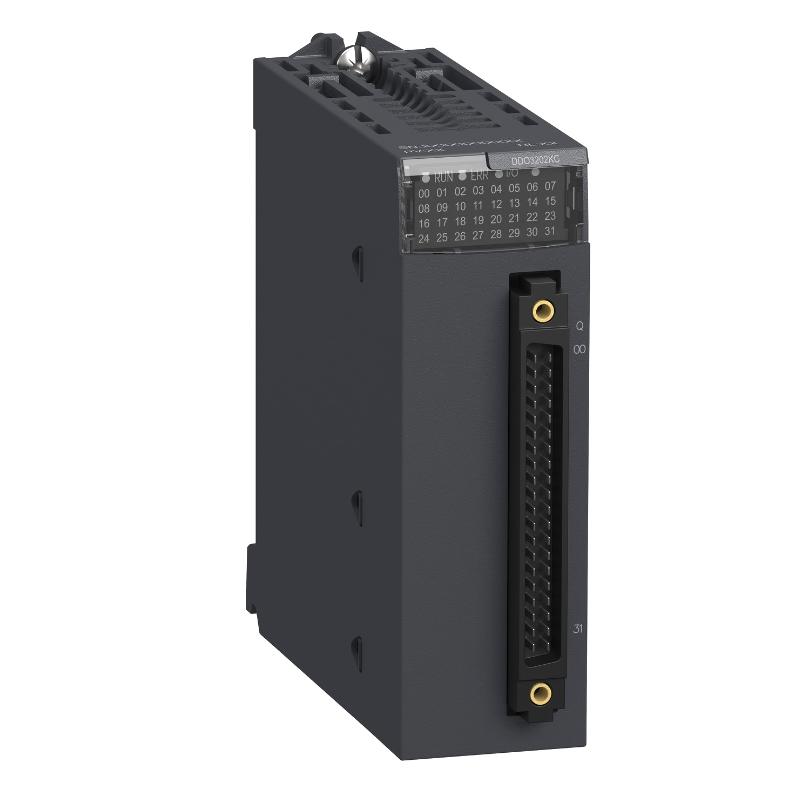

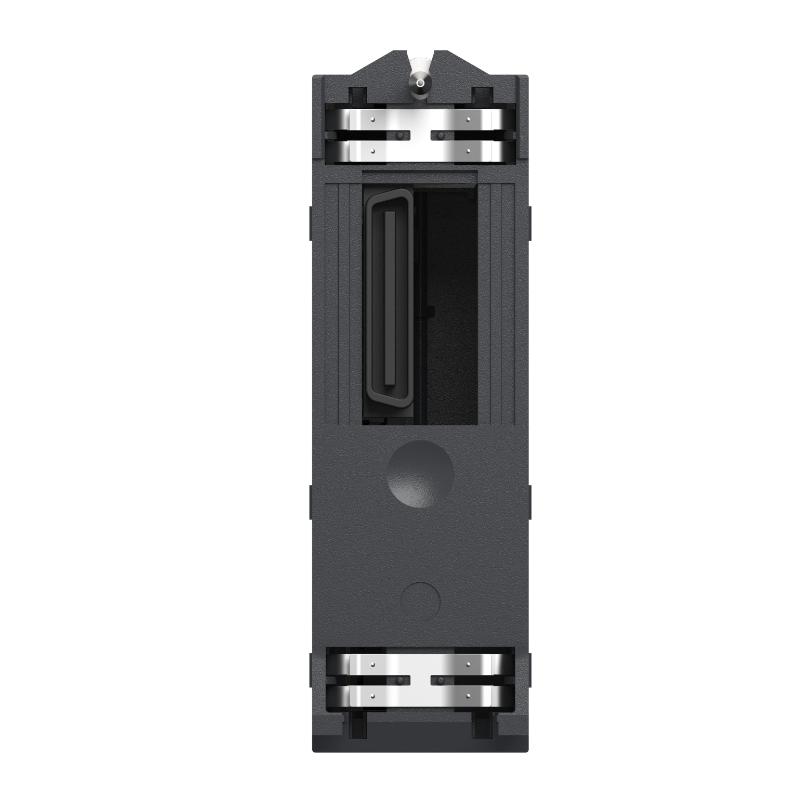

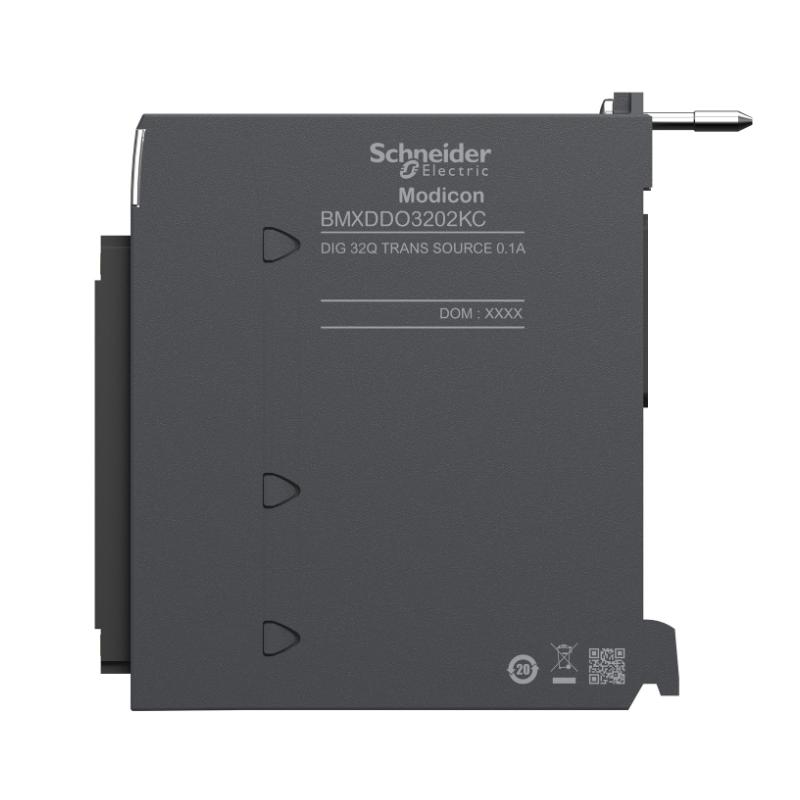

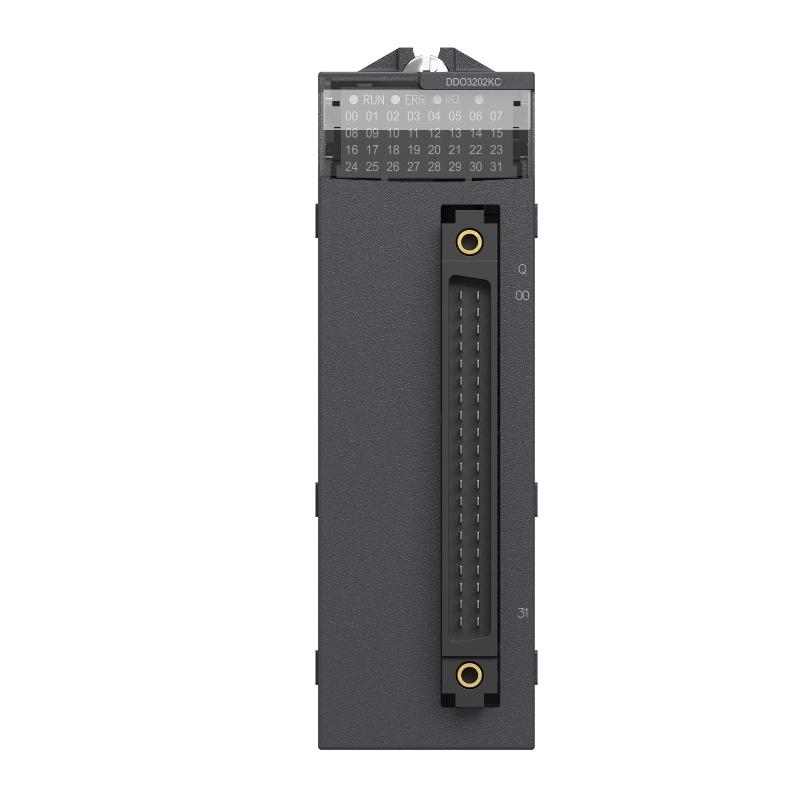

The Schneider BMXDDO3202KC is a Modicon X80 discrete output module used to transfer digital commands from the PLC control program to connected field equipment. It fits applications where machine functions rely on discrete output states for switching, actuation, indication, and auxiliary control.
In an X80 automation station, the module works on the output side of the control system. The PLC executes the application logic and determines when an output should change state, while the BMXDDO3202KC transfers the corresponding command through the field wiring to the connected device.
Typical installations include machine control panels, packaging equipment, material-handling systems, assembly machinery, and industrial process equipment. It can be used as part of a modular Schneider Electric I/O architecture where discrete output signals need to be distributed to multiple field circuits.
For commissioning and maintenance, the output module offers a practical checkpoint between PLC logic and the field device. Technicians can compare the commanded PLC state with the module output and then trace the signal through terminals, wiring, external power, and the connected load.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BMXDDO3202KC |
| Product Family | Modicon X80 |
| Product Type | Discrete Output Module |
| Primary Function | Digital output signal control |
| System Role | PLC field output interface |
| Application | Machine and industrial automation |
| Installation | Modicon X80 rack / control cabinet |
| Dimensions | 100 × 32 × 86 mm |
| Weight | 0.11 kg |
Product Features
- Modicon X80 discrete output module for industrial automation systems
- Transfers PLC-generated digital commands to field-level equipment
- Suitable for machine control and process automation applications
- Interfaces controller logic with discrete actuators and switching circuits
- Integrates into modular Modicon X80 I/O configurations
- Suitable for relay interfaces, contactors, solenoids, indicators, and similar field devices
- Provides a dedicated output point for troubleshooting discrete control circuits
Working Principle
The BMXDDO3202KC receives output states through the Modicon X80 system and applies the corresponding command to its configured output channels. The PLC application determines the required state based on sequence logic, operating conditions, interlocks, and process requirements.
Once an output channel changes state, the signal passes through the associated field circuit to the connected equipment. Depending on the application, the output may operate an interface relay, energize a solenoid, switch a contactor circuit, or activate a machine indicator.
PLC Application → X80 Backplane → BMXDDO3202KC → Output Channel → Field Device
A useful troubleshooting method is to follow this path in order. If the PLC indicates that an output should be active but the field device does not respond, the output channel and field circuit can be checked separately to determine whether the problem is located in the controller logic, module, wiring, external supply, or load.
Role in a Modicon X80 Control Architecture
The BMXDDO3202KC serves as the discrete output interface between the Modicon PLC system and external machine equipment. Control decisions remain within the PLC application, while the output module handles the corresponding digital signal exchange with the field level.
PLC / Controller → Modicon X80 Rack → BMXDDO3202KC → Field Wiring → Actuator / Switching Device
| System Element | Function |
|---|---|
| PLC / Controller | Executes machine and process control logic |
| Modicon X80 Rack | Provides modular I/O infrastructure |
| BMXDDO3202KC | Transfers discrete output commands |
| Terminal / Wiring | Connects output channels with field circuits |
| Interface Relays | Provides circuit interfacing where required |
| Contactors / Valves | Performs switching or actuation functions |
| Machine Equipment | Executes the commanded operation |
The separation between control logic and field output allows individual parts of the control path to be tested during commissioning and fault diagnosis.
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Control of solenoids and auxiliary machine devices |
| Assembly Equipment | Digital actuator and sequence control |
| Material Handling | Conveyor and equipment switching |
| Machine Automation | Control of relays, contactors, and actuators |
| Process Equipment | Discrete valve and auxiliary control |
| Production Lines | Digital commands for machine functions |
| Control Panels | Modular PLC output interfacing |
| OEM Machinery | Field-level discrete equipment control |
Installation and Maintenance
- Confirm that the BMXDDO3202KC is suitable for the intended Modicon X80 hardware configuration.
- Verify the rack position and module arrangement against the approved PLC configuration.
- Isolate applicable electrical power before installation, removal, or wiring work.
- Check the output-channel assignments against the PLC program and electrical drawings.
- Verify field terminal identification before connecting external circuits.
- Confirm that each connected load is appropriate for the intended output circuit.
- Keep signal wiring properly routed and separated from high-power circuits where required.
- Ensure that the module is correctly seated and connected to the X80 backplane.
- Test individual output channels under controlled commissioning conditions.
- Compare the PLC command with the actual output state and field-device response.
- Inspect wiring, terminals, external supply, interface components, and loads when an output does not operate as expected.
- After replacement or maintenance, test all affected output functions and confirm the associated machine sequence before returning the system to normal operation.
Compatible System Components
| Component | Function |
|---|---|
| Schneider Modicon M340 | Executes PLC control and sequencing logic |
| Schneider Modicon M580 | Provides PLC control for larger architectures |
| Modicon X80 Backplane | Provides module interconnection |
| X80 Power Supply Module | Supplies power to the I/O station |
| X80 Terminal Accessories | Provides field wiring connections |
| Schneider Interface Relay | Interfaces PLC outputs with external circuits |
| Contactors | Switch electrical loads |
| Solenoid Valves | Performs pneumatic or hydraulic control |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider BMXDDO3202 | Discrete Output Module | Digital field output control |
| Schneider BMXDDO3202K | Discrete Output Module | Industrial digital output control |
| Schneider BMXDDO3202KC | Discrete Output Module | Modicon X80 discrete output control |
| Schneider BMXDDO6402K | Discrete Output Module | Higher-density digital output |
| Schneider BMXDDI3202K | Discrete Input Module | Digital field signal acquisition |
| Schneider BMXDDM16025 | Discrete Mixed I/O Module | Combined digital input/output control |
| Schneider BMXCPS3020 | Power Supply Module | Modicon X80 rack power |
| Schneider BMXCPS3500 | Power Supply Module | Modicon X80 rack power |
Key Advantages
- Provides a dedicated digital output interface within the Modicon X80 platform.
- Transfers PLC control commands directly toward discrete field circuits.
- Suitable for machine and process automation applications.
- Fits modular Schneider Electric PLC architectures.
- Allows the output signal path to be checked independently during troubleshooting.
- Suitable for relay, actuator, solenoid, indication, and contactor control circuits.
Technical FAQs
How does the BMXDDO3202KC fit into an X80 I/O station?
The module operates as part of the X80 I/O structure, receiving output commands from the PLC side and transferring the corresponding discrete states toward connected field circuits. The PLC retains responsibility for the sequence and control logic.
What should be checked if an output works intermittently?
Check the PLC command first, followed by the module connection and output-channel behavior. Field terminals, wiring, external circuit power, interface relays, and the connected load should also be inspected for loose connections or unstable operating conditions.
Can a discrete output be connected directly to any actuator?
The connection must be evaluated according to the electrical requirements of the actual field device and the applicable output-circuit specifications. When the load cannot be interfaced directly, an intermediate relay or other suitable interface device may be required.
What is a useful commissioning test for the BMXDDO3202KC?
Activate the required output channels individually under controlled conditions and verify the complete signal path from the PLC command to the field device. After individual channel testing, run the relevant machine sequence to confirm that interlocks and dependent outputs operate correctly.
