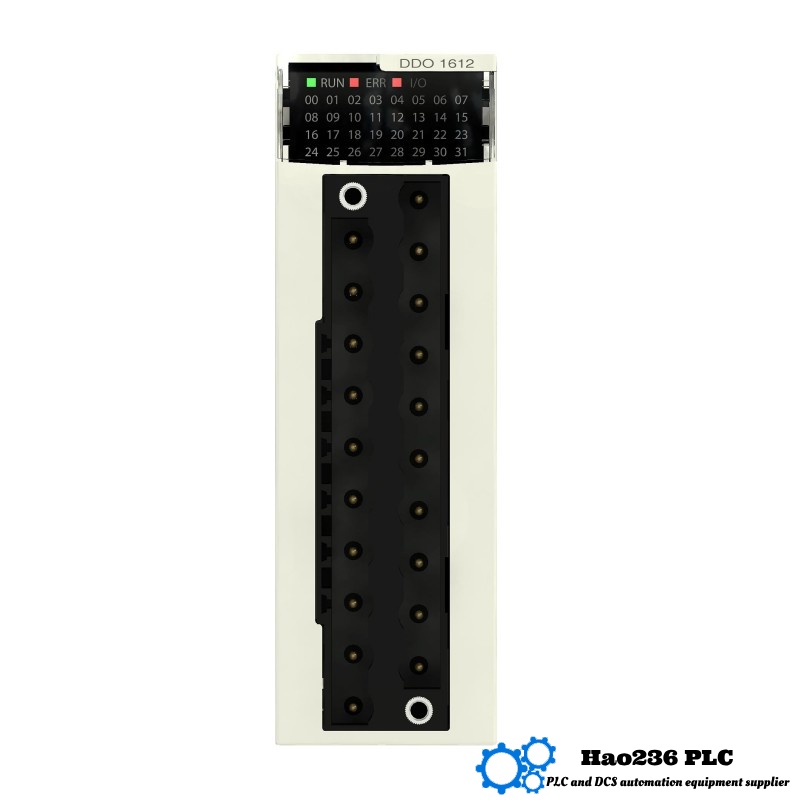

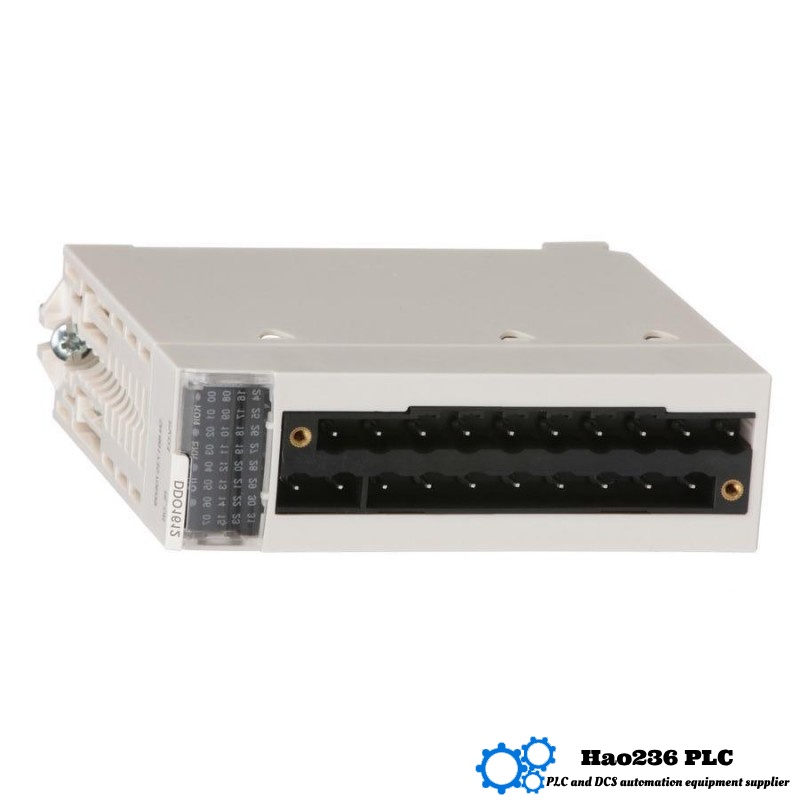

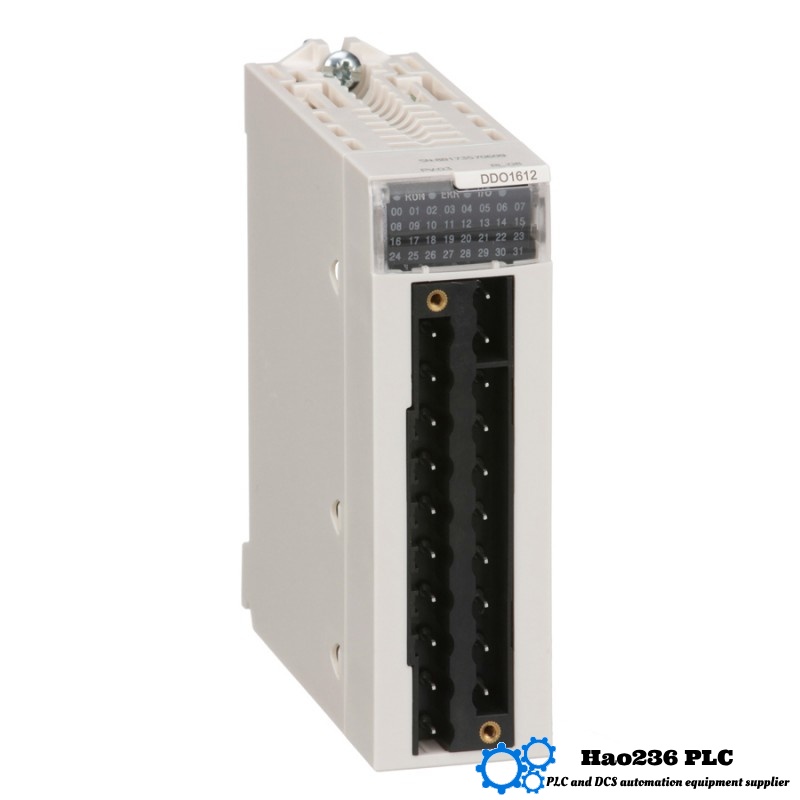

Schneider BMXDDO1612 Discrete Output Module
Product Introduction
The Schneider BMXDDO1612 is a digital discrete output module specifically engineered for the Modicon X80 series PLC platform. It offers 16 discrete output channels, designed to deliver reliable, fast, and accurate control signals in a compact and robust housing. This module is perfect for various industrial automation applications where precise on/off control of actuators, relays, and indicators is essential.
Built to meet the high standards of industrial environments, the BMXDDO1612 is designed with strong electrical protections and easy integration capabilities. The module’s compact size of 115 × 118 × 55 mm and light weight of 0.145 kg make it simple to install even in space-constrained control panels.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | BMXDDO1612 |
| Module Type | Discrete Output Module |
| Number of Outputs | 16 |
| Output Voltage | 24 V DC nominal |
| Maximum Output Current | 0.5 A per channel |
| Output Type | Transistor (PNP) |
| Response Time | < 10 ms |
| Protection Features | Short-circuit and overload protection |
| Dimensions (L × W × H) | 115 × 118 × 55 mm |
| Weight | 0.145 kg |
| Operating Temperature | -20°C to 60°C |
| Mounting | DIN rail or panel mounting |
| Series | Modicon X80 Series |
Product Applications
The BMXDDO1612 module is widely used in:
-
Automation systems controlling discrete output devices such as solenoids, lamps, and relays.
-
Factory production lines requiring reliable and fast digital outputs to control machinery and processes.
-
Packaging and assembly automation where precise timing of output signals is critical.
-
Building automation systems for lighting, security, and environmental control.
-
Utility infrastructure for controlling remote devices and signaling equipment.
Product Advantages
-
High Output Density: 16 discrete output channels deliver efficient space utilization within control panels.
-
Robust Electrical Protection: Each output is safeguarded against short circuits and overloads, enhancing system reliability.
-
Fast Response Time: Less than 10 ms switching time ensures timely control actions.
-
Compact and Lightweight: The module’s size and weight facilitate flexible mounting options, even in constrained environments.
-
Wide Operating Temperature Range: Suitable for harsh industrial conditions with a range from -20°C to 60°C.
-
Full Compatibility with Modicon X80: Seamless integration into the Modicon X80 automation platform simplifies system design and scalability.
Brand Information
Schneider Electric is a leading global company specializing in energy management and automation solutions. The Modicon X80 series, to which the BMXDDO1612 belongs, represents Schneider’s advanced modular PLC systems tailored for modern industrial automation needs. The brand is synonymous with innovation, quality, and customer-centric solutions, providing reliable and efficient modules that stand the test of industrial challenges.
Related Models in Modicon X80 Series
| Model Number | Description | Outputs | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| BMXDDO1612 | Discrete Output Module | 16 | 115 × 118 × 55 | 0.145 |
| BMXDDI3202K | Digital Input Module | 32 | 160 × 100 × 35 | 0.10 |
| BMXDDM3202K | Discrete Hybrid I/O Module | 16 | 160 × 100 × 35 | 0.11 |
| BMXDDO0802K | Discrete Output Module | 8 | 160 × 100 × 35 | 0.09 |
| BMXDDI0802K | Digital Input Module | 8 | 160 × 100 × 35 | 0.08 |
Popular Schneider Electric Models
| Model Number | Description | Outputs | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| BMXP342020 | Analog Input Module | N/A | 160 × 100 × 35 | 0.14 |
| BMXP342040 | Analog I/O Module | N/A | 160 × 100 × 35 | 0.13 |
| BMXDDI3202 | Digital Input Module | 32 | 160 × 100 × 35 | 0.10 |
| BMXDDO3202 | Digital Output Module | 32 | 160 × 100 × 35 | 0.11 |
| BMXDDM3202K | Discrete Hybrid I/O Module | 16 | 160 × 100 × 35 | 0.11 |
Frequently Asked Questions (FAQs)
Q1: How many output channels does the BMXDDO1612 have?
A1: The module has 16 discrete output channels.
Q2: What is the nominal output voltage for this module?
A2: It operates at a nominal output voltage of 24 V DC.
Q3: What type of output does BMXDDO1612 provide?
A3: It provides transistor (PNP) type outputs.
Q4: Does the module include protection features?
A4: Yes, it has built-in short-circuit and overload protections.
Q5: What are the module’s physical dimensions?
A5: The size is 115 × 118 × 55 mm.
Q6: What is the weight of the module?
A6: The weight is approximately 0.145 kg.
Q7: Can this module operate in harsh environments?
A7: Yes, it operates reliably within -20°C to 60°C.
Q8: Is it compatible with the Modicon X80 series?
A8: Yes, it is specifically designed for the Modicon X80 series.
Q9: What mounting options are available?
A9: It can be mounted on DIN rails or panels.
Q10: What industries typically use this module?
A10: It is commonly used in industrial automation, manufacturing, packaging, and building automation.
