Product Overview

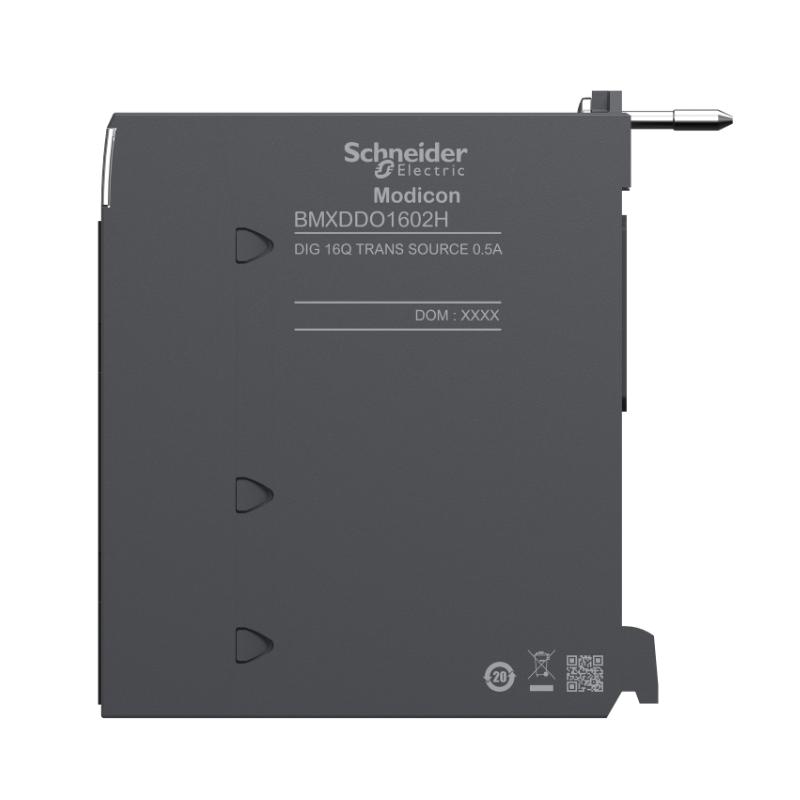

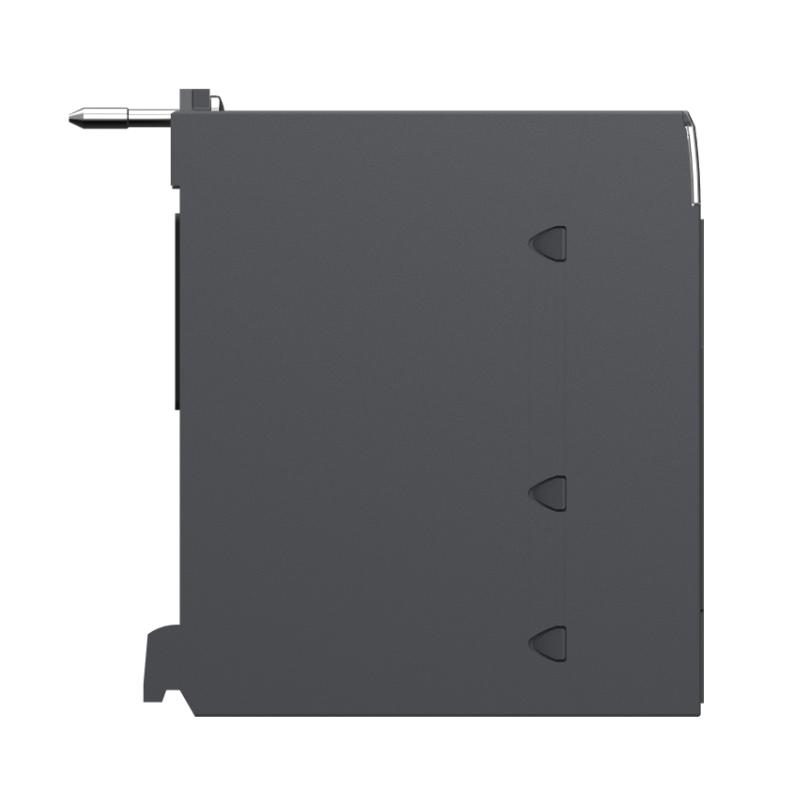

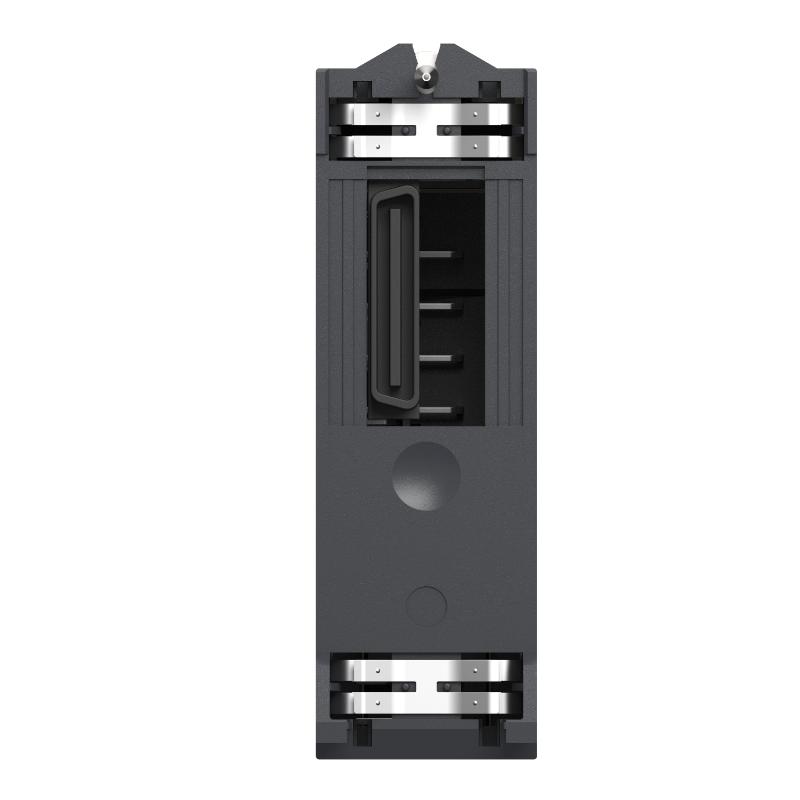

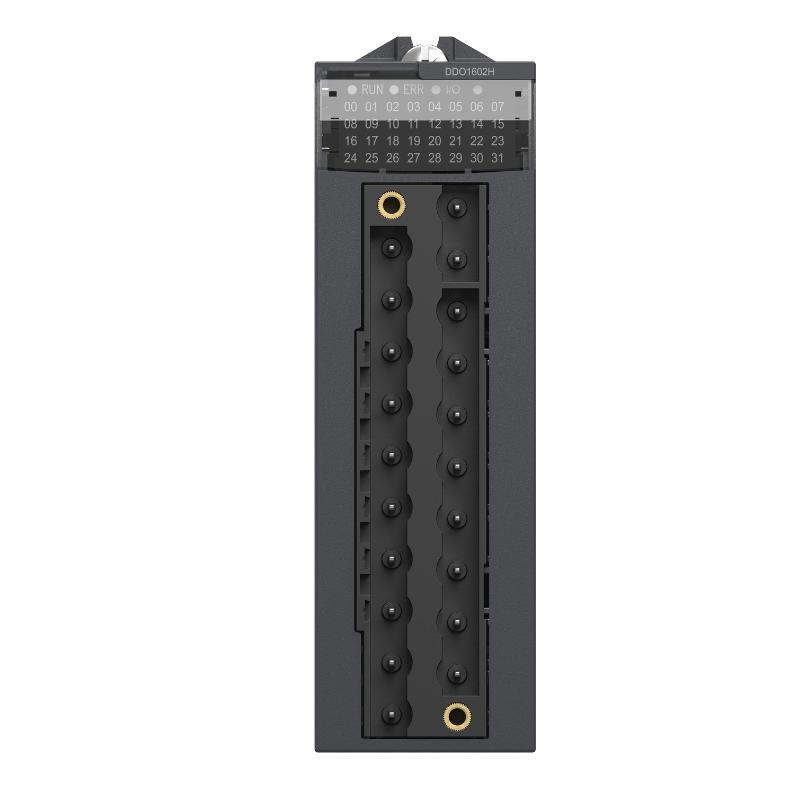

The Schneider BMXDDO1602H Modicon X80 Discrete Output Module connects PLC control logic with discrete field equipment in a Modicon X80 automation system. It converts output commands generated by the controller into discrete electrical states that can be used by relays, contactors, solenoid valves, indicator circuits, and other compatible devices.
In an X80 control cabinet, the module works with the PLC CPU and backplane to deliver output commands to equipment located in the machine or process area. The PLC determines when an output should change state based on sequencing, permissives, interlocks, operator commands, and feedback from input devices.
Typical applications include starting or stopping auxiliary equipment, operating solenoid valves, controlling relays, switching indication circuits, and sending discrete commands to other control devices. Output status can also be incorporated into machine sequences where a defined command must be maintained until a feedback condition is received.
During commissioning, technicians can test each output in a controlled state and compare the commanded output with the actual response of the connected equipment. This helps separate PLC logic issues from field wiring, load, or output-channel problems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BMXDDO1602H |
| Product Family | Modicon X80 |
| Product Series | BMXDDO |
| Product Type | Discrete Output Module |
| Primary Function | Discrete output signal control |
| System Role | Digital output interface |
| Typical Application | Machine and process automation |
| Installation | Modicon X80 rack / control panel |
| Dimensions | 100 × 32 × 86 mm |
| Weight | 0.12 kg |
Product Features
- Modicon X80 discrete output module
- Transfers PLC commands to discrete field circuits
- Suitable for machine and process-control applications
- Interfaces control logic with relays, contactors, valves, and indicators
- Supports discrete equipment actuation
- Integrates with the modular X80 I/O architecture
- Suitable for sequencing, interlocking, and auxiliary control functions
- Can operate alongside X80 CPU, input, analog, and communication modules
Working Principle
The BMXDDO1602H receives output commands from the PLC through the Modicon X80 backplane and changes the corresponding output state according to the control application.
PLC CPU → X80 Backplane → BMXDDO1602H → Output Circuit → Field Equipment
The PLC application determines whether an output should be activated or deactivated. The command is transferred to the output module, where the corresponding channel controls its connected discrete circuit.
For example, a PLC sequence may activate an output to energize a relay or solenoid valve. The resulting field action changes the state of the associated machine component. Feedback from an input module can then confirm whether the expected equipment condition has been achieved.
The BMXDDO1602H therefore forms the interface between software-based control logic and physical discrete equipment. It does not determine the operating sequence itself; the CPU and application program establish the conditions under which each output is commanded.
Role in a Modicon X80 Control Architecture
The BMXDDO1602H occupies the discrete output layer of the Modicon X80 control system. It receives processed commands from the PLC and transfers them to the appropriate field circuits.
Field Inputs → X80 Input Modules → CPU / PLC Logic → BMXDDO1602H → Field Actuators
| System Element | Function |
|---|---|
| Input Sensors / Switches | Provides machine and process feedback |
| X80 Input Modules | Acquires field conditions |
| X80 CPU | Executes sequencing and control logic |
| X80 Backplane | Transfers commands between rack modules |
| BMXDDO1602H | Provides discrete output signals |
| Relays / Contactors | Switches associated electrical circuits |
| Solenoid Valves / Actuators | Performs the commanded physical action |
| HMI / SCADA | Provides operator monitoring and command functions |
This architecture allows the PLC application to control field equipment while keeping output switching separate from the higher-level control logic executed by the CPU.
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Controlling solenoids, relays, and machine actuators |
| Assembly Equipment | Operating discrete mechanisms and auxiliary devices |
| Conveyor Systems | Controlling motor-related circuits and equipment functions |
| Machine Tools | Switching valves, relays, and machine-control devices |
| Material Handling | Operating discrete actuators and equipment commands |
| Pumping Systems | Controlling auxiliary valves and switching devices |
| Process Automation | Sending discrete commands to process equipment |
| Manufacturing Lines | Executing machine sequence outputs and interlocks |
Installation and Maintenance
- Install the BMXDDO1602H in the designated position within the Modicon X80 rack.
- Verify the rack configuration before connecting the module.
- Confirm the field-output wiring against the approved electrical drawings.
- Check terminal assignments and connected load circuits before energizing the system.
- Verify that each connected field device is appropriate for the intended output circuit.
- Test output channels individually during controlled commissioning.
- Confirm that the PLC command corresponds to the expected output-channel state.
- Check the associated relay, contactor, solenoid, or actuator when an output state does not produce the expected equipment response.
- Inspect field wiring and connections when multiple output channels show abnormal behavior.
- Review PLC logic, permissives, and interlocks when an output is not being commanded as expected.
- Follow the applicable electrical isolation procedure before replacing the module or modifying output wiring.
- After replacement, verify every required output channel, connected load, PLC sequence, interlock, and machine response before returning the system to service.
Related Components
| Component | Function |
|---|---|
| Schneider Modicon X80 Rack | Provides module mounting and backplane communication |
| X80 CPU Module | Executes PLC control logic |
| X80 Discrete Input Modules | Acquires feedback from field devices |
| X80 Analog I/O Modules | Handles analog process signals |
| X80 Communication Modules | Provides industrial network connectivity |
| Relays | Provides electrical switching between control and load circuits |
| Contactors | Switches motor and other electrical loads |
| Solenoid Valves | Converts discrete electrical commands into mechanical action |
| HMI Terminals | Provides operator monitoring and command functions |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider Modicon X80 | Modular Automation Platform | PLC, I/O, and process-control systems |
| Schneider BMXDDO3202K | X80 Discrete Output Module | Discrete equipment control |
| Schneider BMXDDI3202K | X80 Discrete Input Module | Discrete field signal acquisition |
| Schneider BMXDDI3202KH | X80 Discrete Input Module | Digital input applications |
| Schneider BMXDDM16025 | X80 Discrete Mixed I/O Module | Combined digital input and output applications |
| Schneider BMXCPS3500 | X80 Power Supply Module | X80 rack power supply |
Key Advantages
- Provides a direct discrete output interface for Modicon X80 systems
- Transfers PLC commands to compatible field equipment
- Suitable for machine sequencing and equipment actuation
- Supports relay, contactor, solenoid, and indication applications
- Integrates with the modular X80 rack architecture
- Simplifies separation of PLC logic from field output switching
Technical FAQs
What equipment can be controlled through BMXDDO1602H?
Typical applications include relays, contactors, solenoid valves, indicator circuits, and other compatible discrete loads. The connected load must be evaluated against the electrical requirements of the particular output channel and control-panel design.
Why does the PLC command an output but the field device remain inactive?
First verify that the PLC application is actually commanding the expected output. Then check the module status, field wiring, power supply, terminal connections, and connected load. A correct PLC command does not by itself confirm that the field circuit is functioning.
What is the difference between an output-module fault and an actuator fault?
If the PLC output status changes correctly but the connected equipment does not respond, inspect the field circuit and actuator. If the PLC does not command the output when all expected conditions are satisfied, investigate the application logic, permissives, interlocks, and controller configuration before replacing the output module.
What should be checked after replacing BMXDDO1602H?
Verify the module position and I/O configuration first, then check field wiring and output assignments. Test each required output under controlled conditions and confirm that the connected equipment responds correctly throughout the relevant machine sequence.
