Product Overview

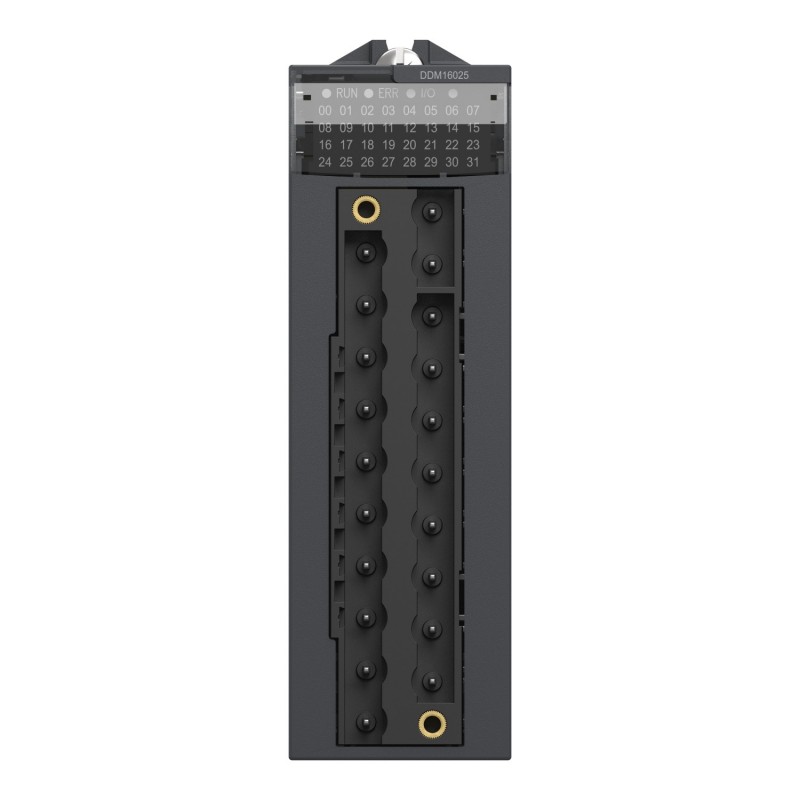

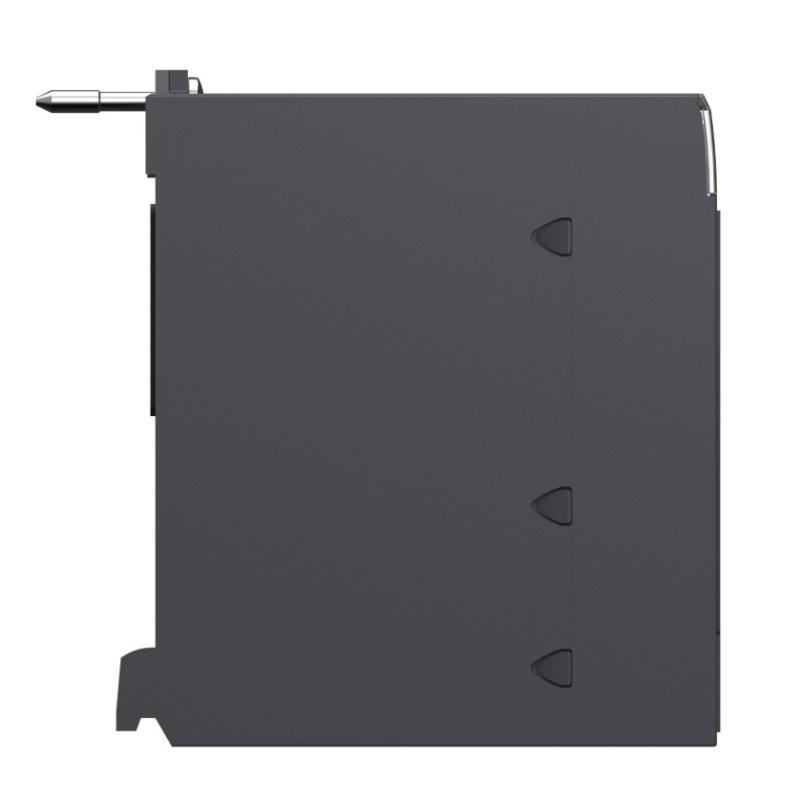

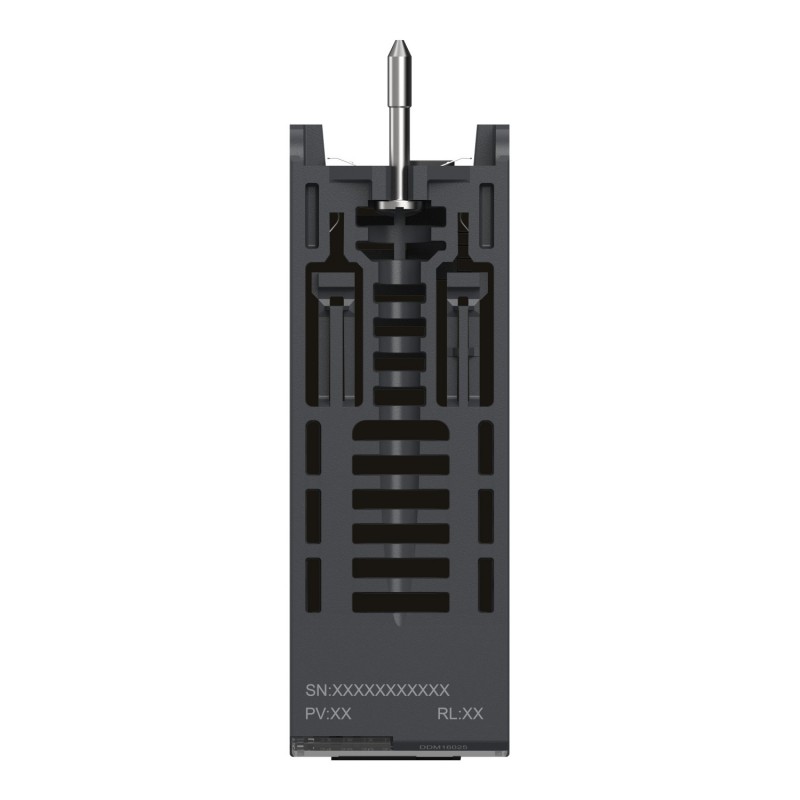

The Schneider BMXDDM16025 Modicon X80 Discrete Mixed I/O Module combines discrete input and output functions within a single X80 I/O module. This arrangement is useful when a control application needs to monitor several two-state field conditions while also sending discrete commands to associated equipment.
The module can be installed in a Modicon X80 automation rack together with the PLC CPU, dedicated input modules, output modules, analog I/O, and communication equipment. Field inputs can be used for equipment feedback and status detection, while the output channels can operate devices such as relays, contactors, solenoid valves, and indicator circuits.
A mixed I/O module can simplify smaller machine-control installations where separate input and output modules would occupy additional rack positions. It is particularly practical for machines with a combination of sensors, switches, equipment feedback signals, and discrete control commands concentrated around the same control section.
During commissioning, input and output channels can be tested independently according to the machine sequence. This makes it possible to verify field feedback, output commands, interlocks, and equipment responses without treating the complete control system as a single fault point.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BMXDDM16025 |
| Product Family | Modicon X80 |
| Product Series | BMXDDM |
| Product Type | Discrete Mixed I/O Module |
| Primary Function | Discrete input signal acquisition and discrete output control |
| System Role | Mixed digital I/O interface |
| Typical Application | Machine and process automation |
| Installation | Modicon X80 rack / control panel |
| Dimensions | 51 × 116 × 118 mm |
| Weight | 0.135 kg |
Product Features
- Modicon X80 mixed discrete input/output module
- Combines field signal acquisition and discrete control functions
- Suitable for machine and process automation systems
- Reduces the need for separate input and output module positions in suitable applications
- Interfaces switches, sensors, contacts, relays, and discrete actuators
- Supports equipment status monitoring and command control
- Integrates with the modular Modicon X80 architecture
- Suitable for compact control-system designs with mixed digital signals
Working Principle
The BMXDDM16025 handles two directions of discrete signal exchange within the X80 automation system. Input channels receive operating states from field devices, while output channels transmit control states generated by the PLC application.
Field Sensors / Switches → BMXDDM16025 → X80 Backplane → PLC CPU → Control Logic → BMXDDM16025 → Field Actuators
For the input side, a connected switch, sensor, auxiliary contact, or other discrete device changes state when the associated machine or process condition occurs. The module acquires this state and transfers the input information through the X80 backplane to the PLC.
The controller evaluates the input information according to the application logic. When an output condition is satisfied, the PLC sends the corresponding command to the module’s output section. The output then drives the connected discrete field circuit according to the system wiring and application requirements.
This combined arrangement is useful for a machine sequence in which feedback and command signals are closely related. For example, an input can monitor the position of a mechanism while an output controls the solenoid or relay responsible for moving that mechanism.
Role in a Modicon X80 Control Architecture
The BMXDDM16025 occupies both the discrete input and discrete output layers of the Modicon X80 I/O system. It provides a single rack-mounted interface for receiving field status signals and transmitting discrete control commands.
Field Inputs → BMXDDM16025 Input Channels → X80 Backplane → CPU → PLC Logic → BMXDDM16025 Output Channels → Field Equipment
| System Element | Function |
|---|---|
| Sensors / Switches | Provide discrete machine and process feedback |
| BMXDDM16025 Input Section | Acquires discrete field states |
| X80 Backplane | Transfers I/O information between rack modules |
| X80 CPU | Processes input data and executes control logic |
| BMXDDM16025 Output Section | Sends discrete control commands |
| Relays / Contactors / Solenoids | Converts output commands into equipment actions |
| HMI / SCADA | Displays machine states and operating information |
| Machine Equipment | Performs the physical process |
The mixed I/O arrangement can be useful where input feedback and output control are both required within the same machine-control area.
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Monitoring machine sensors while controlling solenoids and auxiliary devices |
| Assembly Equipment | Receiving position feedback and operating discrete mechanisms |
| Conveyor Systems | Monitoring equipment states and controlling motors or auxiliary devices |
| Machine Tools | Acquiring limit-switch signals and controlling discrete machine functions |
| Material Handling | Monitoring positions and operating discrete actuators |
| Pumping Systems | Receiving equipment status and controlling auxiliary devices |
| Manufacturing Lines | Combining machine feedback with discrete control commands |
| OEM Machinery | Compact mixed I/O solution for localized machine-control functions |
Installation and Maintenance
- Install the BMXDDM16025 in the designated position within the Modicon X80 rack.
- Verify the rack configuration and module position before connecting field wiring.
- Separate input and output wiring clearly according to the control-panel drawings.
- Confirm terminal assignments for every connected field circuit.
- Verify that input devices are correctly wired before applying power.
- Check the input status of each connected sensor, switch, or auxiliary contact during commissioning.
- Test output channels under controlled machine conditions before connecting or operating the final equipment.
- Confirm that PLC output commands correspond to the intended field-device actions.
- Inspect common wiring and field power circuits if multiple channels show abnormal behavior.
- Check the PLC application when the input state is correct but the associated output sequence does not occur.
- Follow the applicable electrical isolation procedure before replacing the module or modifying field wiring.
- After replacement, verify input status, output operation, PLC diagnostics, interlocks, and complete machine response before returning the system to service.
Related Components
| Component | Function |
|---|---|
| Schneider Modicon X80 Rack | Provides module mounting and backplane communication |
| X80 CPU Module | Executes PLC control logic |
| X80 Discrete Input Modules | Provides additional discrete input channels |
| X80 Discrete Output Modules | Provides additional discrete output channels |
| X80 Analog I/O Modules | Handles analog process signals |
| X80 Communication Modules | Provides industrial network connectivity |
| Proximity Sensors | Provides machine position or object detection |
| Relays and Contactors | Switches discrete electrical loads |
| Solenoid Valves | Converts electrical commands into mechanical or process actions |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider Modicon X80 | Modular Automation Platform | PLC, I/O, and process-control systems |
| Schneider BMXDDI3202K | X80 Discrete Input Module | Discrete field signal acquisition |
| Schneider BMXDDI3202KH | X80 Discrete Input Module | Digital input applications |
| Schneider BMXDDO3202K | X80 Discrete Output Module | Discrete equipment control |
| Schneider BMXAMI0810 | X80 Analog Input Module | Analog process signal acquisition |
| Schneider BMXCPS3500 | X80 Power Supply Module | X80 rack power supply |
Key Advantages
- Combines discrete input and output functions in one X80 module
- Reduces rack space requirements in suitable mixed-I/O applications
- Interfaces field feedback and discrete control signals with the PLC
- Suitable for machine sequencing, status monitoring, and equipment control
- Integrates with the Modicon X80 modular architecture
- Simplifies localized digital I/O arrangements
Technical FAQs
When is a mixed I/O module preferable to separate input and output modules?
A mixed I/O module can be useful when a machine requires both discrete feedback and discrete control signals but does not need a large number of either type. Combining the functions can reduce the number of separate rack positions required for a localized I/O arrangement.
How should an input problem be investigated when the corresponding output does not operate?
First confirm that the field input is correctly detected by the BMXDDM16025. Then check the PLC logic, permissive conditions, interlocks, and output status. If the PLC commands the output correctly but the field device does not respond, inspect the output wiring and associated equipment.
Can a field input fault affect the output sequence?
Yes. The PLC application may use an input as a permissive, interlock, position confirmation, or sequence condition. If that input is missing or incorrect, the controller may intentionally prevent the associated output from being activated.
What should be verified after replacing BMXDDM16025?
Check the module position, I/O configuration, field wiring, and channel assignments. Test both input and output functions separately, then run the relevant machine sequence to confirm that field feedback, PLC logic, output commands, and equipment responses operate as expected.
