Product Overview

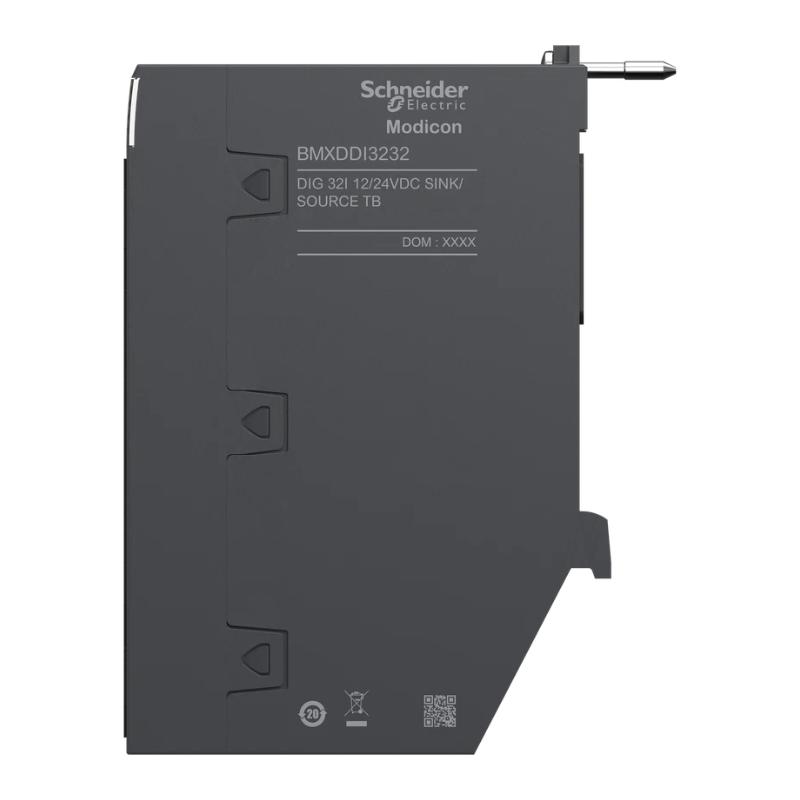

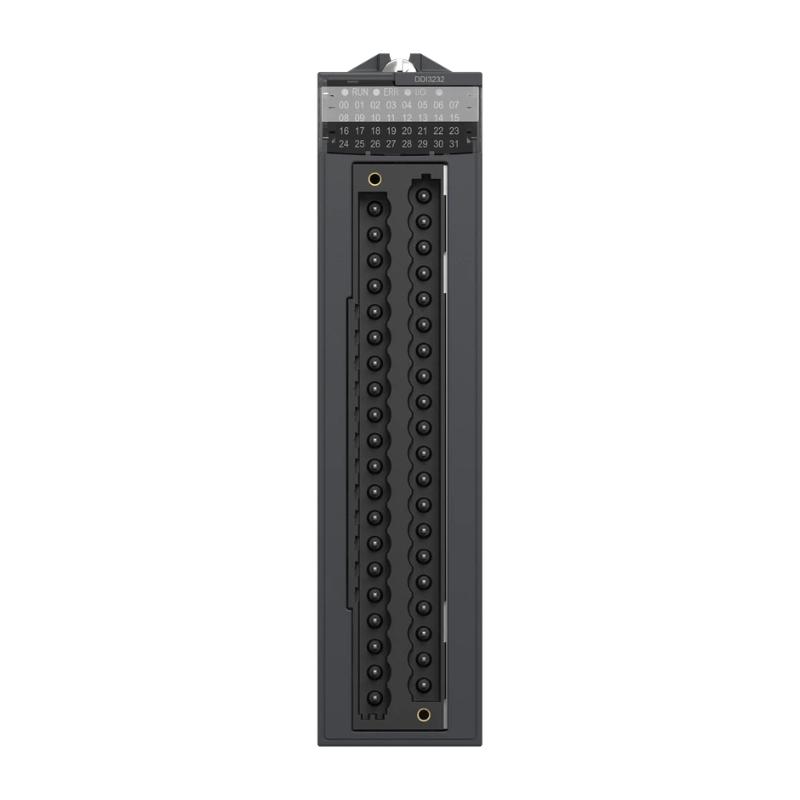

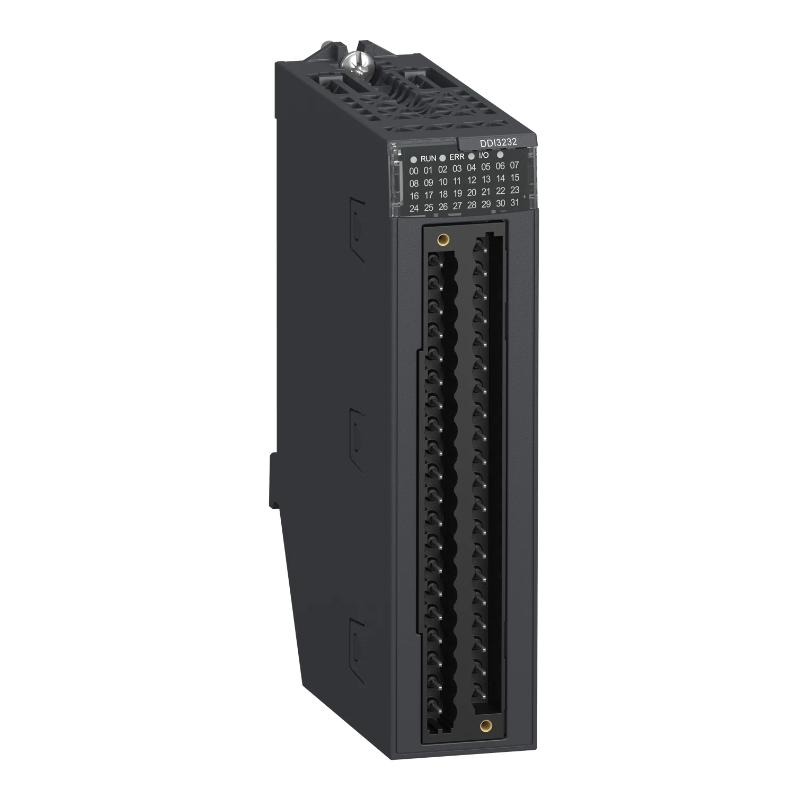

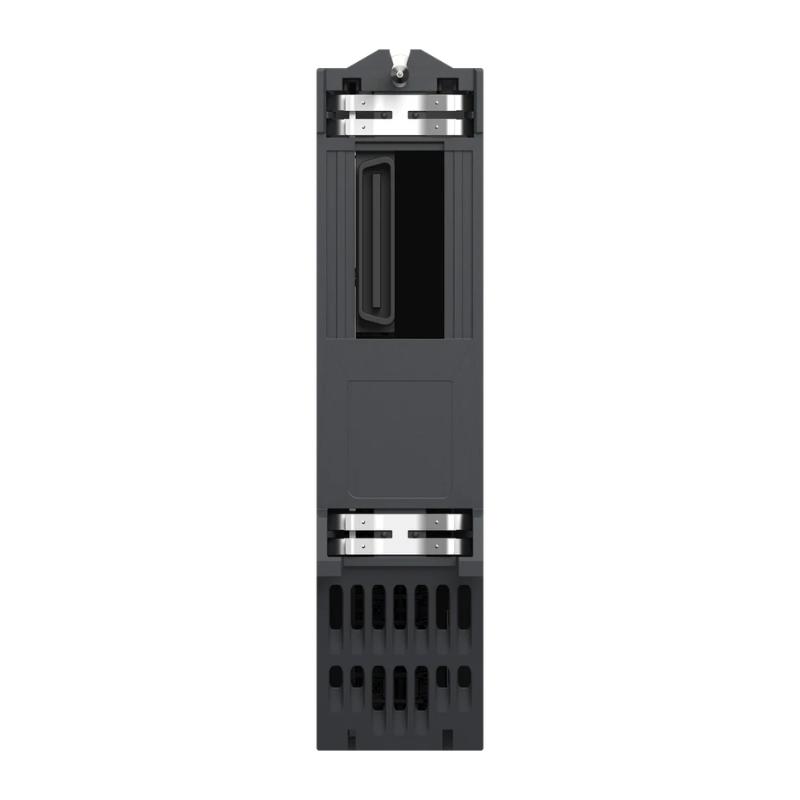

The Schneider BMXDDI3232 Discrete Input Module is an industrial automation I/O component designed to acquire discrete electrical signals from field devices and make their operating states available to a compatible PLC control system. In a modular automation architecture, the input module acts as an interface between sensors, switches, equipment contacts, and the controller responsible for executing the application logic.
Discrete input signals provide essential information about the physical condition of industrial equipment. A PLC may need to know whether a motor is running, a valve has reached a required position, a product has been detected, a machine mechanism has reached its limit, or an operator has activated a control device. These conditions can be represented by discrete electrical states.
The BMXDDI3232 can form part of an automation system in which such field-level signals are collected and processed by the PLC. The controller can then use the information for machine sequencing, equipment monitoring, interlocking, alarm handling, position detection, and process coordination.
The supplied physical specifications for the Schneider BMXDDI3232 are 120 × 32 × 104 mm, with a weight of 0.137 kg. Its compact modular form factor is suitable for organized PLC installations and provides useful characteristics for control cabinet planning, maintenance, and spare-parts management.
Exact electrical characteristics, input voltage, current requirements, channel configuration, isolation, filtering, diagnostic functions, terminal assignments, and environmental ratings should be verified against the applicable Schneider Electric documentation before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BMXDDI3232 |
| Product Type | Discrete Input Module |
| Primary Function | Discrete / Digital Signal Acquisition |
| System Role | PLC Input Interface |
| Signal Type | ON/OFF Discrete Signals |
| Application | Industrial Automation and Process Control |
| Dimensions | 120 × 32 × 104 mm |
| Weight | 0.137 kg |
| Installation | Modular PLC / Industrial Automation System |
| Typical Applications | Machine Control, Equipment Monitoring, Process Automation, Industrial Sequencing |
The physical dimensions and weight above are based on the product information supplied for this article. Exact electrical specifications should be verified for the intended application.
What Is the Schneider BMXDDI3232?
The Schneider BMXDDI3232 is a Discrete Input Module used to connect compatible digital field devices to a PLC-based automation system.
Its primary purpose is to detect the electrical state of external devices and transfer the corresponding information to the PLC.
A simplified signal chain is:
Industrial Process → Sensor / Switch → BMXDDI3232 → PLC CPU → Application Logic
For example, a proximity sensor may detect a component moving along a production line. When the sensor changes state, the BMXDDI3232 receives the corresponding electrical signal and makes the information available to the PLC.
The controller can then determine whether to:
- Start the next sequence
- Stop a machine
- Activate an output
- Generate an alarm
- Confirm a position
- Enable another operation
- Record an equipment state
This makes discrete input modules an essential part of the interface between automation software and physical industrial processes.
Discrete Input Working Principle
Field Device Detection
The process begins with a physical device detecting an operating condition.
Typical devices include proximity sensors, photoelectric sensors, switches, relay contacts, and equipment-status contacts.
Electrical Signal Generation
The field device changes its electrical output according to the detected condition.
For example, a limit switch can change state when a machine mechanism reaches its end position.
Input Signal Acquisition
The electrical signal is connected to the corresponding input interface of the BMXDDI3232.
The module detects the applicable discrete state and transfers the information toward the PLC system.
Signal Processing
The input interface processes the field signal so that the controller can interpret it as a digital operating state.
Reliable signal acquisition depends on suitable wiring, compatible field devices, proper grounding, and appropriate installation practices.
PLC Logic Processing
The PLC receives the input information and evaluates it according to the application program.
The resulting logic can control other parts of the automation system.
Role in Industrial Control Systems
The BMXDDI3232 occupies the input layer of a PLC-based automation system.
A typical architecture can be represented as:
Field Devices → BMXDDI3232 → PLC CPU → Control Logic → Output Modules → Actuators
This architecture allows physical events to become digital information that can be processed automatically.
For example, a packaging machine may use several sensors to detect product position and machine movement. The BMXDDI3232 transfers these discrete states to the controller, which uses them to coordinate the production sequence.
Discrete input information can support:
- Machine sequencing
- Equipment status monitoring
- Position detection
- Interlocking
- Alarm generation
- Start/stop logic
- Process coordination
- Production monitoring
Industrial Applications
Factory Automation
Discrete input modules are widely used in automated manufacturing systems.
Typical applications include:
- Assembly machines
- Packaging equipment
- Conveyor systems
- Production lines
- Robotic work cells
- Material-handling equipment
The PLC can monitor multiple machine conditions and coordinate operations according to the programmed sequence.
Machine Control
Machine-control systems commonly use discrete signals to identify:
- Product presence
- End-of-travel position
- Operator commands
- Machine-ready status
- Equipment faults
- Interlock conditions
These signals can be combined within the PLC program to create reliable machine sequences.
Process Automation
Industrial process systems often contain discrete equipment-status signals from:
- Pumps
- Motors
- Valves
- Pressure switches
- Level switches
- Auxiliary equipment
The PLC can combine these signals with analog process measurements to make control decisions.
Water and Wastewater
Water-treatment facilities use discrete inputs for monitoring pumps, valves, level switches, alarms, and equipment states.
The input module allows these conditions to become part of the automated control system.
Material Handling
Discrete sensors are widely used in conveyor and material-handling applications to detect:
- Product presence
- Conveyor position
- Jam conditions
- End-of-line conditions
- Equipment status
- Machine interlocks
PLC System Integration
The BMXDDI3232 can be integrated into a modular PLC system containing controllers, I/O modules, communication components, HMIs, and field devices.
A representative architecture is:
Sensors / Switches → BMXDDI3232 → PLC CPU → Control Program → Output Module → Field Equipment
A typical sequence may work as follows:
- A sensor detects an object.
- The sensor changes its electrical state.
- The BMXDDI3232 receives the signal.
- The input state becomes available to the PLC.
- The PLC executes the programmed control logic.
- The controller determines the required response.
- A corresponding output or control action is initiated.
This continuous input-processing-output cycle forms the foundation of automated industrial control.
Common Field Devices
The BMXDDI3232 can be used within systems containing various compatible discrete field devices.
| Field Device | Typical Function |
|---|---|
| Proximity Sensor | Object detection |
| Photoelectric Sensor | Product detection |
| Limit Switch | Mechanical position |
| Push Button | Operator command |
| Selector Switch | Mode selection |
| Pressure Switch | Pressure status |
| Float Switch | Level indication |
| Relay Contact | Equipment feedback |
| Motor Auxiliary Contact | Running status |
| Valve Limit Switch | Valve-position feedback |
Actual field-device compatibility must be confirmed according to the electrical requirements of the specific input configuration.
Installation Guidelines
Confirm Product Identification
Before installation, verify the complete model designation:
Schneider BMXDDI3232
The module should be compared with the approved PLC hardware configuration.
Verify System Compatibility
Confirm compatibility with the intended Schneider Electric PLC platform, rack architecture, and application.
Consider:
- PLC controller
- Rack configuration
- Module position
- Hardware revision
- Input characteristics
- System configuration
Check Physical Dimensions
The supplied dimensions are:
120 × 32 × 104 mm
Cabinet planning should also allow additional room for wiring, connectors, cable routing, ventilation, and maintenance access.
Inspect the Module
Before installation, check the module and connectors for:
- Physical damage
- Contamination
- Mechanical defects
- Connector damage
- Improper storage conditions
Discrete Input Wiring Considerations
Correct wiring is essential for reliable digital signal acquisition.
Before commissioning, verify:
- Input voltage compatibility
- Signal current
- Common connections
- Polarity
- Cable routing
- Cable length
- Grounding
- Shielding where applicable
- Electrical noise
Discrete input cables should be routed appropriately in relation to high-power conductors.
Motor cables, contactors, variable-speed drives, and other switching equipment can generate electromagnetic interference. Good cable separation and grounding practices can help reduce unwanted signal disturbances.
Commissioning Procedure
Step 1: Verify the Hardware
Confirm the BMXDDI3232 model and its installation position.
Step 2: Check the PLC Configuration
Ensure that the input module is correctly represented within the PLC hardware configuration.
Step 3: Review the Electrical Drawings
Compare field wiring with the approved control schematic.
Step 4: Verify Field Devices
Confirm that connected sensors, switches, and contacts are correctly installed and suitable for the input interface.
Step 5: Energize the System
Apply control-system power under controlled commissioning conditions.
Step 6: Test Individual Inputs
Activate each sensor or switch and confirm that the corresponding PLC input changes correctly.
Step 7: Verify Application Logic
Confirm that the PLC program interprets each input according to the intended machine or process sequence.
Step 8: Perform Functional Testing
Operate the equipment through representative conditions and verify that the PLC responds correctly to changes in field signals.
Troubleshooting the BMXDDI3232
Input Does Not Change
If the field device is activated but the PLC input does not change, inspect:
- Field sensor or switch
- Sensor power
- Signal wiring
- Common connection
- Input configuration
- Module installation
- PLC configuration
A direct measurement of the field signal can help determine whether the problem originates before the module.
Input Remains ON
Possible causes include:
- Incorrect wiring
- Short circuit
- Field-device failure
- Incorrect configuration
- Input-channel fault
The actual field signal should be checked before replacing the module.
Input Remains OFF
Inspect:
- Sensor output
- Field-device power
- Cable continuity
- Common connection
- Module seating
- PLC configuration
A missing sensor signal can produce symptoms similar to a failed input channel.
Input Is Intermittent
Intermittent input behavior may be associated with:
- Loose wiring
- Damaged cables
- Connector problems
- Electrical interference
- Sensor degradation
- Mechanical vibration
- Poor grounding
The complete field signal path should be examined.
Multiple Inputs Fail
If several inputs fail at the same time, investigate shared causes before replacing the module.
Check:
- Common power
- Shared wiring
- Module installation
- Rack configuration
- Controller communication
- System-level faults
Preventive Maintenance
Inspect Field Sensors
Regularly check sensors and switches for:
- Mechanical damage
- Contamination
- Misalignment
- Wear
- Unstable operation
Check Wiring
Inspect cables and terminals for:
- Loose connections
- Damaged insulation
- Corrosion
- Moisture
- Mechanical stress
- Excessive bending
Maintain Module Connections
Ensure that the BMXDDI3232 and associated connectors remain clean and securely installed.
Monitor Input Behavior
Unexpected changes in discrete input behavior can indicate sensor degradation, wiring problems, or changing process conditions.
Maintain Cabinet Environment
Protect the automation cabinet from excessive:
- Dust
- Moisture
- Heat
- Vibration
- Electrical contamination
Replacement Considerations
When replacing a Schneider BMXDDI3232 Discrete Input Module, verify the complete model designation and intended system configuration.
Important considerations include:
- Full model number
- Hardware revision
- PLC platform
- Rack compatibility
- Input electrical characteristics
- Channel configuration
- Wiring arrangement
- Environmental requirements
The supplied physical specifications are:
120 × 32 × 104 mm
0.137 kg
Physical dimensions alone should not be used to determine compatibility. The replacement must meet the required electrical and system specifications.
Physical Dimensions and Weight
| Parameter | Value |
|---|---|
| Dimensions | 120 × 32 × 104 mm |
| Weight | 0.137 kg |
These specifications can support:
- PLC cabinet planning
- Rack-layout preparation
- Spare-parts management
- Replacement planning
- Equipment handling
- Maintenance activities
Adequate additional space should be provided for field wiring and service access.
Engineering Best Practices
Maintain an Accurate I/O Schedule
Record each input channel and its corresponding sensor, switch, or equipment-status signal.
Label All Field Wiring
Clear labeling reduces commissioning time and simplifies future troubleshooting.
Separate Signal and Power Wiring
Where practical, route discrete signal cables separately from high-current and high-noise circuits.
Verify Field-Device Compatibility
Confirm the electrical characteristics of each connected sensor or switch before commissioning.
Test Inputs Individually
Individual testing helps identify wiring errors, incorrect assignments, defective sensors, and configuration problems.
Investigate Common Faults First
If several inputs stop working simultaneously, check shared power, common wiring, module seating, and system configuration before replacing the module.
Keep an Identified Spare
For critical installations, maintain a properly identified spare module that has been verified for the intended PLC architecture.
Compatible Automation Components
Depending on the overall Schneider Electric system architecture, the BMXDDI3232 may operate alongside:
- Schneider PLC CPUs
- Discrete Output Modules
- Analog Input Modules
- Analog Output Modules
- Remote I/O Modules
- Communication Modules
- HMI Systems
- SCADA Systems
- Proximity Sensors
- Photoelectric Sensors
- Limit Switches
- Relay Contacts
- Industrial Field Devices
The exact system configuration depends on the PLC platform and application.
Recommended Related Schneider Product Categories
| Product Category | Typical Function |
|---|---|
| Schneider Discrete Input Modules | Digital field-signal acquisition |
| Schneider Discrete Output Modules | Digital equipment control |
| Schneider Analog Input Modules | Process measurement |
| Schneider Analog Output Modules | Analog control |
| Schneider PLC CPUs | Control logic execution |
| Schneider Remote I/O Modules | Distributed field interfacing |
| Schneider Communication Modules | Industrial networking |
| Schneider HMI Systems | Operator monitoring and control |
These categories can be part of the same automation architecture but should not be treated as direct replacements without confirming compatibility.
Key Advantages
Discrete Signal Acquisition
The BMXDDI3232 provides an interface for transferring compatible field-device states into a PLC control system.
Suitable for Industrial Automation
Discrete inputs are fundamental to machine control, equipment monitoring, process automation, alarms, and interlocking.
Compact Modular Construction
The supplied 120 × 32 × 104 mm dimensions provide a defined physical envelope for PLC cabinet and equipment planning.
Lightweight Design
With a supplied weight of 0.137 kg, the module is convenient to handle during installation, replacement, and inventory management.
Broad Field-Device Applications
Compatible sensors, switches, relay contacts, and equipment-status devices can provide discrete information to the automation system.
Supports Automated Decision-Making
Once acquired by the PLC, discrete field states can be used to initiate sequences, alarms, interlocks, and other control functions.
Technical FAQs
What is the Schneider BMXDDI3232?
The Schneider BMXDDI3232 is a Discrete Input Module designed to acquire compatible discrete electrical signals from industrial field devices and transfer their states to a PLC control system.
What does the BMXDDI3232 do?
It provides an interface between discrete field devices and the PLC, allowing the controller to monitor ON/OFF operating conditions.
What are the dimensions of the BMXDDI3232?
The supplied dimensions are 120 × 32 × 104 mm.
How much does the BMXDDI3232 weigh?
The supplied weight is 0.137 kg.
What types of field devices can provide input signals?
Typical applications include proximity sensors, photoelectric sensors, limit switches, push buttons, selector switches, pressure switches, float switches, relay contacts, and equipment-status contacts.
Why are discrete inputs important in automation?
They allow a PLC to monitor physical equipment conditions and use those conditions for sequencing, interlocking, alarm handling, position detection, and process control.
What should be checked when an input does not respond?
Check the field device, power supply, wiring, common connections, module installation, PLC configuration, and application logic.
What can cause intermittent input signals?
Possible causes include loose wiring, damaged cables, connector problems, sensor degradation, electrical interference, mechanical vibration, and grounding issues.
Can another Schneider input module replace the BMXDDI3232?
Not automatically. The replacement should be checked for electrical input characteristics, channel configuration, PLC compatibility, wiring requirements, and overall system architecture.
Conclusion
The Schneider BMXDDI3232 Discrete Input Module is an important interface component for PLC-based industrial automation systems. It allows discrete field signals from sensors, switches, relay contacts, and equipment-status devices to be acquired by the controller and incorporated into automated control logic.
The supplied physical specifications are 120 × 32 × 104 mm, with a weight of 0.137 kg. These parameters are useful for PLC cabinet planning, installation preparation, spare-parts management, replacement logistics, and equipment handling.
Reliable operation depends on correct field wiring, compatible sensors and switches, secure module installation, appropriate PLC configuration, and effective electrical-noise management. When troubleshooting the BMXDDI3232, engineers should examine the entire signal path from the field device through the wiring and input module to the PLC configuration.
For installation, maintenance, or replacement, the complete BMXDDI3232 model designation should be verified together with the applicable Schneider Electric PLC platform, electrical input requirements, hardware configuration, and installation procedures.
