Overview

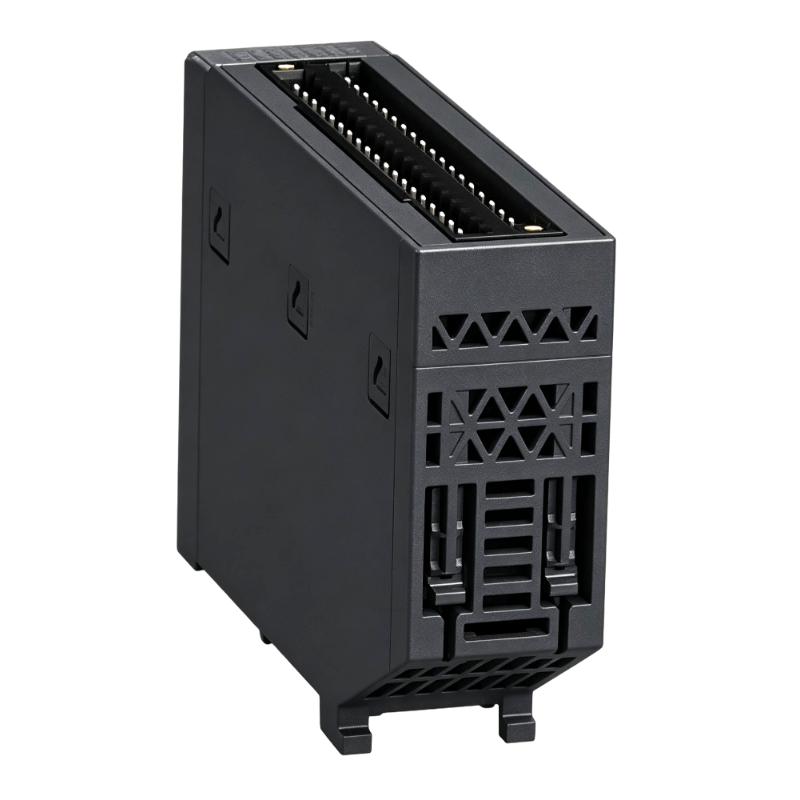

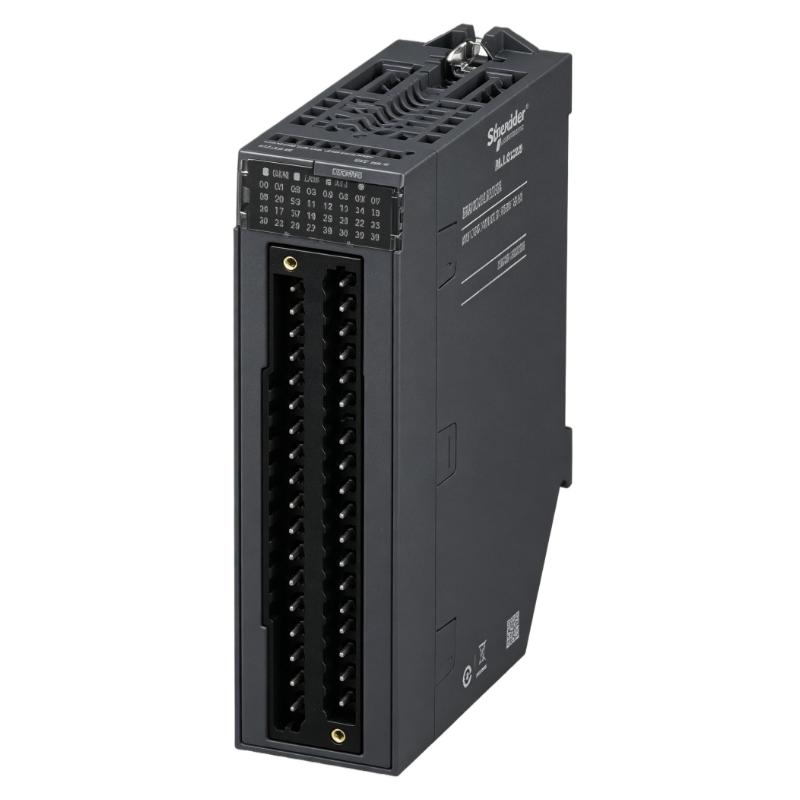

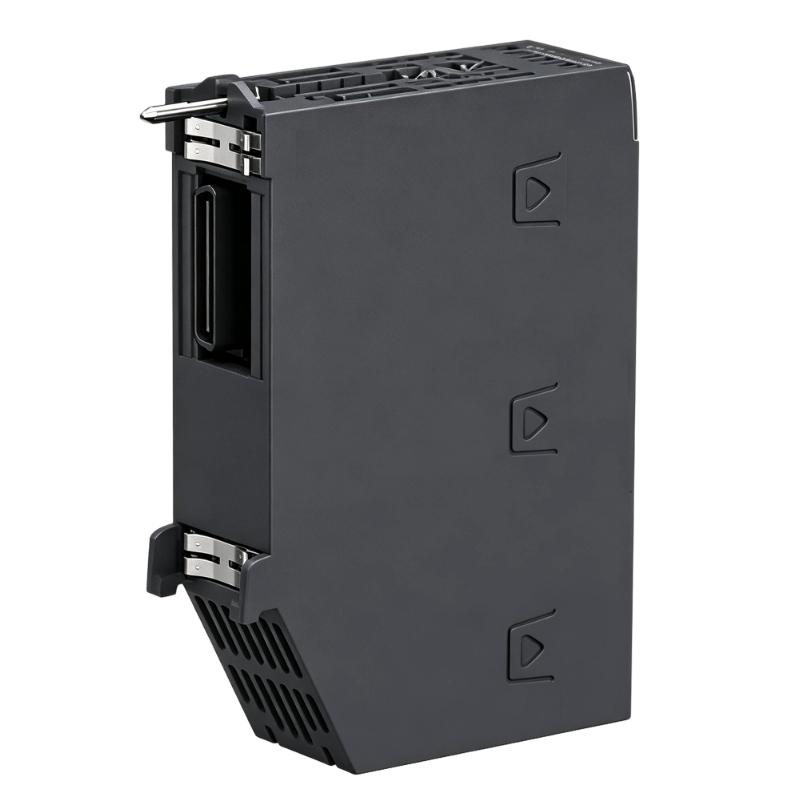

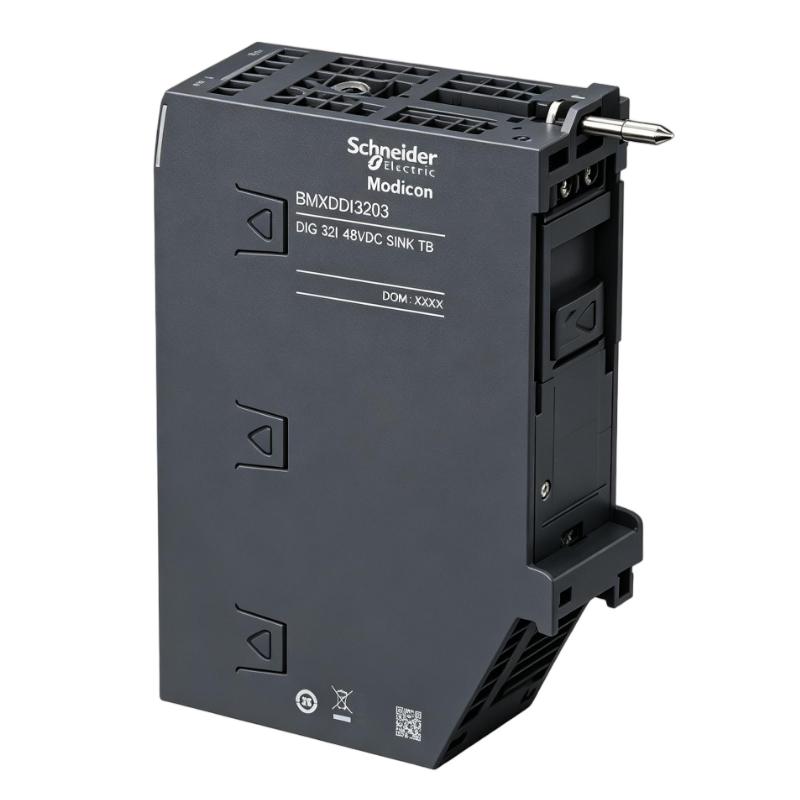

Schneider Electric BMXDDI3203 is a discrete input module designed for the Modicon X80 automation platform. It provides 32-channel digital input acquisition for PLC systems, allowing controllers to receive signals from sensors, switches, and field devices. With 48 V DC input capability and isolated input channels, the module is suitable for industrial automation applications that require reliable signal monitoring, stable communication, and flexible field device integration.
Applications
The Schneider BMXDDI3203 is mainly used in industrial automation systems where digital signal collection and equipment status monitoring are required.
Machine Automation
The module collects ON/OFF signals from sensors, limit switches, and control devices, allowing PLC systems to monitor machine operating conditions.
Production Line Control
It is suitable for automated production lines where multiple field signals need to be collected and processed by a central PLC controller.
Process Monitoring Systems
The BMXDDI3203 can be used for monitoring equipment status, alarms, and operating conditions in industrial processes.
Motor and Equipment Control Systems
The module receives feedback signals from motors, valves, and other field devices to support accurate system control.
Distributed I/O Applications
It can be installed in Modicon X80 architectures to expand PLC digital input capacity for larger automation projects.
Advantages
32-Channel Digital Input Capability
The BMXDDI3203 provides 32 discrete input channels, allowing multiple field devices to be connected within a single compact module.
Reliable Signal Acquisition
The isolated input design helps improve signal stability and reduce interference from industrial electrical environments.
Flexible Industrial Compatibility
The module supports connection with common industrial sensors and switching devices, making it suitable for various automation applications.
Compact X80 Module Design
Its compact structure allows efficient installation in PLC racks while saving control cabinet space.
Easy System Expansion
The module can be combined with other Modicon X80 components to expand PLC input capacity according to application requirements.
Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BMXDDI3203 |
| Product Type | Discrete Input Module |
| Platform | Modicon X80 |
| Input Channels | 32 Channels |
| Input Voltage | 48 V DC |
| Input Type | Isolated Digital Input |
| Input Logic | Positive Logic |
| Installation Type | PLC Rack Mounting |
| Dimensions | 134.6 × 32 × 86 mm |
| Weight | 0.137 kg |
Compatible Parts
The BMXDDI3203 is commonly installed with Modicon X80 components to build a complete PLC control system.
| Component | Function |
|---|---|
| Schneider BMXP Series Processor | Executes PLC programs and controls automation processes. |
| Schneider BMEP Series Processor | Provides control capability for Modicon M580 systems. |
| BMXXBP Rack | Provides module mounting and internal communication connection. |
| BMXCPS Power Supply Module | Supplies stable power for PLC racks. |
| Discrete Output Modules | Control actuators and external devices based on PLC logic. |
| Analog Input Modules | Collect continuous signals from sensors and measurement devices. |
Installation
The Schneider BMXDDI3203 should be installed on a compatible Modicon X80 rack with correct wiring and configuration.
During installation, ensure that the input voltage matches the connected field devices and that signal wiring is properly separated from high-power cables to reduce electrical interference.
The module should be installed inside a suitable control cabinet with proper grounding and environmental protection.
Before commissioning, engineers should check channel status indicators, input signal response, and PLC configuration to ensure correct operation.
FAQs
1. What is Schneider BMXDDI3203?
Schneider BMXDDI3203 is a 32-channel discrete input module designed for Modicon X80 PLC systems.
2. What type of signals can BMXDDI3203 receive?
It receives 48 V DC digital signals from industrial sensors, switches, and field devices.
3. Which PLC platform is compatible with BMXDDI3203?
It is designed for Schneider Modicon X80-based automation platforms.
4. What is the main function of BMXDDI3203?
Its main function is to collect digital input signals and transfer field device status information to the PLC controller.
5. What components are commonly used with BMXDDI3203?
It is commonly used with Modicon X80 racks, processors, power modules, and other I/O modules.
Recommended Models
| Model | Product Type | Application |
|---|---|---|
| Schneider BMXDDI1602 | Discrete Input Module | 24 V DC digital input applications |
| Schneider BMXDDI1603 | Discrete Input Module | Medium-channel industrial input systems |
| Schneider BMXDDI6402 | High-Density Input Module | Large-scale digital signal collection |
| Schneider BMXDDI3202K | Discrete Input Module | Compact X80 input applications |
| Schneider BMXDDI6403 | High-Density Discrete Input Module | Complex automation systems |
Related Models
| Model | Product Type | Application |
|---|---|---|
| Schneider BMXDDO3202 | Discrete Output Module | Digital actuator control |
| Schneider BMXDAI1605 | Analog Input Module | Industrial analog signal acquisition |
| Schneider BMXAMI0810 | Analog Input Module | Sensor measurement applications |
| Schneider BMXCPS3540T | Power Supply Module | PLC rack power supply |
| Schneider BMXP342020 | Processor Module | Modicon M340 PLC control |
