Product Overview

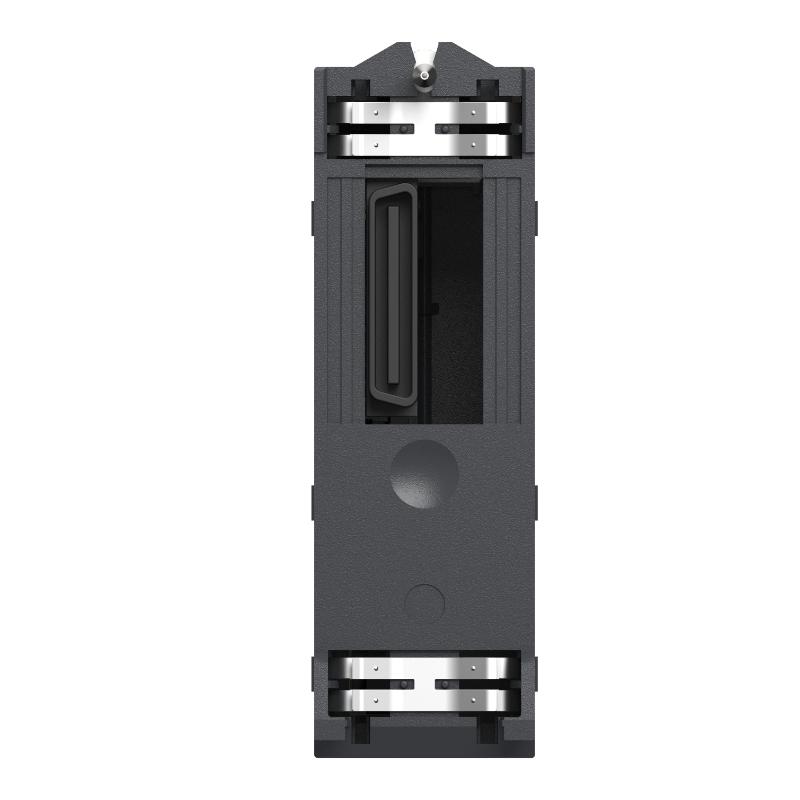

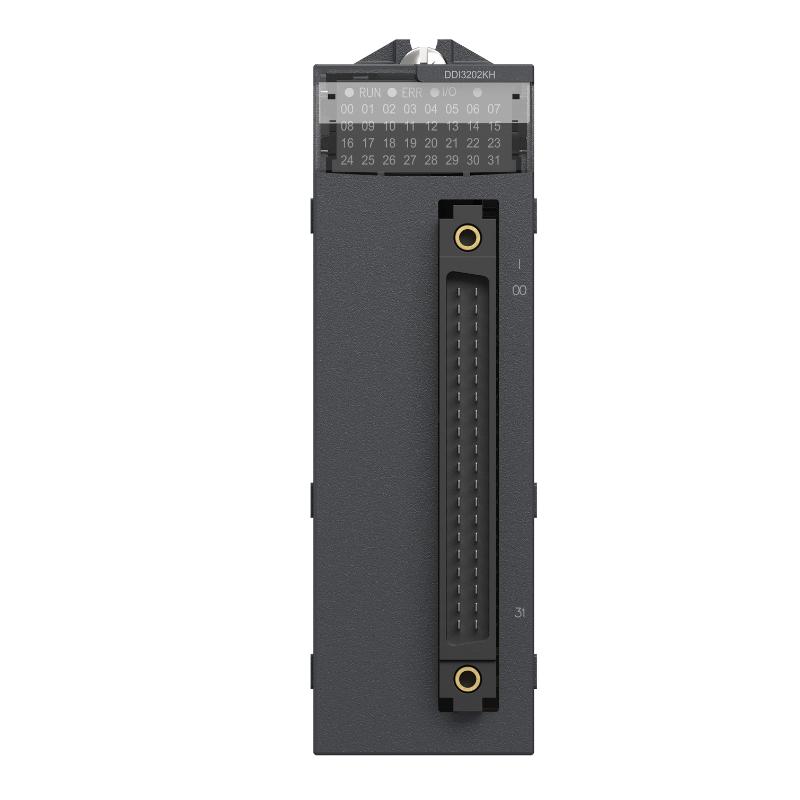

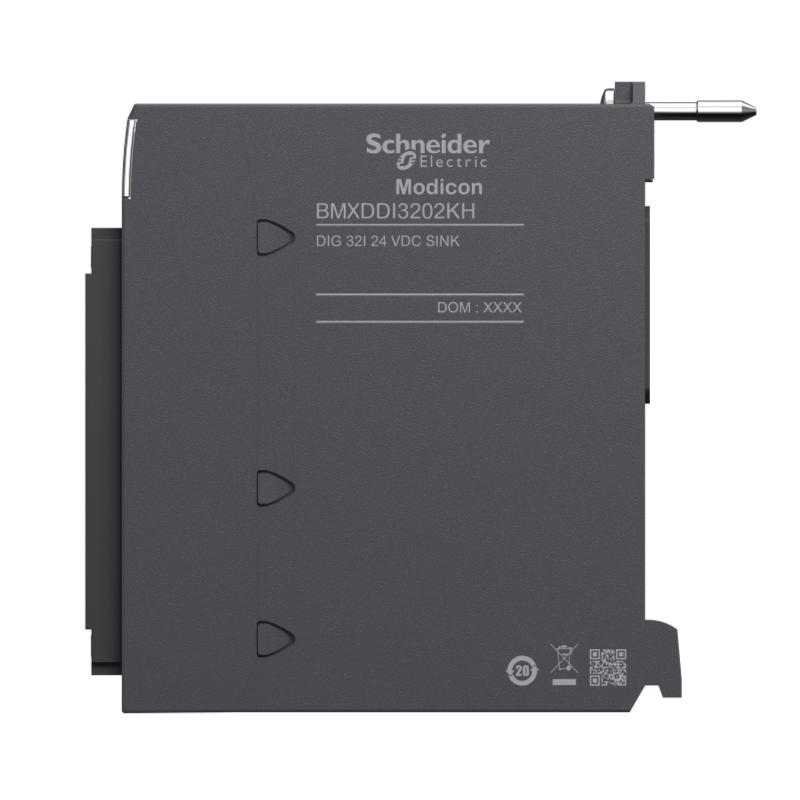

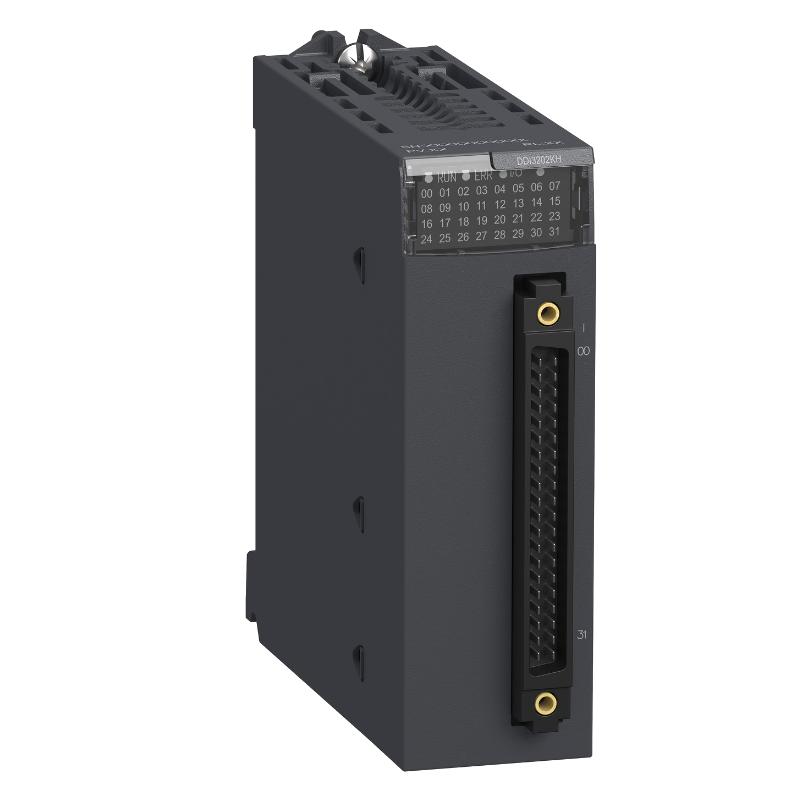

The Schneider BMXDDI3202KH Modicon X80 Discrete Input Module connects discrete field signals to a Modicon X80 automation system. It allows the PLC application to receive operating states from switches, sensors, auxiliary contacts, and other field devices that represent machine or process conditions as discrete signals.
In an X80 control cabinet, the module works alongside the PLC CPU, output modules, analog modules, and communication equipment installed in the same automation platform. Input signals collected from field devices become available to the controller for sequencing, interlocking, status supervision, alarm handling, and equipment monitoring.
Discrete inputs are commonly used for conditions such as motor running feedback, valve position, limit-switch activation, proximity detection, push-button operation, and equipment fault contacts. The BMXDDI3202KH can therefore be used wherever a control system needs to distinguish between defined field states.
During commissioning, the module also gives technicians a useful point for tracing signal problems. Comparing the actual field-device condition with the corresponding PLC input status can help identify wiring faults, incorrect connections, field-device problems, or I/O-related issues.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BMXDDI3202KH |
| Product Family | Modicon X80 |
| Product Series | BMXDDI |
| Product Type | Discrete Input Module |
| Primary Function | Acquisition of discrete field signals |
| System Role | Digital input interface |
| Typical Application | Machine and process automation |
| Installation | Modicon X80 rack / control panel |
| Dimensions | 134.6 × 32 × 86 mm |
| Weight | 0.112 kg |
Product Features
- Modicon X80 discrete input module
- Acquires discrete signals from field-level devices
- Interfaces switches and sensors with the PLC control system
- Suitable for machine status and process-condition monitoring
- Supports discrete signal acquisition for sequencing and interlocking
- Integrates with the modular X80 automation architecture
- Can operate alongside X80 CPU, output, analog, and communication modules
- Suitable for industrial control panels and automation installations
Working Principle
The BMXDDI3202KH receives discrete electrical signals from connected field devices and transfers the corresponding input states into the Modicon X80 control system.
Field Sensors / Switches → BMXDDI3202KH → X80 Backplane → PLC CPU → Control Logic
A field device changes its electrical state when a physical or process condition occurs. The corresponding input channel detects this condition and makes the input status available to the PLC through the X80 backplane.
The PLC application then interprets the input state according to the programmed control sequence. For example, a limit switch can confirm that a mechanism has reached its required position, while an auxiliary contact can provide confirmation that a motor starter has changed state.
The BMXDDI3202KH handles signal acquisition rather than application-level decision making. The controller determines how each input is used and whether the associated condition should initiate an output, alarm, interlock, or sequence transition.
Role in a Modicon X80 Control Architecture
The BMXDDI3202KH forms the discrete input interface between field devices and the processing layer of a Modicon X80 control system.
Field Devices → BMXDDI3202KH → X80 Backplane → CPU → PLC Logic → Output Modules → Machine Equipment
| System Element | Function |
|---|---|
| Field Sensors / Switches | Detect machine or process conditions |
| BMXDDI3202KH | Acquires discrete field states |
| X80 Backplane | Provides internal communication between rack modules |
| X80 CPU | Processes input states and executes control logic |
| Digital Output Modules | Sends discrete commands to field equipment |
| HMI / SCADA | Displays equipment and process conditions |
| Actuators | Performs the physical control operation |
This arrangement keeps field signal acquisition separate from the application logic executed by the PLC, making it easier to trace signal paths during commissioning and maintenance.
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Monitoring machine positions, switches, and equipment status |
| Assembly Lines | Detecting component presence and mechanism positions |
| Conveyor Systems | Monitoring sensors, motor feedback, and conveyor states |
| Machine Tools | Acquiring limit-switch and equipment status signals |
| Pumping Systems | Monitoring pump running and fault contacts |
| Material Handling | Detecting equipment positions and operating conditions |
| Process Automation | Monitoring discrete process and equipment states |
| Manufacturing Equipment | Providing machine feedback to PLC control logic |
Installation and Maintenance
- Install the BMXDDI3202KH in the specified position within the Modicon X80 rack.
- Verify the rack configuration before connecting the module.
- Confirm the field-device wiring against the approved electrical drawings.
- Check terminal assignments before energizing the connected circuits.
- Verify that each connected field device produces the expected discrete state.
- Monitor the corresponding input status during commissioning.
- Compare physical field conditions with the input states reported by the PLC.
- Inspect wiring and common connections if multiple input channels behave unexpectedly.
- Check individual field devices when only one input channel shows an abnormal condition.
- Review the PLC application when the input state is correct but the machine response is incorrect.
- Follow the applicable electrical isolation and maintenance procedure before replacing the module.
- After replacement, verify every required input channel, PLC logic response, alarm condition, and associated machine function.
Related Components
| Component | Function |
|---|---|
| Schneider Modicon X80 Rack | Provides module mounting and backplane communication |
| X80 CPU Module | Executes PLC application logic |
| X80 Digital Output Modules | Controls discrete field equipment |
| X80 Analog Input Modules | Acquires analog process measurements |
| X80 Communication Modules | Provides industrial network connectivity |
| Proximity Sensors | Detects equipment position or object presence |
| Limit Switches | Provides mechanical position feedback |
| Auxiliary Contacts | Reports motor starter or contactor status |
| HMI Terminals | Displays machine and process information |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider Modicon X80 | Modular Automation Platform | PLC, I/O, and process-control systems |
| Schneider BMXDDI3202K | X80 Discrete Input Module | Discrete field signal acquisition |
| Schneider BMXDDI1602 | X80 Discrete Input Module | Digital input applications |
| Schneider BMXDDO3202K | X80 Discrete Output Module | Discrete equipment control |
| Schneider BMXAMI0810 | X80 Analog Input Module | Analog process signal acquisition |
| Schneider BMXCPS3500 | X80 Power Supply Module | X80 rack power supply |
Key Advantages
- Provides discrete field signal acquisition for Modicon X80 systems
- Connects sensors, switches, and equipment contacts with PLC logic
- Suitable for machine sequencing and process monitoring
- Supports status, alarm, and interlock applications
- Integrates with the modular X80 rack architecture
- Provides a practical diagnostic point for tracing discrete signal problems
Technical FAQs
How does BMXDDI3202KH differ from an analog input module?
The BMXDDI3202KH is used for discrete states, where the control system needs to identify defined switching conditions. An analog input module is used when the field device provides a continuously varying process value such as pressure, temperature, level, or flow.
What should be checked when the physical switch changes but the PLC input does not?
Start with the field-device power circuit, wiring, terminal connections, and common circuit. Then check the corresponding input channel and its status in the PLC diagnostics. This sequence helps determine whether the problem is located in the field device, wiring, I/O channel, or controller configuration.
Can one abnormal input channel indicate a problem with the entire X80 rack?
Not necessarily. A single abnormal channel is more likely to require inspection of its associated field device, wiring, terminal connection, or input channel. If multiple unrelated inputs fail simultaneously, the common power, rack, or communication path should also be investigated.
What should be verified after replacing BMXDDI3202KH?
Verify that the replacement occupies the correct rack position and that the I/O configuration matches the control application. Test the connected field devices individually, confirm the corresponding PLC input states, and then verify the machine sequence, interlocks, and alarms that depend on those inputs.
