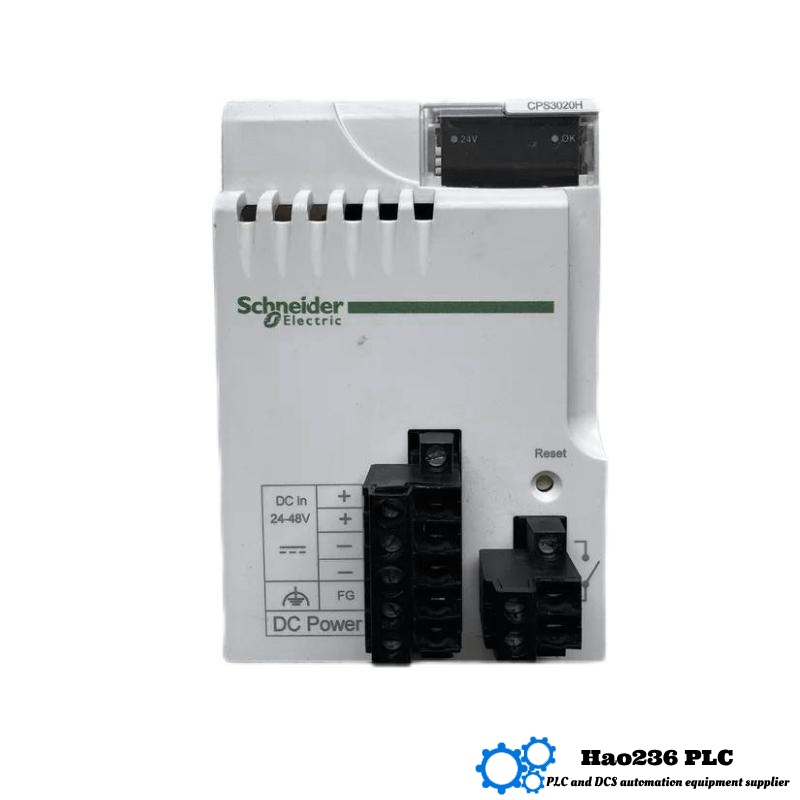

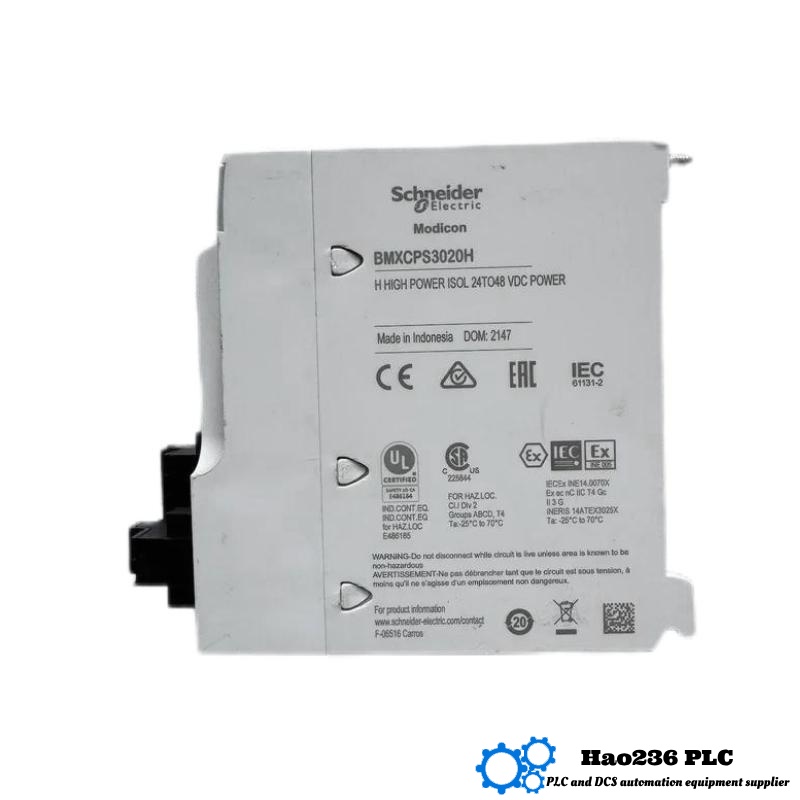

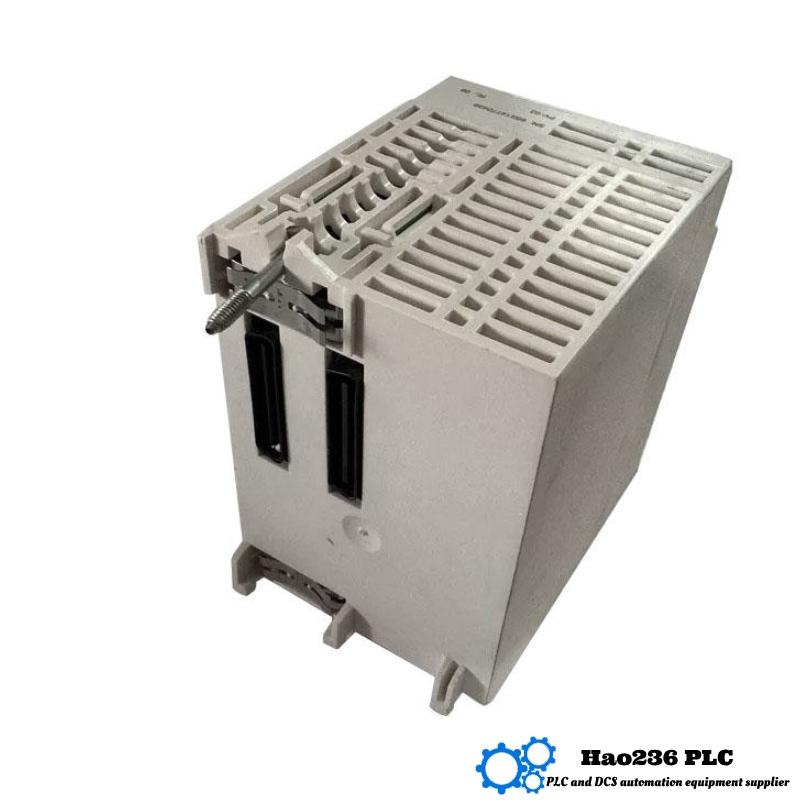

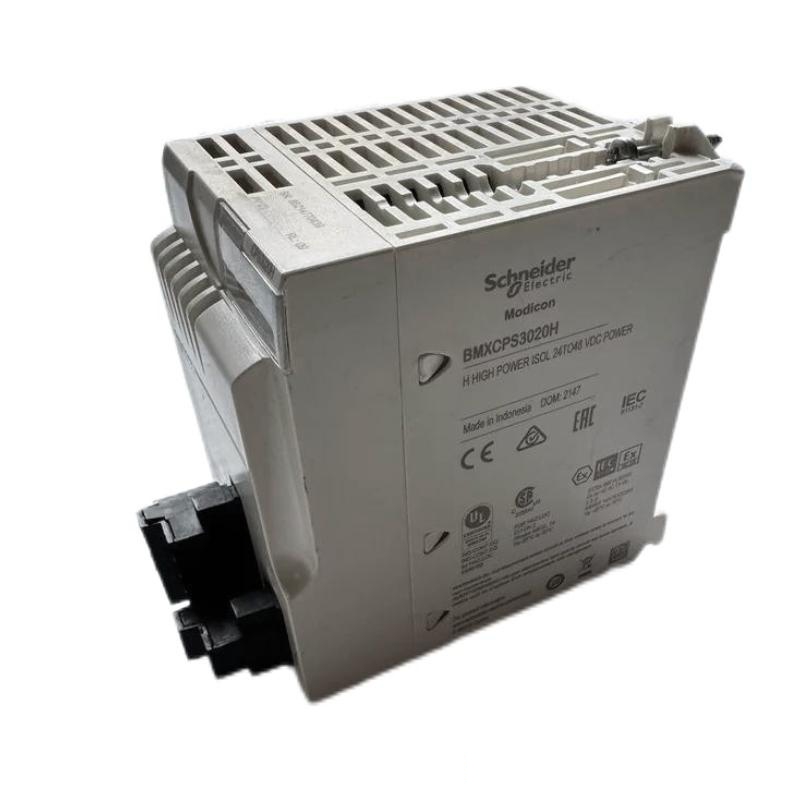

Schneider BMXCPS3020H Power Supply Module
Product Introduction
The Schneider BMXCPS3020H is a robust power supply module specially designed for the Modicon X80 series of programmable logic controllers (PLCs). It provides a stable 24 V DC output with a high current rating of 20 A, making it ideal for demanding industrial applications requiring substantial power.
This power supply module is engineered for efficiency and durability, ensuring continuous and reliable operation in harsh industrial environments. Its compact design allows for easy integration within control cabinets, while built-in protection mechanisms safeguard the device and connected components from electrical faults.
As part of the Modicon X80 series, the BMXCPS3020H offers seamless compatibility with other Modicon products, providing a flexible and scalable power solution for modern automation systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | BMXCPS3020H |
| Product Type | Power Supply Module |
| Series | Modicon X80 Series |
| Input Voltage | 100-240 V AC, 50/60 Hz |
| Output Voltage | 24 V DC |
| Output Current | 20 A |
| Power Rating | 480 W |
| Dimensions | 99 × 68 × 104 mm |
| Weight | 0.34 kg |
| Operating Temperature | –10°C to 55°C |
| Mounting | DIN rail |
| Certifications | CE, UL, cUL |
Product Applications
The BMXCPS3020H power supply module is widely used in various industrial settings that require high power and reliable performance, including:
-
Large-scale manufacturing automation systems
-
Process control in chemical plants
-
Water and wastewater treatment facilities
-
Energy distribution and management systems
-
Transportation infrastructure controls
-
Food and beverage processing plants
Product Advantages
-
High Current Output: Delivers 20 A continuous current, suitable for demanding industrial applications.
-
Stable Power Supply: Maintains consistent 24 V DC output to ensure smooth PLC operation.
-
Compact Size: Measures only 99 × 68 × 104 mm, optimizing cabinet space.
-
Robust and Durable: Designed to withstand industrial environments with extended temperature range.
-
Comprehensive Protection: Built-in safeguards for overcurrent, overvoltage, and short circuit scenarios.
-
Easy Installation: DIN rail mounting system enables quick and secure setup.
-
Certified for Safety: Meets international safety standards including CE, UL, and cUL.
-
Seamless Compatibility: Fully compatible with Modicon X80 series devices for integrated system design.
Brand and Series Information
Schneider Electric is a world-renowned leader in energy management and automation solutions. The BMXCPS3020H belongs to the Modicon X80 series, known for its modularity, flexibility, and reliability in industrial automation environments.
Related Models in the Same Series or Similar Types
| Model Number | Product Type | Output Voltage | Output Current | Dimensions (mm) | Weight | Notes |
|---|---|---|---|---|---|---|
| BMXCPS2000 | Power Supply Module | 24 V DC | 2.5 A | 99 × 68 × 104 | 0.3 kg | Basic power supply |
| BMXCPS2010 | Power Supply Module | 24 V DC | 5 A | 99 × 68 × 104 | 0.29 kg | Mid-range current output |
| BMXCPS2040 | Power Supply Module | 24 V DC | 10 A | 99 × 68 × 130 | 0.5 kg | High current power supply |
| BMXCPS3020H | Power Supply Module | 24 V DC | 20 A | 99 × 68 × 104 | 0.34 kg | High current, compact size |
| BMXCPS3060 | Power Supply Module | 24 V DC | 30 A | 99 × 68 × 150 | 0.7 kg | Highest power in X80 series |
Popular Schneider Electric Models
| Model Number | Product Type | Output Voltage | Output Current | Dimensions (mm) | Weight | Description |
|---|---|---|---|---|---|---|
| BMXCPS3020H | Power Supply Module | 24 V DC | 20 A | 99 × 68 × 104 | 0.34 kg | Powerful power supply for X80 |
| BMXP342020 | PLC Processor Module | N/A | N/A | 90 × 105 × 62 | 0.4 kg | High-performance CPU module |
| BMXDDI1602 | Digital Input Module | N/A | N/A | 90 × 105 × 62 | 0.3 kg | 16-point digital inputs |
| BMXADO1602 | Analog Output Module | N/A | N/A | 90 × 105 × 62 | 0.3 kg | 16-channel analog output |
| BMXCPS2040 | Power Supply Module | 24 V DC | 10 A | 99 × 68 × 130 | 0.5 kg | Efficient medium current power |
Frequently Asked Questions (FAQ)
Q1: What is the output voltage of the BMXCPS3020H?
A1: It provides a stable 24 V DC output.
Q2: What current can the BMXCPS3020H power supply handle?
A2: It supports a maximum output current of 20 A.
Q3: What are the physical dimensions and weight?
A3: The module measures 99 × 68 × 104 mm and weighs approximately 0.34 kg.
Q4: Is this power supply module suitable for harsh industrial environments?
A4: Yes, it is designed to operate reliably between –10°C and 55°C.
Q5: Does the BMXCPS3020H have protection features?
A5: Yes, it includes protections for overcurrent, overvoltage, and short circuits.
Q6: Can it be mounted on a DIN rail?
A6: Yes, the BMXCPS3020H is designed for easy DIN rail mounting.
Q7: What certifications does this power supply have?
A7: It is CE, UL, and cUL certified.
Q8: Is this power supply compatible with other Modicon X80 devices?
A8: Yes, it is fully compatible and optimized for Modicon X80 systems.
Q9: What is the input voltage range?
A9: The module accepts 100-240 V AC input at 50/60 Hz.
Q10: How efficient is the BMXCPS3020H?
A10: The module is designed for high efficiency to reduce energy loss and heat.
