Product Overview

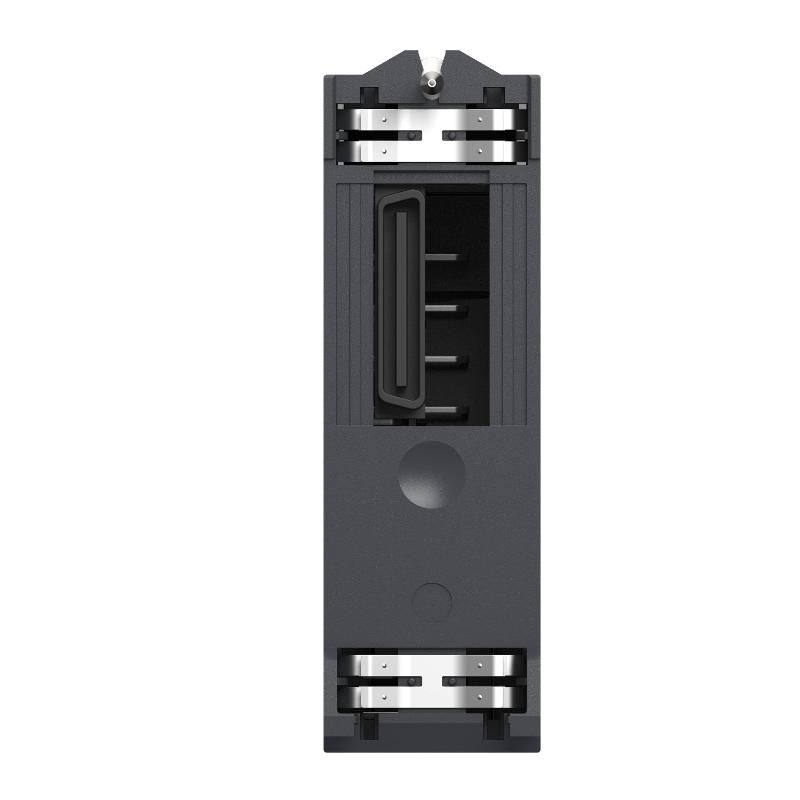

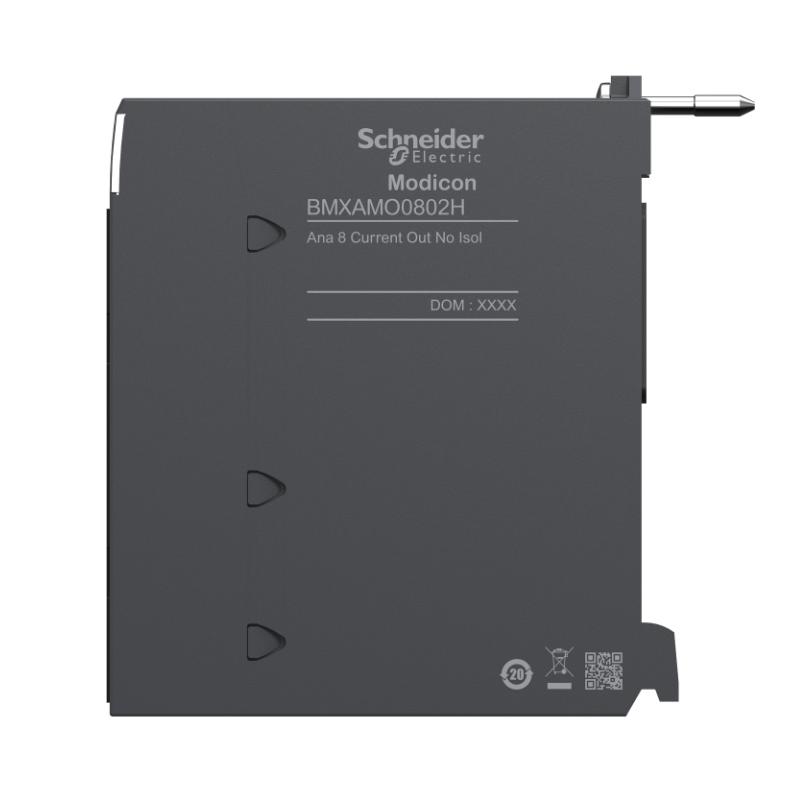

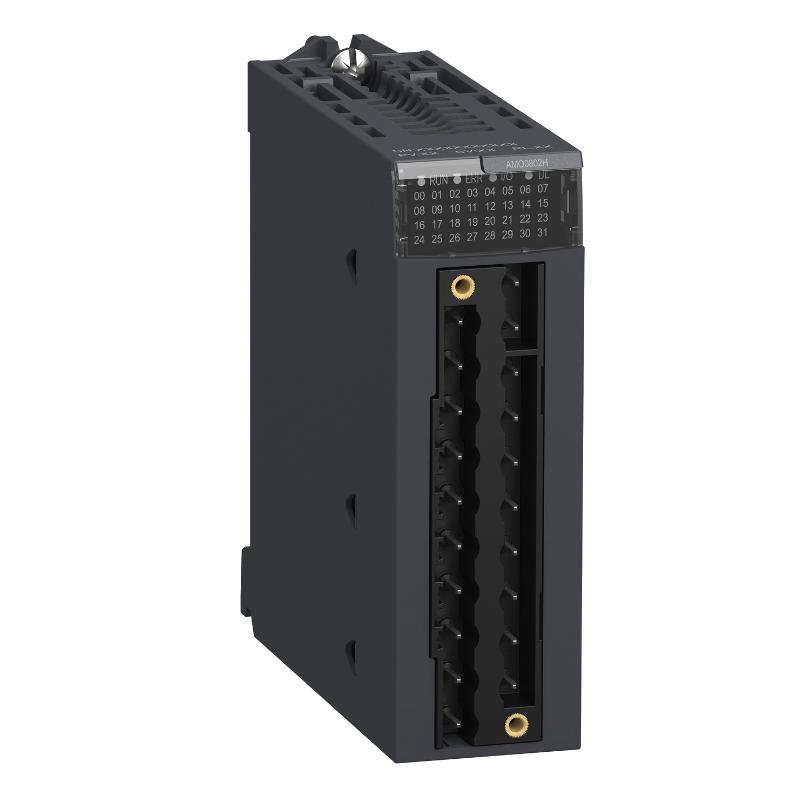

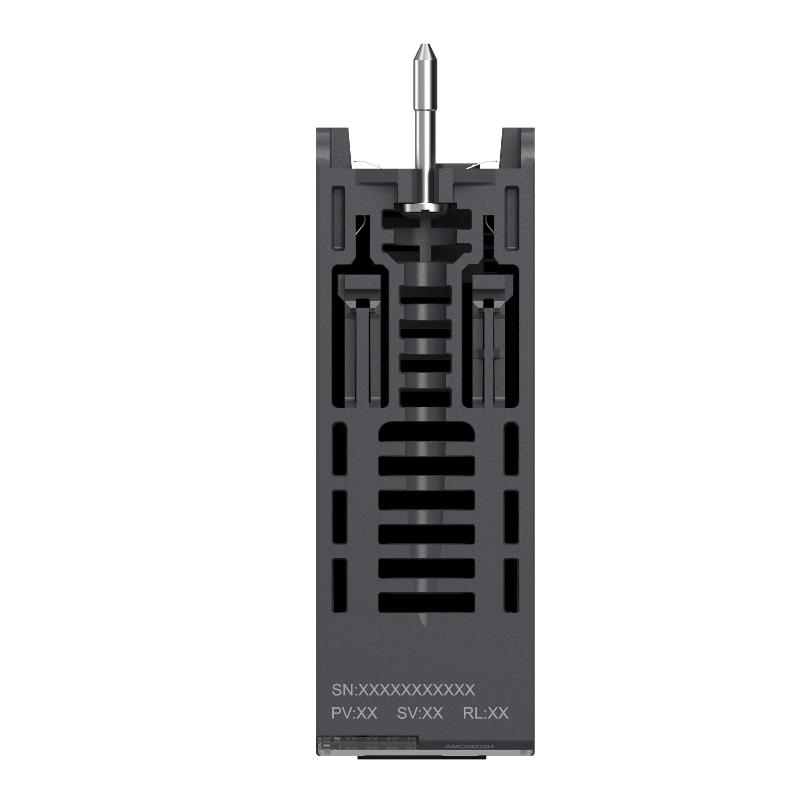

The Schneider BMXAMO0802H Modicon X80 Analog High Level Output Module is an 8-channel analog output module used to send continuous current signals from a Modicon X80 control station to field devices. It is the ruggedized version of the BMXAMO0802 and is intended for installations where extended environmental capability is required.

The module provides 0–20 mA and 4–20 mA output ranges, making it suitable for analog control devices such as valve positioners, variable-speed equipment interfaces, actuators, and other process instruments that accept current-based control signals.

All eight outputs are non-isolated and share a common point. This architecture is appropriate for control cabinets where the electrical reference and field wiring arrangement are properly managed. The module also includes output protection against short circuits and permanent overload conditions.

The H version is intended for more demanding environments than the standard BMXAMO0802. It can be used across an extended operating temperature range and in harsh chemical environments, making it suitable for industrial installations where conventional I/O conditions may not be sufficient.

Technical Specifications

Product Features

• 8 analog current outputs for continuous control signals.
• Supports configurable 0–20 mA and 4–20 mA output ranges.
• Uses a non-isolated high-level output architecture with a common point.
• Provides 16-bit digital-to-analog conversion for analog output generation.
• Output refresh time is approximately 4 ms.
• Outputs include protection against short circuits and permanent overloads.
• Ruggedized H version supports extended environmental operating conditions.
• Suitable for harsh industrial environments and applications requiring conformal protection.
• Integrates into the modular Modicon X80 I/O platform.
• Can directly supply analog command values generated by an M340 or M580 control application to compatible field devices.

Working Principle

The BMXAMO0802H receives digital output values from the controller through the X80 backplane and converts those values into proportional current signals for field equipment.

M580 / M340 Processor → X80 Backplane → BMXAMO0802H → 0–20 mA / 4–20 mA Signal → Field Actuator

The output process typically involves:

• The PLC application calculates the required control value.
• The digital command is transferred to the BMXAMO0802H through the X80 architecture.
• The module’s digital-to-analog converter generates the corresponding current output.
• The configured output range determines how the controller value is represented as a current signal.
• The field device receives the current signal and adjusts its operating position or process output.
• The control system can continuously update the output according to process feedback.

For example, a 4–20 mA output can be used to command a valve positioner, while another channel can provide a proportional control reference to a compatible drive or process actuator.

Role in a Modicon X80 Control Architecture

The BMXAMO0802H operates at the output interface layer of a Modicon M580 or X80 control architecture, converting controller commands into continuous current signals for field equipment.

PLC Processor → BMXAMO0802H → Analog Current Output → Actuator / Positioner → Process Equipment

Industrial Applications

Installation and Maintenance

1. Verify that the BMXAMO0802H is suitable for the intended Modicon X80 station.
2. Confirm that each connected actuator supports the selected 0–20 mA or 4–20 mA signal range.
3. Check the common electrical reference carefully because the output channels are non-isolated.
4. Install the module securely on the X80 rack and ensure that it is fully seated.
5. Use the appropriate terminal block and verify every output channel assignment.
6. Keep analog output wiring away from high-current motor and switching circuits where practical.
7. Check cable shielding and grounding according to the site’s instrumentation practices.
8. Configure each output channel correctly in the control-system software.
9. Verify the commanded output against the actual measured current during commissioning.
10. Check the connected actuator or positioner if an output channel does not produce the expected process response.
11. If several channels become abnormal simultaneously, inspect rack power, common wiring, configuration, and backplane connections.
12. Check for short circuits or excessive load conditions if an output reports an abnormal condition.
13. During preventive maintenance, inspect terminals, field cables, and connectors for looseness, corrosion, or physical damage.
14. In harsh environments, check the overall cabinet and environmental conditions to ensure that the installation remains within the requirements of the ruggedized module.

When troubleshooting an analog output problem, it is useful to distinguish between an incorrect controller command, an output-channel problem, and a field-device fault. Measuring the actual current at the terminal can quickly determine whether the BMXAMO0802H is generating the expected signal.

Related Components

Recommended Related Models

Key Advantages

• Eight current outputs allow several proportional control devices to be handled from one module.
• Supports both 0–20 mA and 4–20 mA control applications.
• 16-bit conversion provides fine output resolution for continuous process control.
• Output protection helps the module tolerate short-circuit and overload conditions.
• Ruggedized construction makes the H version suitable for more demanding industrial environments.
• Integrates into established Modicon X80 architectures without requiring a separate analog output controller.

Technical FAQs

What is the main difference between BMXAMO0802H and BMXAMO0802?

The BMXAMO0802H is the ruggedized version of the BMXAMO0802. Both provide eight non-isolated analog current outputs, but the H version supports an extended operating temperature range and is intended for harsher environmental conditions.

What current signals can the BMXAMO0802H generate?

The module supports 0–20 mA and 4–20 mA output ranges. The required range is selected through the module configuration and should match the electrical input requirements of the connected field device.

Can one BMXAMO0802H channel directly control a valve positioner?

Yes, when the valve positioner accepts a compatible current command. The controller calculates the desired valve position, the BMXAMO0802H converts that command into the configured analog current, and the positioner uses the signal to adjust the valve.

What should be checked if the output current is correct but the actuator does not respond?

First verify the actuator or positioner’s input range, field wiring, common reference, load condition, and terminal connections. If the measured current at the module terminal matches the controller command but the field device does not react, the problem is more likely to be downstream of the analog output module.
