Product Overview

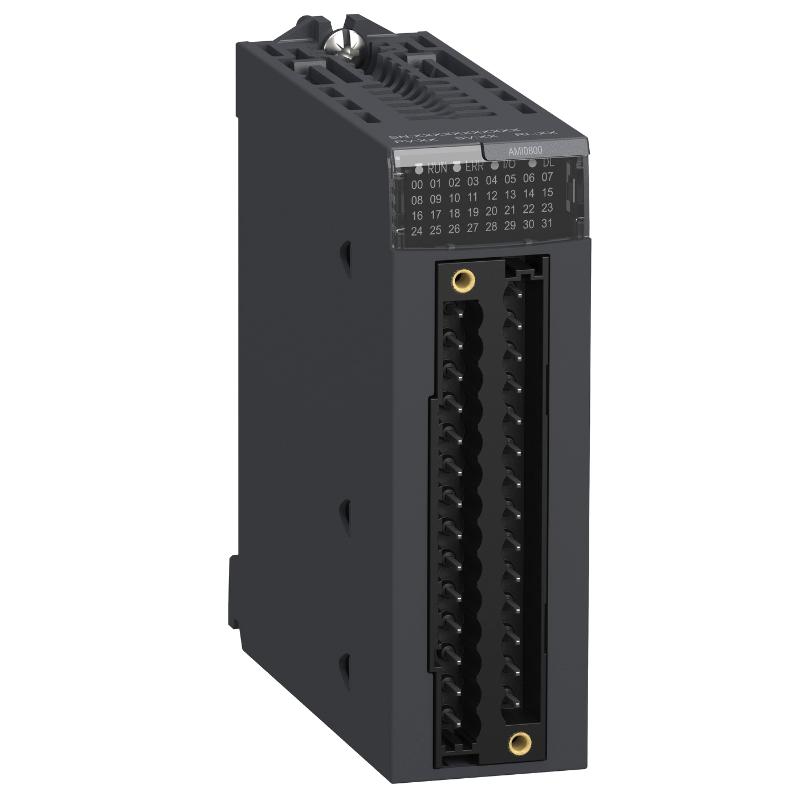

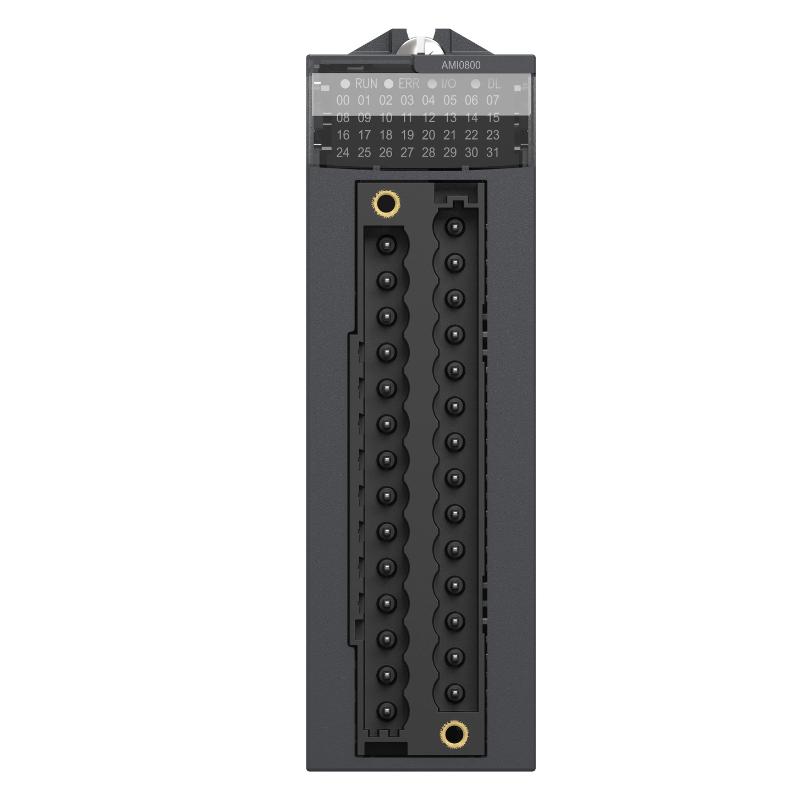

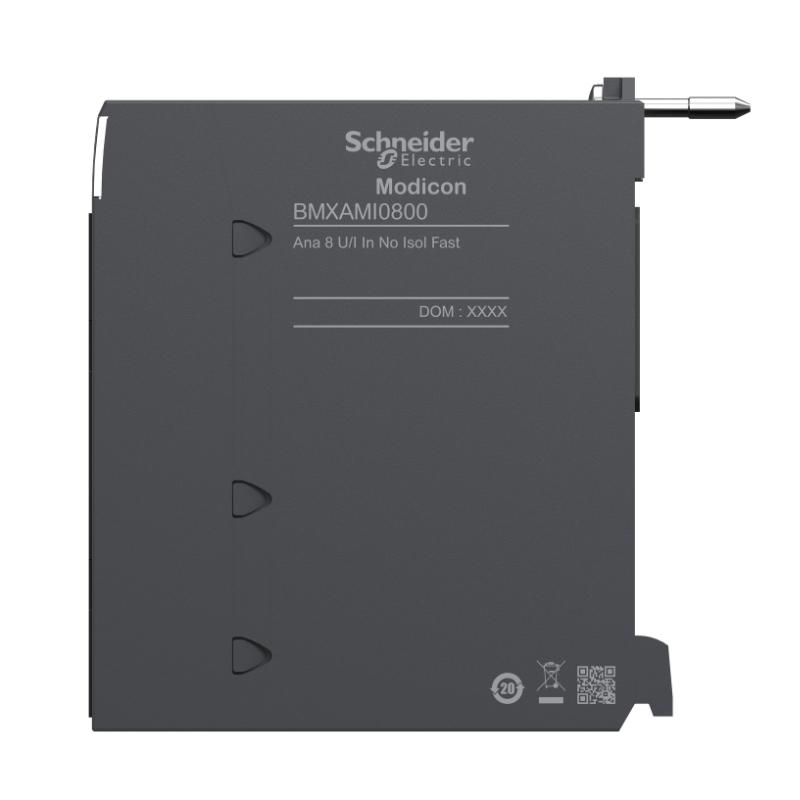

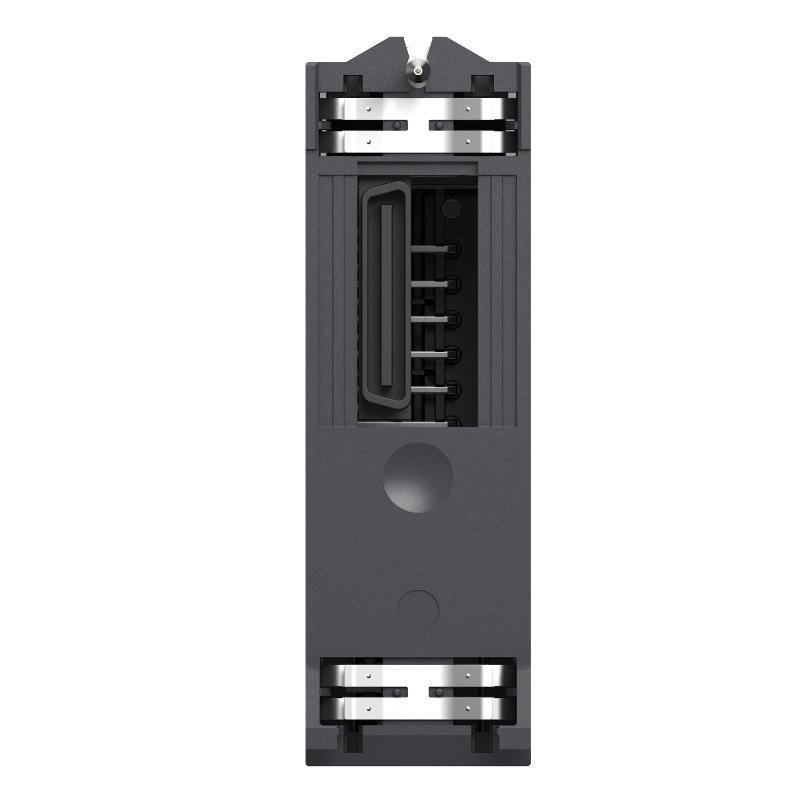

The Schneider BMXAMI0800 Modicon X80 Non-Isolated Analog Input Module is an 8-channel analog input module for acquiring continuous electrical signals in Modicon X80 automation systems. It converts field-level analog measurements into data that an M580 or compatible controller can use for monitoring, regulation, alarms, and process calculations.
The module is suited to applications where several analog instruments need to be connected to the same X80 station. Typical signals include process measurements from transmitters, instrumentation devices, and other analog field equipment used to represent variables such as pressure, temperature, level, flow, or position.
As a non-isolated analog input module, its channels share the module’s common electrical reference. This makes correct field wiring, grounding, signal-source selection, and cabinet installation particularly important when integrating instruments with different electrical potentials.
In an operating control system, BMXAMI0800 handles the input-side acquisition while the M580 processor performs the application logic. The resulting values can then be used by control loops, HMI displays, SCADA systems, alarm functions, or other parts of the automation application.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Non-Isolated Analog Input Module |
| Product Series | Modicon X80 |
| Model | BMXAMI0800 |
| Number of Analog Inputs | 8 |
| Input Type | Analog Input |
| Channel Isolation | Non-Isolated |
| Application | Process Measurement and Analog Signal Acquisition |
| Dimensions | 100 × 32 × 86 mm |
| Weight | 0.165 kg |
Product Features
- 8 analog input channels for acquiring multiple continuous process signals.
- Part of the Modicon X80 modular I/O platform.
- Supports analog signal acquisition for process instrumentation and machine control.
- Non-isolated channel architecture simplifies integration where a common electrical reference is appropriate.
- Converts field analog measurements into controller-readable process data.
- Suitable for centralized measurement stations containing multiple analog instruments.
- Can be integrated with M580 control systems and associated X80 I/O infrastructure.
- Useful for monitoring process variables and supplying measured values to control and supervisory applications.
Working Principle
The BMXAMI0800 receives analog electrical signals from field instruments and converts the measured input values into digital data for the controller. The application program can then scale, compare, monitor, or otherwise process the acquired values.
Field Transmitter → BMXAMI0800 → X80 Backplane → M580 Processor → Control Logic / HMI / SCADA
Typical signal processing includes:
- A field transmitter generates an analog signal representing the measured process variable.
- The selected input channel receives the electrical signal.
- The module conditions and converts the analog input into digital measurement data.
- The converted value is transferred through the X80 backplane to the controller.
- The PLC application applies scaling, limits, alarm logic, calculations, or control functions.
- Process values can then be displayed on an HMI or transferred to a supervisory system.
Because the module is non-isolated, the field wiring arrangement should be checked carefully when signals originate from equipment with different grounding conditions or electrical references.
Role in a Modicon M580 Control Architecture
The BMXAMI0800 operates at the measurement layer of a Modicon M580 control architecture, supplying continuous process data to the controller.
Analog Field Instruments → BMXAMI0800 → X80 Backplane → M580 Processor → Control / HMI / SCADA
| System Element | Typical Function |
|---|---|
| Analog Transmitters | Measure process variables and generate analog signals |
| BMXAMI0800 | Acquires and converts analog input signals |
| X80 Backplane | Provides the internal connection between the I/O module and station components |
| M580 Processor | Executes application logic using acquired process values |
| Ethernet Network | Transfers control and supervisory data |
| HMI | Displays measured values and operating conditions |
| SCADA | Provides plant-level monitoring and data management |
| Control Equipment | Uses processed measurements for regulation and sequencing |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Acquisition of pressure, flow, level, and temperature transmitter signals |
| Water and Wastewater | Monitoring tank levels, flow rates, pressure, and treatment parameters |
| Chemical Processing | Continuous measurement of process variables |
| Manufacturing | Analog feedback from machine instrumentation and process equipment |
| HVAC Systems | Monitoring temperature, pressure, and other continuous variables |
| Energy Systems | Acquisition of electrical and mechanical process measurements |
| Pump Stations | Monitoring pressure, flow, tank level, and equipment conditions |
| Material Processing | Continuous measurement used for process regulation |
| Utility Systems | Collecting analog measurements from distributed equipment |
Installation and Maintenance
- Verify that the BMXAMI0800 is compatible with the intended Modicon X80 station.
- Confirm the required input signal type before connecting each field instrument.
- Check the wiring arrangement carefully because the module uses a non-isolated input architecture.
- Install the module correctly on the X80 rack and ensure that it is fully seated.
- Confirm that the field terminals are correctly assigned to the intended analog channels.
- Keep analog signal wiring properly separated from high-power switching and motor cables where practical.
- Check cable shielding and grounding according to the plant’s instrumentation practices.
- Verify the signal source and electrical reference before commissioning each channel.
- Configure the input channels correctly in the control-system software.
- Compare the controller reading with the expected field instrument value during startup.
- If one channel gives an abnormal value, check the transmitter, wiring, terminal connection, and channel configuration before replacing the module.
- If several channels become abnormal simultaneously, inspect common wiring, grounding, rack power, and system configuration.
- During preventive maintenance, inspect terminals and wiring for looseness, corrosion, or physical damage.
Incorrect scaling, an unsuitable signal configuration, wiring problems, or grounding differences can produce readings that appear to be module failures. Checking the complete signal path from the transmitter to the controller is normally more effective than immediately replacing the I/O module.
Related Components
| Component | Function |
|---|---|
| Modicon M580 Processor | Processes acquired analog values and executes control logic |
| Modicon X80 Backplane | Provides the module’s rack-level connection |
| X80 Power Supply | Supplies operating power to the I/O station |
| Analog Transmitters | Generate process measurement signals |
| X80 Terminal Blocks | Provide field wiring connections |
| M580 Communication Modules | Connect the control station with external networks |
| Ethernet Switch | Provides industrial network connectivity |
| Control Expert | Used to configure and program the M580/X80 system |
| HMI | Displays analog measurements and alarms |
| SCADA System | Provides supervisory monitoring and historical process data |
Recommended Related Models
| Model / Series | Product Type | Typical Application |
|---|---|---|
| BMXAMI0800 | Modicon X80 Analog Input Module | 8-channel analog signal acquisition |
| BMXAMI0410 | Modicon X80 Analog Input Module | Analog measurement applications with fewer channels |
| BMXAMI0810 | Modicon X80 Analog Input Module | Higher-density analog input applications |
| BMXAMO0210 | Modicon X80 Analog Output Module | Analog control signal output |
| BMXAMO0410 | Modicon X80 Analog Output Module | Multi-channel analog output applications |
| BMXART0414 | Modicon X80 Analog Input Module | Temperature and process measurement |
| BMXART0814 | Modicon X80 Analog Input Module | Multi-channel temperature acquisition |
| Modicon X80 Series | Modular I/O Platform | M580 local and remote I/O architectures |
Key Advantages
- 8-channel analog acquisition supports multiple process instruments in one X80 station.
- Suitable for continuous measurement applications in process and machine automation.
- Integrates directly into the modular Modicon X80 I/O architecture.
- Reduces the need for separate analog input modules when several signals are required at one station.
- Supports controller-based scaling, monitoring, alarm, and process-control functions.
- Its non-isolated architecture is suitable for installations where the field signal grounding arrangement is properly controlled.
Technical FAQs
What types of field devices can be connected to the BMXAMI0800?
The module can be used with compatible analog field instruments such as process transmitters and sensors that generate supported analog signals. The exact wiring and channel configuration should be selected according to the electrical signal produced by the instrument.
Why does the non-isolated design matter when installing BMXAMI0800?
Non-isolated inputs share a common electrical reference rather than providing galvanic isolation between individual input channels. Grounding, shielding, signal references, and connections between field instruments should therefore be checked carefully to avoid unwanted offsets or interference.
Can the BMXAMI0800 be used for closed-loop process control?
Yes. The module can acquire a process variable such as pressure, flow, level, or temperature and transfer the measured value to the controller. The M580 application can then use that value in regulation, alarm, sequencing, or other control logic.
What should be checked when an analog channel shows an incorrect value?
Start with the field transmitter and its wiring, then verify the input channel configuration, electrical reference, scaling, and terminal connections. If several channels show abnormal values at the same time, investigate common grounding, power, rack connections, and configuration rather than assuming that all channels have failed independently.
