Product Overview

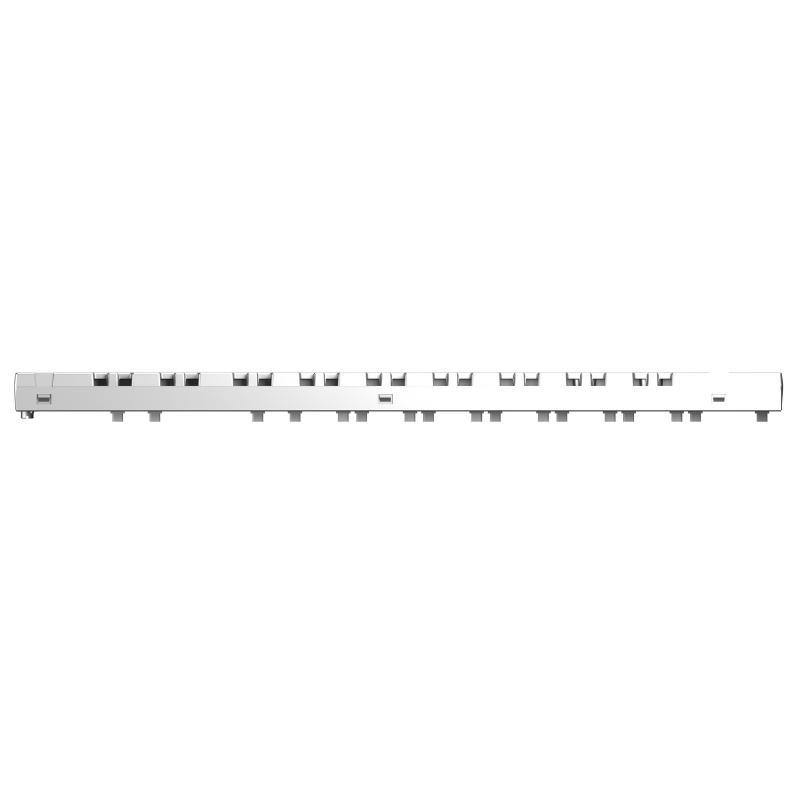

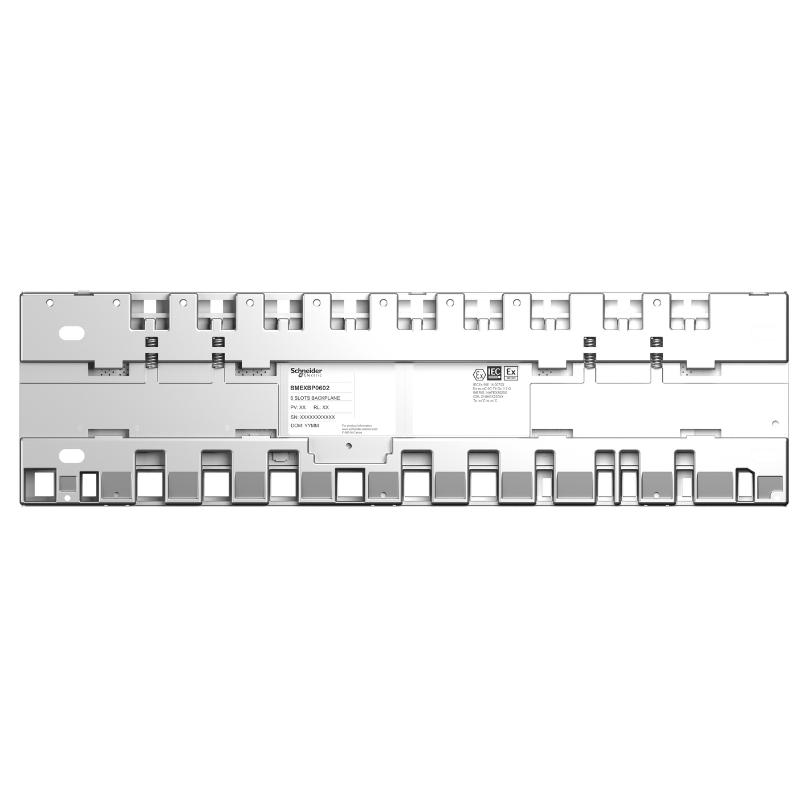

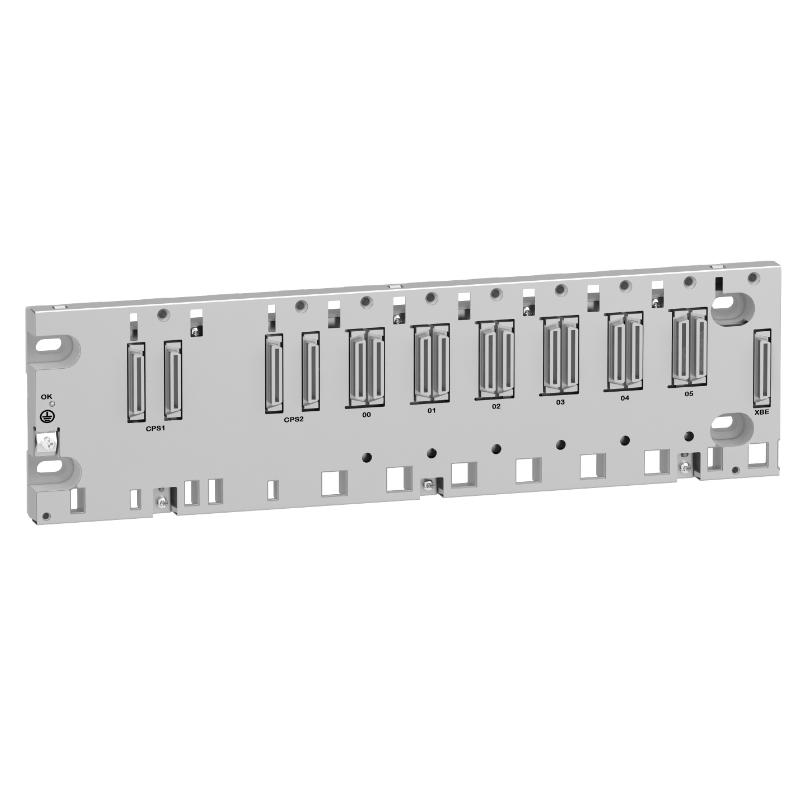

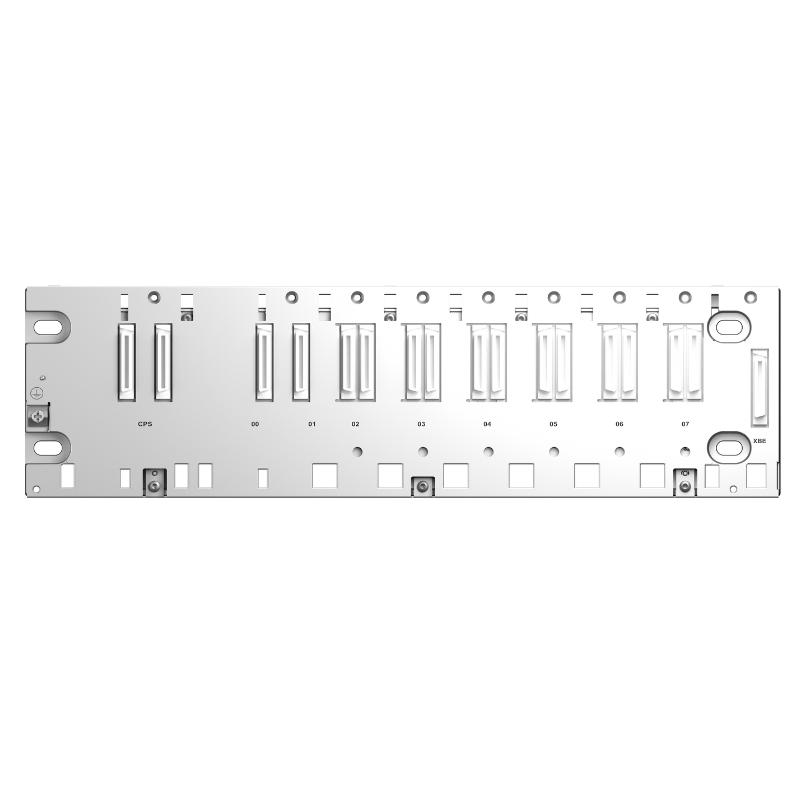

The Schneider BMEXBP0602 is a Modicon X80 Backplane Rack used to mechanically mount and electrically interconnect compatible X80 platform modules. It forms the physical backplane of an M580 control station, providing the module positions and internal bus connections required for communication between the installed modules.
The rack is used where several X80 modules need to operate together as a local or remote station. Depending on the system configuration, it can accommodate the processor or communication interface together with I/O and other supported X80 modules, allowing power and backplane communication to be distributed across the installed module positions.
The BMEXBP0602 is particularly relevant to M580 architectures that use X80 I/O and communication modules. Correct rack selection depends on the required number of module positions, the processor or adapter configuration, and the electrical requirements of the complete station.
For maintenance work, the backplane should be treated as an active part of the station architecture rather than simply a mounting rail. A damaged backplane can affect both module installation and internal communication, so replacement requires checking the rack type and the modules installed on it.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Brand | Schneider Electric |
| Product Series | Modicon X80 |
| Model | BMEXBP0602 |
| Product Type | Backplane Rack |
| Application | M580 / X80 Automation System |
| Rack Type | X80 Ethernet Backplane |
| Module Capacity | 6 Module Positions |
| Dimensions | 375.8 × 19 × 105.11 mm |
| Weight | 1.02 kg |
Product Features
- Modicon X80 backplane rack for compatible automation modules.
- Provides physical mounting positions for X80 platform modules.
- Establishes electrical connections between installed modules through the backplane.
- Supports M580 control stations using compatible X80 components.
- Suitable for local and distributed I/O architectures where the selected rack is supported.
- Provides the common internal bus connection required by installed modules.
- Allows multiple X80 modules to operate as an integrated station.
- Suitable for new cabinet assemblies as well as replacement of damaged backplanes.
- Requires correct module positioning and rack compatibility during installation.
- Forms part of the station infrastructure rather than performing control logic itself.
Working Principle
The BMEXBP0602 provides the physical and electrical foundation on which compatible X80 modules operate. Individual modules are mounted onto the rack and connected to the internal backplane, allowing the station’s processor, communication interface, and I/O modules to exchange information through the rack architecture.
Power Supply → BMEXBP0602 Backplane → X80 Modules → Field I/O / Network
The backplane performs several essential functions:
- Provides mounting positions for compatible X80 modules.
- Establishes the internal electrical connection between installed modules.
- Distributes the required backplane power to the connected modules.
- Carries internal communication between modules that use the station backplane.
- Allows the installed I/O and communication modules to function as part of a common automation station.
- Maintains the module arrangement required by the selected M580/X80 system architecture.
The BMEXBP0602 does not execute application logic or process field signals by itself. Its function is to provide the infrastructure that allows the modules installed on it to operate together.
Role in a Modicon X80 Control Architecture
The BMEXBP0602 serves as the physical and electrical backbone of an X80 station, connecting the installed processor, communication, and I/O modules.
M580 Controller / Network → X80 Communication Interface → BMEXBP0602 → X80 I/O Modules → Field Devices
| System Element | Function |
|---|---|
| M580 Processor | Executes the automation application |
| BMEXBP0602 | Mounts and electrically interconnects compatible modules |
| X80 I/O Modules | Acquires input signals and controls field outputs |
| Communication Module | Exchanges data with the control network |
| Power Supply | Supplies the required station power |
| Ethernet Network | Connects distributed control stations and devices |
| Terminal Blocks | Provides field wiring connections |
| Field Sensors / Actuators | Interfaces with the controlled process |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Building X80 I/O stations for distributed process signals |
| Water and Wastewater | Pump, valve, instrumentation, and remote I/O stations |
| Manufacturing Equipment | Mounting control and I/O modules in machine cabinets |
| Material Handling | Conveyor and transfer system I/O infrastructure |
| Energy Systems | Distributed monitoring and control stations |
| Infrastructure Automation | Local I/O stations connected through industrial Ethernet |
| Packaging Machinery | Machine control and field signal termination |
| Chemical Processing | Distributed process instrumentation |
| Large Machine Systems | Centralized or remote X80 module assemblies |
Installation and Maintenance
- Confirm that the BMEXBP0602 is the correct backplane for the planned X80 station.
- Verify the number and type of modules to be installed before mounting the rack.
- Check rack compatibility with the selected M580 processor, communication adapter, and X80 modules.
- Mount the backplane securely inside the control cabinet or designated installation area.
- Ensure that the rack is correctly positioned before installing individual modules.
- Install the compatible power supply and system modules in their specified positions.
- Slide each X80 module into its designated position without forcing the connectors.
- Confirm that every module is fully seated against the backplane.
- Inspect backplane connectors for contamination, bent contacts, or mechanical damage.
- Check that the rack and associated modules are properly secured against cabinet vibration.
- Verify the power supply and module arrangement before energizing the station.
- Check module LEDs and controller diagnostics after startup.
- Confirm communication between the station and the M580 controller or network.
- Inspect the backplane and module connections during scheduled maintenance.
- Replace a backplane showing damaged connectors, mounting problems, or persistent internal communication faults.
If multiple modules on the same station experience communication or power-related problems simultaneously, the backplane and power-distribution path should be included in the troubleshooting process rather than checking each I/O module individually.
Related Components
| Component | Function |
|---|---|
| Modicon M580 Processor | Executes the main control application |
| Modicon X80 Power Supply | Supplies power to the station |
| X80 Digital I/O Modules | Handles discrete field signals |
| X80 Analog I/O Modules | Interfaces with analog process signals |
| X80 Communication Modules | Provides network and device communication |
| X80 Remote I/O Adapter | Connects distributed X80 I/O stations |
| X80 Terminal Blocks | Provides field wiring interfaces |
| Ethernet Switch | Connects distributed automation equipment |
| Control Cabinet | Provides mechanical installation environment |
| Field Sensors / Actuators | Provides process inputs and receives control outputs |
Recommended Related Models
| Model / Series | Product Type | Typical Application |
|---|---|---|
| Schneider BMEXBP0602 | X80 Backplane Rack | Six-position M580/X80 station |
| Schneider BMEXBP1002 | X80 Backplane Rack | Larger X80 module assemblies |
| Schneider BMEXBP1200 | X80 Backplane Rack | Expanded X80 station configurations |
| Schneider BMEXBP0800 | X80 Backplane Rack | X80 module mounting and interconnection |
| Schneider BMXBP0600 | X80 Backplane Rack | Conventional X80 I/O station configurations |
| Schneider BMXBP0800 | X80 Backplane Rack | Larger X80 I/O assemblies |
| Schneider BMXBP1200 | X80 Backplane Rack | Extended X80 module installations |
| Schneider Modicon X80 | I/O Platform | Distributed and local field I/O |
Key Advantages
- Provides the physical foundation for a Modicon X80 module station.
- Establishes electrical and internal communication connections between compatible modules.
- Supports organized installation of X80 I/O and communication equipment.
- Integrates into Modicon M580 control architectures.
- Suitable for both new cabinet construction and maintenance replacement.
- Helps maintain a consistent module arrangement within the X80 station.
- Supports distributed control systems where X80 modules are installed at remote locations.
- Provides a practical infrastructure for connecting multiple compatible automation modules.
Technical FAQs
What is the primary function of the BMEXBP0602?
The BMEXBP0602 provides the mounting positions and internal electrical connections required for compatible Modicon X80 modules. It acts as the backplane infrastructure of the station rather than executing control logic or directly interfacing with field devices.
How many modules can the BMEXBP0602 accommodate?
The BMEXBP0602 is a 6-position X80 backplane rack. The usable configuration depends on the specific processor, communication, power supply, and I/O modules selected for the M580/X80 station.
Can a damaged BMEXBP0602 cause several modules to fail at the same time?
Yes. Because the backplane provides common electrical and internal communication connections, a backplane fault can affect multiple modules simultaneously. If several modules lose communication or power-related functions together, the rack and its connections should be inspected.
What should be checked when replacing a BMEXBP0602?
Verify the rack model, module count, module compatibility, installation positions, power-supply arrangement, and the complete M580/X80 architecture. During commissioning, check module seating, power status, backplane connections, controller diagnostics, and communication with the installed I/O modules.
