Product Overview

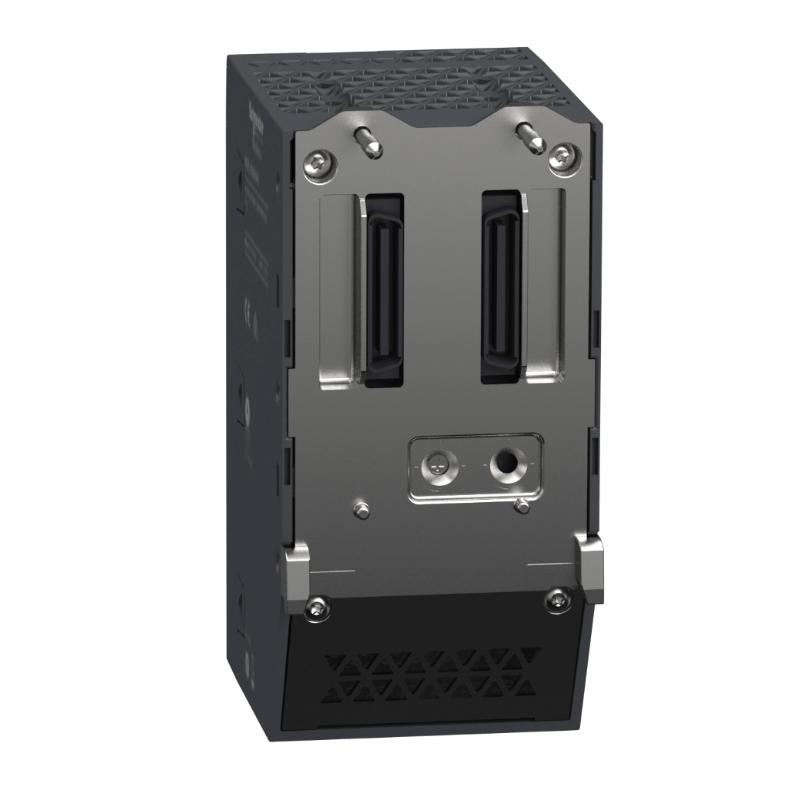

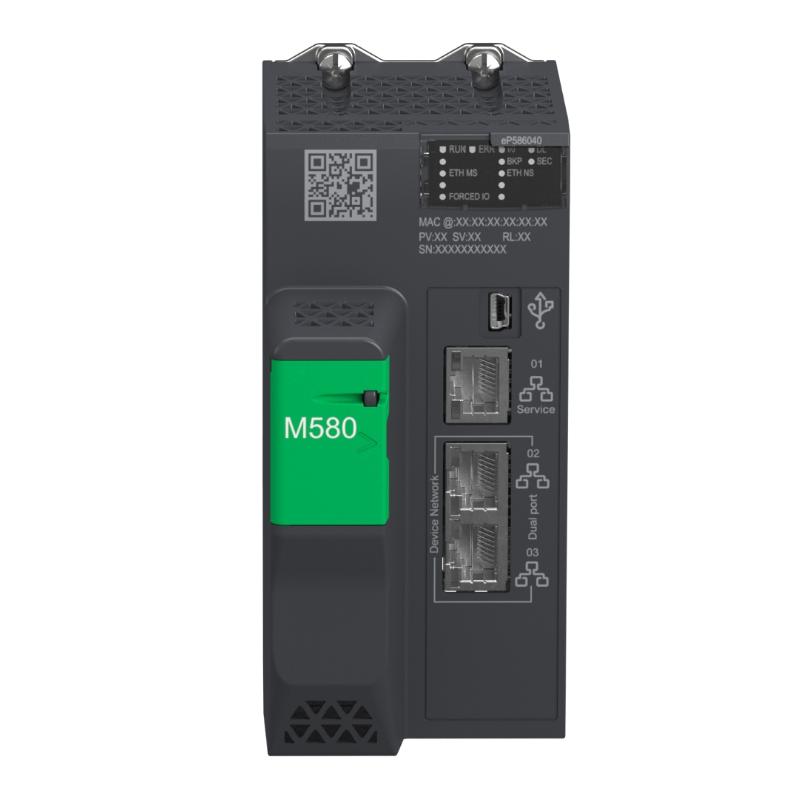

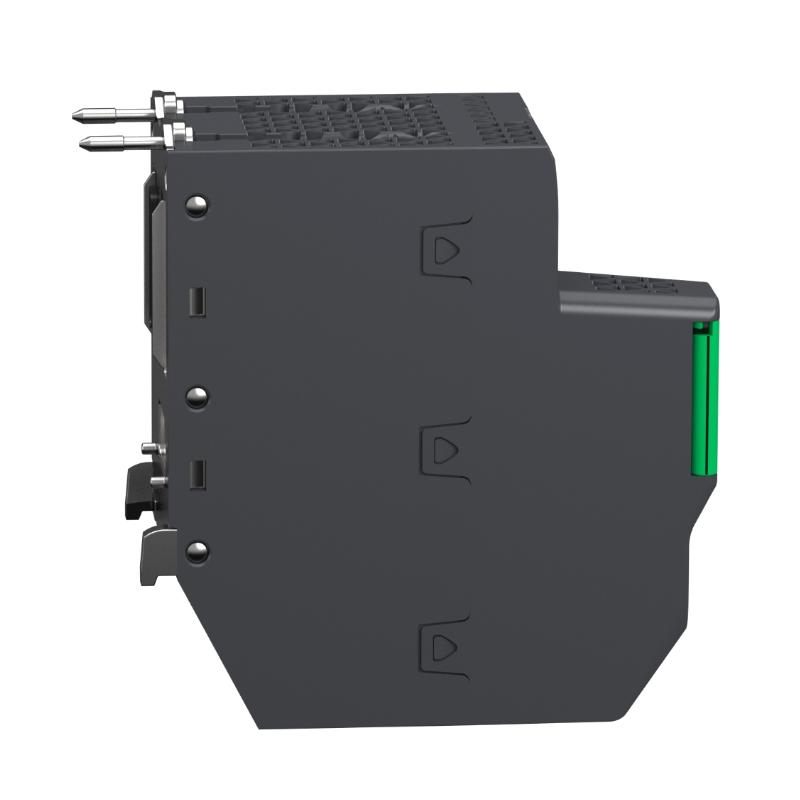

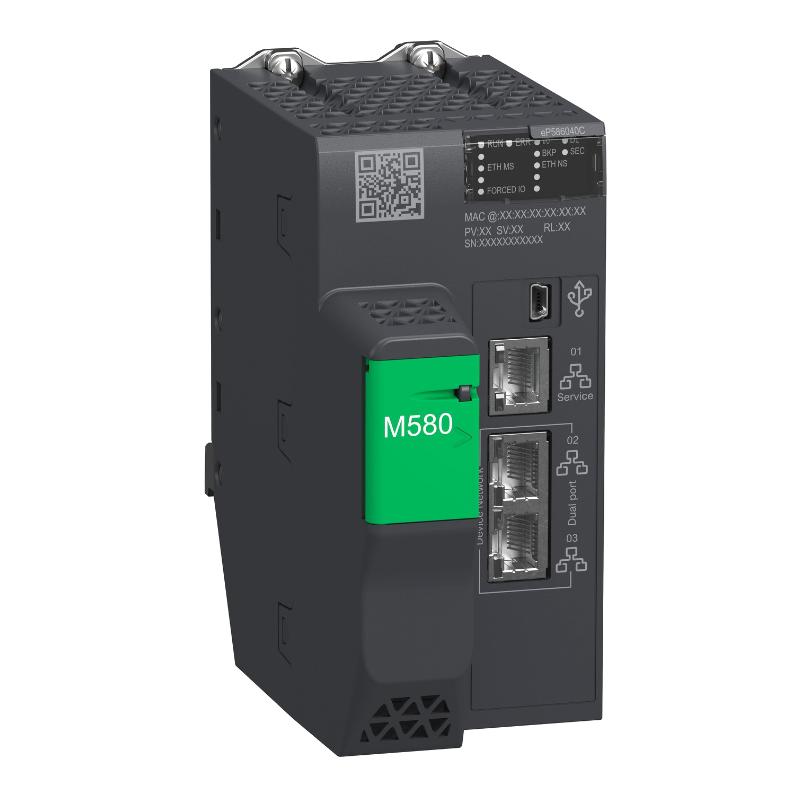

The Schneider BMEP586040C is a Modicon M580 Standalone Processor used as the central CPU for high-capacity automation applications within the M580 platform. It executes the user application, manages local and remote I/O, and coordinates data exchange with Ethernet-connected control equipment.
As a higher-level M580 processor, the BMEP586040C is suited to installations where the controller must handle a large control application together with distributed I/O and networked field equipment. It can be applied to process systems, infrastructure projects, manufacturing lines, and large machine installations where a standalone CPU architecture is appropriate.
The processor works together with the M580 rack, power supply, X80 I/O modules, Ethernet infrastructure, and engineering environment. Local signals can be handled through the main rack while remote I/O and distributed equipment are connected through the industrial Ethernet architecture.
The BMEP586040C is also relevant to maintenance and modernization projects involving existing M580 systems. Before replacing an installed processor, the application configuration, firmware compatibility, I/O architecture, communication settings, and connected devices should be checked as a complete system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Brand | Schneider Electric |
| Product Series | Modicon M580 |
| Model | BMEP586040C |
| Product Type | Standalone Processor |
| Processor Level | Level 6 |
| Application | PAC / Industrial Automation Control |
| CPU Architecture | Standalone M580 |
| Dimensions | 134.6 × 64.6 × 130.3 mm |
| Weight | 0.849 kg |
Product Features
- Modicon M580 standalone processor for high-capacity automation systems.
- Level 6 processing class for demanding control applications.
- Executes application logic for local and distributed automation equipment.
- Supports Ethernet-based communication with distributed system components.
- Integrates with Modicon X80 I/O modules.
- Suitable for large control applications requiring substantial processing resources.
- Can coordinate local I/O with remote I/O architectures.
- Supports centralized application execution within a standalone M580 configuration.
- Suitable for process, manufacturing, infrastructure, and machine-control systems.
- Integrates with the M580 engineering and diagnostic environment.
Working Principle
The BMEP586040C executes the programmed control application and coordinates information exchanged between field I/O, networked equipment, and the automation application. Input data is collected from connected I/O resources, processed according to the application logic, and converted into output commands or communication data.
Field Devices → X80 I/O → BMEP586040C → Application Logic → Outputs / Ethernet Devices
The operating sequence can include:
- Sensors and field instruments generate process input signals.
- Local or remote X80 I/O modules acquire the field information.
- The processor reads the configured input data during the control cycle.
- The application program evaluates process conditions and executes programmed logic.
- Output commands are sent to actuators, drives, valves, contactors, or other field equipment.
- Ethernet-connected devices exchange control, status, and diagnostic information with the processor.
- Supervisory systems can access process information through the configured communication architecture.
This arrangement allows the BMEP586040C to coordinate a distributed automation system from a single standalone processing platform.
Role in a Modicon M580 Control Architecture
The BMEP586040C serves as the main processing element in a standalone M580 control architecture, linking the application program with local I/O, remote stations, and Ethernet-connected equipment.
M580 Power Supply → BMEP586040C → Local X80 I/O / Ethernet Network → Remote I/O → Field Equipment
| System Element | Function |
|---|---|
| M580 Power Supply | Supplies power to the main rack |
| BMEP586040C | Executes control logic and manages system processing |
| Local X80 I/O | Interfaces with nearby field signals |
| Ethernet Network | Provides communication between distributed devices |
| Remote I/O Stations | Extends I/O acquisition and control away from the main rack |
| Ethernet Devices | Exchanges process and diagnostic information with the CPU |
| Engineering Workstation | Provides application configuration and diagnostics |
| HMI / SCADA | Provides operator visualization and supervisory functions |
| Field Equipment | Performs sensing and physical control operations |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Central processing for distributed process control |
| Water Treatment | Coordinating pumps, valves, instruments, and remote stations |
| Manufacturing Plants | Managing production equipment and distributed I/O |
| Material Handling | Conveyor, sorting, transfer, and storage automation |
| Energy Infrastructure | Control of distributed utility and auxiliary equipment |
| Chemical Processing | Sequencing and monitoring of process equipment |
| Packaging Lines | Coordinating machine sequences and field devices |
| Large Machine Systems | Centralized control of complex machine assemblies |
| Infrastructure Automation | Managing geographically distributed control equipment |
Installation and Maintenance
- Verify the BMEP586040C model before installation or replacement.
- Confirm that the processor is compatible with the existing M580 rack and power supply arrangement.
- Back up the application program and current controller configuration before replacing an installed CPU.
- Check firmware compatibility with the application and engineering environment.
- Record existing Ethernet and remote I/O configuration parameters.
- Isolate the controller and associated equipment according to the site’s maintenance procedure.
- Install the processor in the designated CPU position of the M580 main rack.
- Make sure the processor is fully seated and correctly connected to the backplane.
- Inspect Ethernet connections and associated cabling before restoring communication.
- Restore the approved application and configuration after hardware installation.
- Review processor diagnostics and system status after startup.
- Verify local and remote I/O communication before enabling automatic operation.
- Check connected Ethernet devices for communication faults or configuration mismatches.
- Monitor the controller during initial operation after replacement or maintenance.
- Keep records of firmware, application, and configuration versions for future service work.
When communication problems occur after installation, check the CPU configuration together with the Ethernet network, remote I/O stations, firmware, and application settings. A distributed M580 fault is not necessarily caused by the processor itself.
Related Components
| Component | Function |
|---|---|
| Modicon M580 Power Supply | Supplies power to the controller rack |
| Modicon X80 I/O Modules | Provides local and remote field signal interfacing |
| M580 Main Rack | Houses the processor and associated I/O modules |
| M580 Remote I/O Adapter | Connects distributed X80 I/O stations |
| Ethernet Switch | Connects networked control equipment |
| M580 Communication Modules | Extends communication functions where required |
| X80 Terminal Blocks | Provides field wiring interfaces |
| EcoStruxure Control Expert | Provides M580 programming and configuration |
| HMI / SCADA System | Provides supervisory monitoring and operator control |
| Field Sensors and Actuators | Supplies inputs and performs physical control tasks |
Recommended Related Models
| Model / Series | Product Type | Typical Application |
|---|---|---|
| Schneider BMEP582040 | M580 Standalone Processor | Smaller M580 automation systems |
| Schneider BMEP583040 | M580 Standalone Processor | Mid-range distributed control |
| Schneider BMEP584040 | M580 Standalone Processor | Level 4 M580 control applications |
| Schneider BMEP585040 | M580 Standalone Processor | Higher-capacity M580 automation |
| Schneider BMEP586040C | M580 Standalone Processor | High-capacity standalone control |
| Schneider BMEH584040 | M580 Hot Standby Processor | High-availability process control |
| Schneider BMEH586040 | M580 Hot Standby Processor | High-capacity redundant automation |
| Schneider Modicon X80 | I/O Platform | Local and remote field signal interfacing |
Key Advantages
- Supports high-capacity Modicon M580 standalone control architectures.
- Centralizes application processing for complex automation systems.
- Integrates with local and distributed Modicon X80 I/O.
- Supports Ethernet-based communication with networked automation equipment.
- Suitable for large process, manufacturing, infrastructure, and machine-control applications.
- Simplifies centralized coordination of distributed field equipment.
- Suitable for maintenance and modernization of compatible M580 installations.
- Works within an established M580 engineering and diagnostic environment.
Technical FAQs
What type of automation system is the BMEP586040C intended for?
The BMEP586040C is intended for standalone Modicon M580 automation architectures where the controller must execute a relatively large application and coordinate distributed I/O and Ethernet-connected equipment.
How does the BMEP586040C handle remote I/O?
Remote I/O is connected through the M580 Ethernet architecture. The processor exchanges input and output data with configured remote I/O stations while executing the main application logic.
Is the BMEP586040C suitable for a redundant M580 system?
The BMEP586040C is a standalone processor. A redundant or Hot Standby architecture requires the appropriate M580 Hot Standby processor and supporting components rather than simply pairing standalone CPUs.
What information should be backed up before replacing a BMEP586040C?
The application program, CPU configuration, Ethernet settings, remote I/O configuration, firmware information, and other project-specific parameters should be backed up. After replacement, local I/O, remote I/O, network communications, and application operation should all be verified before returning the system to automatic control.
