Product Overview

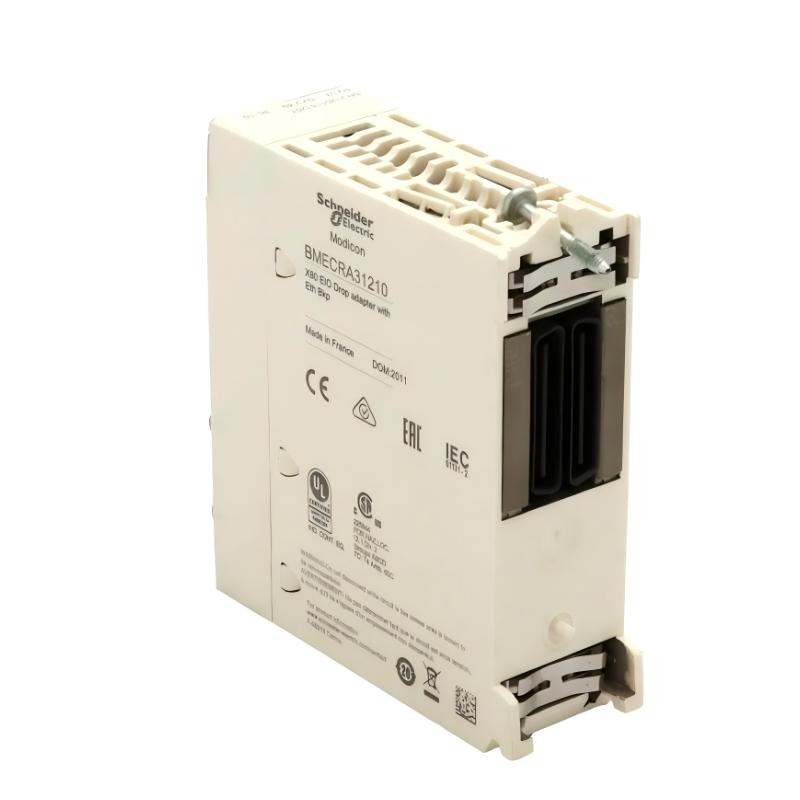

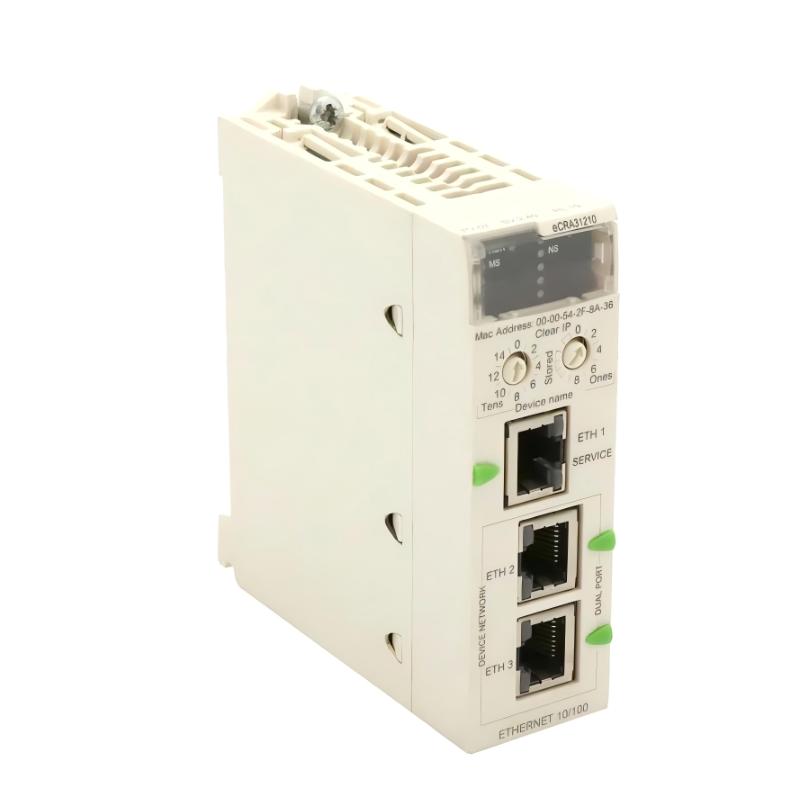

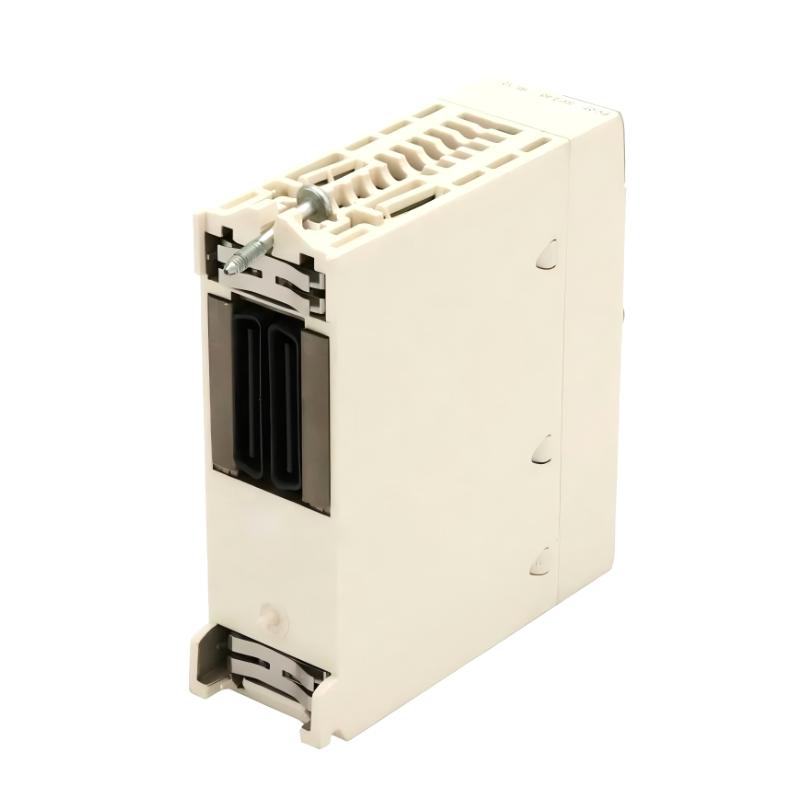

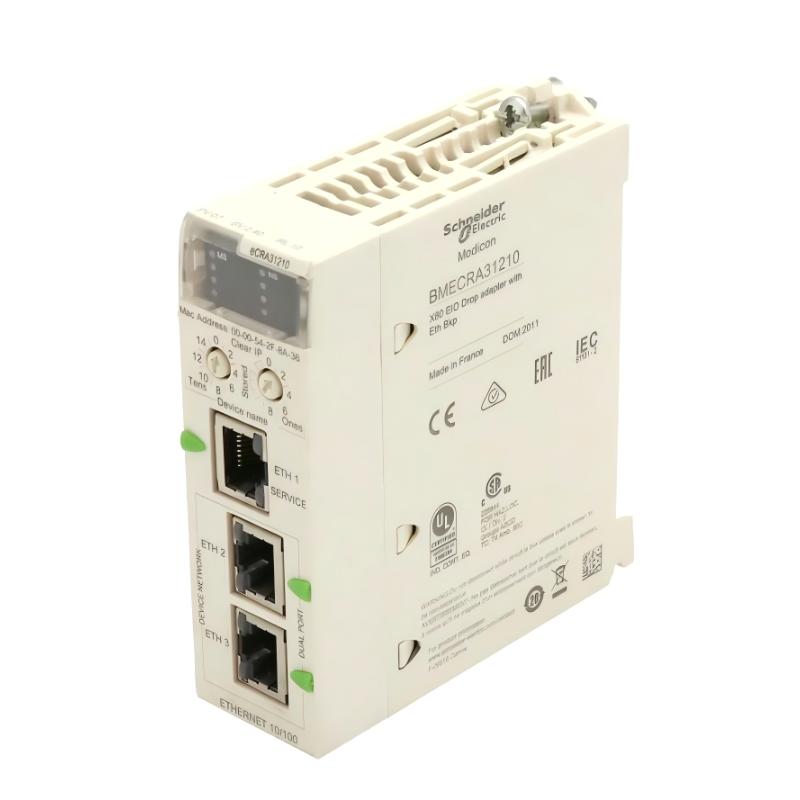

The Schneider BMECRA31210 Modicon M580 EIO Drop Adapter Module is a remote I/O communication component used in Modicon M580 Ethernet I/O architectures. It serves as the interface at an Ethernet I/O drop, connecting the local rack and its I/O modules with the main M580 control system over the distributed Ethernet architecture.
Rather than processing the application program like a CPU, the BMECRA31210 focuses on the communication relationship between a remote I/O station and the controller. It allows I/O installed away from the main rack to participate in the overall automation system while remaining physically located close to the field equipment.
This arrangement can be useful in large plants where installing every I/O point in a central cabinet would result in long field cables and more complicated wiring. Remote I/O drops can instead be positioned closer to process equipment, with Ethernet used for communication back to the control architecture.
For maintenance work, the BMECRA31210 should be evaluated together with the M580 EIO network, remote rack, backplane, I/O modules, network cabling, and controller configuration. Correct station identification and network topology are particularly important when replacing an EIO drop adapter.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BMECRA31210 |
| Product Family | Modicon M580 |
| Product Type | EIO Drop Adapter Module |
| Primary Function | Ethernet I/O Drop Communication |
| System Role | Remote I/O Network Interface |
| Application | Distributed / Remote I/O |
| Installation | Modicon M580 EIO Drop |
| Dimensions | 100 × 32 × 87.5 mm |
| Weight | 0.225 kg |
Product Features
The BMECRA31210 provides the communication interface required for an M580 Ethernet I/O drop.
Key characteristics include:
- Schneider Electric Modicon M580 EIO drop adapter
- Model BMECRA31210
- Used in Ethernet I/O architectures
- Supports remote I/O station connectivity
- Connects local I/O hardware with the M580 control system
- Suitable for distributed control cabinet layouts
- Helps place I/O closer to field equipment
- Supports structured remote I/O architectures
- Useful for M580 system expansion and maintenance
- Suitable for replacement of an existing compatible EIO drop adapter
Its function should not be confused with that of the M580 CPU. The CPU executes the control application, while the EIO drop adapter establishes the communication relationship between the remote I/O station and the controller.
Working Principle
The BMECRA31210 operates as the communication interface for a remote M580 Ethernet I/O drop.
A simplified architecture is:
M580 Controller → Ethernet EIO Network → BMECRA31210 → Remote I/O Rack → Field Devices
The communication process can be viewed as follows:
-
Controller Processing
The M580 controller executes the application logic and determines the required I/O states.
-
Ethernet I/O Communication
I/O-related data is exchanged across the Ethernet I/O architecture.
-
EIO Drop Interface
The BMECRA31210 receives and manages the communication relationship between the network and the local remote I/O station.
-
Local I/O Exchange
The adapter communicates with the I/O modules installed in the remote rack.
-
Field Signal Interface
Local input modules acquire field signals, while output modules transmit control commands to connected equipment.
-
Return Data
Input and status information from the remote station is transferred back through the EIO network to the controller.
This allows the remote rack to operate as an integrated part of the M580 control architecture rather than as an isolated I/O cabinet.
Role in a Modicon M580 EIO Architecture
The BMECRA31210 occupies the remote I/O communication layer of the M580 system.
A typical architecture can be represented as:
M580 CPU / Main Rack → EIO Network → BMECRA31210 → Remote Rack → I/O Modules → Field Devices
This architecture separates the controller from physically distributed I/O.
| System Element | Function |
|---|---|
| M580 CPU | Executes application logic |
| Main Rack | Hosts central controller and associated modules |
| Ethernet EIO Network | Connects distributed I/O stations |
| BMECRA31210 | Interfaces the remote I/O drop with the EIO network |
| Remote Rack | Houses distributed I/O modules |
| Input Modules | Acquire field signals |
| Output Modules | Control field devices |
| Field Devices | Provide process information or receive commands |
For large automation installations, this arrangement can reduce the need to route every field signal back to a single central cabinet.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Distributed remote I/O |
| Water and Wastewater | Remote field I/O stations |
| Manufacturing Plants | Connecting distributed machine I/O |
| Material Handling | Remote sensor and actuator interfaces |
| Packaging Systems | Distributed I/O cabinet architecture |
| Energy Facilities | Remote monitoring and control points |
| Infrastructure Automation | Connecting geographically separated I/O |
| Large Control Systems | M580 Ethernet I/O expansion |
The actual application depends on the M580 controller configuration, network topology, and remote I/O requirements.
Installation and Maintenance
Installation of an EIO drop adapter requires attention to both the local rack and network configuration.
Recommended practices include:
- Confirm the complete BMECRA31210 model.
- Verify the intended EIO drop location.
- Document the existing remote-rack configuration.
- Record network connections before removing the module.
- Identify associated Ethernet cables.
- Check connectors for damage or contamination.
- Inspect Ethernet cables and terminations.
- Verify the remote rack and backplane condition.
- Confirm compatible I/O modules are correctly installed.
- Ensure the adapter is correctly seated.
- Verify the EIO network connection after installation.
- Check the remote station status from the control system.
- Confirm that input and output data is exchanged correctly.
- Test representative field signals after replacement.
- Record the final station and network configuration.
When a remote I/O station becomes unavailable, technicians should avoid assuming that the BMECRA31210 itself has failed. Network cables, connectors, rack power, backplane connections, I/O modules, controller configuration, and network topology can all contribute to an EIO communication fault.
Related Components
| Component | Function |
|---|---|
| Schneider BMECRA31210 | Interfaces the remote I/O drop with the EIO network |
| Modicon M580 CPU | Executes control application logic |
| M580 Main Rack | Hosts central automation hardware |
| Remote I/O Rack | Provides the physical platform for distributed I/O |
| M580 I/O Modules | Process field input and output signals |
| Ethernet Network | Transfers EIO data between system sections |
| Field Sensors | Provide process or machine signals |
| Actuators | Receive control commands |
| Network Infrastructure | Supports communication between controller and remote stations |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider BMECRA31210 | M580 EIO Drop Adapter Module | Remote Ethernet I/O station |
| Schneider Modicon M580 | PAC / Control Platform | Process and machine control |
| Schneider M580 I/O Modules | I/O Hardware | Distributed field signal processing |
| Schneider M580 Remote Racks | I/O Rack Hardware | Remote I/O installation |
| Schneider M580 Ethernet I/O Components | Network Hardware | EIO system communication |
Key Advantages
- Schneider Electric Modicon M580 EIO drop adapter.
- Model BMECRA31210.
- Supports remote Ethernet I/O architecture.
- Connects distributed I/O stations with the M580 control system.
- Suitable for remote control cabinets and distributed field installations.
- Helps place I/O hardware closer to field devices.
- Supports structured M580 EIO system expansion.
- Suitable for industrial process and machine automation.
- Useful for maintenance and replacement of existing EIO drop hardware.
Technical FAQs
What is the primary role of the BMECRA31210 in an M580 system?
It serves as the adapter interface for an Ethernet I/O drop, allowing the remote I/O station to exchange data with the M580 control architecture. It does not replace the M580 CPU or perform the main application-control function.
What happens to a remote I/O station if the EIO connection is interrupted?
The remote station can lose its normal data exchange with the controller, which may result in unavailable or stale I/O information and corresponding system diagnostics. The physical network path should be checked before concluding that the adapter has failed.
Why are remote EIO drops useful in large industrial installations?
They allow I/O hardware to be installed closer to the equipment being monitored or controlled. This can simplify field wiring and reduce the amount of long-distance signal cabling required between process areas and the main control cabinet.
What should be checked after replacing a BMECRA31210?
Verify the module position, remote-rack connections, Ethernet cabling, network status, and controller-side diagnostics. Once communication is restored, test representative input and output points to confirm that the complete remote I/O path is operating correctly.
