Product Overview

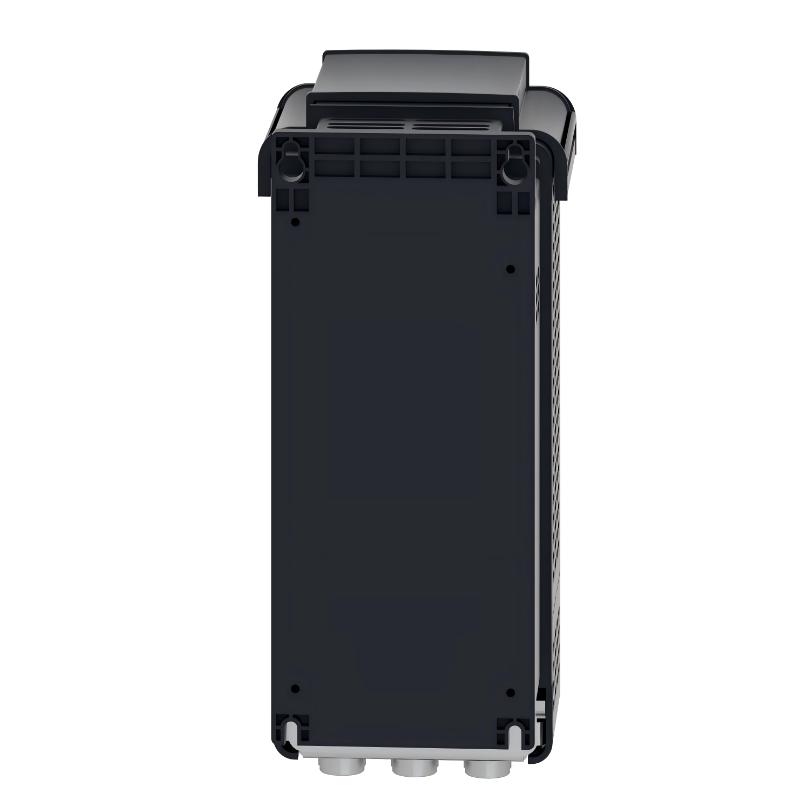

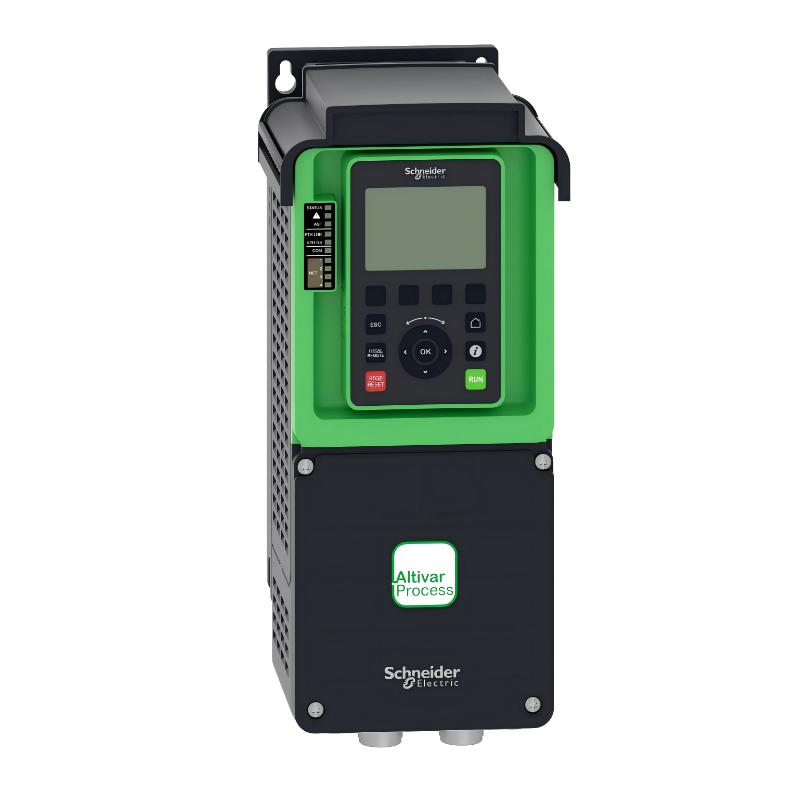

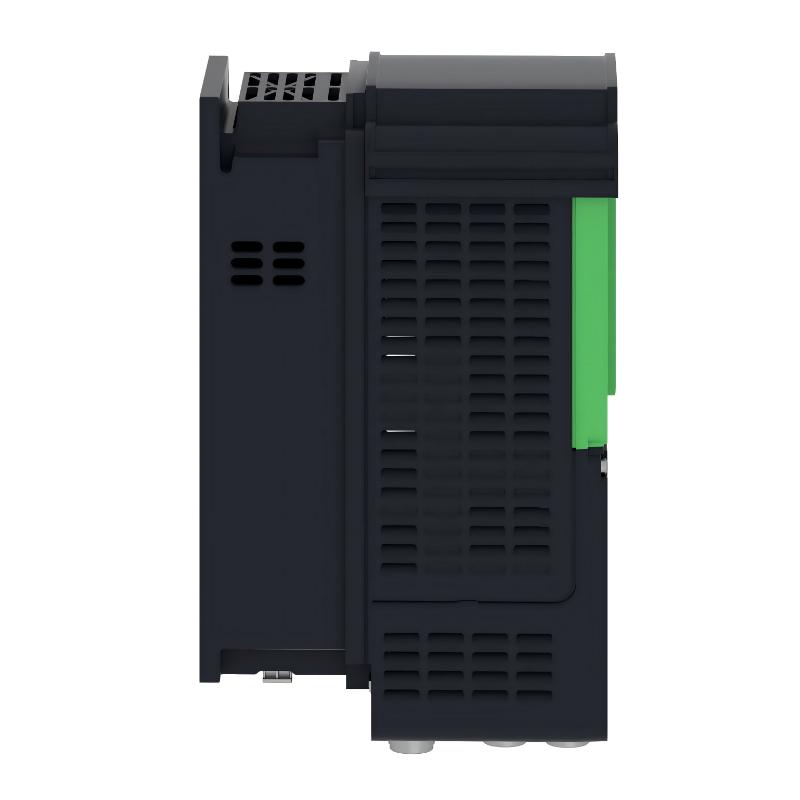

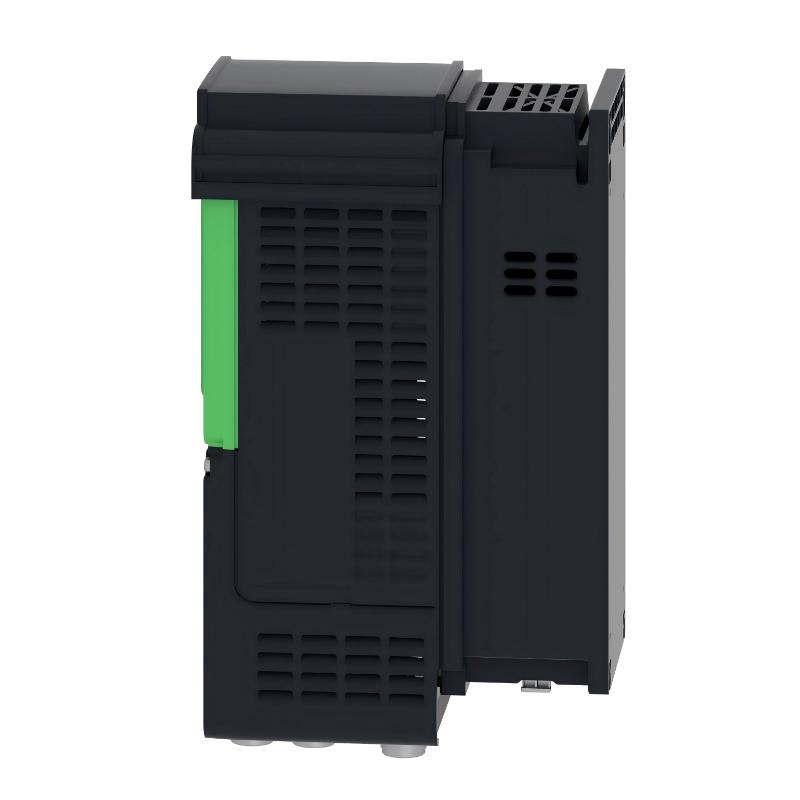

The Schneider Electric ATV630U15N4 is a compact and intelligent Altivar Process Variable Speed Drive (VSD) engineered to provide highly efficient motor control for industrial process automation. As part of the Altivar Process ATV600 Series, this drive is specifically developed for variable torque applications including centrifugal pumps, ventilation systems, industrial fans, compressors, HVAC equipment, and water treatment facilities. It combines advanced motor control technology, embedded industrial communication, predictive diagnostics, and energy management features to maximize system efficiency while minimizing operating costs.
Designed for 1.5 kW (2 HP) three-phase AC motors operating on a 380–480 V AC power supply, the ATV630U15N4 incorporates Schneider Electric’s sensorless vector control technology, integrated Ethernet communication, intelligent motor protection, and advanced monitoring functions. These capabilities help improve process reliability, reduce equipment wear, and simplify maintenance throughout the drive’s service life.
With dimensions of 350 × 144 × 203 mm and a weight of 4.5 kg, the ATV630U15N4 offers a compact footprint that is ideal for installation in space-limited industrial control cabinets while maintaining excellent cooling performance and operational reliability.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV630U15N4 |
| Product Series | Altivar Process ATV600 |
| Product Type | Variable Speed Drive (VFD / VSD) |
| Motor Power | 1.5 kW (2 HP) |
| Rated Supply Voltage | 380–480 V AC, Three-Phase |
| Supply Frequency | 50/60 Hz |
| Output Frequency | 0.1–500 Hz |
| Rated Output Current | 4 A (Normal Duty) |
| Overload Capacity | 120% Normal Duty / 150% Heavy Duty |
| Motor Control Method | Sensorless Vector Control / V/F Control |
| Built-in Communication | Ethernet, Modbus TCP, Modbus RTU (RS-485) |
| Digital Inputs | 8 |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Relay Outputs | 3 |
| Safety Function | Safe Torque Off (STO), SIL 3 |
| Cooling Method | Forced Air Cooling |
| Protection Rating | IP21 / UL Type 1 |
| Mounting | Wall Mounted |
| Dimensions (H × W × D) | 350 × 144 × 203 mm |
| Weight | 4.5 kg |
| Operating Temperature | -15°C to +50°C (without derating) |
| Application | Pumps, Fans, Compressors, HVAC, Industrial Process Automation |
Function and Working Principle
The Schneider Electric ATV630U15N4 converts fixed-frequency AC input power into a variable-frequency and variable-voltage output, enabling precise control of three-phase AC motor speed and torque. By allowing motors to operate only at the speed required by the process, the drive significantly reduces electrical energy consumption while improving production efficiency.
Its advanced sensorless vector control continuously analyzes motor operating conditions and automatically adjusts output voltage and frequency to maintain stable speed, smooth acceleration, and optimal torque production. This minimizes mechanical stress, reduces motor heating, and extends the operating life of connected equipment.
Integrated monitoring and diagnostic functions record operating parameters including motor current, operating hours, power consumption, fault history, and equipment status. These intelligent diagnostic capabilities support predictive maintenance by identifying potential issues before they result in unexpected downtime.
Key operating features include:
- High-efficiency sensorless vector motor control
- Precise speed and torque regulation
- Embedded energy monitoring
- Predictive maintenance diagnostics
- Automatic motor protection
- Integrated Ethernet communication
- Safe Torque Off (STO) safety functionality
- Smooth acceleration and deceleration control
Role in Industrial Control Systems
Within industrial automation systems, the ATV630U15N4 serves as the intelligent motor control unit responsible for improving equipment efficiency, stabilizing industrial processes, and reducing operational energy costs.
Its primary functions include:
- Variable speed motor control
- Energy optimization
- Equipment protection
- Process automation
- Remote diagnostics
- Industrial communication
- Predictive maintenance
- Performance monitoring
Integrated with Schneider Electric PLCs, HMIs, and EcoStruxure platforms, the drive provides centralized monitoring and intelligent control across a wide variety of industrial applications.
Industrial Applications
The Schneider Electric ATV630U15N4 is widely used in:
- Water Treatment Plants
- Wastewater Facilities
- HVAC Systems
- Industrial Ventilation Equipment
- Centrifugal Pump Systems
- Air Compressors
- Food & Beverage Processing
- Packaging Machinery
- Chemical Processing Plants
- Conveyor Systems
- Material Handling Equipment
- Building Automation
- Pharmaceutical Manufacturing
- General Industrial Machinery
- Process Automation Systems
Its compact design and advanced energy-saving capabilities make it particularly suitable for small and medium-sized industrial installations.
Installation and System Integration
Proper installation ensures optimum performance and long-term operational reliability.
Recommended installation procedures include:
- Install the drive vertically inside a clean, well-ventilated electrical cabinet.
- Maintain adequate clearance around the cooling system.
- Connect the three-phase power supply according to Schneider Electric installation specifications.
- Use shielded motor cables where EMC compliance is required.
- Configure motor nameplate parameters before commissioning.
- Perform automatic motor identification for optimized vector control.
- Connect Ethernet or Modbus communication networks for centralized monitoring.
- Verify Safe Torque Off (STO) functionality before startup.
- Install suitable circuit breakers, EMC filters, and line reactors where necessary.
Following these installation recommendations improves motor efficiency, minimizes downtime, and extends equipment service life.
Compatible System Components
The ATV630U15N4 is commonly integrated with:
- Schneider Electric Modicon M221 PLC
- Schneider Electric Modicon M241 PLC
- Schneider Electric Modicon M340 PLC
- Schneider Electric Modicon M580 PLC
- Schneider Electric EcoStruxure Machine Expert
- Schneider Electric EcoStruxure Control Expert
- Schneider Electric Harmony HMI Panels
- Schneider Electric Altivar Graphic Display Terminal
- Ethernet Communication Networks
- Modbus TCP Devices
- Modbus RTU Networks
- EMC Filters
- Line Reactors
- Braking Resistors
- Motor Protection Circuit Breakers
- Three-Phase Synchronous and Induction Motors
These components create a complete intelligent automation solution capable of delivering high efficiency, simplified maintenance, and reliable industrial operation.
Recommended Alternative Models
| Model | Product Type | Key Feature | Typical Application |
|---|---|---|---|
| ATV630U07N4 | Variable Speed Drive | 0.75 kW Output | Compact Pump Systems |
| ATV630U22N4 | Variable Speed Drive | 2.2 kW Output | Industrial Fans |
| ATV630U40N4 | Variable Speed Drive | 4 kW Output | Compressor Control |
| ATV650U15N4 | Process Variable Speed Drive | Advanced Process Analytics | Water & Utilities |
| ATV930U15N4 | Machine Variable Speed Drive | High Dynamic Motion Control | Manufacturing Equipment |
Key Advantages
- Compact industrial design
- 1.5 kW high-efficiency motor control
- Advanced sensorless vector control
- Embedded Ethernet and Modbus communication
- Intelligent energy monitoring
- Predictive maintenance diagnostics
- Safe Torque Off (STO) safety protection
- Reduced operating costs through energy optimization
- Easy integration with Schneider Electric EcoStruxure architecture
- Designed for reliable continuous industrial operation
Technical FAQs
What is the primary function of the ATV630U15N4?
The ATV630U15N4 controls the speed and torque of three-phase AC motors while improving energy efficiency, protecting equipment, and optimizing industrial process performance.
What motor capacity does this drive support?
The drive is designed for 1.5 kW (2 HP) three-phase AC motors operating on a 380–480 V AC power supply.
Does the ATV630U15N4 support industrial communication?
Yes. The drive features integrated Ethernet, Modbus TCP, and Modbus RTU (RS-485) communication interfaces, allowing seamless integration with PLCs, HMIs, SCADA platforms, and distributed industrial automation systems.
Conclusion
The Schneider Electric ATV630U15N4 Variable Speed Drive is an intelligent and energy-efficient motor control solution designed for modern industrial automation. Supporting 1.5 kW (2 HP) motors with a 380–480 V AC supply, it combines sensorless vector control, Ethernet and Modbus communication, Safe Torque Off (STO) safety functionality, and a compact enclosure measuring 350 × 144 × 203 mm with a weight of 4.5 kg.
Whether deployed in water treatment facilities, HVAC systems, pumping stations, ventilation equipment, packaging machinery, or general industrial automation projects, the ATV630U15N4 delivers precise motor control, outstanding energy efficiency, intelligent diagnostics, and dependable long-term reliability, making it an excellent choice for compact industrial drive applications.
