Product Overview

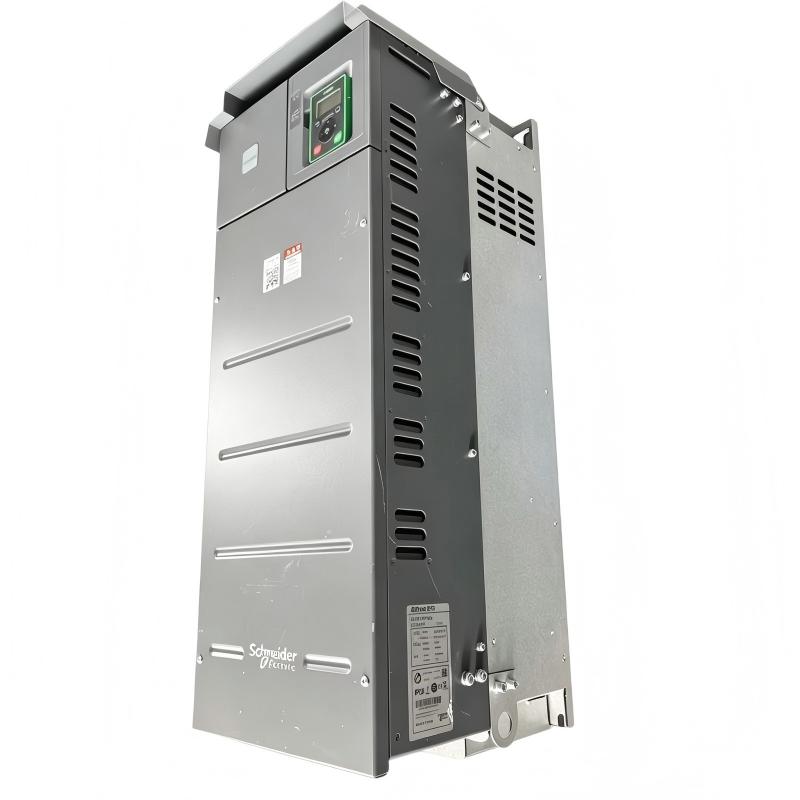

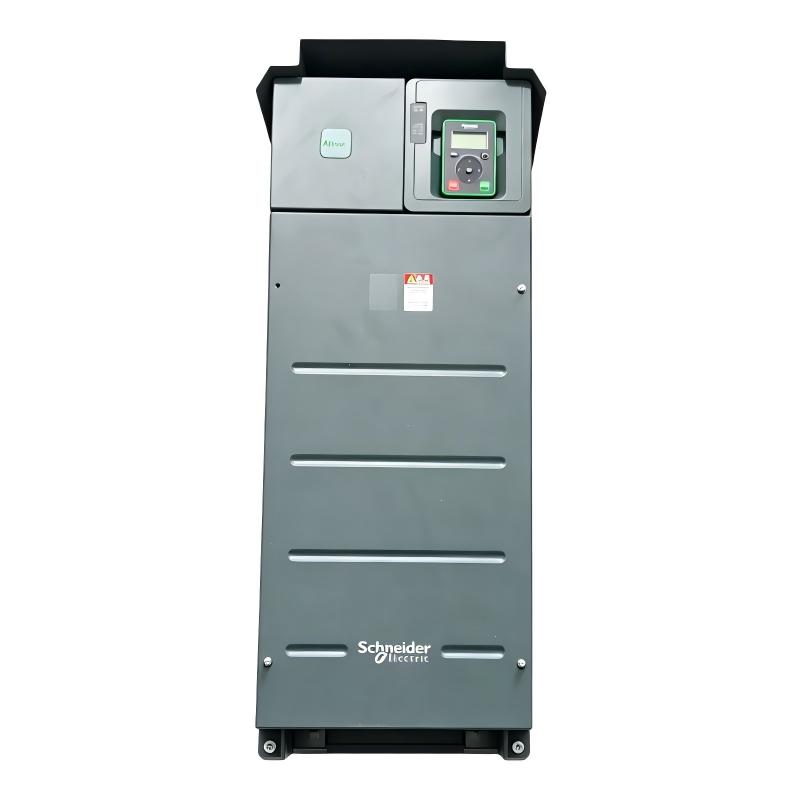

The Schneider ATV610D75N4 Variable Speed Drive is a high-performance Altivar Process ATV610 Variable Frequency Drive (VFD) developed by Schneider Electric for energy-efficient control of three-phase AC induction motors. Designed for demanding industrial applications, the drive delivers precise motor speed regulation, advanced process control, intelligent diagnostics, and comprehensive protection functions, making it an ideal solution for pumps, fans, compressors, conveyors, and other variable torque applications.
As part of the Altivar Process ATV610 product family, the ATV610D75N4 is engineered for high-power industrial systems requiring dependable performance, low operating costs, and simplified maintenance. It utilizes advanced sensorless vector control technology to continuously adjust motor voltage and frequency according to process requirements, improving production efficiency while reducing energy consumption and mechanical wear.
The drive also features integrated PID control, real-time monitoring, built-in Modbus communication, flexible expansion for industrial Ethernet and fieldbus protocols, and intelligent fault diagnostics. These capabilities enable seamless integration with Schneider Electric EcoStruxure™ architecture, PLCs, HMIs, SCADA systems, and Distributed Control Systems (DCS), providing centralized monitoring and efficient process management. The ATV610D75N4 is rated for 75 kW (100 HP) normal-duty applications and 55 kW (75 HP) heavy-duty applications with a 380–460 VAC three-phase input.
With dimensions of 290 × 762 × 323 mm and an approximate weight of 53 kg, the ATV610D75N4 is designed for cabinet-mounted installations where high reliability, efficient cooling, and long-term operational stability are essential.
Typical applications include water and wastewater treatment plants, HVAC systems, mining operations, chemical processing facilities, oil and gas production, power generation, food and beverage manufacturing, infrastructure projects, and general industrial automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV610D75N4 |
| Product Series | Altivar Process ATV610 |
| Product Type | Variable Speed Drive (VFD) |
| Rated Motor Power | 75 kW (Normal Duty), 55 kW (Heavy Duty) |
| Input Supply | Three-Phase 380–460 VAC |
| Input Frequency | 50/60 Hz |
| Motor Type | Three-Phase AC Induction Motor |
| Motor Control Method | Sensorless Vector Control / V/F Control |
| Output Frequency | 0–500 Hz (adjustable) |
| Protection Rating | IP20 |
| Cooling Method | Forced Air Cooling |
| EMC Filter | Integrated |
| Communication | Built-in Modbus Serial, optional Ethernet/IP, PROFINET, PROFIBUS DP, CANopen and other industrial protocols |
| Mounting Method | Cabinet / Panel Mount |
| Dimensions | 290 × 762 × 323 mm |
| Weight | 53 kg |
| Typical Application | High-power industrial motor speed control |
Function and Working Principle
The ATV610D75N4 converts fixed-frequency three-phase AC input into adjustable voltage and frequency output, allowing industrial motors to operate at precisely controlled speeds while optimizing torque and energy efficiency.
Typical Power Conversion Process
Three-Phase AC Power Supply
↓
Rectifier
↓
DC Bus
↓
IGBT PWM Inverter
↓
ATV610D75N4 Variable Speed Drive
↓
Three-Phase AC Motor
↓
Industrial Equipment
During operation, the drive continuously monitors process conditions and automatically adjusts output parameters.
Its primary functions include:
- Variable motor speed regulation
- Sensorless vector motor control
- Soft start and soft stop
- Adjustable acceleration and deceleration
- PID process control
- Automatic energy optimization
- Real-time diagnostics
- Motor overload protection
- Fault history recording
- Industrial communication integration
Role in Industrial Automation Systems
Within industrial automation systems, the ATV610D75N4 functions as the intelligent motor controller between automation controllers and high-power field equipment.
Typical automation architecture:
Industrial Sensors
↓
PLC / DCS Controller
↓
ATV610D75N4 Variable Speed Drive
↓
Three-Phase AC Motor
↓
Industrial Equipment
↓
Production Process
The drive continuously regulates motor speed and torque while transmitting operational and diagnostic information to supervisory automation systems.
Its key responsibilities include:
- Speed regulation
- Torque optimization
- Energy management
- Equipment protection
- Process stability
- Fault diagnostics
- PLC communication
- Continuous operational monitoring
Industrial Applications
Water and Wastewater Treatment
Typical applications include:
- Raw water pumps
- Booster stations
- Filtration systems
- Aeration blowers
- Sludge treatment systems
HVAC Systems
Suitable for:
- Air handling units
- Cooling towers
- Chillers
- Ventilation fans
- Building automation systems
Manufacturing Automation
Frequently installed in:
- Conveyor systems
- Packaging machinery
- Material handling equipment
- Production lines
- Industrial processing equipment
Oil and Gas Industry
Common applications include:
- Compressor stations
- Pipeline pumping
- Refinery equipment
- Petrochemical facilities
- Utility systems
Chemical Processing
Widely used in:
- Mixing systems
- Agitators
- Process pumps
- Cooling equipment
- Fluid transfer systems
Mining and Heavy Industry
Ideal for:
- Crushers
- Conveyors
- Ventilation systems
- Dewatering pumps
- Heavy-duty material handling equipment
Installation and System Integration
Before installation, engineers should verify:
- Input voltage compatibility
- Motor nameplate ratings
- Cabinet dimensions
- Cooling clearance
- Protective grounding
- Cable sizing
- Communication requirements
- Environmental conditions
- Protective devices
- System configuration
Recommended Installation Procedure
- Disconnect all electrical power.
- Mount the drive securely inside the control cabinet.
- Connect the three-phase input power supply.
- Connect the motor output terminals.
- Install the protective earth conductor.
- Complete all control wiring.
- Configure communication parameters.
- Verify electrical connections.
- Restore system power.
- Enter motor nameplate data.
- Configure operating parameters.
- Perform motor auto-tuning if required.
- Verify motor rotation.
- Test communication with PLC, HMI, and SCADA systems.
- Complete commissioning and save configuration settings.
Proper installation maximizes operational reliability, energy efficiency, and equipment service life.
Compatible System Components
| Component | Function |
|---|---|
| Schneider Modicon PLC | Machine automation control |
| ATV610D75N4 | Variable speed drive |
| Three-Phase AC Motor | Mechanical power output |
| HMI Panel | Operator interface |
| Circuit Breaker | Electrical protection |
| Contactor | Power isolation |
| EMC Filter | Electromagnetic compatibility |
| Braking Resistor | Dynamic braking (optional) |
| Industrial Ethernet Network | Industrial communication |
| SCADA System | Process monitoring |
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| ATV610D75N4 | Variable Speed Drive | 75 kW industrial motor control |
| ATV610D55N4 | Variable Speed Drive | Medium-power industrial systems |
| ATV610D90N4 | Variable Speed Drive | Higher-capacity motor applications |
| ATV630D75N4 | Variable Speed Drive | Advanced process automation |
| ATV930D75N4 | Variable Speed Drive | High-performance industrial motion control |
Key Advantages
- Schneider Electric Altivar Process ATV610 platform
- Rated for 75 kW normal-duty applications
- Three-phase 380–460 VAC operation
- Advanced sensorless vector control
- Integrated PID process regulation
- Built-in Modbus communication
- Expandable industrial networking
- Intelligent diagnostics and fault logging
- Comprehensive motor protection
- High energy efficiency
- Cabinet-mounted industrial design
- Dimensions 290 × 762 × 323 mm
- Approximate weight 53 kg
Technical FAQs
What is the Schneider ATV610D75N4?
The ATV610D75N4 is an Altivar Process Variable Speed Drive (VFD) designed for controlling high-power three-phase AC induction motors in industrial automation systems.
What is its primary function?
Its primary function is to regulate motor speed and torque by converting fixed-frequency AC input into adjustable voltage and frequency output, improving process efficiency and reducing energy consumption.
What is the rated motor power?
The drive supports 75 kW (100 HP) for normal-duty applications and 55 kW (75 HP) for heavy-duty applications.
What are the physical dimensions?
The drive measures 290 × 762 × 323 mm.
What is the approximate weight?
The drive weighs approximately 53 kg.
Which motors are compatible?
It supports compatible three-phase AC induction motors used in pumps, compressors, fans, conveyors, mixers, and other industrial equipment.
Which industries commonly use this drive?
It is widely used in water treatment, HVAC, manufacturing, mining, food and beverage processing, chemical production, oil and gas, power generation, and infrastructure automation.
Does the drive improve energy efficiency?
Yes. By adjusting motor speed according to actual process demand, the drive significantly reduces electrical energy consumption while improving equipment performance and extending motor life.
What protection functions are included?
The drive incorporates overload, overcurrent, overvoltage, undervoltage, overheating, short-circuit, and motor protection features together with comprehensive diagnostics and fault history recording.
How can long-term reliability be maintained?
Routine inspection of cooling fans, ventilation passages, electrical terminals, communication connections, and scheduled preventive maintenance helps maximize the operational life and reliability of the ATV610D75N4.
Conclusion
The Schneider ATV610D75N4 Variable Speed Drive is a robust and energy-efficient motor control solution for high-power industrial automation applications. Combining advanced sensorless vector control, intelligent diagnostics, integrated communication capabilities, and comprehensive protection functions, it delivers precise speed regulation, optimized process performance, and dependable long-term operation.
With dimensions of 290 × 762 × 323 mm and an approximate weight of 53 kg, the ATV610D75N4 is ideally suited for cabinet-mounted installations in water treatment facilities, HVAC systems, manufacturing plants, mining operations, chemical processing industries, oil and gas facilities, and power generation plants. When integrated with compatible PLCs, HMIs, SCADA platforms, industrial communication networks, and three-phase AC motors, it provides excellent operational reliability, simplified maintenance, improved energy efficiency, and high-performance industrial automation.
