Product Overview

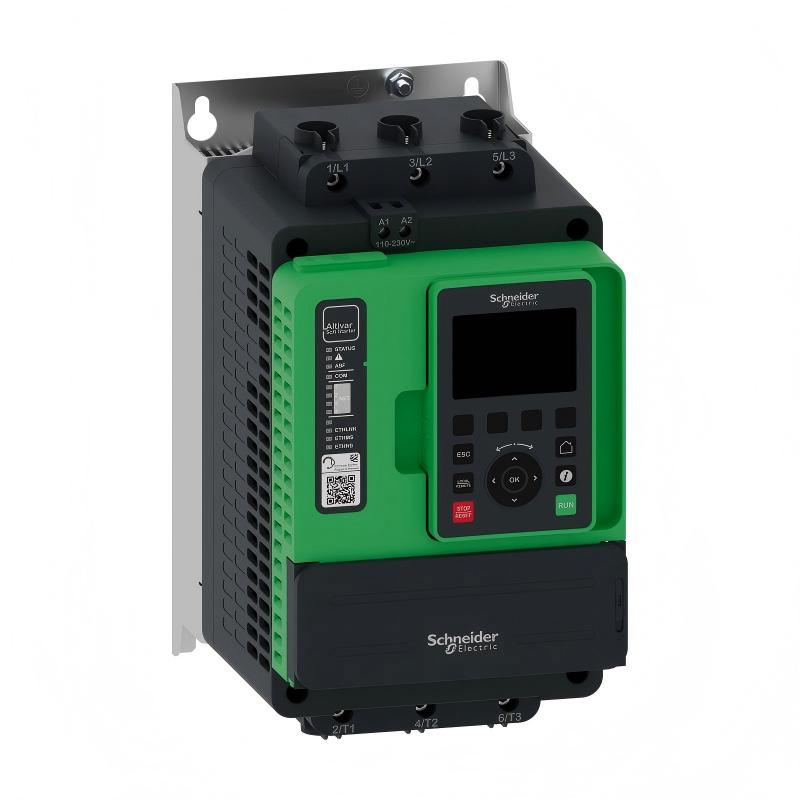

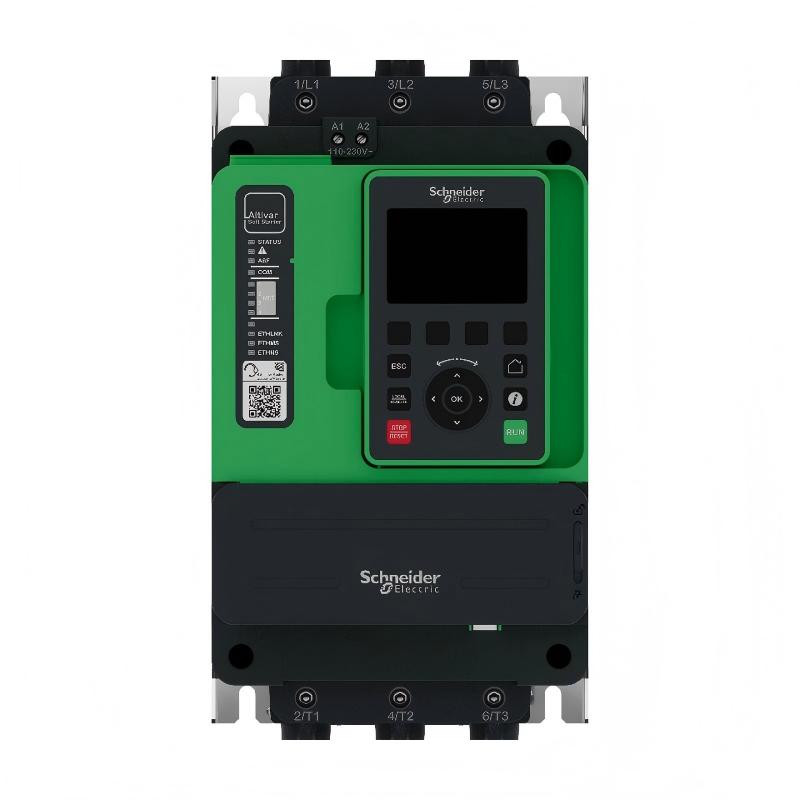

In industrial motor control applications, smooth starting and stopping are important for reducing electrical disturbances, mechanical shock, and unnecessary wear on motor-driven equipment. The Schneider ATS490D62Y is an Altivar ATS490 Soft Starter designed to provide controlled starting and stopping for three-phase asynchronous motors. It is intended for industrial installations where reliable motor management, protection, monitoring, and automation-system integration are required.

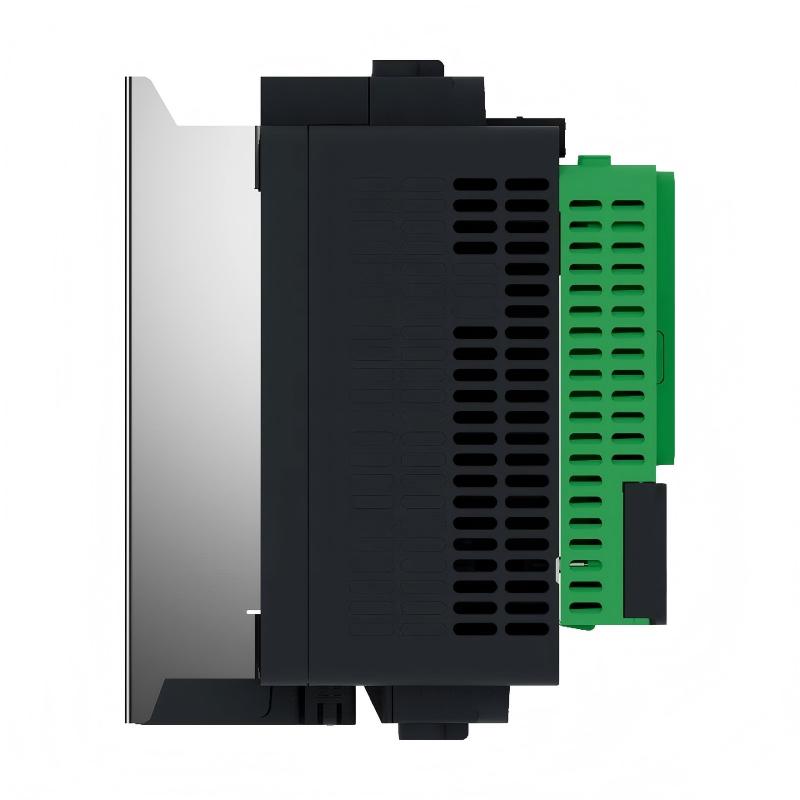

The ATS490D62Y combines soft-start technology with motor protection and diagnostic functions to provide controlled acceleration and deceleration. By gradually managing the voltage delivered to the motor, the soft starter can reduce starting current and mechanical stress compared with direct-on-line starting. Its compact 289 × 160 × 234 mm form factor and approximately 7 kg weight make it suitable for integration into industrial control cabinets and motor-control assemblies where installation space is an important consideration.

Technical Specifications

Function and Working Principle

The primary function of the ATS490D62Y is to control the voltage supplied to a motor during starting and stopping. A conventional direct-on-line starter applies the supply voltage directly to the motor, which can produce high inrush current and a sudden mechanical torque increase.

The ATS490D62Y instead uses controlled semiconductor switching to gradually increase the effective voltage applied to the motor. This allows the motor to accelerate more smoothly and reduces mechanical impact on connected equipment.

The main functions include:

• Controlled motor acceleration
• Controlled motor deceleration
• Reduction of motor starting current
• Reduction of mechanical shock
• Motor current monitoring
• Motor protection
• Diagnostic and fault monitoring
• Integrated bypass operation
• Torque management
• Pump control functions
• Kick-start capability
• Anti-jam functions
• Communication with automation systems
• Operational status monitoring

During starting, the ATS490D62Y progressively increases motor voltage according to the configured parameters. As the motor approaches normal operating speed, the bypass function can be activated to reduce semiconductor losses during continuous operation.

During stopping, the soft starter can control the motor deceleration rather than immediately disconnecting the motor from the power supply. This is especially useful for pumps, conveyors, and other applications where sudden stopping can create mechanical or process-related problems.

Role in Industrial Control Systems

The ATS490D62Y acts as an interface between the industrial power supply and the motor. It can also communicate operating information to the plant automation system, making it possible to integrate motor starting, stopping, monitoring, and diagnostic functions into a larger control architecture.

A typical industrial system may include:

• PLC controllers
• DCS controllers
• Motor control centers
• Circuit breakers
• Motor protection devices
• Contactors
• Human-machine interfaces
• SCADA systems
• Industrial Ethernet networks
• Modbus communication networks
• Three-phase asynchronous motors
• Safety control equipment

When integrated into an automation system, the soft starter can provide useful operating information such as motor status, current, alarms, faults, and diagnostic conditions.

This makes the ATS490D62Y suitable for applications where motor control needs to be coordinated with a PLC, DCS, HMI, or supervisory control system.

Industrial Applications

The Schneider ATS490D62Y can be used in a wide range of industrial and infrastructure applications involving medium-power asynchronous motors.

Typical applications include:

• Water treatment systems
• Wastewater pumping stations
• Industrial pumping systems
• HVAC equipment
• Cooling systems
• Industrial fans
• Air compressors
• Conveyor systems
• Material-handling equipment
• Manufacturing machinery
• Process equipment
• Chemical processing systems
• Food and beverage production
• Building services
• General industrial automation

For pump applications, controlled acceleration and deceleration can help reduce pressure fluctuations and mechanical stress in connected piping systems.

For conveyor applications, gradual motor acceleration can reduce shock loading on belts, gearboxes, couplings, and other transmission components.

For fans and compressors, controlled starting can help reduce the electrical and mechanical impact associated with repeatedly starting larger motors.

Installation and System Integration

Correct installation is important for achieving stable operation from the ATS490D62Y. Because the unit is installed within an electrical control system, the cabinet design, cable selection, ventilation, protective devices, and grounding arrangements should all be appropriate for the application.

Recommended installation practices include:

• Install the soft starter inside a suitable electrical cabinet or enclosure.
• Mount the unit in the recommended vertical orientation.
• Maintain adequate ventilation around the equipment.
• Select incoming cables according to the actual motor current and installation conditions.
• Select motor cables according to applicable electrical requirements.
• Provide suitable upstream circuit protection.
• Verify protective-earth connections.
• Confirm the motor’s rated voltage before commissioning.
• Verify the motor’s rated current before configuration.
• Configure acceleration and deceleration parameters according to the load.
• Check control wiring before energizing the system.
• Verify communication wiring when network control is required.
• Test start, stop, fault, and reset functions before normal operation.

The 62 A current rating should be considered together with the motor’s rated current, starting duty, ambient temperature, enclosure conditions, and application requirements.

During maintenance, electrical power must be isolated before accessing the equipment. Appropriate lockout/tagout procedures and discharge-time requirements should be followed when working inside the electrical cabinet.

Compatible System Components

The ATS490D62Y is normally integrated with other electrical and automation components rather than operating as an isolated device.

Common associated components include:

• Schneider Electric PLC systems
• Schneider Modicon controllers
• EcoStruxure automation systems
• Human-machine interfaces
• Industrial Ethernet switches
• Modbus communication networks
• Motor circuit breakers
• Disconnect switches
• Line contactors
• Motor protection devices
• Three-phase asynchronous motors
• Control transformers
• Industrial control cabinets
• SCADA systems
• Remote I/O systems

The exact combination depends on the electrical architecture, motor rating, application requirements, control strategy, communication protocol, and local installation standards.

Recommended Alternative Models

Depending on motor current and application requirements, the following ATS490 models may be considered:

Model selection should always be based on the motor’s actual rated current and the required operating conditions. Starting class, ambient temperature, starting frequency, motor load characteristics, supply voltage, and enclosure conditions can all affect the appropriate soft-starter selection.

Key Advantages

• Designed for three-phase asynchronous motor applications
• 62 A rated operational current
• Supports industrial motor starting and stopping
• Controlled acceleration reduces mechanical starting shock
• Controlled deceleration supports smoother motor stopping
• Helps reduce starting-current impact on the electrical network
• Integrated bypass function
• Supports motor protection and diagnostic functions
• Supports automation-system integration
• Suitable for PLC and DCS-based control architectures
• Compact 289 × 160 × 234 mm dimensions
• Approximately 7 kg in weight
• Suitable for cabinet-mounted industrial installations
• Applicable to pumps, fans, compressors, conveyors, and process machinery
• Designed for demanding industrial automation environments

Technical FAQs

What is the Schneider ATS490D62Y?

The Schneider ATS490D62Y is an Altivar ATS490 electronic soft starter designed to control the starting and stopping of three-phase asynchronous motors in industrial applications.

What is the current rating of the ATS490D62Y?

The ATS490D62Y has a rated operational current of 62 A. The actual motor current and application duty should be checked before selecting the device.

What are the dimensions of ATS490D62Y?

The dimensions are 289 × 160 × 234 mm, according to the supplied product specification.

How much does the ATS490D62Y weigh?

The specified product weight is approximately 7 kg.

What type of motor can ATS490D62Y control?

The unit is designed for three-phase asynchronous motors and can be used for applications such as pumps, fans, compressors, conveyors, and other industrial machinery.

Does ATS490D62Y reduce motor starting current?

Yes. By gradually controlling the voltage applied to the motor during startup, a soft starter can reduce the electrical impact associated with direct-on-line starting.

Does ATS490D62Y provide motor protection?

The ATS490 platform incorporates motor monitoring, protection, alarm, and diagnostic functions. The exact protection configuration depends on the system setup and application parameters.

Can ATS490D62Y be integrated with a PLC?

Yes. The ATS490 platform is designed for integration with industrial automation systems and can exchange operating and diagnostic information through supported communication configurations.

Conclusion

The Schneider ATS490D62Y Soft Starter is a compact industrial motor-control device designed to provide controlled starting and stopping for three-phase asynchronous motors. With a 62 A rated operational current, integrated bypass functionality, motor-management capabilities, diagnostic functions, and automation-system integration, it provides a practical solution for medium-power motor applications.

With dimensions of 289 × 160 × 234 mm and a weight of approximately 7 kg, the ATS490D62Y can be integrated into industrial control cabinets where space and equipment organization are important. Its controlled acceleration and deceleration functions are particularly useful for pumps, fans, compressors, conveyors, and process machinery where reducing electrical and mechanical stress can contribute to more reliable equipment operation.
