Product Overview

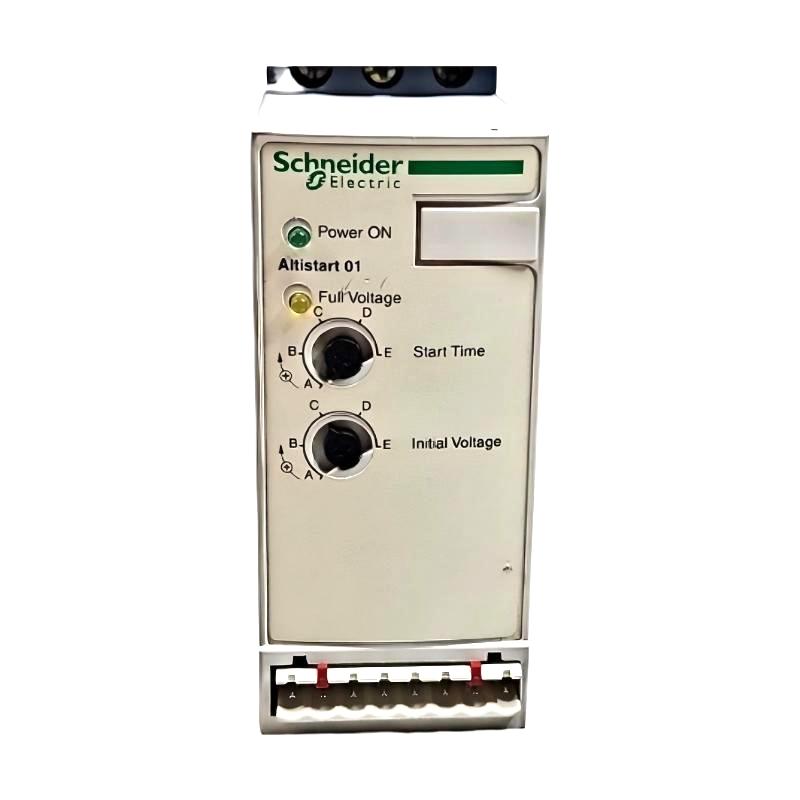

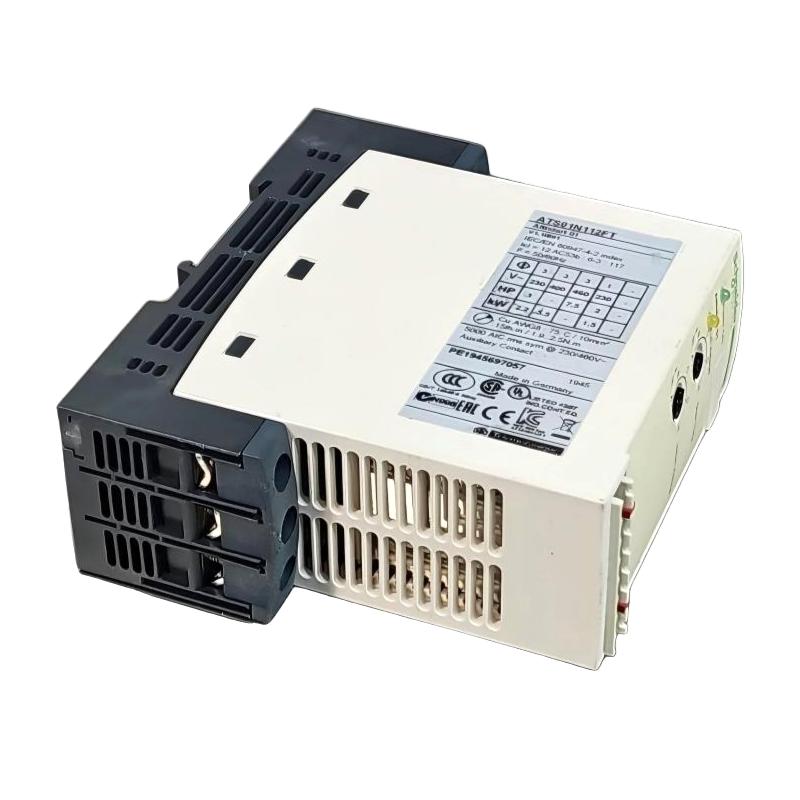

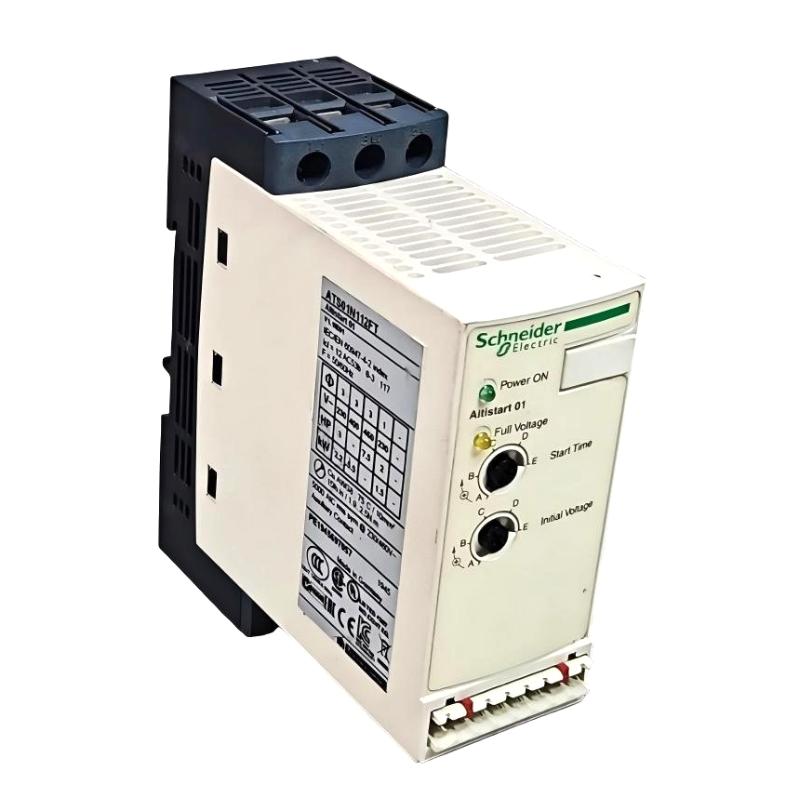

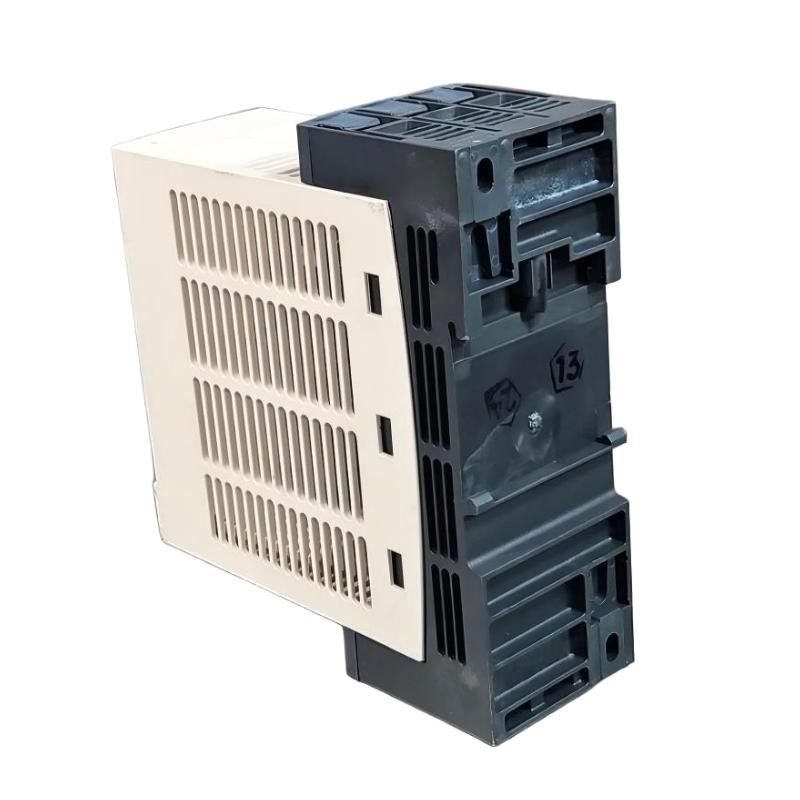

The Schneider ATS01N112FT Soft Starter is a compact motor control device designed for starting three-phase asynchronous motors smoothly and reducing mechanical stress during motor acceleration. It is part of the Schneider Altistart 01 series and is mainly used for simple motor starting applications where controlled acceleration and current limitation are required.
The ATS01N112FT is installed between the power supply and the motor. During startup, it gradually increases the motor voltage to limit the inrush current and provide a smoother acceleration process. Compared with direct-on-line starting, the soft starter reduces impact on mechanical transmission components and helps improve motor operating stability.
The unit is designed for small power motor applications and is suitable for equipment such as pumps, fans, conveyors, and small machinery. It provides a simple alternative to traditional motor starters when variable speed control is not required.
Unlike a variable frequency drive, the ATS01N112FT does not control motor speed during normal operation. Its main function is to manage the motor starting and stopping process by controlling the voltage applied to the asynchronous motor.
With dimensions of 124 × 45 × 131 mm and a weight of 0.28 kg, the Schneider ATS01N112FT offers a compact installation solution for industrial control cabinets where space efficiency and reliable motor starting are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATS01N112FT |
| Product Type | Soft Starter |
| Product Series | Altistart 01 |
| Application | Asynchronous Motor Starting |
| Motor Type | Three-Phase Asynchronous Motor |
| Rated Motor Power | 1.1 kW |
| Rated Voltage | 110…480 V AC |
| Control Type | Voltage Ramp Starting |
| Starting Current Limitation | Adjustable Current Limiting |
| Rated Current | 2.3 A |
| Frequency | 50/60 Hz |
| Mounting Type | DIN Rail / Panel Mounting |
| Protection Class | IP20 |
| Control Voltage | 110…240 V AC |
| Main Function | Soft Motor Start and Stop |
| Installation Location | Industrial Control Cabinet |
| Dimensions | 124 × 45 × 131 mm |
| Weight | 0.28 kg |
Product Features
The Schneider ATS01N112FT Soft Starter provides a simple and practical solution for controlling motor startup operations.
Key features include:
- Designed for asynchronous motor starting applications
- Reduces startup current peaks
- Provides smooth motor acceleration
- Minimizes mechanical shock during startup
- Compact design for cabinet installation
- Suitable for small industrial machines
- Easy integration into existing motor control systems
- Supports reliable motor operation
The soft starter is suitable for applications where basic motor starting control is required without additional speed regulation functions.
Working Principle
The Schneider ATS01N112FT controls the motor starting process by regulating the voltage supplied to the motor.
During startup, the soft starter gradually increases the output voltage using semiconductor control technology. This reduces the initial current surge and allows the motor to reach operating speed smoothly.
The operating process includes:
- Receiving the start command from the control circuit
- Controlling the voltage supplied to the motor
- Limiting starting current during acceleration
- Reducing mechanical stress on connected equipment
- Allowing the motor to reach normal operating speed
- Providing controlled motor stopping when required
After the motor reaches stable operation, the soft starter allows normal motor operation according to the configured starting characteristics.
Role in Industrial Control Systems
The Schneider ATS01N112FT performs an important function in motor control systems.
| Function | Description |
|---|---|
| Motor Starting Control | Controls the acceleration process of asynchronous motors |
| Current Reduction | Limits high starting current |
| Mechanical Protection | Reduces impact on gears, belts, and couplings |
| Equipment Integration | Connects motors with industrial control circuits |
| System Reliability | Helps improve motor startup stability |
| Cabinet Installation | Provides compact motor control hardware |
Industrial Applications
The Schneider ATS01N112FT Soft Starter is commonly used in industrial equipment requiring controlled motor starting.
| Industry | Typical Applications |
|---|---|
| Manufacturing | Small production machinery |
| Water Treatment | Small pumps and auxiliary equipment |
| HVAC Systems | Fans and ventilation equipment |
| Packaging Industry | Conveyor and mechanical systems |
| Food Processing | Small processing machines |
| Material Handling | Belt conveyors and transport equipment |
| Machine Automation | Motor-driven equipment |
| Industrial Facilities | General motor control applications |
Its compact size makes it suitable for machines where space-saving motor control solutions are required.
Installation and System Integration
Proper installation of the Schneider ATS01N112FT ensures stable motor operation and reliable performance.
Recommended installation steps include:
- Install the soft starter inside the control cabinet.
- Connect the incoming power supply correctly.
- Connect the motor output terminals.
- Connect the control command terminals.
- Set the required starting parameters.
- Verify motor rotation direction.
- Test the startup sequence before normal operation.
Correct wiring and parameter adjustment help ensure smooth motor acceleration and reduce startup-related problems.
Compatible System Components
The Schneider ATS01N112FT works with various motor control components.
| Compatible Component | Function |
|---|---|
| Three-Phase Asynchronous Motor | Provides mechanical power output |
| Circuit Breaker | Provides electrical protection |
| Contactor | Controls power switching |
| Thermal Overload Relay | Protects motor from overload conditions |
| PLC Controller | Provides automatic start/stop commands |
| Control Panel | Provides operator interface |
These components form a complete motor starting and protection system for industrial applications.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Schneider ATS01N112FT | Soft Starter | Compact motor starting control | Small asynchronous motors |
| Schneider ATS01N109FT | Soft Starter | Lower power motor control | Small equipment applications |
| Schneider ATS01N206FT | Soft Starter | Higher current capacity | Medium motor starting |
| Schneider ATS22 Series | Advanced Soft Starter | More adjustable motor protection functions | Industrial machinery |
| Schneider ATS48 Series | Heavy-Duty Soft Starter | Advanced motor management | Large industrial motors |
Key Advantages
- Reduces motor starting current
- Provides smoother acceleration
- Minimizes mechanical stress during startup
- Compact design for limited installation space
- Easy integration into motor control systems
- Suitable for small industrial machines
- Improves equipment operating stability
- Provides reliable asynchronous motor starting control
Technical FAQs
What type of motor can the Schneider ATS01N112FT control?
The ATS01N112FT is designed for three-phase asynchronous motors and is mainly used for controlling motor startup and stopping processes.
How does the ATS01N112FT reduce motor starting current?
The soft starter gradually increases the voltage supplied to the motor during startup, reducing the initial current surge compared with direct starting methods.
Can the ATS01N112FT be used for motor speed control?
No. The ATS01N112FT is designed for soft starting and stopping only. Motor speed regulation requires a variable frequency drive.
What applications are suitable for this soft starter?
It is commonly used for small pumps, fans, conveyors, and machinery where smooth motor acceleration and reduced mechanical impact are required.
