Product Overview
In industrial automation applications, motor starting performance directly affects equipment reliability, energy efficiency, and mechanical service life. Traditional direct motor starting methods can create high starting current, mechanical shock, and unnecessary stress on connected equipment.

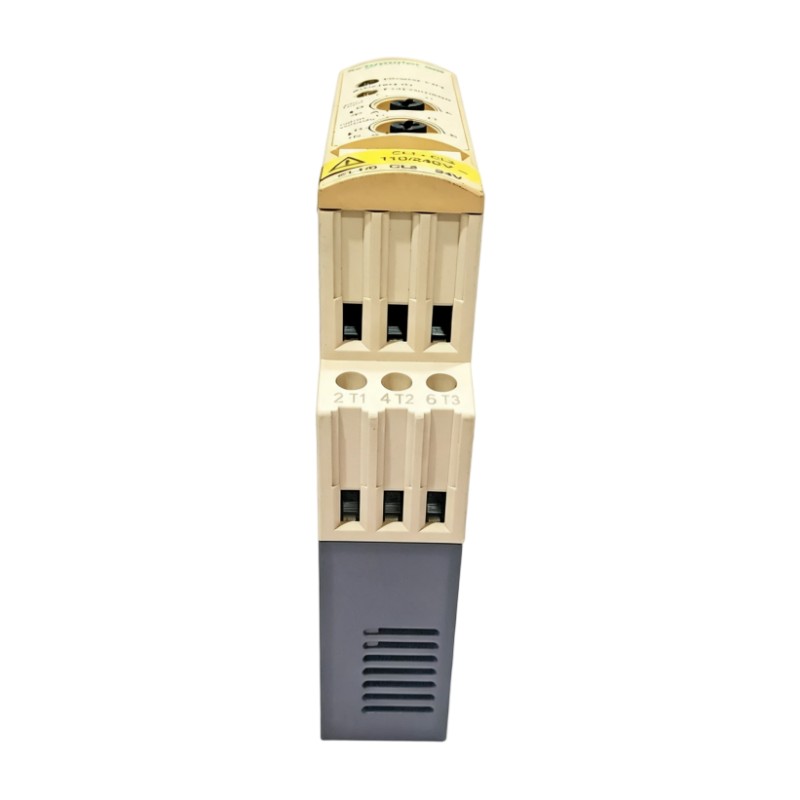

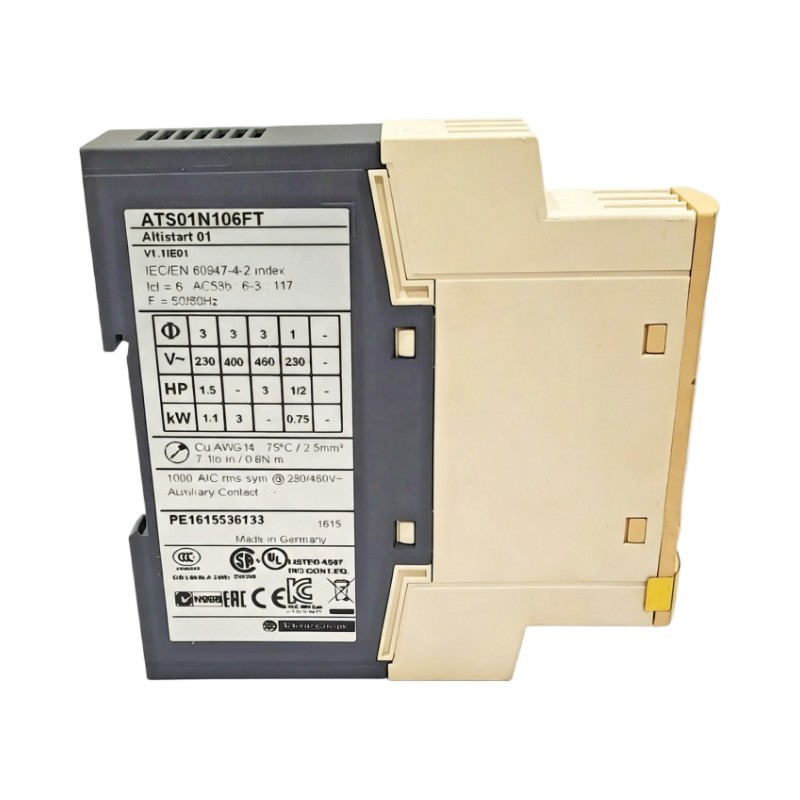

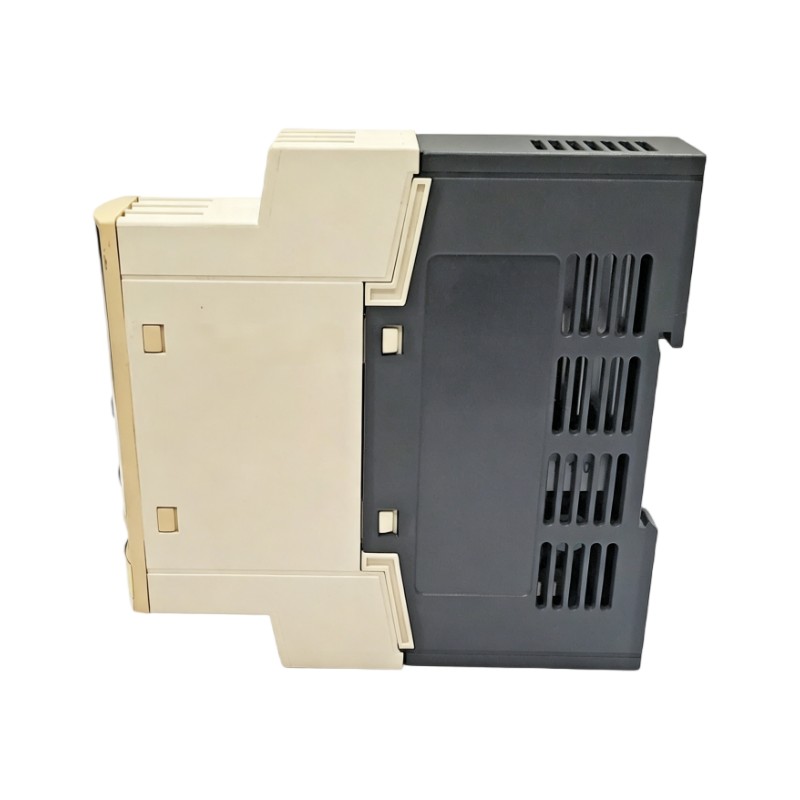

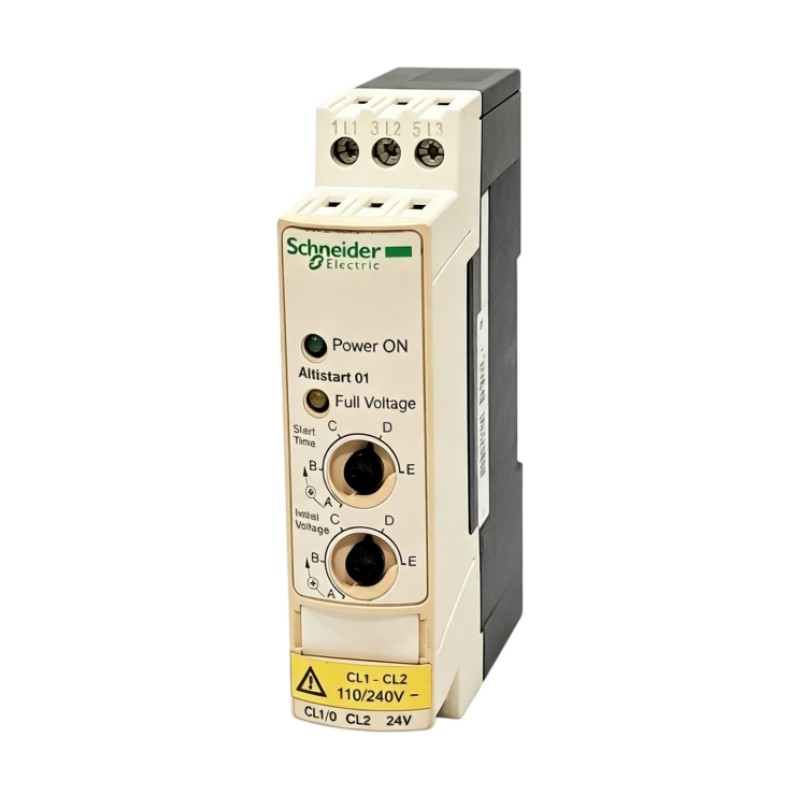

The Schneider ATS01N106FT Soft Starter is an industrial motor control device designed to provide smooth starting for asynchronous motors. It gradually increases motor voltage during startup, reducing mechanical impact and limiting current surges to improve motor operation stability.
As part of the Altistart 01 soft starter series, the ATS01N106FT is designed for simple machine applications requiring compact motor starting control. It supports motor applications with a rated current of 6 A and provides a practical solution for small motors used in industrial equipment.
With dimensions of 100 × 100 × 23 mm and a weight of 0.16 kg, the Schneider ATS01N106FT features a compact design that allows flexible installation in control cabinets and automation equipment where space is limited.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATS01N106FT |
| Product Type | Soft Starter |
| Product Series | Altistart 01 |
| Application | Asynchronous Motor Starting Control |
| Rated Current | 6 A |
| Supply Voltage Range | 110…480 V AC |
| Motor Application | Small Industrial Motors |
| Control Function | Voltage Ramp Starting |
| Installation Type | Control Cabinet / DIN Rail Installation |
| Dimensions | 100 × 100 × 23 mm |
| Weight | 0.16 kg |
Function and Working Principle
The Schneider ATS01N106FT Soft Starter controls the voltage supplied to an asynchronous motor during startup.
The basic operation process is:
Power Supply → ATS01N106FT Soft Starter → Motor → Mechanical Load
The working principle includes:
- The motor receives power through the soft starter
- The device controls the initial voltage level
- Voltage gradually increases according to the configured starting ramp
- Motor acceleration becomes smoother
- Full operating voltage is reached after startup
By controlling the starting voltage, the soft starter reduces electrical and mechanical stress during motor acceleration.
Role in Industrial Automation Systems
The Schneider ATS01N106FT plays an important role in motor control applications.
Its main functions include:
- Reducing motor starting current
- Providing smooth motor acceleration
- Protecting mechanical equipment
- Improving motor starting reliability
- Reducing impact on electrical systems
It is commonly used in:
- Industrial machinery
- Conveyor systems
- Pumps
- Fans
- Compressors
- Small automated equipment
Main Features
Smooth Motor Starting
The main advantage of the ATS01N106FT is controlled motor acceleration.
Benefits include:
- Reduced mechanical shock
- Lower stress on machine components
- Improved equipment lifetime
- More stable startup operation
Smooth starting helps protect motors and connected mechanical systems.
Compact Space-Saving Design
The ATS01N106FT features a narrow and lightweight structure.
Advantages include:
- Reduced cabinet space requirements
- Easy installation in compact panels
- Flexible equipment design
- Convenient maintenance access
The compact format makes it suitable for small automation systems.
Reduced Starting Current
Direct motor starting can generate high current peaks.
The soft starter helps provide:
- Controlled current increase
- Improved power system stability
- Reduced electrical stress
- Better motor performance
This is especially useful in applications where frequent motor starts occur.
Simple Motor Control Solution
The ATS01N106FT is designed for applications requiring straightforward motor starting control.
Advantages include:
- Easy system integration
- Simple commissioning process
- Reliable operation
- Reduced control complexity
It provides an efficient alternative to direct-on-line motor starting.
Industrial Applications
Conveyor Systems
Conveyor equipment often requires smooth motor acceleration.
Applications include:
- Material transport systems
- Assembly lines
- Packaging conveyors
- Industrial handling equipment
The soft starter helps prevent sudden mechanical movement during startup.
Pump Applications
Pumps can experience mechanical stress during direct starting.
Applications include:
- Water systems
- Industrial circulation systems
- Processing equipment
- Fluid handling systems
The ATS01N106FT provides controlled motor startup to improve system stability.
Fan and Ventilation Systems
Fans require smooth acceleration to reduce mechanical impact.
Applications include:
- Industrial ventilation
- Cooling systems
- Air handling equipment
- Factory environmental systems
The soft starter improves startup performance and equipment protection.
Machine Automation Equipment
Many automated machines use small asynchronous motors.
Applications include:
- Processing machines
- Assembly equipment
- Packaging machinery
- Automated production systems
The ATS01N106FT provides reliable motor starting control for automation applications.
Installation Guide
Proper installation ensures safe and reliable operation of the Schneider ATS01N106FT.
Recommended installation steps:
- Confirm motor specifications
- Check power supply requirements
- Install the soft starter correctly
- Connect motor and power wiring
- Configure startup parameters
- Test motor operation
During installation, pay attention to:
- Correct wiring connection
- Proper grounding
- Adequate ventilation
- Suitable cabinet environment
- Correct motor compatibility
Common Failure Symptoms
| Fault Symptom | Possible Cause |
|---|---|
| Motor cannot start | Power or wiring problem |
| Motor acceleration is unstable | Incorrect settings |
| Soft starter overheats | Poor ventilation or overload |
| Excessive starting current | Motor compatibility issue |
| Unexpected shutdown | Electrical protection triggered |
Maintenance Recommendations
To maintain reliable operation of the Schneider ATS01N106FT:
- Check wiring connections regularly
- Inspect ventilation conditions
- Monitor motor operating current
- Keep electrical cabinets clean
- Verify startup performance
Regular maintenance helps extend equipment service life and improves system reliability.
Compatible System Components
| Component | Function |
|---|---|
| Soft Starter | Controls motor startup |
| AC Motor | Provides mechanical power |
| PLC Controller | Sends automation commands |
| Sensors | Monitor equipment conditions |
| HMI System | Provides operator control |
These components work together to create a complete industrial motor control system.
Key Advantages
- Smooth asynchronous motor starting
- Reduces mechanical stress
- Limits startup current impact
- Compact industrial design
- Easy automation system integration
- Suitable for pumps, fans, and machines
- Improves motor operation reliability
Technical FAQs
What is Schneider ATS01N106FT used for?
The Schneider ATS01N106FT is a soft starter designed to control the startup process of asynchronous motors in industrial applications.
What is the main advantage of using a soft starter?
A soft starter reduces starting stress by gradually increasing motor voltage, helping protect motors and mechanical equipment.
Where is ATS01N106FT commonly installed?
It is commonly installed in industrial control cabinets, machine automation systems, and motor control panels.
What applications are suitable for ATS01N106FT?
It is suitable for small motor applications such as pumps, fans, conveyors, compressors, and industrial machinery.
Conclusion
The Schneider ATS01N106FT Soft Starter is a compact and reliable motor starting solution designed for industrial automation applications.
With its controlled voltage ramp function, compact structure, and ability to reduce motor starting stress, it provides an effective method for improving motor performance and equipment reliability.
For automation engineers, system integrators, and maintenance professionals, the Schneider ATS01N106FT helps optimize motor control systems, reduce mechanical impact, and support stable industrial operations.
