Product Overview

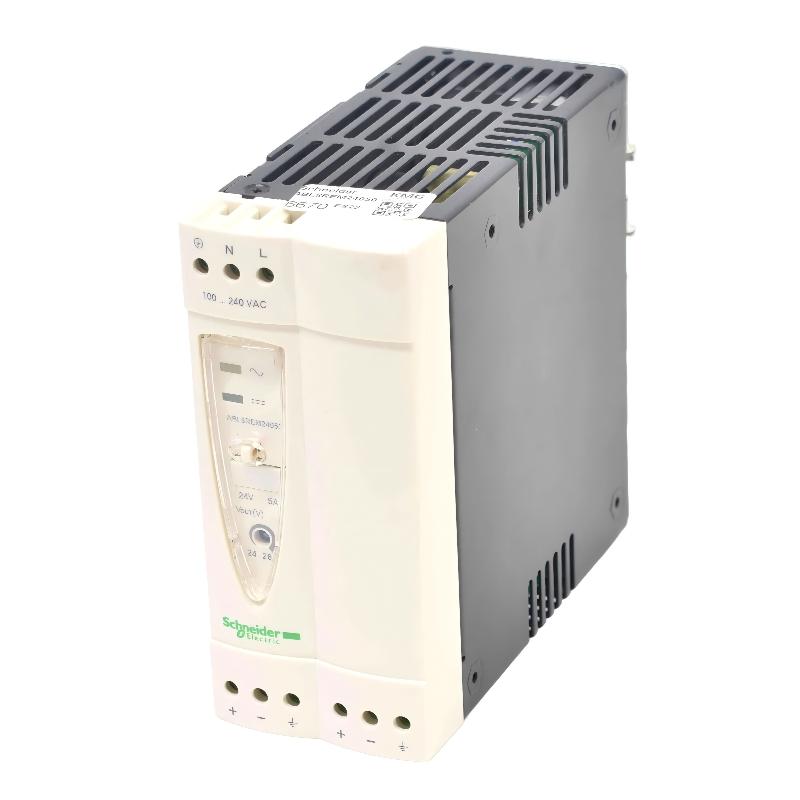

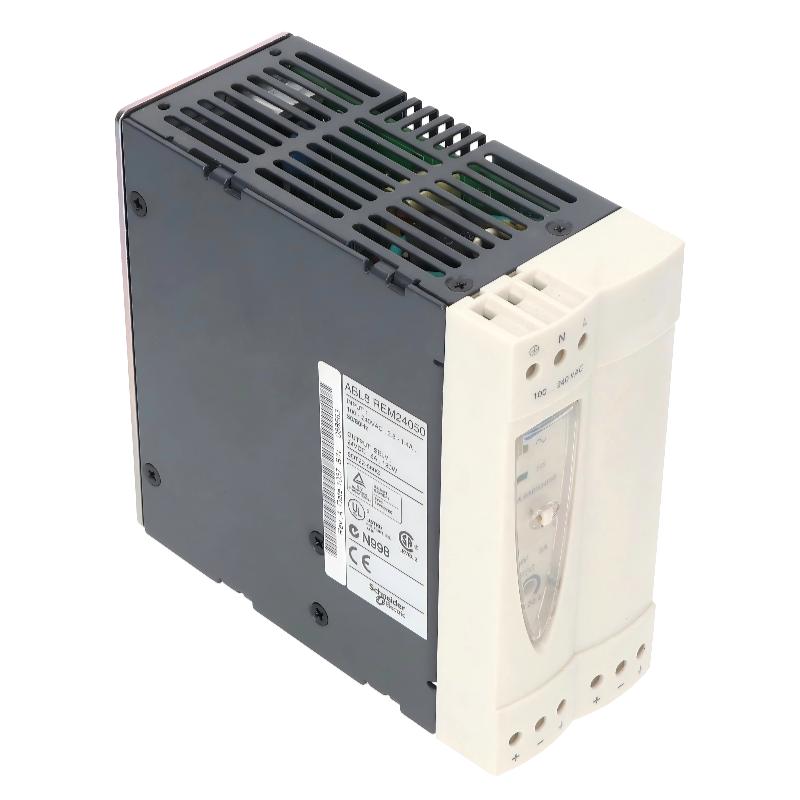

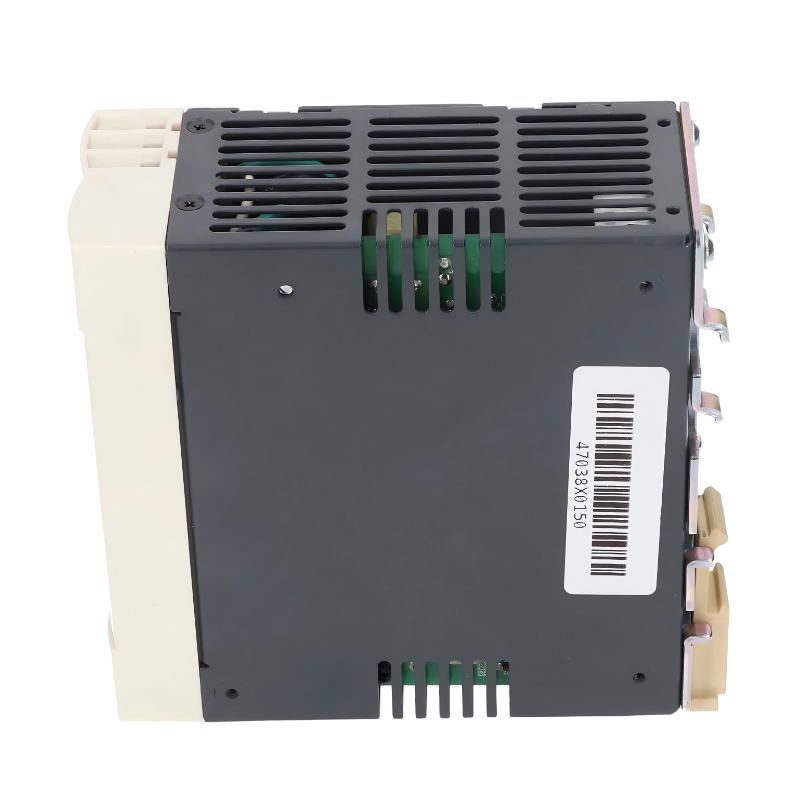

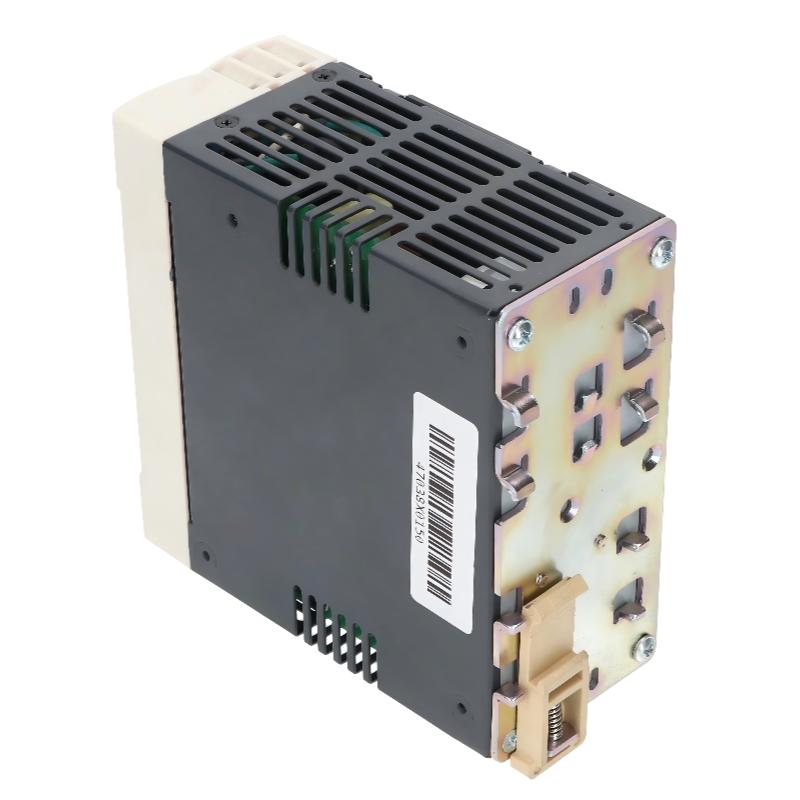

The Schneider ABL8REM24050 Phaseo ABL8REM Regulated Switch Power Supply is a regulated switching power supply for industrial automation and control-panel applications. It supplies the DC power required by compatible control equipment, sensors, interfaces, and other electrical loads within an automation installation.
As part of the Phaseo ABL8REM range, the unit is suited to control cabinets where a regulated DC supply is required for automation hardware. Its position in the power-distribution layer allows the control system to receive a controlled supply independently of the application logic performed by the PLC or controller.
The power supply can be used in machine control panels, process automation cabinets, distributed control installations, and other industrial systems where multiple control components depend on a common DC power source. Proper sizing of the connected load and coordination with upstream protection are important when integrating the supply into an existing cabinet.
During troubleshooting, the power supply should be evaluated together with the incoming circuit, output wiring, connected loads, and protective devices. A supply-related problem can affect several downstream automation devices at the same time.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ABL8REM24050 |
| Product Family | Phaseo ABL8REM |
| Product Series | ABL8REM |
| Product Type | Regulated Switch Power Supply |
| Primary Function | Regulated DC power supply |
| System Role | Automation system power supply |
| Typical Application | Industrial automation and control-panel systems |
| Dimensions | 120 × 54 × 120 mm |
| Weight | 1 kg |
Product Features
- Phaseo ABL8REM regulated switching power supply.
- Provides regulated DC power for compatible industrial automation equipment.
- Suitable for control cabinets and machine automation systems.
- Forms part of the electrical power-distribution layer.
- Supports organized DC supply distribution to connected control components.
- Can supply sensors, interfaces, controllers, and other compatible loads.
- Suitable for industrial control and process automation installations.
- Can be integrated into Schneider Electric automation architectures.
Working Principle
The ABL8REM24050 receives power from the upstream electrical circuit and converts it into regulated DC power for the connected automation loads.
Incoming Supply → ABL8REM24050 Power Supply → DC Distribution → PLC / I/O / Sensors / Control Equipment
The switching power-supply stage regulates the output so that connected devices receive the required operating supply within the applicable operating conditions. The downstream equipment then uses this power for its own control, communication, sensing, or interface functions.
The power supply does not execute machine sequencing or process-control logic. Its function is to maintain the electrical supply needed by the automation system. If the output supply becomes unavailable, multiple downstream devices may simultaneously lose normal operation.
Role in a Phaseo ABL8REM Power Distribution Architecture
The ABL8REM24050 occupies the power-conversion and distribution layer of an industrial control system. It supplies the electrical infrastructure supporting PLCs, I/O interfaces, sensors, communication equipment, and other compatible loads.
Incoming Power → ABL8REM24050 → DC Power Distribution → Automation Equipment → Machine / Process
| System Element | Function |
|---|---|
| Incoming Power | Supplies electrical energy to the control cabinet |
| ABL8REM24050 | Converts and regulates the supply for downstream loads |
| DC Distribution | Routes regulated power to connected devices |
| PLC / Controller | Executes machine or process control logic |
| I/O Modules | Exchanges signals with field devices |
| Sensors | Provides machine and process information |
| Communication Equipment | Exchanges data between automation devices |
| Field Equipment | Performs the controlled machine or process function |
The power-supply layer is separate from the control-logic layer, making supply diagnostics an important first step when several automation devices show simultaneous power-related faults.
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Control Panels | DC supply for PLCs, I/O, sensors, and interfaces |
| Industrial Automation | Power distribution for control-system equipment |
| Process Control | Regulated supply for instrumentation and control circuits |
| Packaging Machinery | Cabinet power for machine-control components |
| Material Handling | DC supply for automation and field interfaces |
| Manufacturing Lines | Common control-system power source |
| OEM Control Cabinets | Integrated DC power distribution |
| Distributed Control Panels | Supply for separated automation components |
Installation and Maintenance
- Confirm that the ABL8REM24050 is suitable for the intended Phaseo power-distribution arrangement.
- Verify the incoming electrical supply against the approved cabinet design.
- Check upstream circuit protection before energizing the power supply.
- Install the unit securely according to the control-panel mounting arrangement.
- Maintain suitable clearance and ventilation around the power supply within the cabinet.
- Verify input and output terminal assignments before connecting the wiring.
- Check output wiring polarity before connecting downstream DC loads.
- Confirm that the connected load is appropriate for the installed power-supply arrangement.
- Inspect terminals and conductors for secure electrical and mechanical connections.
- Energize the unit under controlled commissioning conditions and verify the downstream DC supply.
- If abnormal output behavior occurs, inspect the incoming supply, power supply, wiring, protection devices, and connected loads as one system.
- After replacement, verify the DC distribution and operation of all affected PLC, I/O, sensor, communication, and control equipment before returning the machine to service.
Compatible System Components
| Component | Function |
|---|---|
| Schneider PLC / Controller | Executes machine and process control logic |
| Schneider I/O Modules | Interfaces control signals with field equipment |
| Schneider Sensors | Provides machine and process feedback |
| Schneider Communication Devices | Exchanges data between automation components |
| Control Cabinet Distribution | Distributes regulated DC power to connected loads |
| Circuit Protection Devices | Protects incoming and downstream electrical circuits |
| HMI / Operator Interface | Provides machine operation and status visualization |
| Field Instruments | Provides measurement and process information |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider Phaseo ABL8REM | Regulated Switch Power Supply | Industrial DC power supply |
| Schneider ABL8REM24050 | Regulated Switch Power Supply | Automation control-panel power |
| Schneider Phaseo ABL8RPS | Regulated Power Supply | Industrial automation power distribution |
| Schneider Phaseo ABL8MEM | Modular Power Supply | Control-panel DC power |
| Schneider Modicon M340 | PLC Platform | Machine and process control |
| Schneider Modicon M580 | PLC Platform | Advanced industrial automation control |
| Schneider Modicon X80 | I/O System | Industrial field signal interfacing |
Key Advantages
- Provides regulated DC power for industrial automation equipment.
- Fits within the Phaseo ABL8REM power-supply architecture.
- Supports centralized control-panel power distribution.
- Separates system power functions from PLC application logic.
- Suitable for machine, process, and OEM automation installations.
- Simplifies troubleshooting when multiple downstream devices are affected by a common power source.
Technical FAQs
What should be considered when sizing the ABL8REM24050 for a control cabinet?
The complete DC load should be considered, including connected controllers, I/O devices, sensors, interfaces, and other loads. The supply arrangement should also account for the applicable operating conditions and upstream circuit protection.
Why can a power-supply fault affect several automation devices simultaneously?
Multiple control components may share the same DC distribution path. If the power supply or a common distribution point fails, several downstream devices can lose power at the same time even though their individual electronics are functioning correctly.
How should an unstable DC output be investigated?
Check the incoming supply and protection devices first, followed by the power-supply connections and downstream load. If the output changes only when certain equipment is energized, the connected load and distribution wiring should also be examined.
What should be verified after replacing the ABL8REM24050?
Check the input wiring, output polarity, terminal connections, connected load, and DC distribution. The affected PLC, I/O, sensors, communication equipment, and other downstream devices should then be tested under normal operating conditions.
