Product Overview

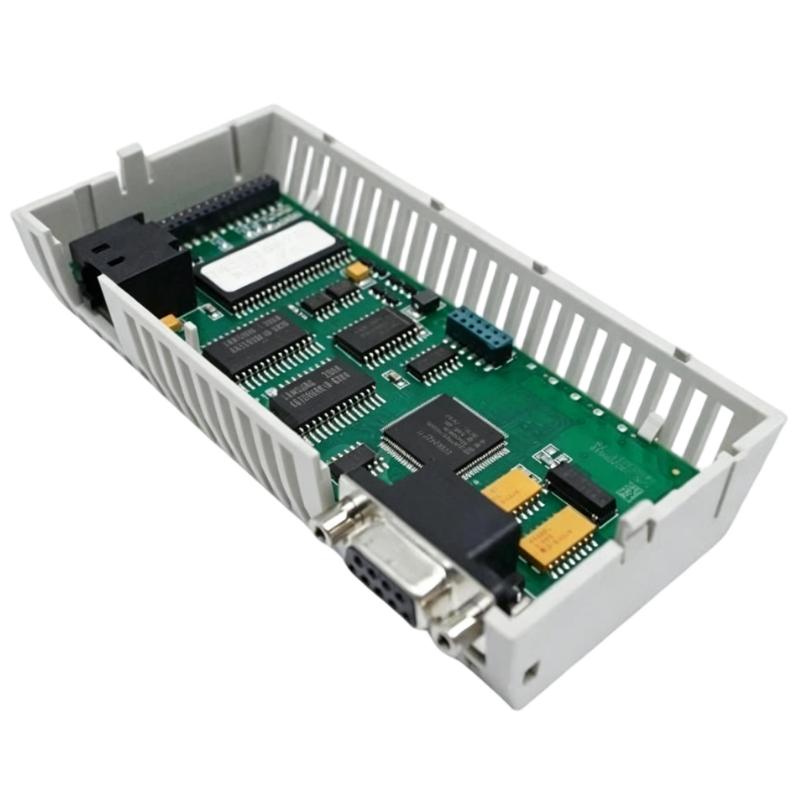

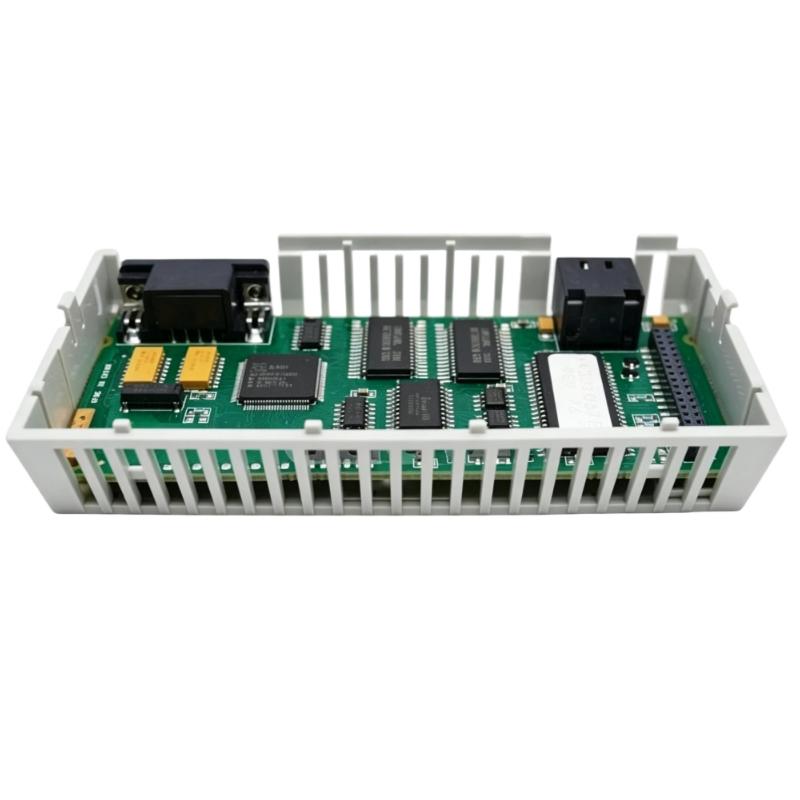

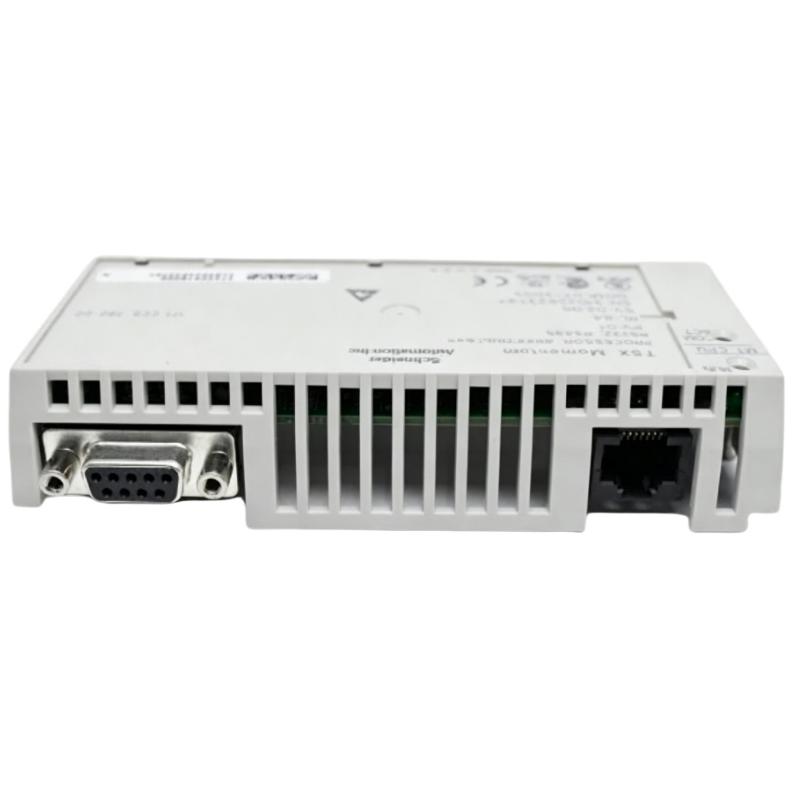

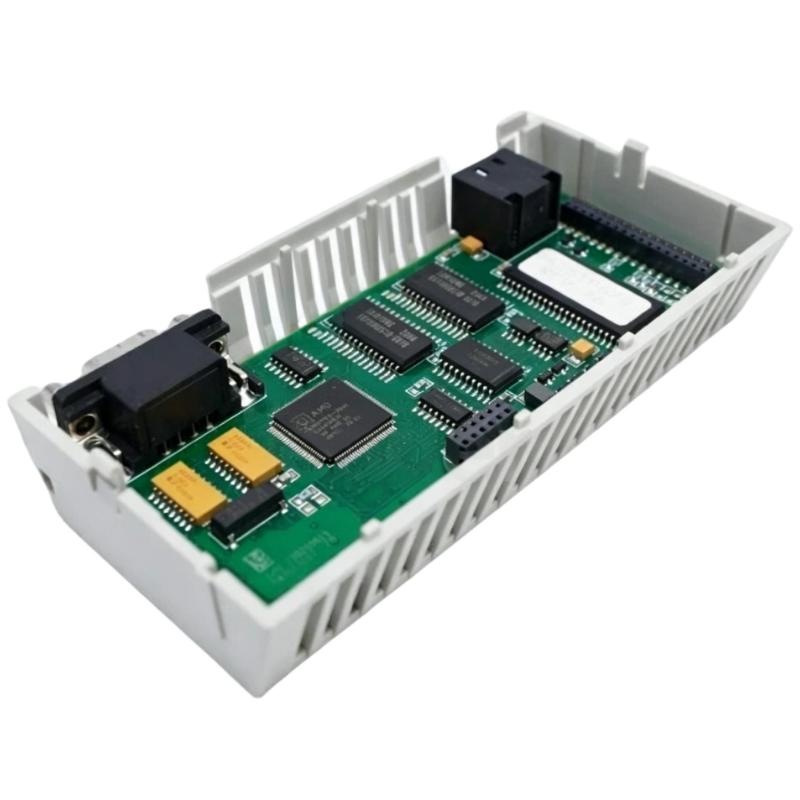

The Schneider 171CCS78000 is an M1/M1E Processor Adapter designed for Schneider Electric industrial automation systems. It provides a reliable hardware interface between M1/M1E processors and associated control system components, helping ensure stable communication and dependable system performance.
As an essential interface module within PLC and distributed control architectures, the 171CCS78000 supports processor integration with I/O modules, communication devices, and power systems. Its compact construction makes it suitable for installation in industrial control cabinets where reliability and efficient use of space are important.
With dimensions of 55 × 180 × 260 mm and a lightweight design of 0.042 kg, the adapter is easy to install, maintain, and replace during routine servicing or system upgrades.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 171CCS78000 |
| Product Type | M1/M1E Processor Adapter |
| Compatible Processor | M1 / M1E Processor |
| Main Function | Processor connection and system interface |
| Application | Industrial Automation Systems |
| Installation | Control Cabinet |
| Dimensions | 55 × 180 × 260 mm |
| Weight | 0.042 kg |
| Operating Environment | Industrial Environment |
| System Role | Processor Integration Component |
Function and Working Principle
The Schneider 171CCS78000 serves as the physical interface between an M1/M1E processor and the surrounding automation hardware. It provides secure electrical and mechanical connections, allowing the processor to exchange data reliably with I/O modules, communication interfaces, and other control components.
During normal operation, the processor executes the control program while the adapter maintains stable hardware connectivity. Reliable connections improve communication efficiency, reduce signal interruptions, and contribute to long-term system stability.
Role in Industrial Control Systems
Within Schneider automation platforms, the 171CCS78000 plays an important role in supporting processor installation and system integration. It helps maintain dependable communication between processors and connected devices, contributing to continuous and efficient industrial operation.
The adapter is commonly used in systems requiring reliable controller performance, simplified maintenance, and long service life.
Industrial Applications
- PLC Automation Systems
- Distributed Control Systems (DCS)
- Factory Automation
- Packaging Equipment
- Material Handling Systems
- Power Generation Plants
- Water Treatment Facilities
- Oil and Gas Processing
- Chemical Manufacturing
- Industrial Production Lines
Installation and System Integration
Proper installation ensures reliable processor communication and stable system performance.
- Turn off system power before installation.
- Confirm the processor and adapter model numbers.
- Install the adapter securely in the control cabinet.
- Connect the processor and related modules correctly.
- Inspect connectors and wiring before startup.
- Perform communication and functional tests after installation.
Periodic inspection of connectors and mounting hardware is recommended to maintain long-term operational reliability.
Compatible System Components
| Component | Function |
|---|---|
| M1 Processor | Main automation processor |
| M1E Processor | Industrial control processor |
| Digital I/O Modules | Digital signal processing |
| Analog I/O Modules | Analog process monitoring and control |
| Communication Modules | Industrial network communication |
| Power Supply Modules | Power distribution |
| Operator Interface (HMI) | System monitoring and control |
| Industrial Communication Networks | Data exchange and networking |
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| 171CCS76000 | M1/M1E Processor Adapter | Processor interface | Industrial automation |
| 171CCC76010 | M1/M1E Processor Adapter | Reliable processor integration | PLC systems |
| 171CBU98090 | Unity M1E Processor | Control processing | Automation control |
| 170PNT11020 | Modbus Plus Communication Adapter | Industrial networking | Distributed systems |
| 170ENT11002 | Ethernet TCP/IP Communication Adapter | Ethernet communication | Industrial networks |
| 170ENT11001 | Ethernet Communication Adapter | Network connectivity | PLC communication |
| Modicon Unity Processor Series | Processor Family | Advanced automation control | Industrial applications |
| Modicon Communication Modules | Communication Module | Network integration | Control systems |
Key Advantages
- Designed for Schneider M1/M1E processor systems.
- Provides stable processor connectivity.
- Supports reliable industrial communication.
- Compact and lightweight construction.
- Easy to install and maintain.
- Enhances system integration efficiency.
- Suitable for continuous industrial operation.
- Compatible with Schneider automation platforms.
- Reduces maintenance time during replacement.
- Ideal for PLC and distributed control applications.
Technical FAQs
What is the Schneider 171CCS78000?
It is an M1/M1E Processor Adapter used to connect compatible processors within Schneider industrial automation systems.
What is its primary function?
Its primary function is to provide reliable processor connectivity and system integration.
Which processors are compatible?
The adapter is designed for Schneider M1 and M1E processors.
What are its dimensions?
The dimensions are 55 × 180 × 260 mm.
How much does it weigh?
The specified weight is 0.042 kg.
Where is it typically installed?
It is installed inside industrial control cabinets as part of PLC or distributed automation systems.
Can it be used in industrial automation projects?
Yes. It is suitable for manufacturing, process automation, power, water treatment, and other industrial control applications.
Why is a processor adapter important?
It ensures reliable hardware connections between processors and automation modules, helping maintain stable controller performance.
Conclusion
The Schneider 171CCS78000 M1/M1E Processor Adapter is a dependable interface component designed to support Schneider industrial automation platforms. It provides reliable processor integration, stable communication, and efficient connectivity between processors and control system hardware.
With its compact size, lightweight construction, and compatibility with M1/M1E processor systems, the 171CCS78000 is an excellent solution for equipment replacement, preventive maintenance, and industrial automation upgrades requiring reliable long-term operation.
