Product Overview

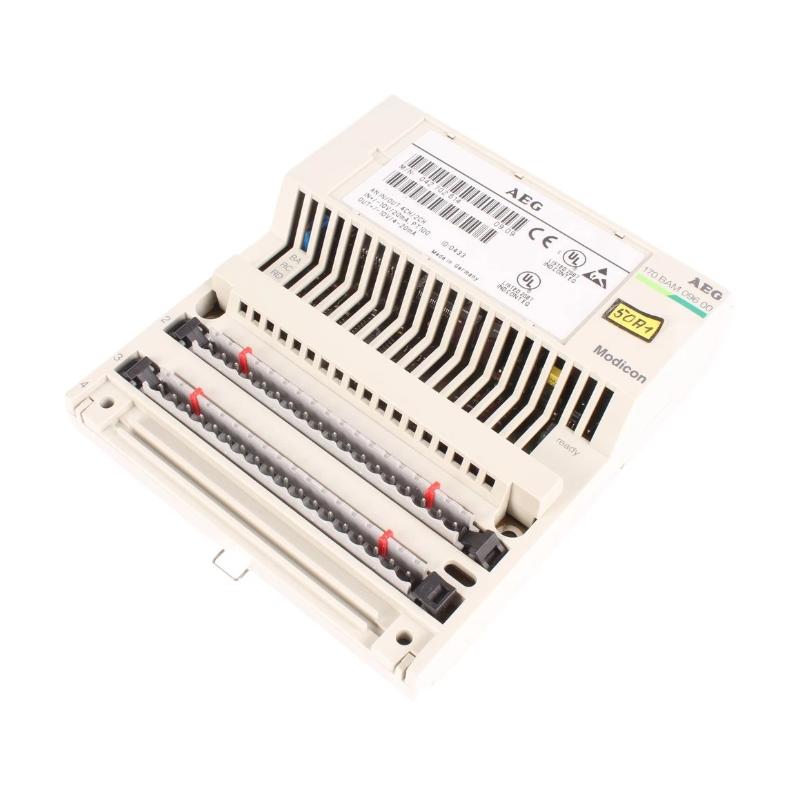

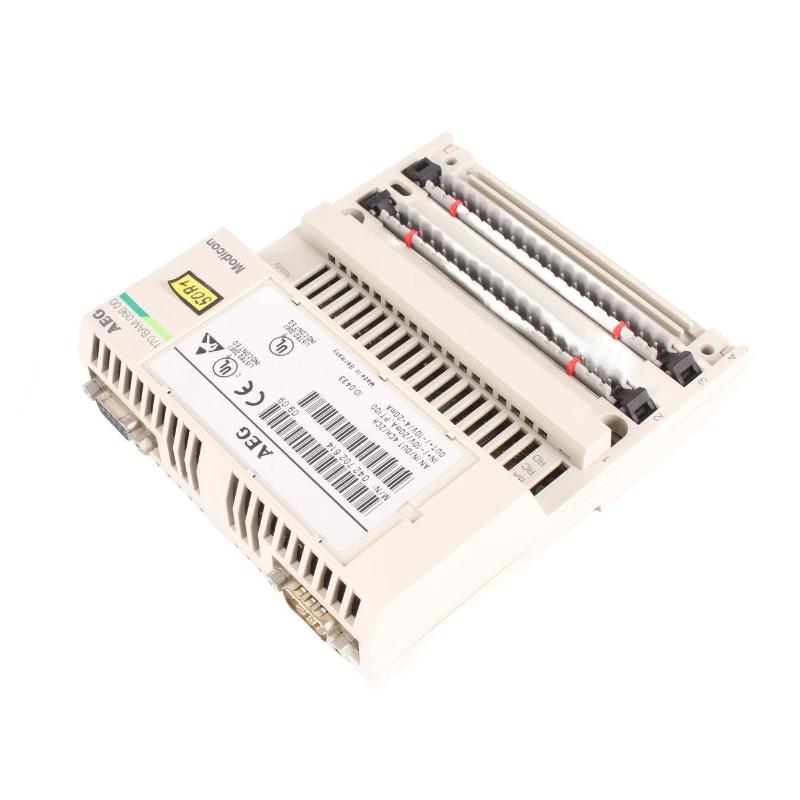

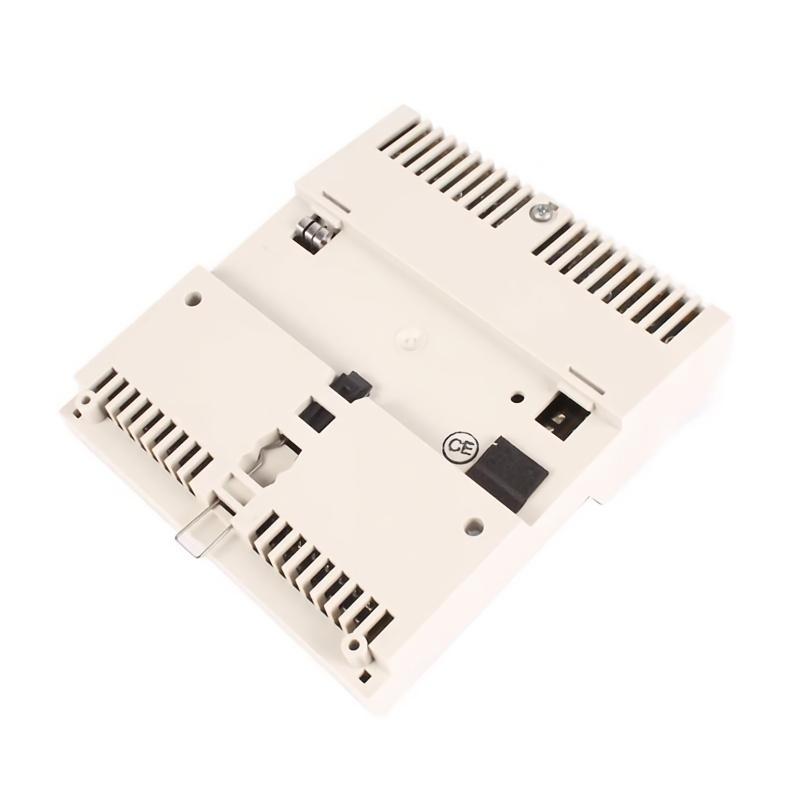

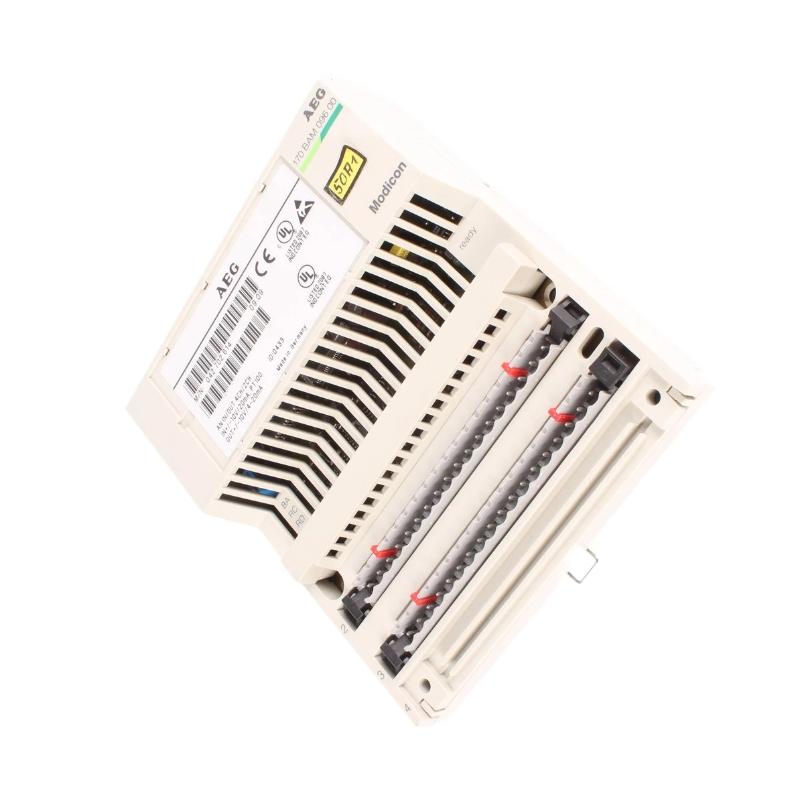

The Schneider 170BAM09600 is a high-precision analog I/O module designed to provide reliable analog input and output functionality in industrial automation systems. It enables Programmable Logic Controllers (PLCs) to interface with sensors and actuators that operate on continuous analog signals, such as temperature, pressure, and flow devices. Its compact size and lightweight construction make it ideal for distributed control installations and modern control cabinets.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model Number | 170BAM09600 |
| Product Type | Analog I/O Module |
| Function | Analog input and output control |
| Input/Output Channels | 8 inputs / 8 outputs (typical) |
| Output Type | 0–10 V, 4–20 mA |
| Dimensions (L x W x H) | 125 × 40 × 180 mm |
| Weight | 0.209 kg |
| Mounting | DIN rail / Rack-mounted |
| Operating Temperature Range | 0°C to +60°C |
| Environment | Industrial-grade |
| Power Supply | 24 V DC |
Function and Working Principle
The 170BAM09600 module converts analog signals from field devices into digital signals for PLC processing and vice versa. Key functionalities include:
- Accurate acquisition of sensor data (temperature, pressure, flow, etc.)
- Generating analog output signals to control actuators and process devices
- Real-time monitoring and adjustment of process variables
- Seamless integration with distributed control systems
This ensures precise control and monitoring, maintaining process stability and efficiency.
Role in Industrial Control Systems
The analog I/O module is critical for industrial automation by:
- Providing a bridge between analog field devices and digital PLC logic
- Enabling precise control of process actuators and equipment
- Supporting feedback loops for automated process adjustments
- Enhancing diagnostics and system monitoring capabilities
Industrial Applications
The Schneider 170BAM09600 is widely used in:
- Process control systems in chemical, oil & gas, and water treatment plants
- HVAC and building automation systems
- Manufacturing automation requiring analog control
- Flow and temperature monitoring in industrial processes
- Material handling and control systems
Its high-precision analog capabilities make it ideal for both small-scale and large-scale automation networks.
Installation and System Integration
To ensure optimal performance:
- Mount on DIN rails or inside control racks
- Connect analog input and output devices according to wiring diagrams
- Integrate with Schneider PLC backplanes and distributed control networks
- Follow standard electrical safety and grounding practices
- Configure channels via PLC programming software
Proper installation guarantees accurate signal conversion and reliable process control.
Compatible System Components
The 170BAM09600 works seamlessly with:
- Schneider PLCs: Modicon M340, M580, Quantum series
- Analog input and output devices (sensors, actuators, control valves)
- Communication adapters: Ethernet, Modbus, Profibus
- Remote I/O expansion racks
- Discrete input/output modules for hybrid control systems
These components create a scalable, reliable analog and digital automation network.
Recommended Alternative Models
| Model Number | Type | Key Feature / Advantage | Application |
|---|---|---|---|
| 170BAM09500 | Analog I/O Module | Standard analog channels | Basic process control |
| 170BAM09700 | High-Density Analog Module | Increased channel count | Large-scale industrial systems |
| 170BAM09800 | Fast Response Analog Module | High-speed signal acquisition | Critical process monitoring |
| 170BAM09900 | Rugged Analog Module | Extended temperature and durability | Harsh industrial environments |
Key Advantages
- Compact and lightweight design for flexible installation
- Accurate analog signal input and output
- Seamless integration with Schneider PLC distributed systems
- Industrial-grade construction for continuous operation
- Scalable for small to large automation networks
Technical FAQs
Q1: How many analog channels does the 170BAM09600 support?
A1: It typically supports 8 analog inputs and 8 analog outputs.
Q2: What types of analog signals are supported?
A2: Supports 0–10 V and 4–20 mA signals.
Q3: Is it compatible with Modicon PLCs?
A3: Yes, it integrates seamlessly with Modicon M340, M580, and Quantum PLC series.
Conclusion
The Schneider 170BAM09600 analog I/O module is a reliable and precise solution for industrial automation systems requiring analog signal control and monitoring. Its compact design, accurate signal handling, and industrial-grade durability make it an essential component for modern PLC-based control networks.
Engineers and system integrators can depend on this module for precise process control, scalable installations, and seamless integration within distributed automation systems.
