Product Overview
Discrete output modules are important components in industrial automation systems because they provide the connection between PLC control programs and external field devices. They allow automation controllers to send switching commands to equipment such as relays, contactors, valves, indicators, and other industrial loads.

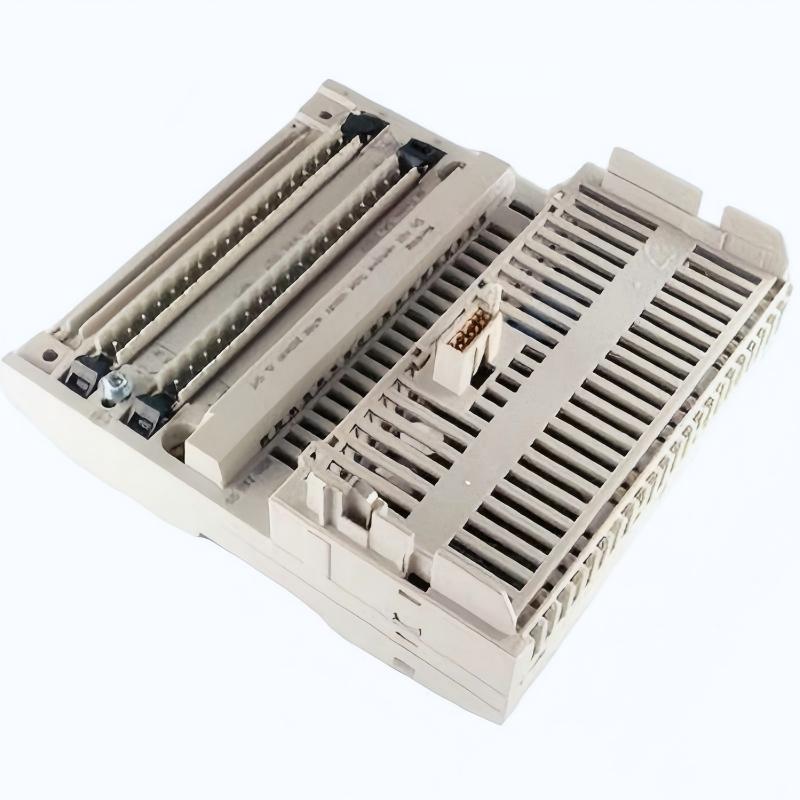

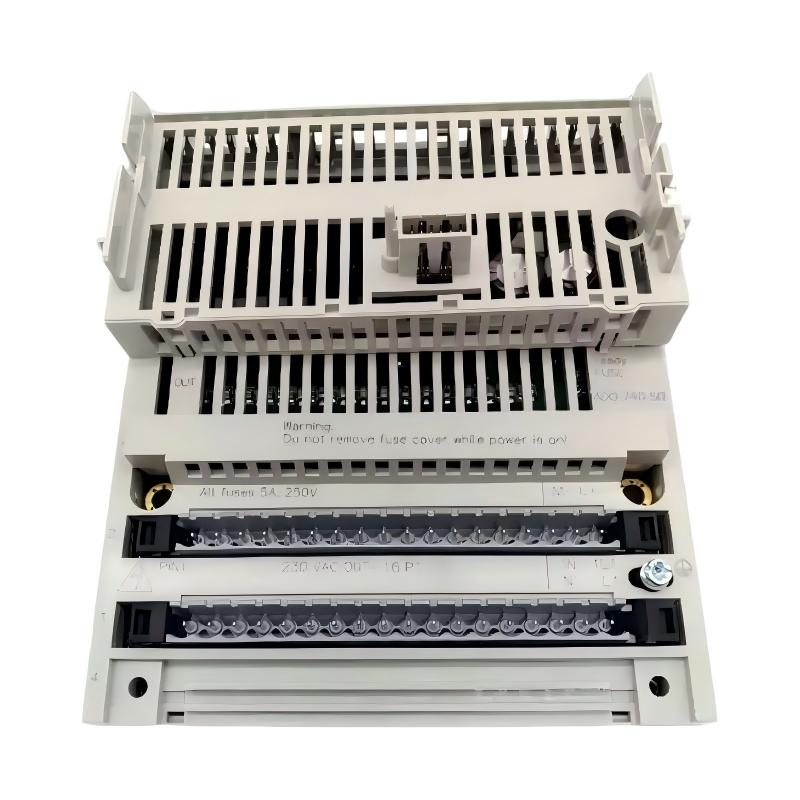

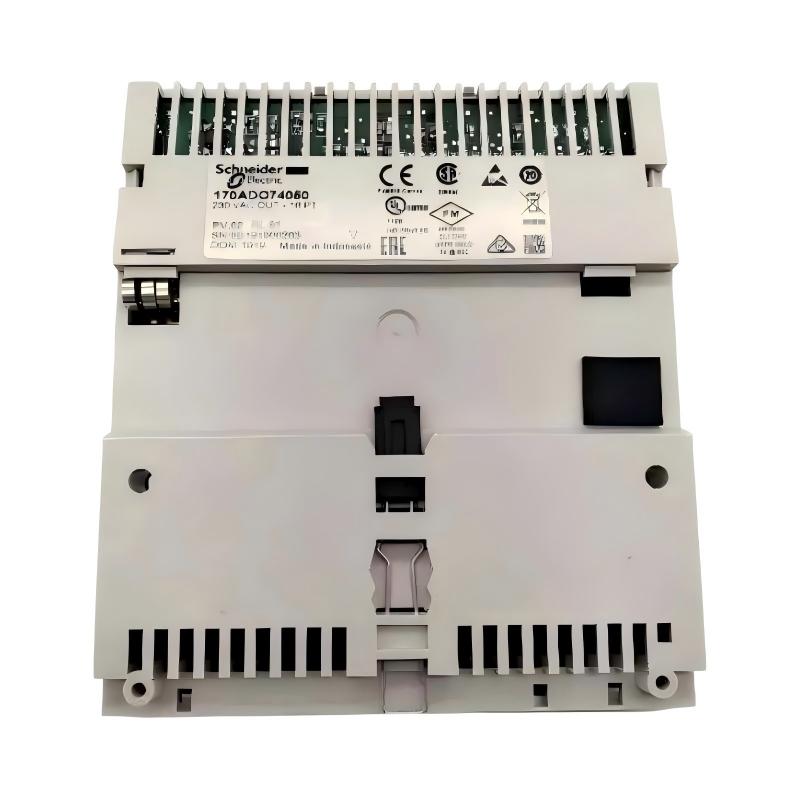

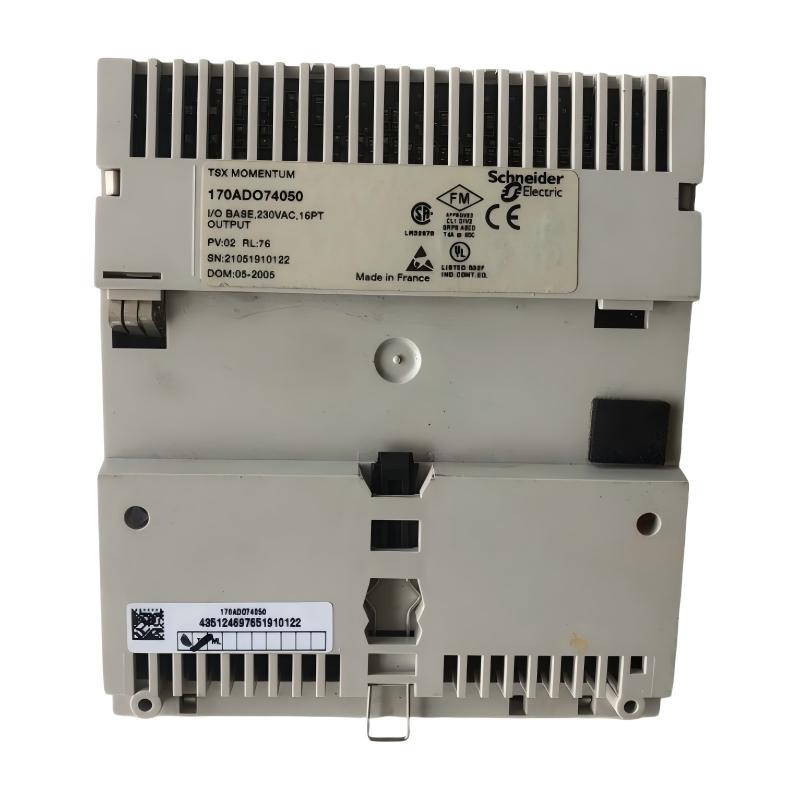

The Schneider 170ADO74050 Discrete Output Module is a digital output module designed for Schneider industrial automation systems. It provides reliable output control functions and enables PLC controllers to operate connected field devices efficiently.
The 170ADO74050 converts digital commands from the controller into electrical output signals, allowing automated equipment to perform predefined operations. It is commonly used in manufacturing systems, machine automation, process control, and distributed I/O applications.
With its compact modular design, reliable switching performance, and flexible installation structure, the Schneider 170ADO74050 provides an effective solution for industrial output control requirements.
Technical Specifications
| Parameter |
Details |
| Manufacturer |
Schneider Electric |
| Model |
170ADO74050 |
| Product Series |
Modicon Momentum |
| Product Type |
Discrete Output Module |
| Output Type |
Digital Output |
| Output Channels |
16 Channels |
| Signal Type |
Discrete Switching Signal |
| Dimensions |
141.5 × 125 × 47.5 mm |
| Weight |
0.284 kg |
| Installation Type |
Modular I/O Installation |
| Application |
Industrial automation control |
Function and Working Principle
The Schneider 170ADO74050 Discrete Output Module receives control commands from a PLC processor and converts them into electrical signals to operate external devices.
In an automation system, the PLC CPU executes the control program and determines the required output status. The output module then transfers these commands to connected equipment.
The basic control process is:
PLC Controller → 170ADO74050 Output Module → Industrial Field Devices
The operating sequence includes:
- PLC processor executes programmed logic
- Output data is transmitted to the module
- The module processes digital output commands
- Connected devices receive switching signals
- Equipment performs the required operation
This allows automated systems to achieve accurate and repeatable control.
Role in Industrial Automation Systems
The Schneider 170ADO74050 plays a key role in industrial control architectures by providing the interface between PLC logic and physical equipment.
In many automation applications, controllers generate digital commands that need to activate or deactivate external devices. The output module provides the necessary connection between the control system and field equipment.
The module is commonly used in:
- Manufacturing automation systems
- Machine control applications
- Packaging equipment
- Process control systems
- Industrial production lines
- Equipment monitoring systems
Typical system structure:
PLC Processor → Output Module → Actuator → Industrial Equipment
The module ensures reliable transfer of control commands throughout the automation system.
Output Control Functions
Digital Signal Switching
The primary function of the 170ADO74050 is providing digital output control.
It enables PLC systems to control:
- Motor contactors
- Solenoid valves
- Alarm devices
- Indicator lamps
- Relay circuits
- Machine control elements
Reliable switching improves equipment operation efficiency.
Multi-Channel Output Management
The module provides multiple output channels, allowing several field devices to be controlled within one automation station.
Advantages include:
- Reduced hardware requirements
- Simplified control cabinet design
- Flexible equipment connection
- Improved system organization
Multiple output points make it suitable for complex automation applications.
Field Device Control
The 170ADO74050 creates a communication bridge between PLC software logic and physical equipment.
Typical connected devices include:
- Actuators
- Contactors
- Control relays
- Industrial valves
- Signal indicators
This enables automated operation according to programmed sequences.
Industrial Applications
Manufacturing Automation
The Schneider 170ADO74050 is widely used in:
- Assembly lines
- Packaging machines
- Production equipment
- Material handling systems
It provides stable output control for continuous industrial operations.
Machine Control Systems
Typical applications include:
- Automated machinery
- Conveyor systems
- Inspection equipment
- Processing machines
The module allows precise control of machine functions.
Process Automation
The module can be applied in:
- Water treatment systems
- Energy facilities
- Industrial processing equipment
- Factory monitoring systems
Reliable digital output control helps maintain stable process operation.
Industrial Control Cabinets
The 170ADO74050 is commonly installed in:
- PLC control panels
- Electrical cabinets
- Distributed I/O stations
- Automation equipment
Its compact structure supports efficient system integration.
Installation Guide
Proper installation ensures reliable operation of the Schneider 170ADO74050.
Recommended installation steps:
- Install the module into the correct automation system position
- Connect output wiring to field devices
- Verify electrical connections
- Configure PLC output parameters
- Test output operation
During commissioning, engineers should check:
- Module recognition
- Output status indicators
- Field device response
- Wiring correctness
- Control program operation
Incorrect installation may result in:
- Output failure
- Equipment malfunction
- Incorrect switching actions
- System downtime
Compatible System Components
| Component |
Function |
| PLC Processor |
Executes automation programs |
| Power Supply Module |
Provides system power |
| Communication Module |
Enables network connection |
| Input Module |
Collects field signals |
| Output Devices |
Perform industrial actions |
| Programming Software |
Configures control logic |
These components work together to build a complete industrial automation system.
Common Failure Symptoms
| Fault Symptom |
Possible Cause |
| Output channel inactive |
Wiring problem or module fault |
| Device does not respond |
Output signal failure |
| Incorrect switching operation |
Program configuration issue |
| Multiple outputs unavailable |
Power supply problem |
| Intermittent operation |
Loose connection or system fault |
Maintenance Recommendations
To maintain reliable operation of the Schneider 170ADO74050:
- Inspect output wiring regularly
- Check terminal connections
- Monitor module status indicators
- Verify PLC program settings
- Keep electrical cabinets clean
- Check connected equipment condition
Regular maintenance helps improve system reliability and reduce unexpected failures.
Recommended Related Models
| Model |
Type |
Application |
| Schneider 170ADO74050 |
Discrete Output Module |
Digital equipment control |
| Schneider 170ADI74050 |
Discrete Input Module |
Digital signal monitoring |
| Schneider 170AAO92100 |
Analog Output Module |
Analog equipment control |
| Schneider 170AMM09000 |
Mixed I/O Module |
Combined signal applications |
Key Advantages
- Reliable digital output control
- Designed for industrial automation applications
- Supports multiple field devices
- Compact modular design
- Easy system integration
- Suitable for continuous industrial operation
- Improves PLC control flexibility
Technical FAQs
What is Schneider 170ADO74050 used for?
The Schneider 170ADO74050 is a discrete output module used to send digital control signals from PLC systems to industrial field devices.
What devices can the 170ADO74050 control?
It can control devices such as relays, contactors, valves, indicators, and other industrial switching equipment.
Which automation systems use the 170ADO74050?
The module is commonly used in Schneider Modicon Momentum automation systems.
Why are discrete output modules important?
Discrete output modules provide the connection between PLC control logic and physical equipment, enabling automated switching operations.
Conclusion
The Schneider 170ADO74050 Discrete Output Module is a reliable industrial automation component designed to provide efficient digital output control.
With multi-channel output capability, compact installation design, and dependable switching performance, it helps connect PLC systems with industrial equipment and improve automation efficiency.
For automation engineers, system integrators, and maintenance professionals, the Schneider 170ADO74050 provides a practical solution for machine control, process automation, and long-term industrial system operation.
