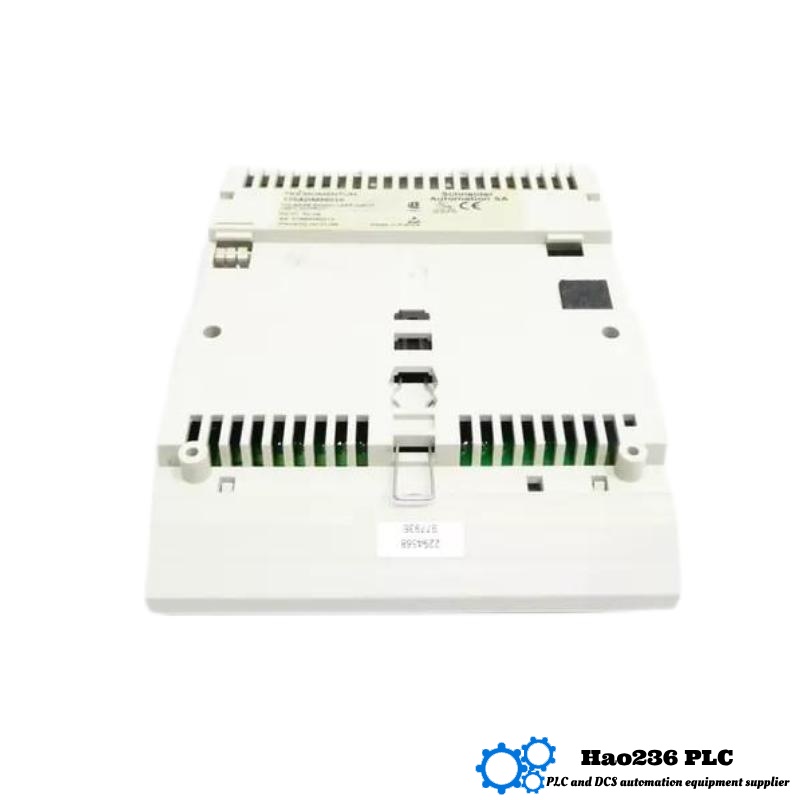

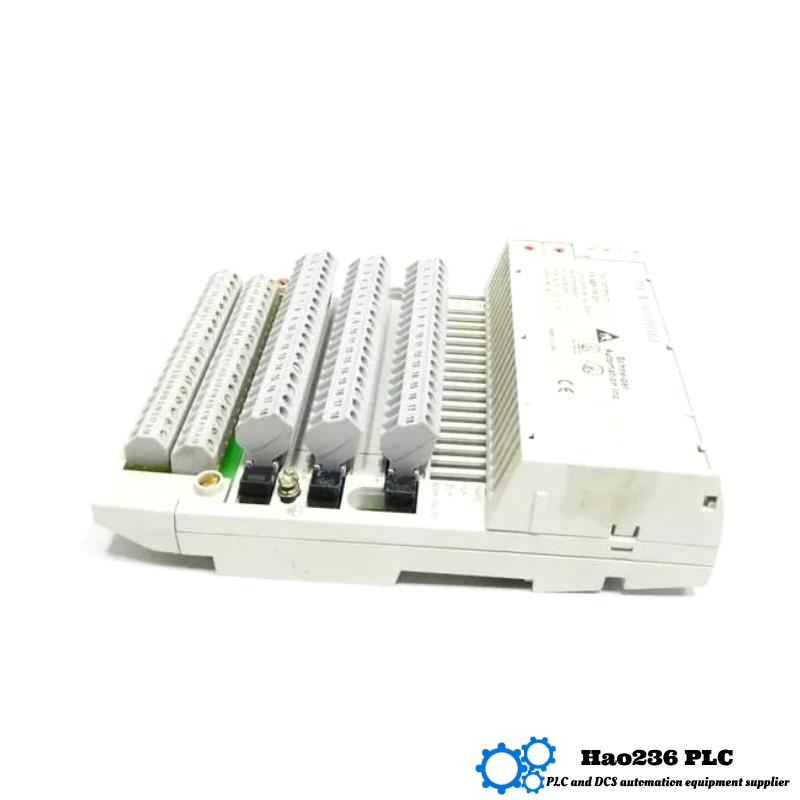

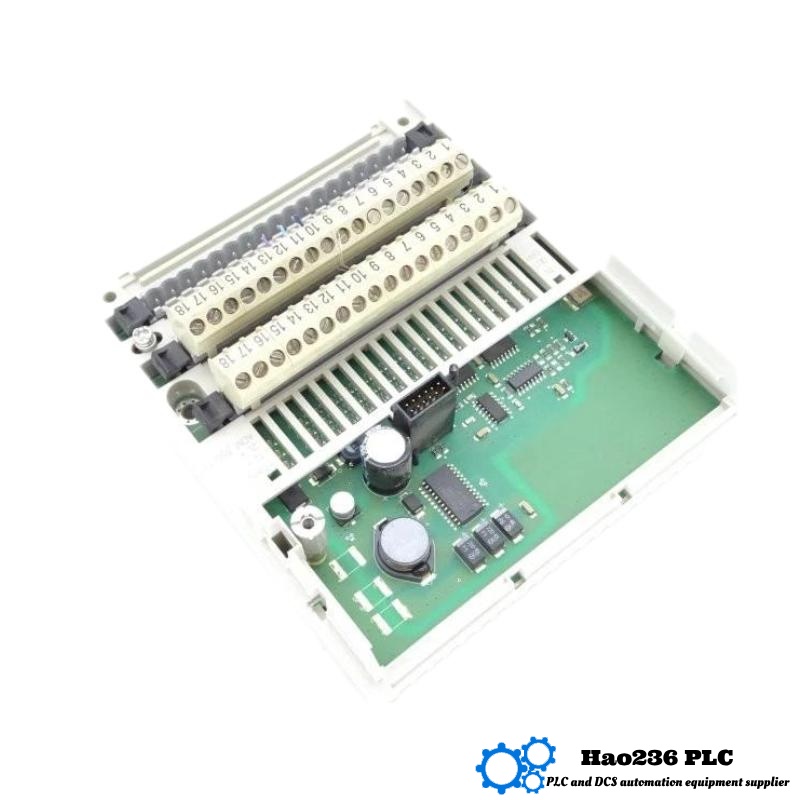

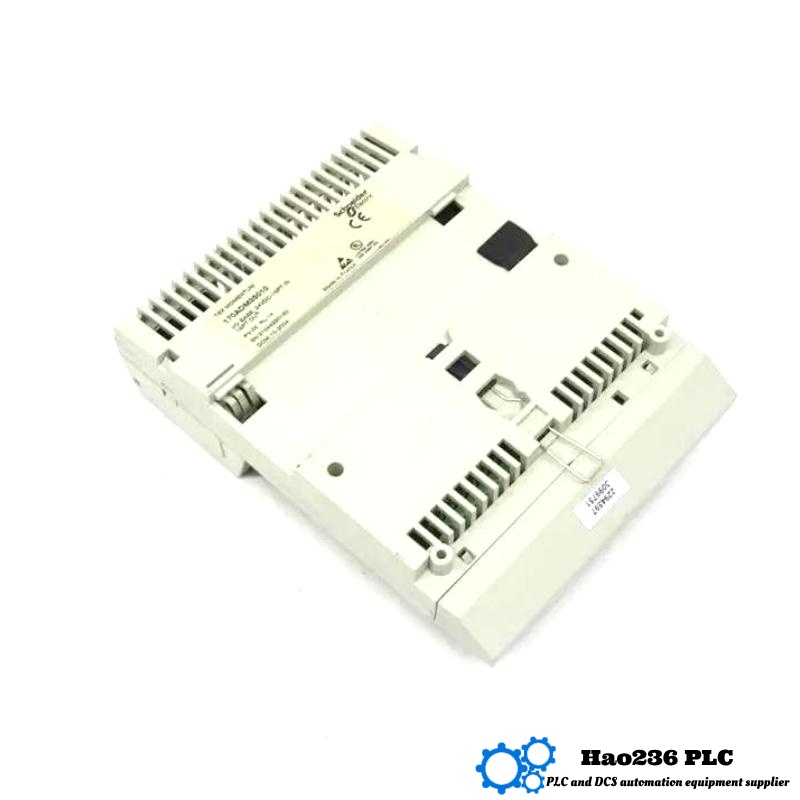

Schneider 170ADM35010 Discrete I/O Module
Product Introduction
The Schneider 170ADM35010 is a high-performance Discrete I/O Module designed to work within the Modicon Momentum series. It plays a crucial role in industrial automation systems by facilitating the connection of various digital devices to control systems. The module efficiently handles discrete inputs and outputs, allowing seamless integration with sensors, actuators, switches, and other digital devices in an automation setup.
The 170ADM35010 module is specifically designed to offer reliability, flexibility, and ease of integration. It ensures high operational performance in demanding industrial environments. With the Modicon Momentum series being renowned for its modularity, scalability, and robust performance, this module provides the perfect interface for control systems, ensuring operational efficiency in a variety of applications.
The module is fully compatible with Schneider Electric’s Modicon Momentum controllers, offering a comprehensive solution for controlling digital devices across various industries. This ensures reliable operation, even under challenging conditions.
Product Parameters
| Parameter | Details |
|---|---|
| Model | 170ADM35010 |
| Type | Discrete I/O Module |
| Dimensions (mm) | 47.5 × 125 × 141.5 |
| Weight (kg) | 0.2 |
| Number of Inputs | 8 Discrete Inputs |
| Number of Outputs | 8 Discrete Outputs |
| Input Type | Dry Contact, 24V DC |
| Output Type | Relay, 24V DC |
| Voltage Input Range | 24V DC |
| Current Input Range | 10mA to 20mA |
| Power Supply | 24V DC |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting Type | DIN Rail Mountable |
| Communication Protocol | Modbus |
| Material | Plastic, Metal |
Applications
The 170ADM35010 Discrete I/O Module is versatile and can be used in various industrial applications where reliable management of discrete signals is required. It is particularly useful in systems that need to connect to sensors, switches, or actuators for process control, safety systems, and automation tasks.
-
Manufacturing Automation: Ideal for use in production lines and automated machinery where discrete signals such as switches and sensors need to be monitored and controlled.
-
Process Control: Essential for industries such as chemical processing, food and beverage, and pharmaceuticals where the monitoring of on/off switches or emergency stops is necessary to maintain system integrity.
-
Building Automation: Used in control systems for lighting, HVAC, and security where the input/output devices operate on discrete signals.
-
Energy Management: Perfect for energy monitoring systems, where it connects to meters, switches, and other control devices for seamless energy data collection.
-
Water and Wastewater Management: Key for monitoring systems such as water pumps, valves, and other control devices, ensuring optimal operation and performance.
Advantages
-
High Reliability: The 170ADM35010 is built for high reliability in demanding industrial environments. It provides stable and continuous operation for systems that require the management of discrete inputs and outputs.
-
Modular and Flexible Design: As part of the Modicon Momentum series, the module offers scalability and can be easily integrated into existing automation setups, expanding the functionality of a control system as needed.
-
Compact Form Factor: With dimensions of 47.5 × 125 × 141.5 mm and a weight of 0.2 kg, the module is compact and easy to install, making it suitable for applications with limited space.
-
Easy Integration with Other Schneider Products: The module uses Modbus communication, allowing easy integration with other Schneider Electric automation systems and controllers for seamless operation.
-
Energy Efficient: Operating on a 24V DC power supply, the module is energy-efficient, helping to reduce operational costs in long-term automation processes.
-
Rugged Construction: Designed to withstand temperature variations and humidity, this module is ideal for harsh environments where industrial conditions could impact performance.
-
Reliable Communication: The use of Modbus ensures compatibility with various Schneider Electric PLCs and other automation systems, enhancing communication between devices for smooth control.
Brand Overview
Schneider Electric is a leading global provider of energy management and automation solutions. With a commitment to sustainability and innovation, Schneider Electric offers a broad portfolio of products designed to optimize energy use and improve operational efficiency across industries. The Modicon Momentum series is part of Schneider’s extensive range of modular, reliable, and scalable automation solutions that offer exceptional flexibility and performance for a wide variety of industrial applications.
Product Series
The 170ADM35010 module belongs to the Modicon Momentum series, a family of modular and scalable programmable automation controllers (PACs) designed for easy integration and reliability in various industrial environments. This series is particularly known for its flexibility and ability to expand as automation needs grow, offering both discrete and analog I/O modules to meet diverse application requirements.
Related Models (Same Series or Related)
| Model | Type | Dimensions (mm) | Weight (kg) | Channels | Input/Output Type |
|---|---|---|---|---|---|
| 170ADM35020 | Discrete I/O Module | 47.5 × 125 × 141.5 | 0.2 | 8 Inputs / 8 Outputs | 24V DC, Relay |
| 170ADM35100 | Discrete I/O Module | 47.5 × 125 × 141.5 | 0.2 | 16 Inputs / 16 Outputs | 24V DC, Dry Contact |
| 170ADA34100 | Analog I/O Module | 47.5 × 125 × 141.5 | 0.2 | 8 Inputs / 8 Outputs | 0-10V, 4-20mA |
| 170AMM320 | Modem Communication Module | 47.5 × 125 × 141.5 | 0.2 | N/A | N/A |
| 170ACO350 | Communication Module | 47.5 × 125 × 141.5 | 0.2 | N/A | N/A |
Popular Schneider Models
| Model | Type | Dimensions (mm) | Weight (kg) | Compatibility |
|---|---|---|---|---|
| 140DRA84000 | Discrete Input Module | 100 × 120 × 45 | 0.3 | Modicon Quantum |
| 170ENT110 | Ethernet Communication Module | 80 × 130 × 55 | 0.2 | Modicon Momentum |
| 140CPU67160 | CPU Module | 130 × 125 × 60 | 0.6 | Modicon Premium |
| 140DOI85300 | Digital Output Module | 100 × 120 × 45 | 0.35 | Modicon Quantum |
| 170MDO120 | Digital Output Module | 90 × 125 × 80 | 0.45 | Modicon Momentum |
FAQ (Frequently Asked Questions)
-
Q: How many inputs and outputs does the 170ADM35010 module have?
-
A: The 170ADM35010 module has 8 discrete inputs and 8 discrete outputs.
-
-
Q: What is the input type supported by the 170ADM35010?
-
A: The module supports dry contact inputs with a 24V DC voltage range.
-
-
Q: What is the output type for the 170ADM35010 module?
-
A: The module has relay outputs, with a 24V DC rating.
-
-
Q: What is the power supply requirement for the 170ADM35010?
-
A: The 170ADM35010 operates with a 24V DC power supply.
-
-
Q: What is the communication protocol used by the 170ADM35010 module?
-
A: The module uses the Modbus communication protocol for integration with other devices.
-
-
Q: What is the operating temperature range of the 170ADM35010?
-
A: The module can operate within a temperature range of 0°C to 60°C.
-
-
Q: How is the 170ADM35010 mounted?
-
A: It is designed for DIN rail mounting, which simplifies installation.
-
-
Q: Is the 170ADM35010 module compatible with other Schneider Electric systems?
-
A: Yes, it is fully compatible with other Modicon Momentum series devices.
-
-
Q: What is the weight of the 170ADM35010 module?
-
A: The 170ADM35010 weighs 0.2 kg.
-
-
Q: What are the dimensions of the 170ADM35010 module?
-
A: The module measures 47.5 × 125 × 141.5 mm.
-
