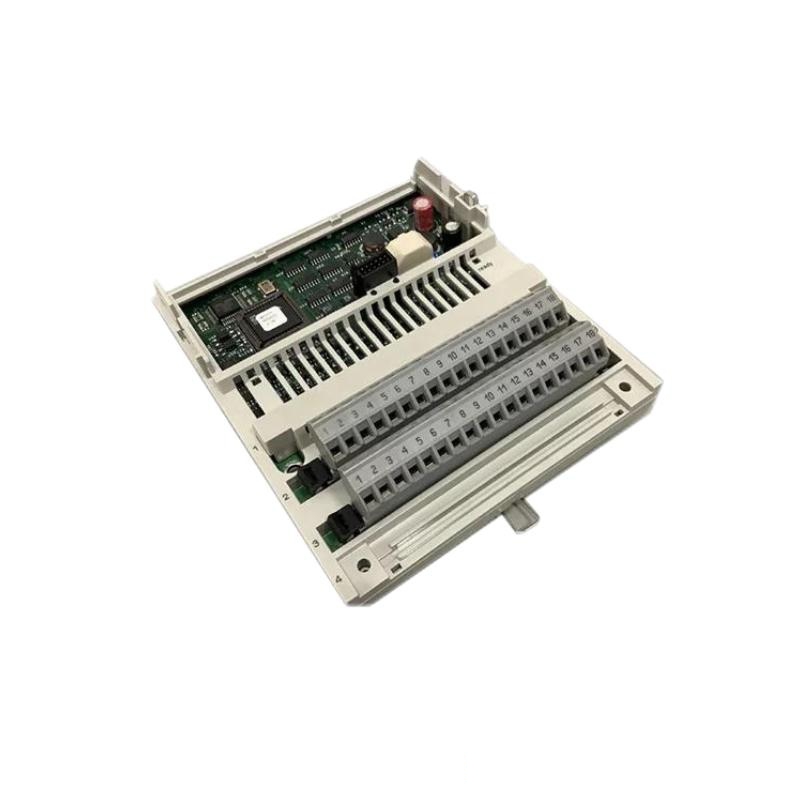

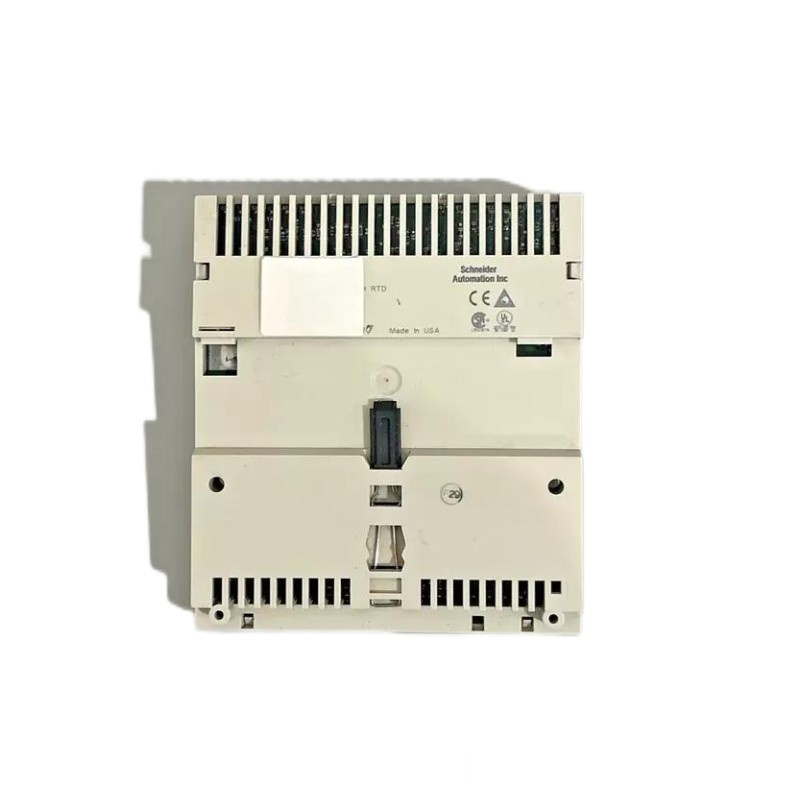

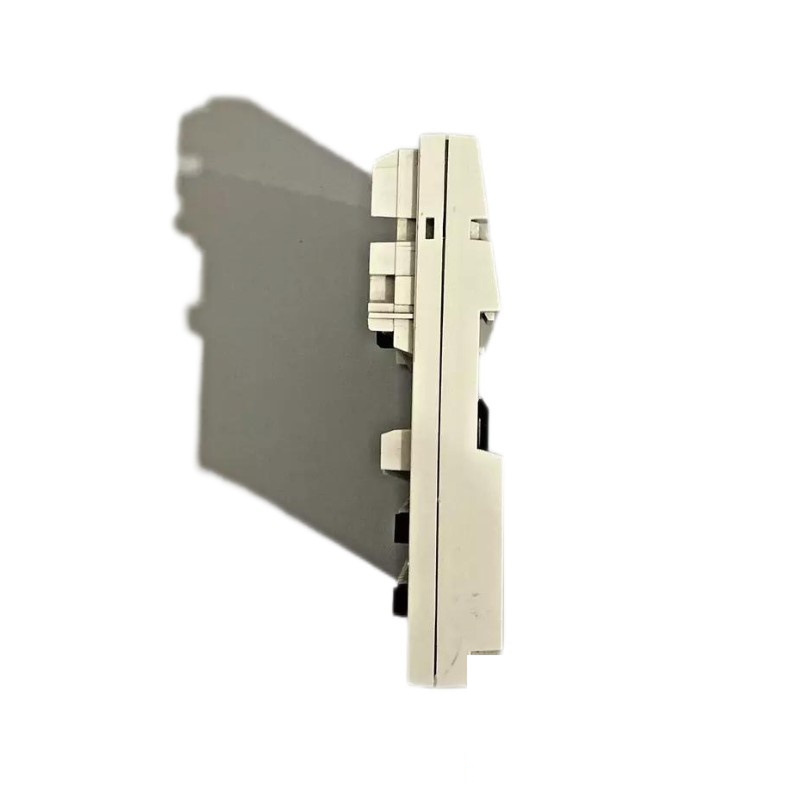

Schneider 170AAI52040 Distributed Analog Input Base
Product Introduction
The Schneider 170AAI52040 is a distributed analog input base designed for use within the Modicon Momentum series of programmable automation controllers (PAC). This module is engineered to provide flexible and efficient handling of analog input signals in industrial automation systems. It offers seamless integration with the Modicon Momentum PLC system, ensuring that it meets the high demands of real-time process control, data acquisition, and automated monitoring systems.
The 170AAI52040 allows for precise analog data collection from a variety of industrial sensors, enabling the control system to adjust operational parameters based on real-time inputs. This capability is crucial for systems that require continuous monitoring of temperature, pressure, flow, and other variables, making the module ideal for applications in sectors such as manufacturing, energy, and process control.
With a compact and robust design, the 170AAI52040 supports high accuracy and reliable performance, even in challenging industrial environments. It is designed to fit seamlessly into the Modicon Momentum series, enhancing its scalability and flexibility in managing analog inputs.
Product Parameters
| Parameter | Details |
|---|---|
| Model | 170AAI52040 |
| Type | Distributed Analog Input Base |
| Dimensions (mm) | 47.5 × 125 × 141.5 |
| Weight (kg) | 0.215 |
| Number of Channels | 8 (Analog Input Channels) |
| Input Signal Type | Voltage (0-10V, 4-20mA) |
| Input Range | 0-10V, 4-20mA |
| Accuracy | ±0.1% FS |
| Sampling Rate | 10 ms per channel |
| Power Supply | 24V DC |
| Mounting Type | DIN Rail Mountable |
| Temperature Range | 0°C to 60°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Material | Plastic, Metal |
| Communication Protocol | Modbus |
Applications
The Schneider 170AAI52040 distributed analog input base is widely used across multiple industrial sectors. It is designed to handle the analog inputs necessary for a wide variety of applications, making it suitable for systems that require precise and continuous data acquisition.
-
Manufacturing Automation: This module is ideal for systems that control and monitor manufacturing processes, including temperature, humidity, and pressure sensors used in industrial machinery and production lines.
-
Energy Management: The 170AAI52040 is used to collect data from energy meters, flow meters, and environmental sensors in energy generation and distribution systems, enabling real-time monitoring and control.
-
Process Control: In chemical, pharmaceutical, and food processing industries, this module facilitates the monitoring and control of variables such as pH levels, temperature, and pressure in automated processes.
-
Building Automation: The module can be integrated into systems for HVAC, lighting control, and environmental monitoring, improving the overall efficiency and management of building systems.
-
Water Treatment: Used for monitoring the levels of chemicals and other variables in water treatment plants, ensuring proper treatment processes are followed.
Product Advantages
-
High Accuracy: The 170AAI52040 offers high-precision analog signal processing, ensuring that measurements are accurate within ±0.1% of full scale.
-
Scalability: The module is part of the Modicon Momentum series, which allows for flexible system expansion. Additional modules can be integrated easily to handle more analog inputs as required.
-
Compact Design: Its small footprint makes it easy to integrate into existing control panels, saving valuable space in automation systems.
-
Robust Performance: The module is built to withstand challenging industrial environments, with wide operating temperature and humidity ranges.
-
Easy Integration: The Modbus communication protocol ensures seamless integration with other Schneider PLCs and control systems, reducing installation complexity.
-
Cost-Efficient: It provides a reliable and low-cost solution for expanding the analog input capabilities of a Modicon Momentum PLC system.
Brand Overview
Schneider Electric is a global leader in energy management and automation, offering integrated solutions across various industries, including power management, industrial automation, and building technologies. The company is known for providing cutting-edge technology and sustainable solutions that drive operational efficiency and energy savings. Schneider’s Modicon Momentum series represents the company’s commitment to offering flexible, scalable, and high-performance automation solutions for diverse industrial applications.
Product Series
The 170AAI52040 is part of the Modicon Momentum series, which is a highly modular and flexible family of programmable controllers designed for use in small to medium-sized automation systems. The Momentum series integrates seamlessly with other Schneider Electric automation and control products, allowing users to easily expand and customize their systems.
Related Models (Same Series or Related)
| Model | Type | Dimensions (mm) | Weight (kg) | Input Range | Channels |
|---|---|---|---|---|---|
| 170AAI52030 | Distributed Analog Input Base | 47.5 × 125 × 141.5 | 0.215 | 0-10V, 4-20mA | 8 |
| 170AAI53040 | Distributed Analog Input Base | 47.5 × 125 × 141.5 | 0.215 | 0-5V, 4-20mA | 8 |
| 170AMM350 | Analog Modem Module | 47.5 × 125 × 141.5 | 0.215 | N/A | N/A |
| 170ADI350 | Analog Digital Input Module | 47.5 × 125 × 141.5 | 0.215 | 0-10V, 4-20mA | 16 |
| 170ACN310 | Communication Network Module | 47.5 × 125 × 141.5 | 0.215 | N/A | N/A |
Popular Schneider Models
| Model | Type | Dimensions (mm) | Weight (kg) | Compatibility |
|---|---|---|---|---|
| 140CRA93100 | Analog Input Module | 100 × 120 × 45 | 0.3 | Modicon Quantum |
| 170ENT110 | Ethernet Communication Module | 80 × 130 × 55 | 0.2 | Modicon Momentum |
| 140CPU67160 | CPU Module | 130 × 125 × 60 | 0.6 | Modicon Premium |
| 140DOI85300 | Digital Output Module | 100 × 120 × 45 | 0.35 | Modicon Quantum |
| 170MDO120 | Digital Output Module | 90 × 125 × 80 | 0.45 | Modicon Momentum |
FAQ (Frequently Asked Questions)
-
Q: How many analog input channels does the 170AAI52040 have?
-
A: The 170AAI52040 has 8 analog input channels.
-
-
Q: What input signal types are supported by the 170AAI52040?
-
A: It supports voltage signals (0-10V) and current signals (4-20mA).
-
-
Q: What is the accuracy of the analog inputs on the 170AAI52040?
-
A: The accuracy is ±0.1% of full scale.
-
-
Q: What is the typical sampling rate for this module?
-
A: The module has a sampling rate of 10 milliseconds per channel.
-
-
Q: What is the power supply requirement for the 170AAI52040?
-
A: The 170AAI52040 requires a 24V DC power supply.
-
-
Q: What is the operating temperature range for this module?
-
A: It operates within a temperature range of 0°C to 60°C.
-
-
Q: How is the 170AAI52040 mounted?
-
A: It is designed to be mounted on a DIN rail.
-
-
Q: What communication protocol does the 170AAI52040 use?
-
A: The module uses the Modbus communication protocol.
-
-
Q: Is this module compatible with other Schneider Electric automation systems?
-
A: Yes, it is designed to integrate seamlessly with other Modicon Momentum PLCs and Schneider Electric systems.
-
-
Q: What is the weight of the 170AAI52040 module?
-
A: The weight of the 170AAI52040 is 0.215 kg.
-
