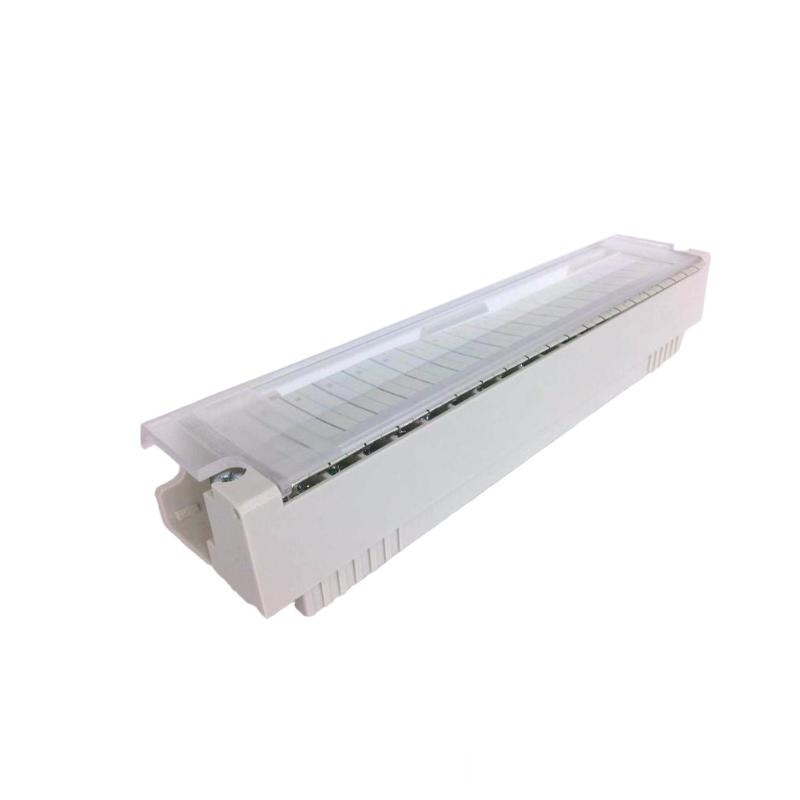

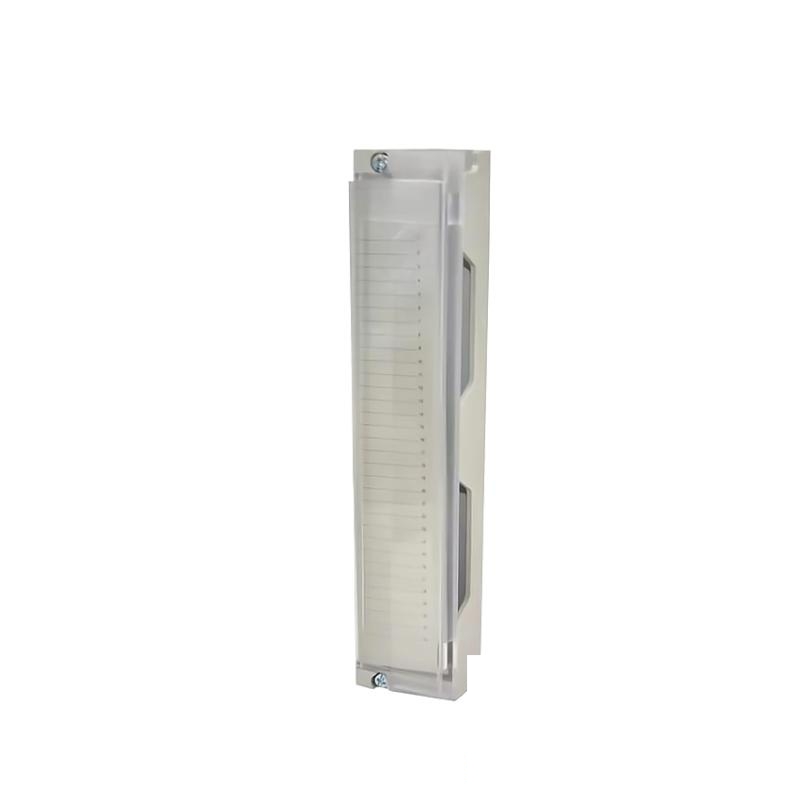

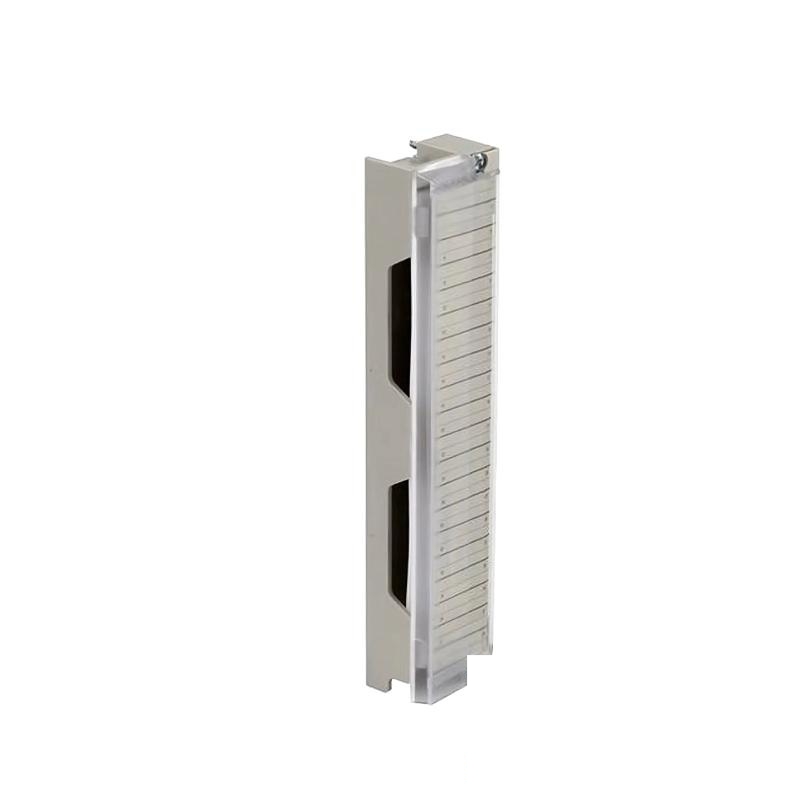

Schneider 140XTS00100 Terminal Block
Product Introduction
The Schneider 140XTS00100 is a terminal block used in various industrial and automation systems. It serves as a reliable and effective means of connecting wires to devices in control panels, offering both safety and efficiency in electrical connections. This product is designed for use with Schneider Electric’s Modicon PLCs and can be applied in a wide range of applications, from industrial automation to energy management.
The 140XTS00100 terminal block is engineered to handle high-current connections while providing robust electrical isolation and ease of use. The modular nature of the terminal block allows for flexible configuration, ensuring a secure connection for both input and output signals.
Product Specifications
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 50 x 250 x 50 mm |
| Weight | 0.159 kg |
| Material | Polycarbonate and Copper |
| Electrical Rating | 100A Max |
| Operating Temperature | -20°C to 60°C |
| Mounting Type | DIN Rail |
| Connection Type | Screw Clamp |
| Color | Grey |
| Environmental Rating | IP20 |
Product Applications
The 140XTS00100 terminal block is commonly used in various industrial and automation applications. Here are a few examples:
-
Industrial Automation: It provides safe and reliable connections between control devices, such as PLCs, sensors, and actuators, ensuring seamless communication within industrial control systems.
-
Energy Management Systems: Used in energy systems to manage electrical connections for power distribution, monitoring, and control.
-
Manufacturing: The terminal block is used to connect different components in manufacturing lines, ensuring proper communication between machines and controllers.
-
Building Automation: Facilitates the connection of electrical systems within smart buildings, including lighting, heating, ventilation, and air conditioning (HVAC) systems.
-
Water Treatment Facilities: Common in systems that need robust electrical connections for motors, sensors, and control systems, ensuring operational efficiency and safety.
Product Advantages
-
High Current Rating: With a 100A max electrical rating, the 140XTS00100 terminal block is suitable for high-power applications.
-
Durability and Safety: Made from high-quality materials like polycarbonate and copper, the terminal block ensures long-term durability and secure connections.
-
Flexible Configuration: The modular design allows for easy addition or removal of components, providing flexibility for diverse applications.
-
IP20 Protection: The terminal block is designed to withstand industrial environments, offering IP20 protection against dust and debris, making it reliable for harsh conditions.
-
Easy Installation: The DIN rail mounting system ensures straightforward installation, reducing time spent on setup.
-
Wide Temperature Range: It operates within a -20°C to 60°C temperature range, making it versatile for different environmental conditions.
-
Screw Clamp Mechanism: The screw clamp connection method ensures a firm and secure electrical connection, reducing the risk of loose connections or failures.
Brand and Series
-
Brand: Schneider Electric
-
Series: Modicon Quantum
Recommended Models in the Same Series
| Model | Description | Weight | Dimensions (L x W x H) | Electrical Rating |
|---|---|---|---|---|
| 140XTS00200 | Terminal block with 200A rating | 0.2 kg | 50 x 250 x 50 mm | 200A Max |
| 140XTS00300 | Terminal block with 300A rating | 0.3 kg | 50 x 250 x 50 mm | 300A Max |
| 140XTS00400 | Terminal block with 400A rating | 0.4 kg | 50 x 250 x 50 mm | 400A Max |
| 140XTS00500 | Terminal block with 500A rating | 0.5 kg | 50 x 250 x 50 mm | 500A Max |
| 140XTS01000 | Terminal block with 1000A rating | 1.0 kg | 50 x 250 x 50 mm | 1000A Max |
Popular Schneider Electric Models
| Model | Description | Weight | Dimensions (L x W x H) | Application |
|---|---|---|---|---|
| 140CPU67160 | Modicon M340 Processor for industrial control | 0.6 kg | 150 x 150 x 50 mm | Central Processor |
| 140CRA31200 | Modicon M340 Analog Input Module | 0.4 kg | 75 x 120 x 50 mm | Analog Input |
| 140AIF71100 | Modicon M340 Analog Input/Output Module | 0.45 kg | 100 x 130 x 60 mm | Input/Output Control |
| 140CPS11400 | Power Supply for Modicon M340 PLC | 0.5 kg | 90 x 120 x 70 mm | Power Supply |
| 140DID32000 | Modicon M340 Digital Input Module | 0.3 kg | 90 x 120 x 50 mm | Digital Input |
Frequently Asked Questions (FAQ)
-
Q: What is the electrical rating of the Schneider 140XTS00100 terminal block?
A: The terminal block has a 100A max electrical rating. -
Q: What is the weight of the 140XTS00100 terminal block?
A: The terminal block weighs 0.159 kg. -
Q: What is the mounting method for the 140XTS00100 terminal block?
A: The terminal block uses DIN rail mounting for easy installation. -
Q: What is the operating temperature range for the 140XTS00100 terminal block?
A: The terminal block operates within a temperature range of -20°C to 60°C. -
Q: What material is the 140XTS00100 terminal block made from?
A: The terminal block is made from polycarbonate for the casing and copper for the connections. -
Q: Can the 140XTS00100 terminal block handle high current applications?
A: Yes, it is rated for a 100A max current, making it suitable for high-power applications. -
Q: What type of electrical connection does the 140XTS00100 use?
A: The terminal block uses a screw clamp connection method for secure wiring. -
Q: What is the environmental rating of the 140XTS00100 terminal block?
A: The terminal block has an IP20 rating, offering protection against dust and solid objects larger than 12 mm. -
Q: Is the 140XTS00100 terminal block compatible with other Schneider Electric products?
A: Yes, it is compatible with Schneider Electric’s Modicon PLC systems and related components. -
Q: How does the 140XTS00100 terminal block contribute to system reliability?
A: The robust materials, high current rating, and secure mounting ensure reliable and stable electrical connections in demanding industrial environments.
