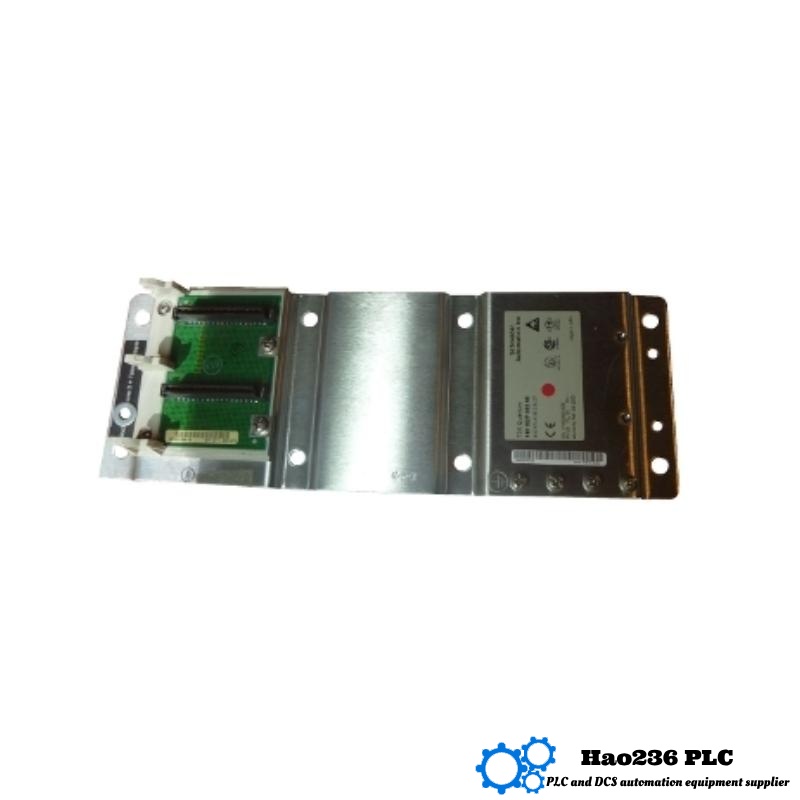

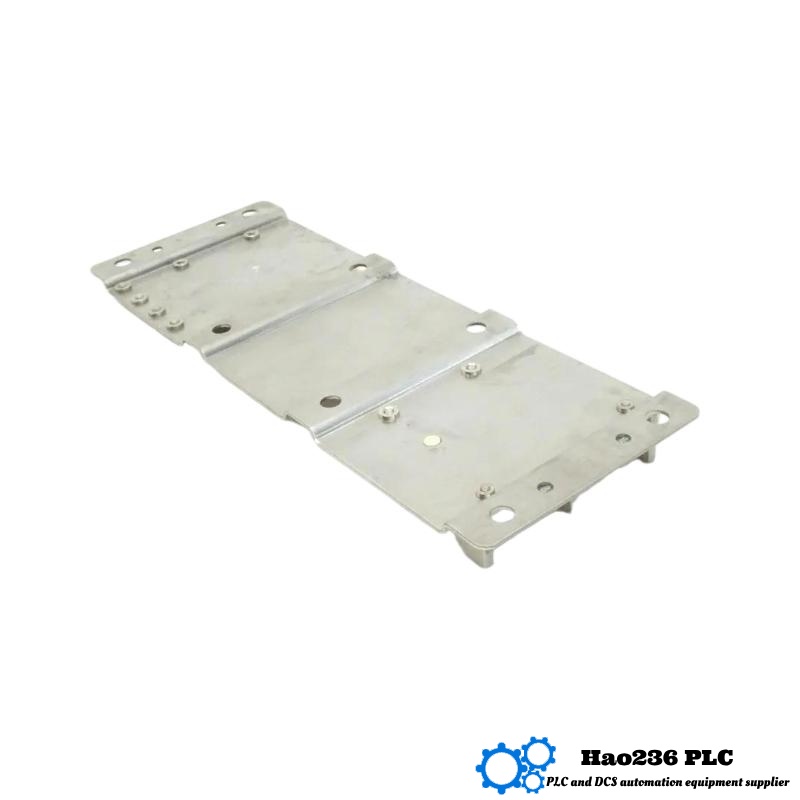

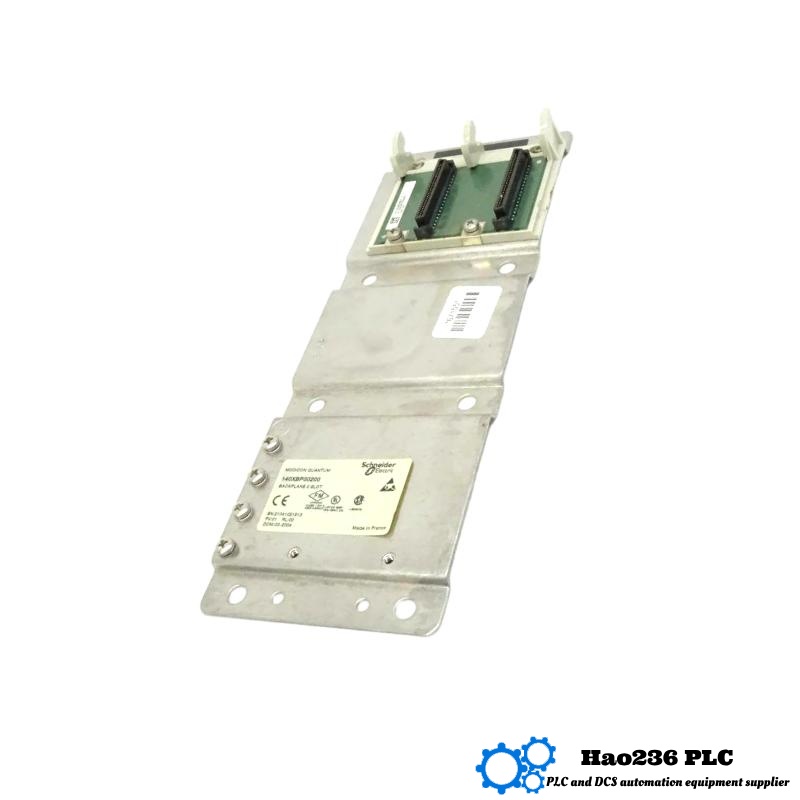

Schneider 140XBP00200 2-Slot Rack Backplane – Modicon Quantum Series
Product Overview
The Schneider 140XBP00200 is a 2-slot backplane designed for use in Modicon Quantum PLC systems, which allows for the modular expansion of industrial automation control architectures. As a crucial component of the Modicon Quantum series, the 140XBP00200 supports seamless integration of I/O modules and communication processors, providing the necessary framework for constructing reliable and scalable control systems.
This 2-slot rack is ideal for smaller, modular setups where space constraints are present or when a cost-effective solution for controlling fewer devices is needed. It provides stable data communication and power distribution to connected modules, ensuring smooth operation in a range of industrial environments.
With its compact dimensions and weight of 0.23 kg, the 140XBP00200 is designed for easy installation in control panels and industrial control systems, making it a versatile choice for various automation applications.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | 140XBP00200 |
| Product Type | 2-Slot Rack Backplane |
| Series | Modicon Quantum Series |
| Dimensions | 215 x 120 x 30 mm |
| Weight | 0.23 kg |
| Slot Configuration | 2 slots |
| Mounting Type | Rack-mounted |
| Backplane Bus Type | Quantum Local Bus |
| Power Distribution | Distributes power to connected modules |
| Supported Modules | I/O modules, Communication processors |
| Operating Temperature | 0°C to 60°C |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA |
Product Description
The Schneider 140XBP00200 2-slot backplane is part of the Modicon Quantum series and is designed to provide reliable power distribution and communication between Modicon Quantum I/O modules and other associated components in the automation system. This backplane connects the system’s modules to the local bus and handles the communication across the entire setup, ensuring real-time data transmission and processing.
Its 2-slot configuration makes it ideal for systems that do not require a large number of modules but still need a reliable and scalable platform. The 140XBP00200 supports all necessary Modicon Quantum I/O modules and communication processors, providing an efficient, centralized platform for system control.
The rack mounting design makes the installation process simple, and the compact size (215 x 120 x 30 mm) allows it to fit into standard control panels or enclosures with minimal space consumption. Additionally, the 0.23 kg weight ensures ease of handling and placement within the control setup.
This module is certified by CE, UL, and CSA, ensuring global compliance with safety and quality standards. It operates effectively in environments with temperatures ranging from 0°C to 60°C, which makes it suitable for a variety of industrial applications where performance and reliability are critical.
Applications
-
Modular Automation Systems – Ideal for small-scale systems where fewer I/O modules are required.
-
Industrial Control Panels – Suitable for integration into control cabinets where space is at a premium.
-
Power Generation – Used in small turbine or generator control systems requiring a limited number of input/output channels.
-
Oil & Gas – Connects sensors, actuators, and communication processors in compact control systems for remote facilities.
-
Manufacturing Automation – Integrates with small-scale production lines where control of a limited number of processes is needed.
Advantages
-
Compact Design – With dimensions of 215 x 120 x 30 mm and a weight of 0.23 kg, it offers easy integration in space-limited environments.
-
Scalability – While the backplane only supports 2 slots, it can be expanded with additional racks for larger systems, making it ideal for modular control.
-
Power Distribution – Efficiently distributes power to connected modules, ensuring stable operation of the entire system.
-
Easy Installation – Mounts directly onto racks or control panels for quick setup and easy maintenance.
-
Reliable Communication – Ensures continuous and high-speed data transfer between connected modules via the Quantum local bus.
-
Global Certification – Certified for use in a wide range of regions, meeting CE, UL, and CSA standards for safety and reliability.
-
Durability – Built to operate in industrial environments with temperature ranges from 0°C to 60°C.
Brand
Schneider Electric is a global leader in automation and energy management. Known for its expertise in providing innovative solutions for industrial automation, Schneider Electric offers a broad range of high-quality products, including PLCs, control systems, and power management equipment. The Modicon Quantum series represents Schneider Electric’s commitment to providing flexible, scalable, and reliable automation solutions for industries around the world.
Product Series
The Modicon Quantum Series is Schneider Electric’s flagship programmable logic controller (PLC) series designed for large, complex control systems. The Quantum series is known for its modular architecture, scalability, and high performance in industrial automation, offering flexible configurations to meet the needs of various applications, including energy, manufacturing, and critical infrastructure.
Recommended Models from Modicon Quantum Series
| Model | Description | Dimensions | Weight |
|---|---|---|---|
| 140CPU67160 | Quantum CPU for large-scale control systems | 160 x 125 x 65 mm | 0.95 kg |
| 140CPS11420 | 24V power supply module | 215 x 120 x 30 mm | 0.95 kg |
| 140ACR10000 | Analog I/O module with 16 channels | 215 x 120 x 30 mm | 0.80 kg |
| 140DDI35300 | Discrete input module, 32 points | 215 x 120 x 30 mm | 0.75 kg |
| 140DAO84000 | Analog output module with 8 channels | 215 x 120 x 30 mm | 0.85 kg |
Popular Schneider Electric Automation Models
| Model | Description | System Length | Weight |
|---|---|---|---|
| 140NOE771010 | Quantum Ethernet TCP/IP communication module, single RJ45 port, basic model | N/A | 0.530 kg |
| 140NOE77110 | Quantum Ethernet module, enhanced performance, supports Modbus TCP/IP | N/A | 0.550 kg |
| 140NOE77110C | Conformal coated version of 140NOE77110, for harsh industrial environments | N/A | 0.560 kg |
| 140NOE77101 | Standard Ethernet communication module, older generation, widely compatible | N/A | 0.510 kg |
| 140NOE77111 | High-speed dual-port Ethernet module, supports advanced diagnostics | N/A | 0.570 kg |
Frequently Asked Questions (FAQ)
Q1: What does the 140XBP00200 2-slot backplane do?
A1: It provides a connection point for I/O modules and processors, enabling communication between control system components.
Q2: What modules can be connected to the 140XBP00200?
A2: The backplane supports a wide range of Modicon Quantum I/O modules, communication processors, and power supply units.
Q3: How do I mount the 140XBP00200 backplane?
A3: The module can be rack-mounted or panel-mounted, providing flexibility in installation.
Q4: Is this module compatible with the Modicon M340 series?
A4: No, it is specifically designed for the Modicon Quantum series and is not compatible with the M340.
Q5: What is the weight and size of the 140XBP00200 module?
A5: The module has dimensions of 215 x 120 x 30 mm and a weight of 0.23 kg.
Q6: What temperature range does the module support?
A6: The module operates within a temperature range of 0°C to 60°C.
Q7: Does the backplane provide power to the connected modules?
A7: Yes, it provides power distribution to the connected I/O modules and processors.
Q8: Can I extend the system with more slots?
A8: Yes, additional racks and backplanes can be added for larger systems.
Q9: What certifications does the 140XBP00200 module have?
A9: It is CE, UL, and CSA certified, ensuring compliance with international safety standards.
Q10: How is the backplane configured for different applications?
A10: The backplane supports configurable I/O slots, allowing for flexible system setups based on your control requirements.
