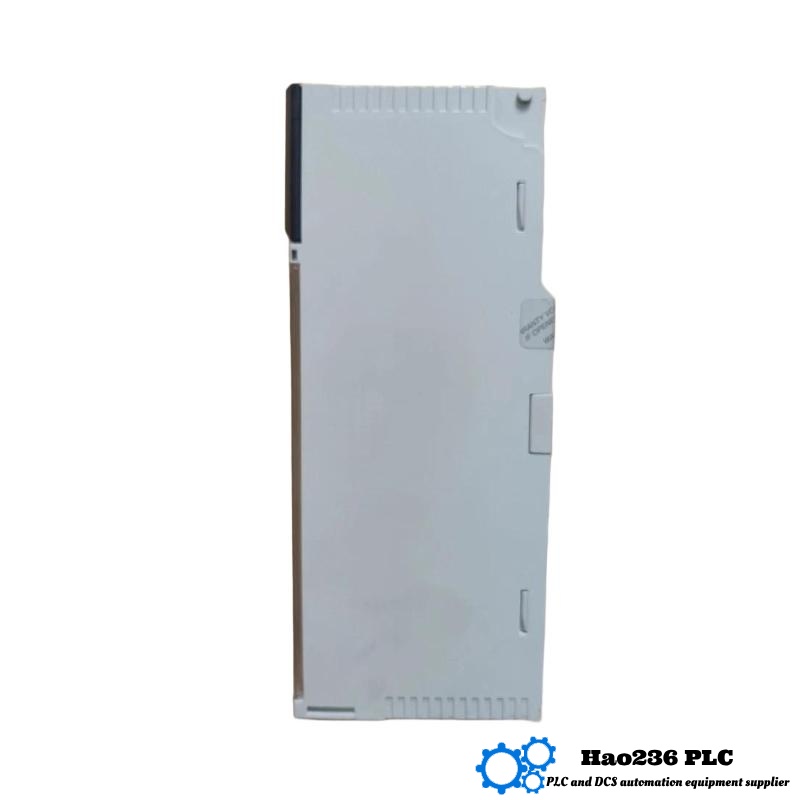

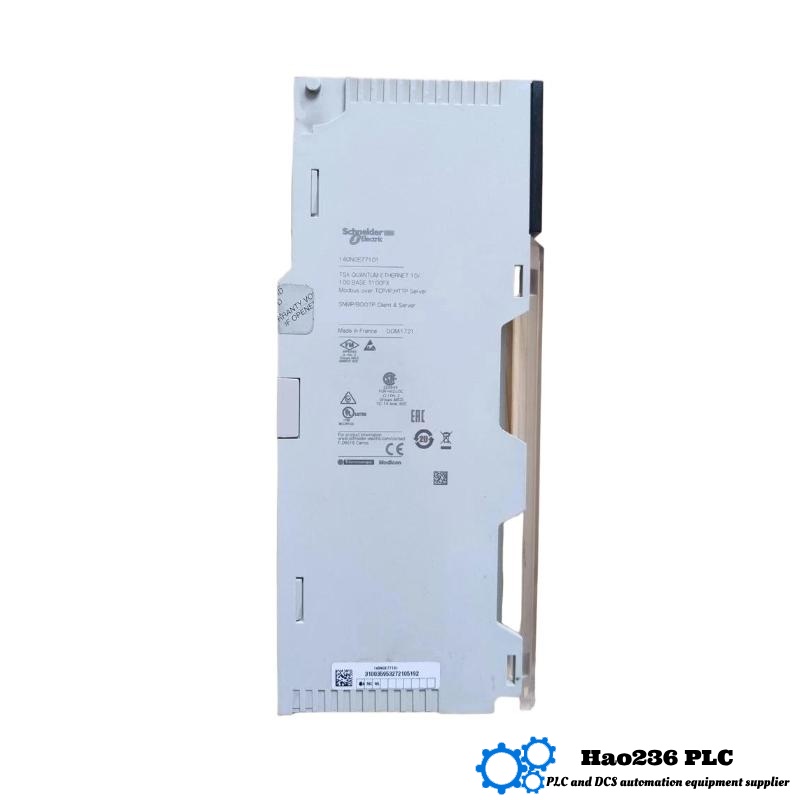

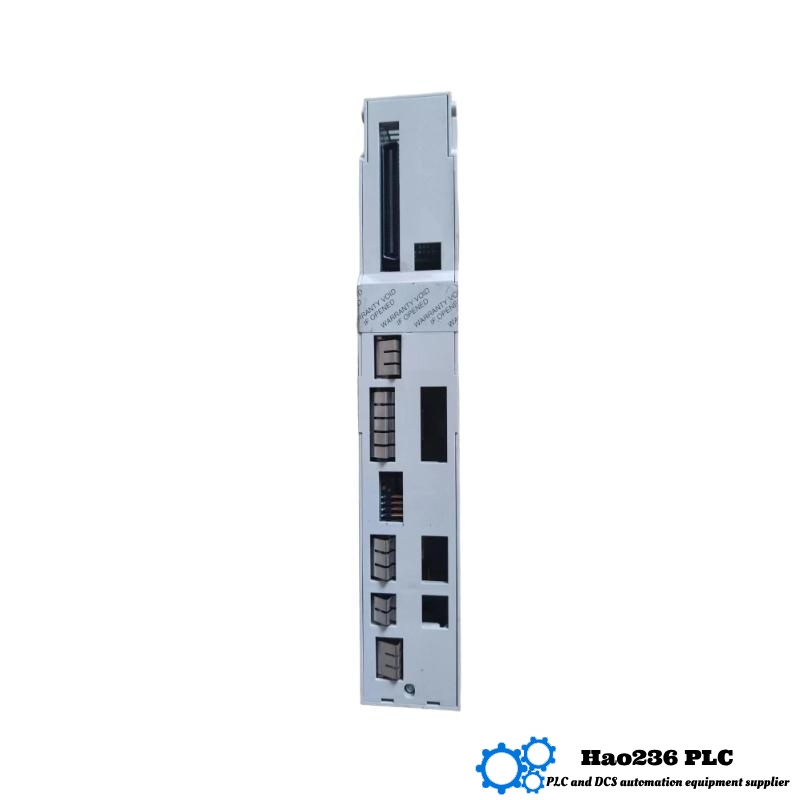

Schneider 140N0E77101 Ethernet TCP/IP Module
Product Description
The Schneider 140N0E77101 is an Ethernet TCP/IP communication module designed to enable seamless communication and integration between Modicon PLCs and Ethernet-based networks. This module allows for reliable data transmission and offers advanced networking capabilities for a variety of industrial applications. The 140N0E77101 module is engineered to simplify the implementation of Ethernet-based communication in automation systems, making it a vital tool for modernizing industrial control networks.
Designed for use with the Modicon Premium series, this module facilitates communication with PCs, HMI systems, and other networked devices over an Ethernet TCP/IP network. Its support for multiple protocols ensures that it can easily integrate into complex network environments.
With high-speed data transfer capabilities, the 140N0E77101 module improves operational efficiency and enables real-time data exchange, which is critical for monitoring, control, and automation processes in industries such as manufacturing, energy, and process control.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | Schneider 140N0E77101 |
| Type | Ethernet TCP/IP Communication Module |
| Supported Protocols | TCP/IP, Modbus TCP |
| Mounting Type | DIN Rail |
| Dimensions | 50 x 170 x 315 mm |
| Weight | 0.345 kg |
| Power Supply | 24V DC (via Bus) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| IP Rating | IP20 |
| Communication Ports | 2 x RJ45 Ethernet Ports |
| Network Speed | 10/100 Mbps |
| Protocols Supported | Modbus TCP, Ethernet/IP, and other standard TCP/IP protocols |
| Data Transfer Rate | Up to 100 Mbps |
Applications
-
Industrial Automation: The 140N0E77101 is ideal for automating communication in PLC systems, enabling seamless integration between PLCs, HMI devices, and supervisory control systems over Ethernet networks.
-
Energy Management: It supports data acquisition from energy meters and provides real-time monitoring and remote control functionalities in energy management systems.
-
Remote Monitoring: This module allows for remote diagnostics and monitoring of connected equipment, especially in industries requiring continuous surveillance of operations like oil & gas or chemical plants.
-
Manufacturing Systems: The 140N0E77101 is used in manufacturing plants to enable real-time communication between machinery, systems, and central control units.
-
Building Automation: The Ethernet TCP/IP capabilities of this module make it ideal for use in HVAC, lighting control, and security systems in commercial buildings and industrial facilities.
Advantages
-
Seamless Integration: Supports both Modbus TCP and Ethernet/IP protocols, making it compatible with a wide variety of networked devices and control systems.
-
Fast Data Transfer: With 10/100 Mbps network speed, the module ensures fast communication, which is essential for real-time monitoring and control in automated systems.
-
Compact Design: The 50 x 170 x 315 mm form factor ensures the module can fit into standard control cabinets, even in space-constrained environments.
-
High Compatibility: It allows communication between Schneider PLCs and other third-party systems, ensuring versatility and integration flexibility.
-
Industrial Reliability: Built to withstand harsh industrial environments with high-quality standards, the module ensures stable operation even in extreme conditions.
Brand and Series
-
Brand: Schneider Electric
-
Series: Modicon Premium
Recommendations of Similar Models from Schneider
| Model | Supported Protocols | Dimensions | Weight |
|---|---|---|---|
| 140N0E77201 | Modbus TCP, Ethernet/IP | 50 x 170 x 315 mm | 0.345 kg |
| 140N0E77300 | Modbus TCP, Ethernet/IP | 50 x 170 x 315 mm | 0.345 kg |
| 140N0E77200 | Modbus TCP | 50 x 170 x 315 mm | 0.345 kg |
| 140N0E77400 | Ethernet/IP | 50 x 170 x 315 mm | 0.345 kg |
| 140N0E77500 | Modbus TCP, Ethernet/IP | 50 x 170 x 315 mm | 0.345 kg |
Top 5 Popular Models from Schneider
| Model | Supported Protocols | Dimensions | Weight |
|---|---|---|---|
| 140N0E77101 | Modbus TCP, Ethernet/IP | 50 x 170 x 315 mm | 0.345 kg |
| 140N0E77201 | Modbus TCP, Ethernet/IP | 50 x 170 x 315 mm | 0.345 kg |
| 140N0E77300 | Modbus TCP, Ethernet/IP | 50 x 170 x 315 mm | 0.345 kg |
| 140N0E77400 | Ethernet/IP | 50 x 170 x 315 mm | 0.345 kg |
| 140N0E77500 | Modbus TCP, Ethernet/IP | 50 x 170 x 315 mm | 0.345 kg |
10 FAQs (Frequently Asked Questions)
Q1: What protocols does the 140N0E77101 module support?
A1: The module supports Modbus TCP and Ethernet/IP protocols.
Q2: What is the network speed of the 140N0E77101?
A2: The module supports 10/100 Mbps network speed.
Q3: How is the 140N0E77101 mounted?
A3: The module is designed for DIN rail mounting.
Q4: What is the weight of the 140N0E77101?
A4: The module weighs 0.345 kg.
Q5: What is the operating temperature range for the 140N0E77101?
A5: The operating temperature range is -20°C to +60°C.
Q6: What is the size of the 140N0E77101?
A6: The module has dimensions of 50 x 170 x 315 mm.
Q7: Can the 140N0E77101 be used in building automation?
A7: Yes, it is suitable for HVAC and lighting control applications in building automation.
Q8: Can I use this module for remote monitoring?
A8: Yes, it supports remote diagnostics and monitoring via Ethernet.
Q9: Does the 140N0E77101 support third-party devices?
A9: Yes, the module is compatible with both Schneider PLCs and third-party devices.
Q10: What is the power supply for the 140N0E77101?
A10: The module is powered by 24V DC via the bus.
