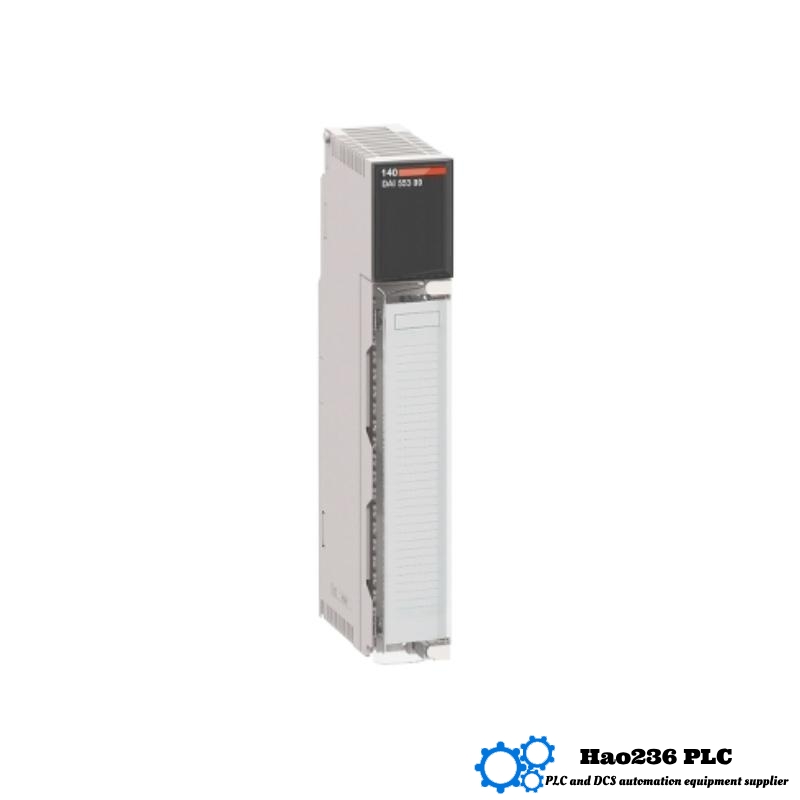

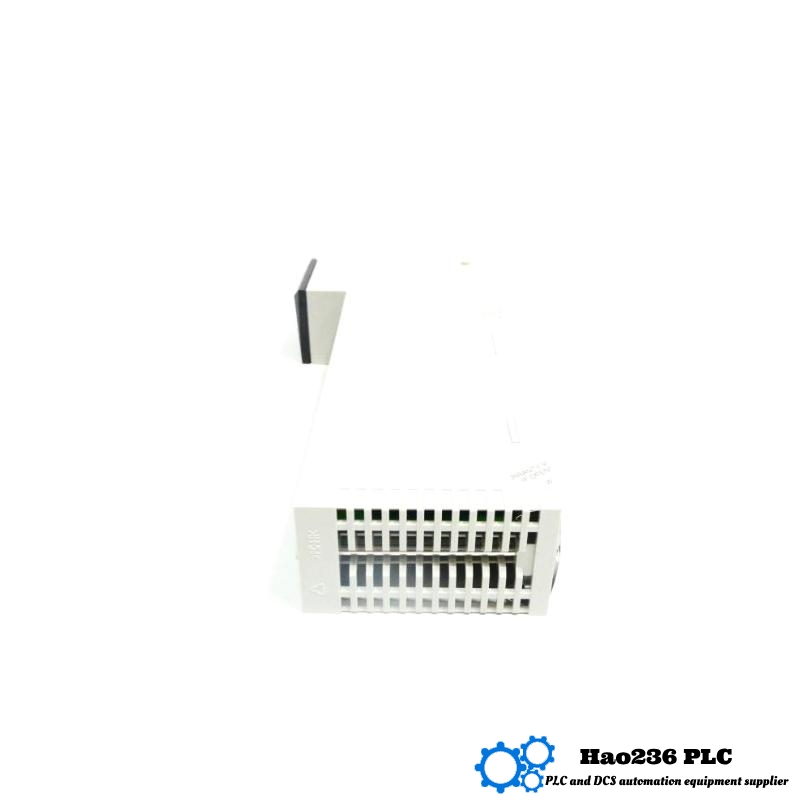

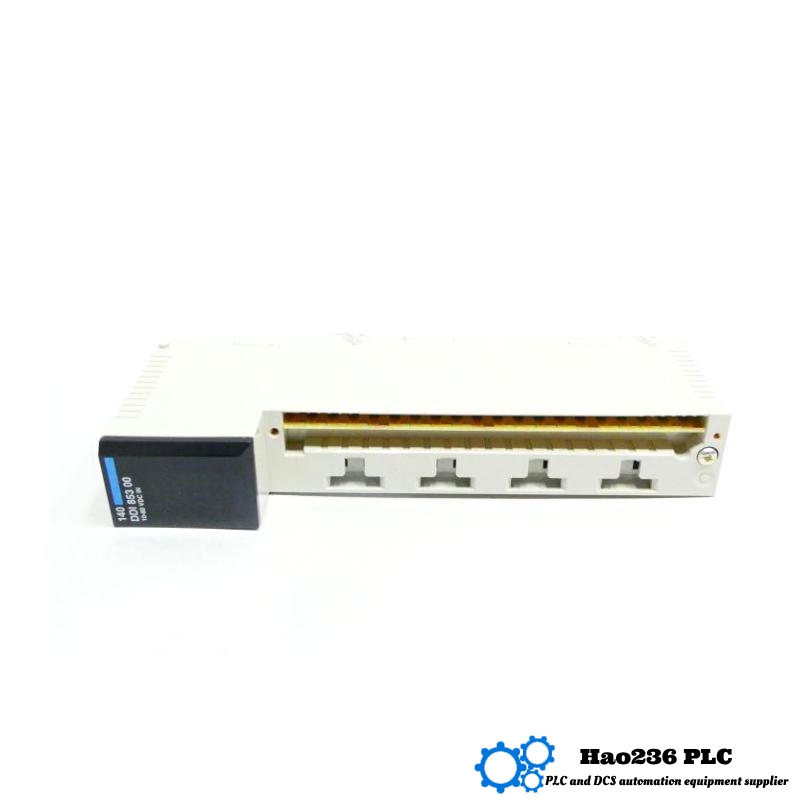

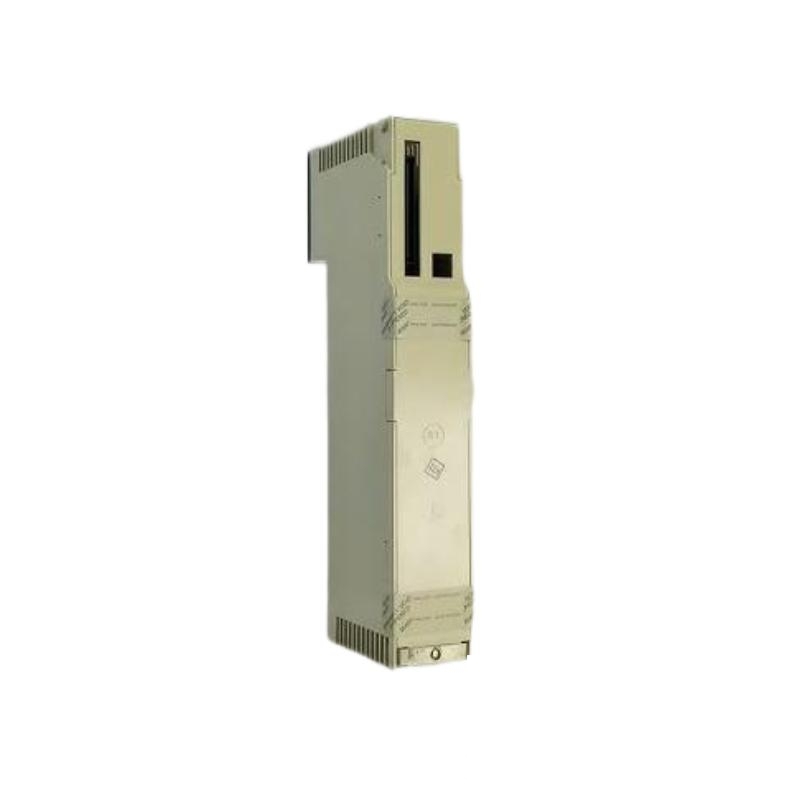

Schneider 140DDI85300 Discrete Input Module
Product Overview
The Schneider 140DDI85300 is a high-quality discrete input module within the Modicon Quantum series. This module is engineered for use in industrial automation systems, where it plays a critical role in receiving digital signals from field devices such as sensors, switches, and other digital input sources. Offering superior performance and robust functionality, the 140DDI85300 is designed for industries that demand high-speed, precise, and reliable data acquisition.
With 32 digital inputs, the module provides an efficient way to integrate a range of digital sensors and control systems into a larger automation network. It features a compact form factor and a broad range of application capabilities, making it suitable for diverse industrial environments.
Product Features and Advantages
-
32 Digital Inputs: This module supports up to 32 discrete inputs, allowing it to manage a larger number of devices or sensors simultaneously.
-
High-Speed Performance: Designed for rapid processing of inputs, the 140DDI85300 is ideal for fast-paced automation and control systems.
-
Seamless Modicon Quantum Series Integration: The module easily integrates with other modules from the Modicon Quantum series, ensuring scalability and versatility within larger systems.
-
Compact and Space-Saving Design: With dimensions of 103.9 × 40.3 × 250 mm and weighing just 0.295 kg, this module is easy to install and ideal for space-limited control systems.
-
Wide Input Voltage Range: The 140DDI85300 supports a 24 V DC input voltage, making it highly adaptable to various industrial control and automation systems.
-
Diagnostic Indicators: The module is equipped with diagnostic LEDs to provide real-time feedback and support troubleshooting.
-
Temperature Tolerance: Operating in temperatures ranging from –20°C to +60°C, the 140DDI85300 ensures reliable performance in demanding industrial environments.
-
High Reliability: Built to last in tough conditions, this module delivers long-term reliability and operational stability in industrial applications.
-
Industrial-Grade Protection: The 140DDI85300 comes with a protective rating of IP20, making it suitable for industrial environments.
-
Robust Communication: Reliable data communication ensures accurate digital input readings, crucial for precise control in complex automation systems.
Applications
The Schneider 140DDI85300 discrete input module is designed for a variety of industrial applications, including:
-
Manufacturing Automation: The module is ideal for automating manufacturing processes, where a large number of sensors and switches need to be monitored and controlled.
-
Process Control: In process industries such as chemical, pharmaceutical, or food and beverage, it facilitates the control of critical systems by monitoring discrete digital inputs.
-
Building Automation: The module can be used in building management systems for controlling lighting, HVAC, security, and other automated building functions.
-
Energy Management: It is used to monitor and control energy-related devices, optimizing energy consumption and ensuring the efficient operation of power systems.
-
Safety Systems: The module is effective in safety-critical applications, such as emergency shutdown systems, alarm systems, or fail-safe operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Schneider 140DDI85300 |
| Input Type | Discrete Input |
| Number of Inputs | 32 Inputs |
| Input Voltage | 24 V DC |
| Input Current | 6 mA (nominal) per input |
| Response Time | 1 ms (nominal) |
| Isolation | 500 V (between inputs and internal circuits) |
| Mounting | DIN Rail |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.295 kg |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Protection Rating | IP20 |
| Material | Industrial-grade plastic housing |
| Diagnostic Indicators | Yes (Status LED) |
| Compliance | CE, UL, CSA |
Product Benefits
-
Scalable and Flexible: With 32 digital inputs, the 140DDI85300 can handle a significant number of field devices, making it ideal for larger, more complex automation systems.
-
Compact and Lightweight: Measuring 103.9 × 40.3 × 250 mm and weighing only 0.295 kg, this module can easily be integrated into confined spaces, helping to save valuable cabinet space.
-
High-Speed Data Processing: The module processes input signals with a fast response time of just 1 ms, ensuring timely and accurate data handling for high-performance systems.
-
Seamless Integration: It integrates smoothly into the Modicon Quantum series, ensuring consistency and scalability in building large automation systems.
-
Robust and Reliable: The module is built to operate in harsh environments with a wide temperature tolerance and industrial-grade protection, ensuring long-term reliability.
-
Real-Time Diagnostics: Equipped with diagnostic LEDs, the 140DDI85300 module allows operators to quickly identify faults or issues, reducing downtime and improving system reliability.
-
Energy Efficient: Consuming minimal power, the module helps improve the overall energy efficiency of the control system.
-
Wide Input Voltage Range: It works with 24 V DC input, making it compatible with a wide range of industrial control systems.
Recommended Related Models
| Model | Input Type | Number of Inputs | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 140DDI85200 | Discrete Input | 16 | 103.9 × 40.3 × 250 | 0.3 |
| 140DDI85000 | Discrete Input | 16 | 103.9 × 40.3 × 250 | 0.3 |
| 140DDI85301 | Discrete Input | 32 | 103.9 × 40.3 × 250 | 0.295 |
| 140DDI85250 | Discrete Input | 32 | 103.9 × 40.3 × 250 | 0.3 |
| 140DDI85001 | Discrete Input | 16 | 103.9 × 40.3 × 250 | 0.3 |
Other Popular Schneider Models
| Model | Input Type | Number of Inputs | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 140CRP93100 | CPU Module | 1 | 103.9 × 40.3 × 250 | 0.45 |
| 140DDI84000 | Discrete Input | 8 | 103.9 × 40.3 × 250 | 0.3 |
| 140DID30200 | Discrete Input | 32 | 103.9 × 40.3 × 250 | 0.4 |
| 140CPS11400 | Power Supply | 1 | 103.9 × 40.3 × 250 | 0.45 |
| 140DOI83200 | Discrete Output | 32 | 103.9 × 40.3 × 250 | 0.6 |
Frequently Asked Questions (FAQ)
Q1: How many discrete inputs does the 140DDI85300 module support?
A1: The module supports 32 discrete inputs.
Q2: What is the input voltage for the 140DDI85300 module?
A2: The module operates with a 24 V DC input voltage.
Q3: What is the response time of the module?
A3: The module has a response time of 1 ms (nominal).
Q4: What is the isolation level for the inputs on this module?
A4: The module provides 500 V isolation between inputs and internal circuits.
Q5: How much current does each input draw?
A5: Each input draws a nominal current of 6 mA.
Q6: Can the module be mounted on a DIN rail?
A6: Yes, the module is designed for DIN rail mounting.
Q7: What is the operating temperature range of the 140DDI85300?
A7: The operating temperature range is from –20°C to +60°C.
Q8: Does the module have diagnostic features?
A8: Yes, the module has diagnostic LEDs that provide status information and help with troubleshooting.
Q9: What is the weight of the module?
A9: The 140DDI85300 module weighs 0.295 kg.
Q10: What are the certifications for this module?
A10: The module complies with CE, UL, and CSA standards.
