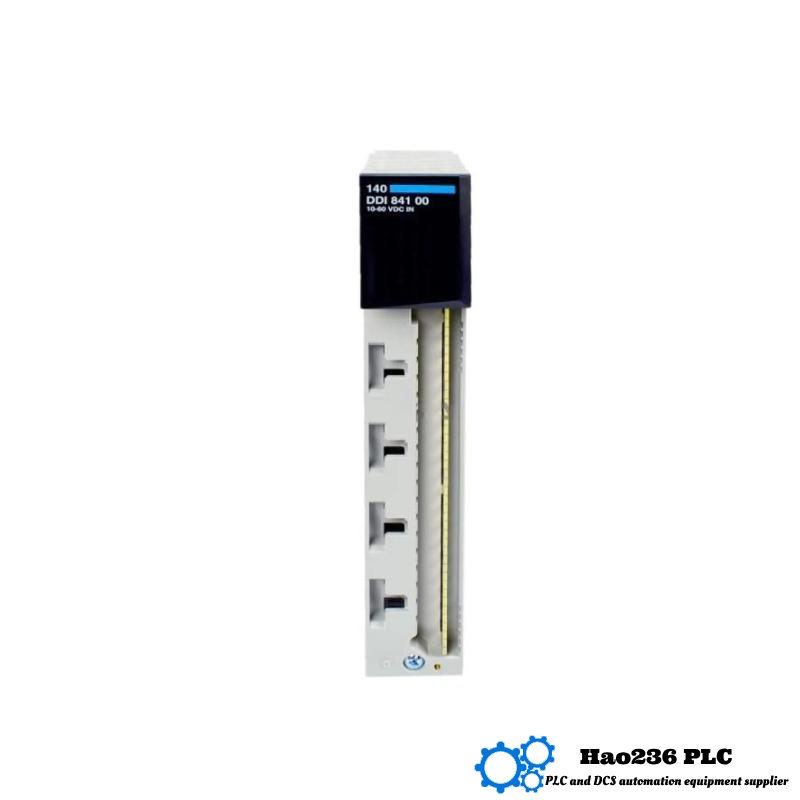

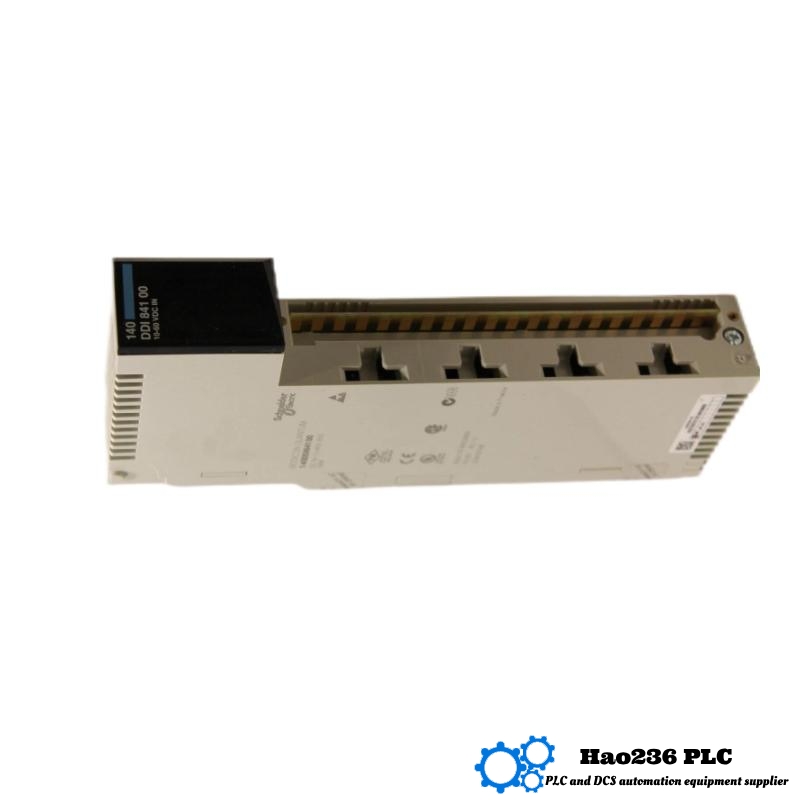

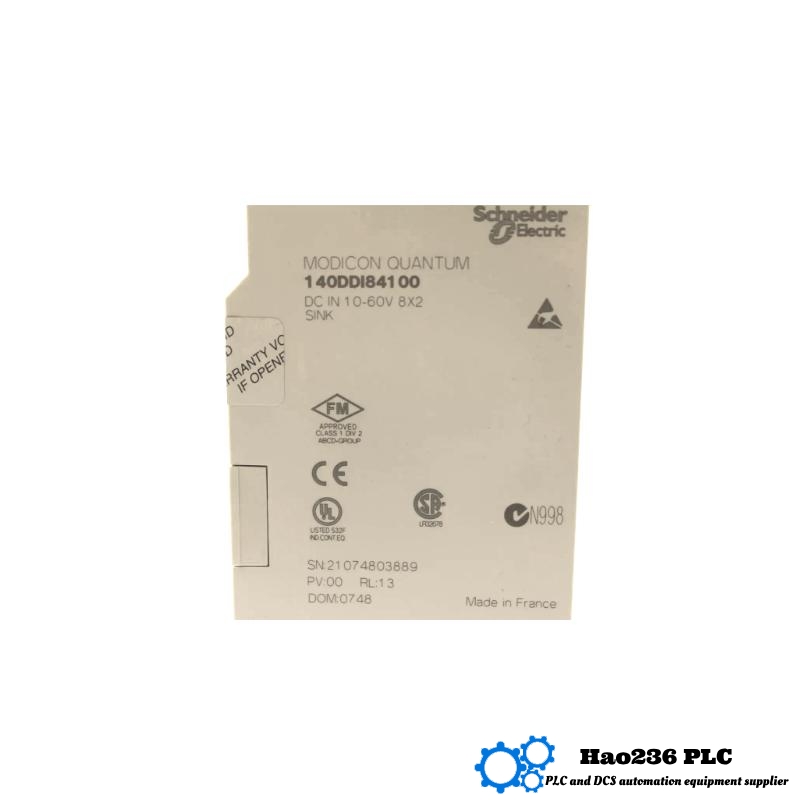

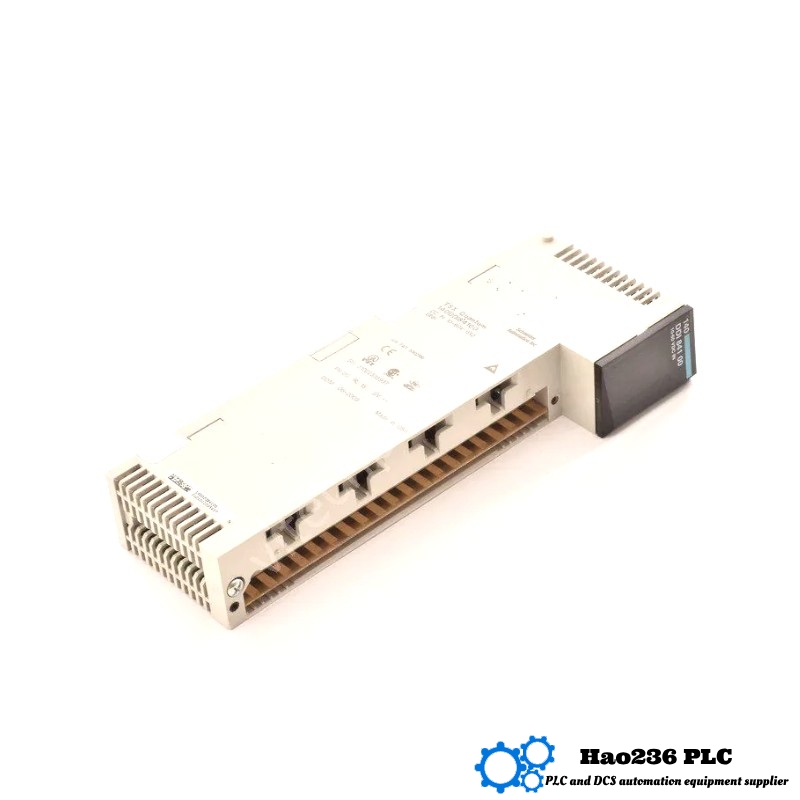

Schneider 140DDI84100 Discrete Input Module
Product Overview
The Schneider 140DDI84100 is a high-performance discrete input module that is part of the Modicon Quantum series. Designed for industrial control systems, this module is ideal for applications that require reliable and accurate discrete input control for digital devices and equipment. It provides a robust and efficient solution for controlling a wide variety of devices such as sensors, switches, and other digital inputs that are integral to complex automation systems.
The 140DDI84100 module features 16 discrete inputs, providing a flexible and scalable approach for various industrial applications. Its compact design and high reliability make it a suitable choice for systems that demand high performance, long lifespan, and precise control.
Product Features and Advantages
-
16 Digital Inputs: The module provides 16 discrete inputs, offering flexibility for a variety of digital control tasks.
-
High-Speed Operation: The 140DDI84100 module is designed for fast processing of digital inputs, which is crucial for high-speed automation systems.
-
Modicon Quantum Series Integration: This module integrates seamlessly into the Modicon Quantum family, allowing easy scalability and flexibility in automation systems.
-
Compact Design: With dimensions of 103.9 × 40.3 × 250 mm and weighing just 0.3 kg, the module is space-efficient and easy to install in control cabinets or other confined spaces.
-
Flexible Input Voltage: The 140DDI84100 supports a wide range of input voltages (24 V DC), making it adaptable to various industrial systems and configurations.
-
High-Quality Reliability: Schneider Electric’s Modicon Quantum series is known for its robustness and long-term reliability, even in harsh industrial environments.
-
Wide Temperature Range: The module operates efficiently in temperatures ranging from –20°C to +60°C, making it suitable for use in demanding industrial environments.
-
Diagnostic Capabilities: Built-in diagnostic features provide real-time feedback, simplifying troubleshooting and improving system uptime.
-
Modular and Scalable: The module can be used in conjunction with other Modicon Quantum modules to build large, scalable systems that meet diverse industrial needs.
Applications
The Schneider 140DDI84100 discrete input module is designed for a variety of industrial applications, including:
-
Industrial Automation: It is used to receive signals from sensors, switches, and other digital input devices, making it suitable for factory automation and production lines.
-
Process Control Systems: In systems that require precise control of processes, such as chemical or manufacturing plants, this module provides reliable input data.
-
Energy Management: The module is used in energy management systems to monitor and control the status of various equipment, ensuring efficient energy use.
-
Building Automation: It can be employed in systems that control lighting, HVAC, and other essential building functions.
-
Safety Systems: The module is suitable for applications where safety inputs need to be monitored and controlled, such as emergency shutdown systems or alarm systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Schneider 140DDI84100 |
| Input Type | Discrete Input |
| Number of Inputs | 16 Inputs |
| Input Voltage | 24 V DC |
| Input Current | 6 mA (nominal) per input |
| Response Time | 1 ms (nominal) |
| Isolation | 500 V (between inputs and internal circuits) |
| Mounting | DIN Rail |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Protection Rating | IP20 |
| Material | Industrial-grade plastic housing |
| Diagnostic Indicators | Yes (Status LED) |
| Compliance | CE, UL, CSA |
Product Benefits
-
Compact and Lightweight: The 140DDI84100 module is compact and lightweight, measuring just 103.9 × 40.3 × 250 mm and weighing only 0.3 kg, making it ideal for space-constrained environments.
-
Flexible Input Voltage: Supports a wide range of input voltages (24 V DC), allowing for easy integration into various systems.
-
High-Speed Performance: The module processes discrete inputs at high speeds, making it perfect for automation and control applications that require quick data handling.
-
Seamless Integration: Designed to integrate smoothly with the Modicon Quantum series, ensuring that it fits perfectly into larger, more complex control systems.
-
Reliable and Durable: Schneider Electric’s high-quality manufacturing ensures long-lasting durability and reliable performance, even in harsh environments.
-
Enhanced Troubleshooting: Built-in diagnostic LEDs allow for easy identification of faults, reducing troubleshooting time and minimizing system downtime.
-
Energy Efficiency: Consumes minimal power, helping to improve the overall energy efficiency of the control system.
Recommended Related Models
| Model | Input Type | Number of Inputs | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 140DDI84000 | Discrete Input | 8 | 103.9 × 40.3 × 250 | 0.3 |
| 140DDI84101 | Discrete Input | 16 | 103.9 × 40.3 × 250 | 0.3 |
| 140DDI84300 | Discrete Input | 32 | 103.9 × 40.3 × 250 | 0.3 |
| 140DDI84102 | Discrete Input | 16 | 103.9 × 40.3 × 250 | 0.3 |
| 140DDI84103 | Discrete Input | 16 | 103.9 × 40.3 × 250 | 0.3 |
Other Popular Schneider Models
| Model | Input Type | Number of Inputs | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 140CRP93100 | CPU Module | 1 | 103.9 × 40.3 × 250 | 0.45 |
| 140DDI83200 | Discrete Input | 32 | 103.9 × 40.3 × 250 | 0.5 |
| 140DID30200 | Discrete Input | 32 | 103.9 × 40.3 × 250 | 0.4 |
| 140CPS11400 | Power Supply | 1 | 103.9 × 40.3 × 250 | 0.45 |
| 140DOI83200 | Discrete Output | 32 | 103.9 × 40.3 × 250 | 0.6 |
Frequently Asked Questions (FAQ)
Q1: How many discrete inputs does the 140DDI84100 module have?
A1: The 140DDI84100 module provides 16 discrete inputs.
Q2: What is the input voltage for the module?
A2: The module operates with a 24 V DC input voltage.
Q3: What is the response time of the 140DDI84100?
A3: The response time of the module is 1 ms (nominal).
Q4: What is the isolation level for the inputs on this module?
A4: The module provides 500 V isolation between inputs and internal circuits.
Q5: How much current does each input draw?
A5: Each input draws a nominal current of 6 mA.
Q6: Can this module be mounted on a DIN rail?
A6: Yes, the module is designed for DIN rail mounting.
Q7: What is the operating temperature range for the 140DDI84100?
A7: The operating temperature range is from –20°C to +60°C.
Q8: Does the module have built-in diagnostics?
A8: Yes, the module is equipped with diagnostic LEDs for status and fault indication.
Q9: What is the weight of the 140DDI84100 module?
A9: The module weighs 0.3 kg.
Q10: What are the compliance certifications for the module?
A10: The module complies with CE, UL, and CSA standards.
