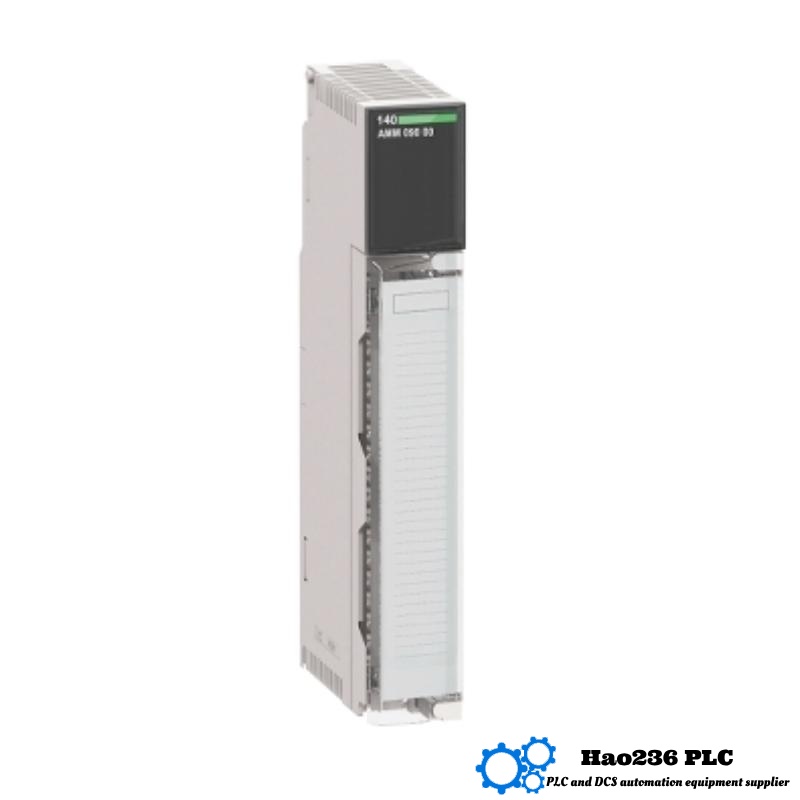

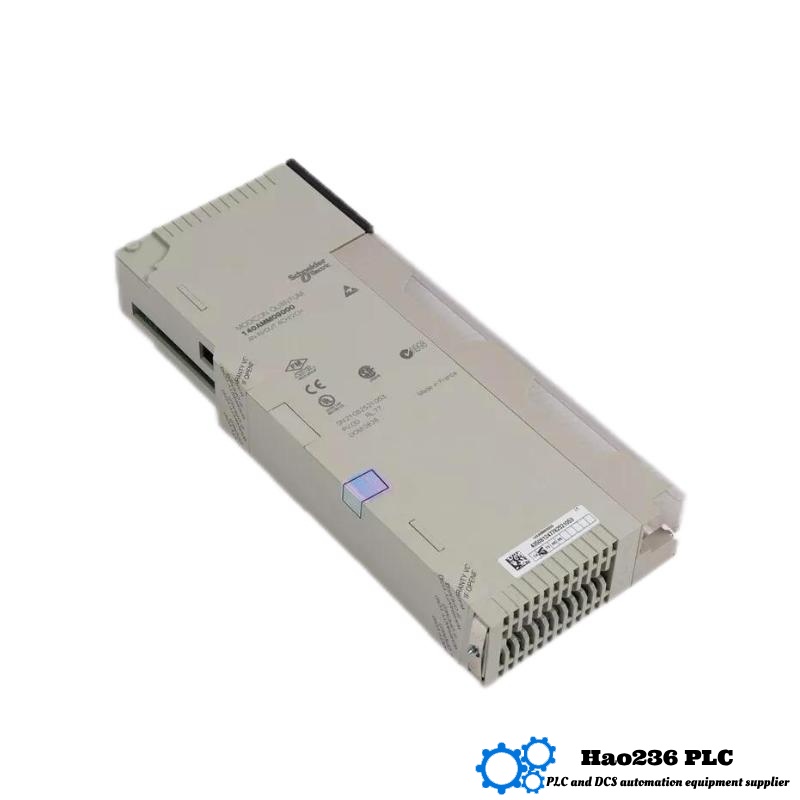

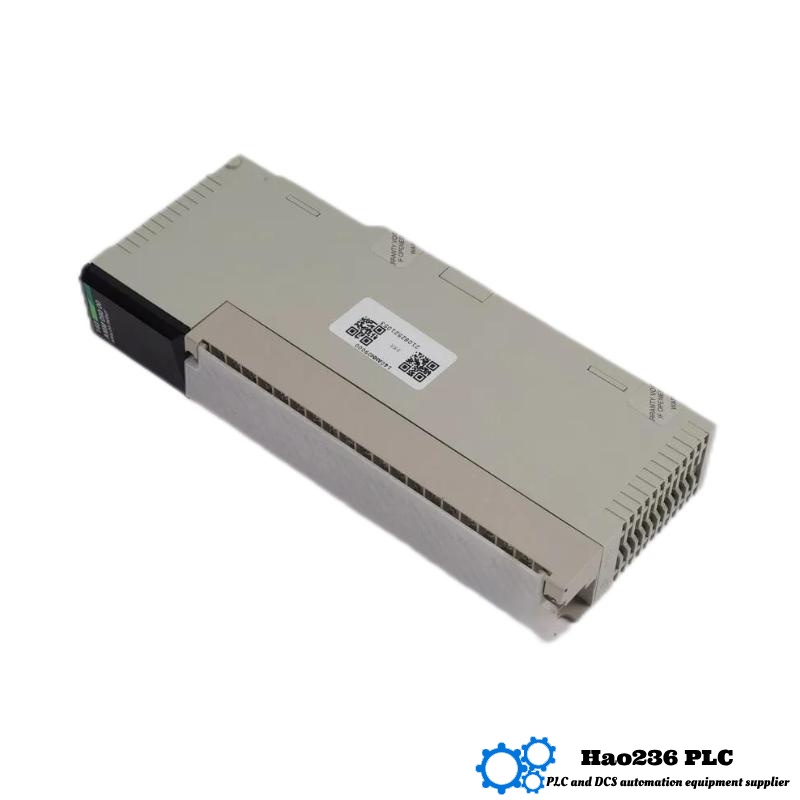

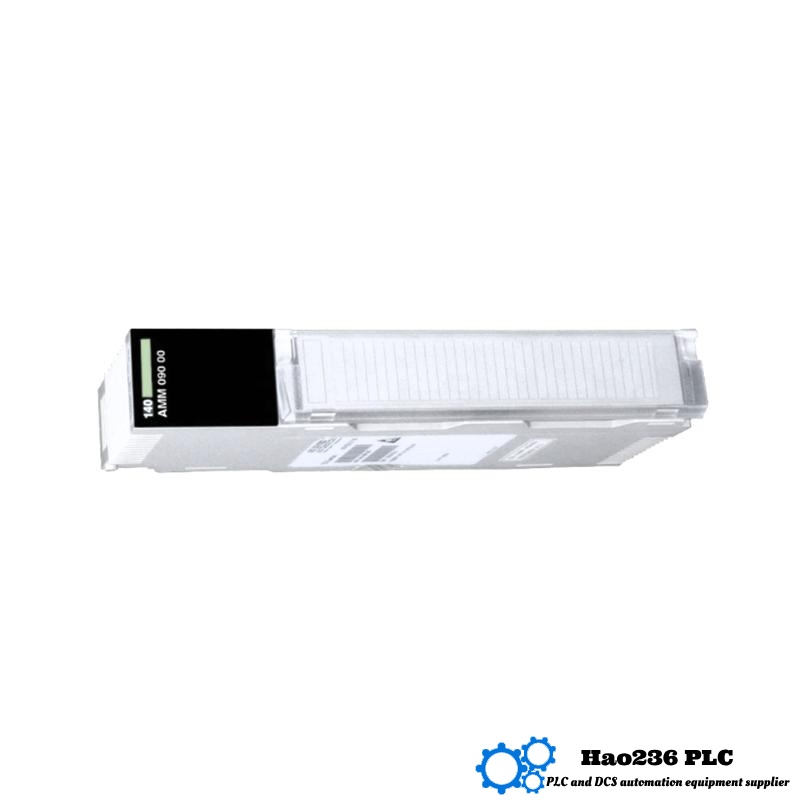

Schneider 140AMM09000C Analog Input/Output Module
Product Introduction
The Schneider 140AMM09000C is a versatile analog input/output module designed for the Modicon M340 programmable logic controller (PLC) series. This module provides reliable analog signal acquisition and output capabilities to facilitate precise monitoring and control of industrial processes. With multiple input/output channels, the 140AMM09000C supports a variety of analog signals including voltage and current, enabling seamless integration into complex automation systems.
Designed with Schneider Electric’s hallmark of quality and durability, the module offers high accuracy, stable performance, and flexible configuration options. It is an ideal choice for industries requiring consistent analog data processing, such as manufacturing, energy management, and process control.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | 140AMM09000C |
| Series | Modicon M340 |
| Module Type | Analog Input/Output Module |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Input Channels | 4 analog inputs |
| Output Channels | 2 analog outputs |
| Input Signal Types | Voltage, Current (0-10 V, 0-20 mA, 4-20 mA) |
| Output Signal Types | Voltage, Current (0-10 V, 0-20 mA, 4-20 mA) |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -40 °C to 85 °C |
| Power Consumption | 3.5 W |
| Communication Protocol | Modbus TCP, Modbus RTU |
| Mounting | DIN rail |
| Certifications | CE, UL, CSA |
Product Applications
The Schneider 140AMM09000C analog input/output module is widely used in:
-
Process Automation — Precisely measures and controls analog variables such as temperature, pressure, flow, and level.
-
Manufacturing Systems — Interfaces with analog sensors and actuators in assembly lines and packaging machinery.
-
Energy and Utilities — Monitors electrical parameters and controls outputs in power plants and substations.
-
Building Automation — Controls HVAC systems through analog sensor inputs and output control signals.
-
Water and Wastewater Treatment — Accurately manages analog inputs from sensors and controls pumps, valves, and mixers.
Product Advantages
-
Multi-Channel Analog I/O: Combines both input and output channels in one compact module, reducing space and wiring complexity.
-
High Accuracy and Resolution: 16-bit resolution and ±0.1% accuracy ensure precise signal processing.
-
Flexible Signal Support: Supports both voltage and current signals across a wide range (0-10 V, 0-20 mA, 4-20 mA), compatible with most industrial sensors and actuators.
-
Robust Isolation: Enhanced channel-to-channel and channel-to-backplane isolation protect against interference and improve signal integrity.
-
Easy Integration: Compatible with the Modicon M340 PLC series and supports popular communication protocols like Modbus.
-
Compact and Lightweight: The module’s dimensions and 0.3 kg weight make it easy to install in tight control panel spaces.
-
Reliable Operation: Designed for industrial environments with operating temperature range of 0 °C to 55 °C and certified for global safety standards.
Brand Information
Schneider Electric is a global leader in energy management and automation solutions. Known for innovation, reliability, and sustainability, Schneider provides cutting-edge products and services designed to optimize industrial and infrastructure operations worldwide.
Recommended Related Models (Same Series or Related)
| Model | Description | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| 140ADM11000 | Analog Input Module, 8 channels | 125 × 45 × 200 | 0.4 | High-density analog input |
| 140ADP11000 | Analog Output Module, 8 channels | 125 × 45 × 200 | 0.4 | Multiple analog output channels |
| 140AMM09100 | Analog I/O Module with enhanced accuracy | 103.9 × 40.3 × 250 | 0.35 | High-precision mixed I/O |
| 140ACI93000 | Analog Current Input Module | 100 × 40 × 200 | 0.3 | Current input, 4-20 mA |
| 140ACP93000 | Analog Current Output Module | 100 × 40 × 200 | 0.3 | Current output, 4-20 mA |
Popular Schneider Electric Models (Same Brand)
| Model | Description | Dimensions (mm) | Weight (kg) | Features |
|---|---|---|---|---|
| 140AII33010C | Analog input module, 8 channels, current type | 100 × 40 × 130 | 0.25 | 4–20 mA input, high accuracy, channel-to-channel isolation |
| 140AIO33000 | Analog I/O module, 4 input & 2 output channels | 100 × 40 × 130 | 0.28 | Mixed signal capability, configurable ranges, fast response |
| 140AIO33000C | Enhanced version of mixed analog I/O module | 100 × 40 × 130 | 0.30 | Improved noise immunity, extended temperature operation |
| 140AII33000 | Analog input module, 8 channels, voltage type | 100 × 40 × 130 | 0.26 | 0–10 V input, diagnostics LEDs, channel calibration |
| 140AOU33000 | Analog output module, 4 channels, voltage output | 100 × 40 × 130 | 0.27 | 0–10 V / 4–20 mA selectable, individual channel monitoring |
Frequently Asked Questions (FAQ)
Q1: What are the dimensions of the 140AMM09000C module?
A1: The module measures 103.9 × 40.3 × 250 mm.
Q2: How much does this module weigh?
A2: It weighs approximately 0.3 kg.
Q3: How many analog input and output channels does it support?
A3: It supports 4 analog inputs and 2 analog outputs.
Q4: What types of signals can this module handle?
A4: It can handle voltage and current signals such as 0-10 V, 0-20 mA, and 4-20 mA.
Q5: What is the accuracy of this module?
A5: It provides ±0.1% full-scale accuracy.
Q6: Is the module isolated?
A6: Yes, it provides channel-to-channel and channel-to-backplane isolation.
Q7: What is the operating temperature range?
A7: The module operates between 0 °C and 55 °C.
Q8: What communication protocols does it support?
A8: It supports Modbus TCP and Modbus RTU protocols.
Q9: Can it be mounted on a DIN rail?
A9: Yes, the module is designed for DIN rail mounting.
Q10: Which PLC series is it compatible with?
A10: It is compatible with the Modicon M340 series.
