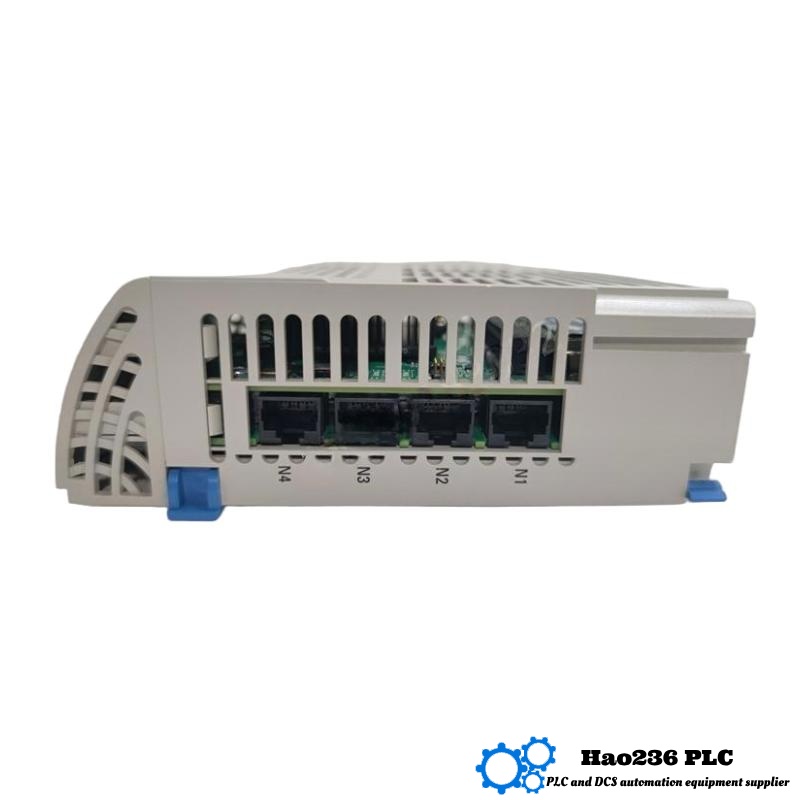

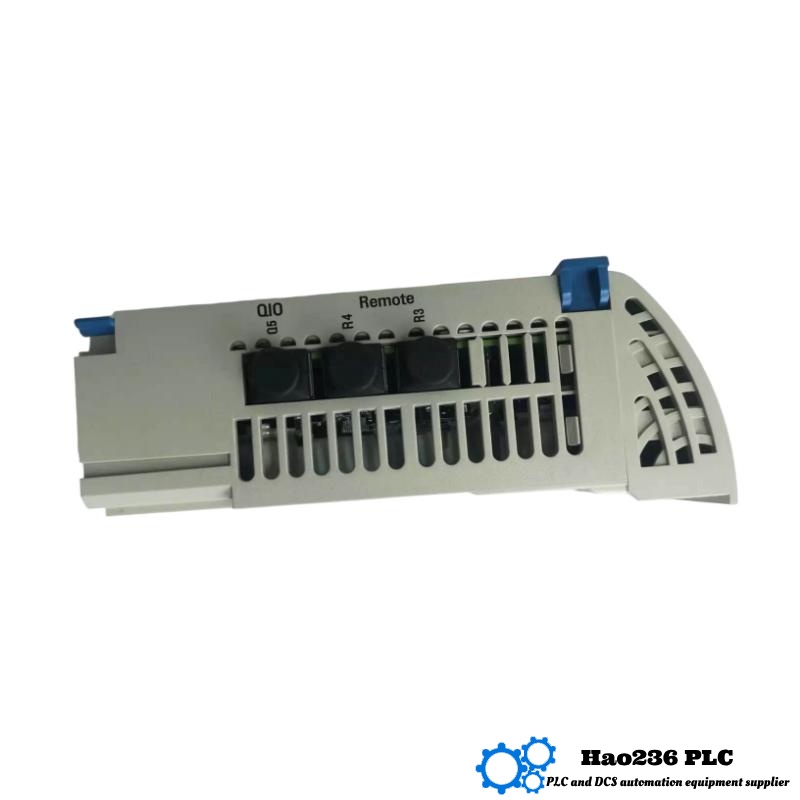

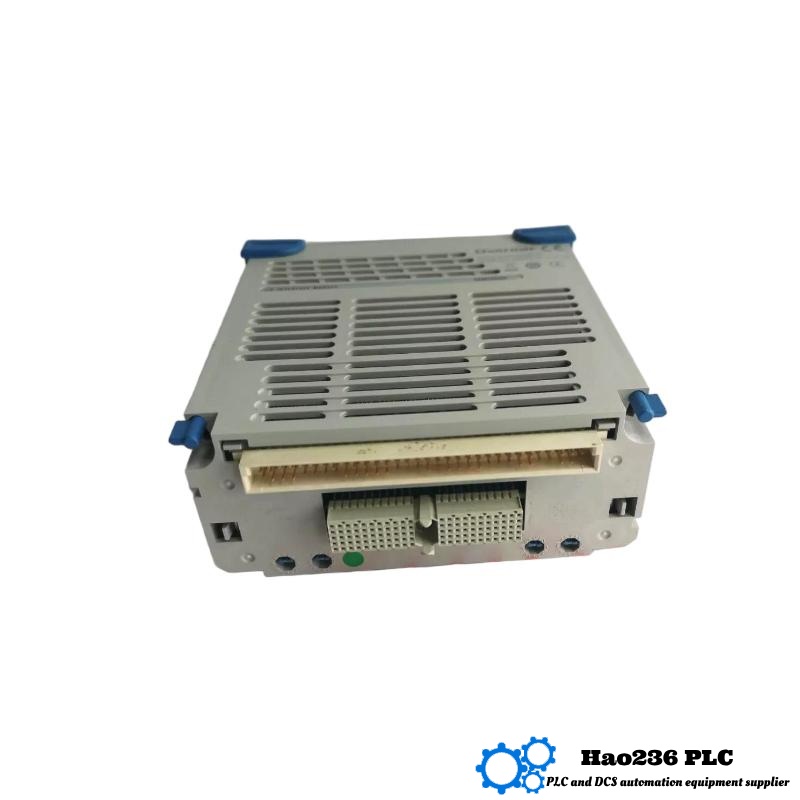

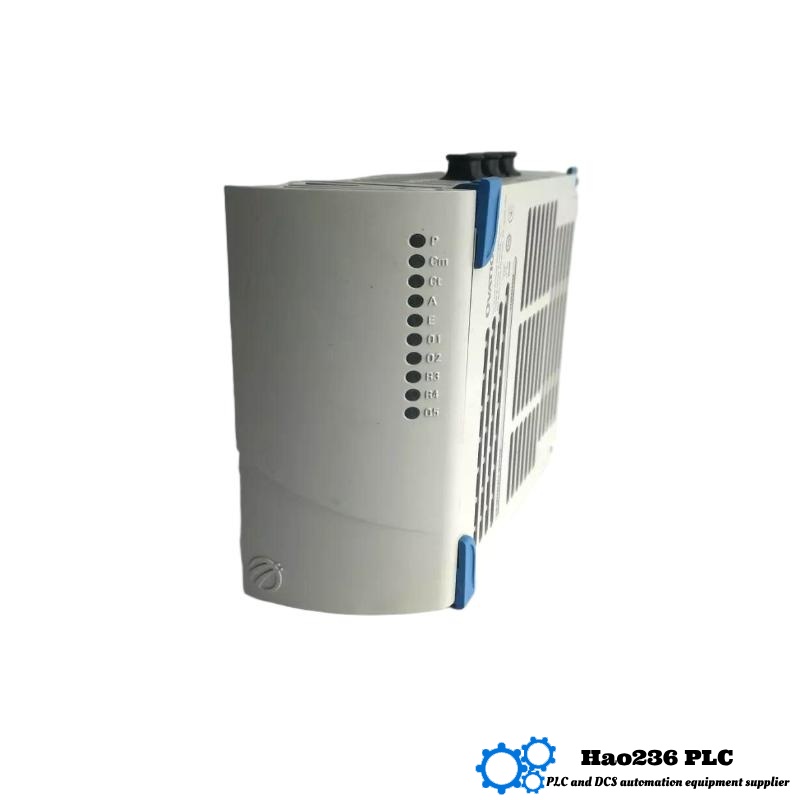

Ovation 5X00226G04 I/O Interface Controller
Product Introduction
The Ovation 5X00226G04 is a high-performance I/O interface controller developed by Emerson, specifically engineered for use within the Ovation™ Distributed Control System (DCS). This module acts as an essential component of the I/O subsystem, ensuring seamless communication and coordination between field devices and the centralized automation system.
Designed to handle both analog and digital signals, the 5X00226G04 provides real-time data processing capabilities, enhancing the responsiveness and reliability of automation and control applications. Its robust design and compact dimensions allow for easy integration into control cabinets, particularly in space-constrained environments. As part of the Ovation series, this module upholds Emerson’s standards for quality, reliability, and industrial performance.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 5X00226G04 |
| Dimensions | 44 x 178 x 114 mm |
| Weight | 0.7 kg |
| Module Type | I/O Interface Controller |
| Input Types | Analog and Digital Inputs |
| Output Types | Analog and Digital Outputs |
| Communication Protocol | Ovation Proprietary Protocol |
| Power Supply | 24 V DC |
| Operating Temperature | 0°C to 60°C |
| Mounting | DIN Rail or Panel Mount |
| Humidity Tolerance | 5%–95% non-condensing |
| Application | Distributed Control Systems |
Product Applications
The 5X00226G04 is designed for demanding industrial applications that require reliable and accurate I/O communication. Its typical use cases include:
-
Power Generation: Turbine control, boiler management, and substation automation
-
Water & Wastewater Treatment: Monitoring pumps, valves, and sensor inputs
-
Petrochemical Plants: Supervisory control of pressure, temperature, and flow systems
-
Process Industries: Data acquisition and equipment feedback in batch and continuous processes
-
Utility Systems: Integration into building management and HVAC automation
By ensuring real-time communication between field devices and the DCS, this module helps maintain optimal system efficiency and responsiveness.
Product Advantages
-
Compact and Lightweight: The module’s small size (44 x 178 x 114 mm) and 0.7 kg weight facilitate installation in tight enclosures.
-
Dual Signal Support: Handles both analog and digital inputs/outputs, enhancing system flexibility.
-
High Compatibility: Integrates seamlessly into Ovation DCS architectures with standardized communication protocols.
-
Rugged Construction: Built to withstand industrial environments with wide temperature and humidity tolerances.
-
Scalable Design: Easily expandable to accommodate future I/O additions without major hardware changes.
-
Low Power Consumption: Operates efficiently on 24 V DC supply, reducing system energy loads.
-
Easy Installation: Supports both DIN rail and panel mounting options for convenience during installation.
-
Emerson Reliability: Developed by a globally recognized automation brand known for quality and long-term performance.
Brand
-
Brand: Ovation
The Ovation series is Emerson’s flagship DCS solution, used globally in power, water, and industrial process automation. Modules in this series are optimized for high availability, real-time control, and seamless system integration.
Related Models from the Same Series
| Model | Module Type | Dimensions (mm) | Weight (kg) | Application |
|---|---|---|---|---|
| 5X00226G04 | I/O Interface Controller | 44 x 178 x 114 | 0.7 | Real-time I/O management |
| 5X00115G01 | Analog Input Module | 44 x 178 x 114 | 0.65 | Signal acquisition |
| 5X00357G02 | Digital Output Module | 44 x 178 x 114 | 0.68 | Device actuation |
| 5X00241G01 | Power Distribution Unit | 44 x 178 x 114 | 0.75 | Power management |
| 5X00119G01 | Communication Processor | 44 x 178 x 114 | 0.7 | Network interface |
Recommended Popular Emerson Ovation Models
| Model | Function | Dimensions (mm) | Weight (kg) | Application |
|---|---|---|---|---|
| 5X00226G04 | I/O Interface Controller | 44 x 178 x 114 | 0.7 | I/O processing and interfacing |
| 5X00202G01 | Analog Output Module | 44 x 178 x 114 | 0.65 | Analog control signal output |
| 5X00167G01 | Digital Input Module | 44 x 178 x 114 | 0.66 | Sensor status monitoring |
| 5X00105G01 | System Redundancy Module | 44 x 178 x 114 | 0.72 | Control system backup |
| 5X00489G01 | Network Interface Module | 44 x 178 x 114 | 0.7 | Ethernet/data communication |
FAQ (QA Format)
Q1: What is the purpose of the 5X00226G04 module?
A1: It functions as an I/O interface controller for managing input and output communication within Ovation DCS systems.
Q2: What types of signals does the module handle?
A2: It supports both analog and digital inputs and outputs.
Q3: What are the dimensions of the 5X00226G04?
A3: The module measures 44 x 178 x 114 mm.
Q4: How much does the module weigh?
A4: It weighs approximately 0.7 kg.
Q5: What is the operating temperature range?
A5: It operates reliably between 0°C and 60°C.
Q6: How is this module typically installed?
A6: It supports both DIN rail and panel mounting for flexible installation.
Q7: What kind of power supply does it require?
A7: The module operates on a 24 V DC power input.
Q8: Can this module be integrated with other Ovation modules?
A8: Yes, it is fully compatible with all modules in the Ovation DCS series.
Q9: In what industries is this module commonly used?
A9: Power generation, water treatment, petrochemical, and general industrial automation.
Q10: Is this module designed for harsh industrial environments?
A10: Yes, it is engineered to withstand temperature and humidity variations typical of industrial settings.
